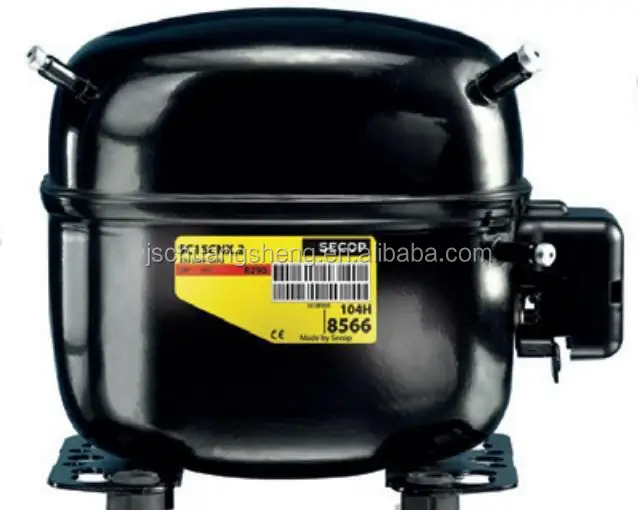

220V 60HZ Supermarket showcase SECOP compressor mini refrgeration unit

Product Overview

Description

220V/1PH/60HZ SECOP hermetic compressor refrigeration unit

Medium temperature                                    R404A

Nominal data

MBP	HP	Compressor	Voltage	Condenser surface	Fan		Cooling capacity(W)					Suction	Discharge
							Evaporating temperature(°C)
Model			V-PH-HZ	M2	No x Φ	type	-15	-6.7	-5	0	7.2
LKPG028	1/4	NF7MLX	220-1-60	2.3	1 x 250	square shade pole fan	660	831	1021	1242	1420	8.2mm	6.2mm
LKPG030	1/3	SC10MLX	220-1-60	4.1	1 x 250	square shade pole fan	840	1072	1321	1615	1856	8.2mm	6.2mm
LKPG048	1/2	SC12MLX	220-1-60	4.6	1 x 300	axial fan motor	1006	1269	1561	1900	2173	8.2mm	6.2mm
LKPG068	3/4	SC15MLX.2	220-1-60	6.1	1 x 300	axial fan motor	1229	1529	1880	2292	2636	10.2mm	6.2mm
LKPG100	1	NT6222GK	220-1-60	8.6	1 x 300	axial fan motor	1250	1850	1950	2360	3040	10.2mm	6.2mm
LKPG150	1.5	NJ9232GK	220-1-60	11.2	1 x 300	axial fan motor	1660	2720	2873	3562	4704	10.2mm	6.2mm
TEST CONDITION: Condensing Temperature: 54.4°C





220V/1PH/60HZ Secop hermetic compressor refrigeration unit

Medium temperature                           R134A

Nominal data

MBP	HP	Compressor	Voltage	Condenser surface	Fan		Cooling capacity(W)					Suction	Discharge
							Evaporating temperature(°C)
Model			V-PH-HZ	M2	No x Φ	type	-15	-6.7	-5	0	7.2
LKPG028	1/4	NL8.4MF	220-1-60	2.4	1 x 250	square shade pole fan	403	550	660	823	1000	8.2mm	6.2mm
LKPG030	1/3	NL10MF	220-1-60	2.3	1 x 250	square shade pole fan	502	673	804	997	1206	8.2mm	6.2mm
LKPG048	1/2	SC15G	220-1-60	4.1	1 x 250	square shade pole fan	639	890	1067	1300	1600	8.2mm	6.2mm
LKPG068	3/4	SC18G	220-1-60	4.6	1 x 300	axial fan motor	710	983	1183	1495	1852	10.2mm	6.2mm
LKPG100	1	SC21G	220-1-60	6.1	1 x 300	axial fan motor	814	1173	1416	1700	2132	10.2mm	6.2mm
TEST CONDITION: Condensing Temperature: 54.4°C
