IR tap sensor PCB/ PIR sensor circuit/ infrared tap sensor PCB
- Category: >>>
- Supplier: Fuzhou Pepe Electronics Technology Co. Ltd.
Share on (60625358799):
Product Overview
Description
Company Profile
As an OEM and ODM supplier, PEPE is experienced in developing, engineering, and manufacturing automatic sensors, control boards, wireless control systems, and alarm systems at several industries' hardware and software interactions. Our service cover software and hardware development, testing, prototyping, molding, production, packaging, certification, and transport to the market. Our team manages each process with a standard operation processing to prevent problems at the development and production stage, and cost control and production quality guaranty are priorities.
Design Your System
IR tap sensor - EJ-P0035
IR tap sensor - EJ-P0201
Automatic tap sensor - EJ-P0209
11*19 mm sensor PCB - EJ-R603
32 mm sensor PCB- EJ-B605
19 mm sensor PCB -EJ-B607
Application
Product Paramenters

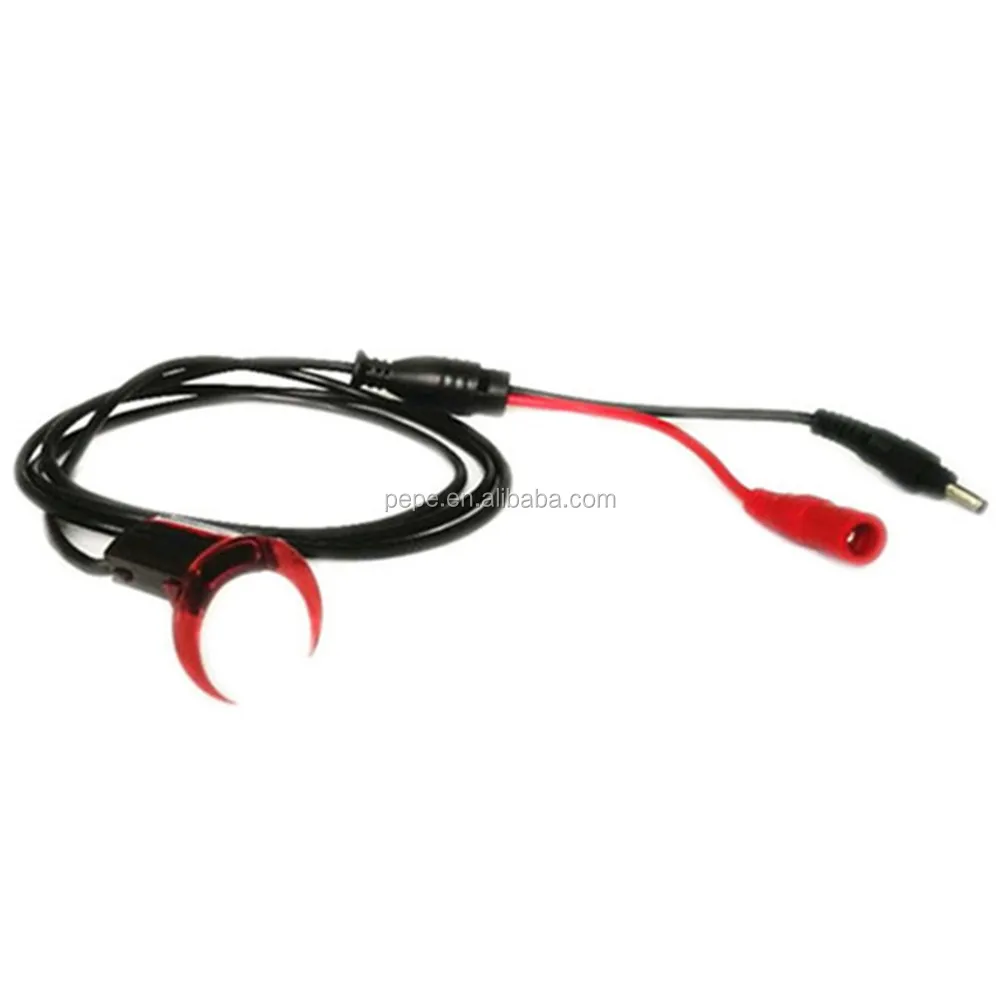

IR tap sensor PCB/ PIR sensor circuit/ infrared tap sensor PCB
Anti-interference, the control system withstands sunlight, lights, and batteries.
Customized setting: the convenience of remote or app lets you customize all parameters.
Loss of power protection: to protect drive work in case of a sudden power failure occurs.
Compact design ensures reduced space requirement.
Low power consumption guarantees extended battery life.
Model number: | EJ-R603 |
Operating voltage: | DC 4.5V-6.6 V |
Infrared sensor distance factory default setting for different applications: (Adjusted with a remote) | Tap sensors: 15 CM Soap dispenser: 10 CM |
Maximum output current: | 800mA |
Dimension : | 11*19 MM |
Switch off time delay: | 0.5S |
Power consumption: | <20 uA |
Output pulse width: | 45 ms |
Maximum washing period: | 60 seconds auto shut off |
Low voltage indicator: | < 4.5 V. |
Directive： | 2014/30/EU， FCC PART 15B |

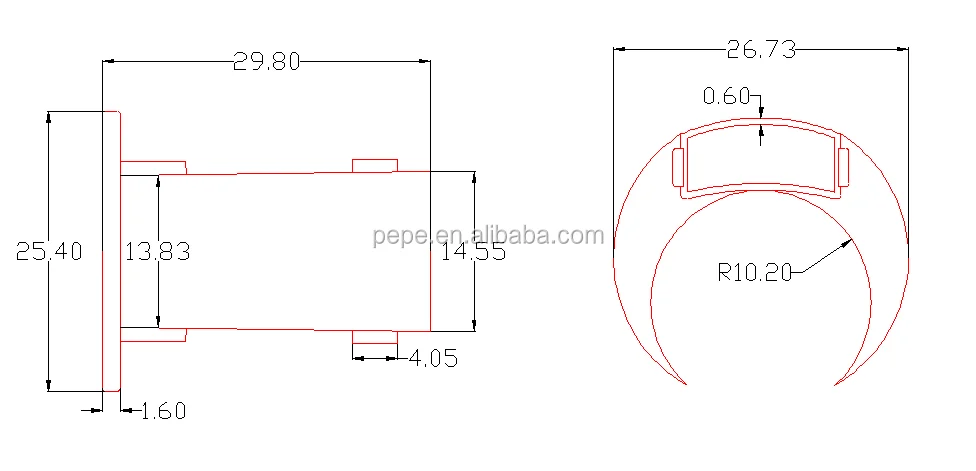

Plastic sensor casing
Abrasion, weathering, corrosion resistance, and strong hardness can be well-protected electronics; optional colors and materials.
11*19 MM control board
The control board is designed for a wide range of automatic products, various sensor covers, and wire cable options.
Related Products
Control box - EJ-B003
Battery holder - EJ-B001
AC to DC Transformer - EJ-P002
Solenoid valve -EJ-S0025
4 PIN wire cable - EJ-020
DC wire cable - EJ-005
