1200 Degree Tilting Rotary Tube Furnace Heat Treatment Rotary Tube Furnace Laboratory Electric Tube Furnace
- Category: >>>
- Supplier: Nanyang Dadi Electric Equipment Co. Ltd.
Share on (60625402144):
Product Overview
Description
1200 Degree Tilting Rotary Tube Furnace Heat Treatment Rotary Tube Furnace Laboratory Electric Tube Furnace
Tube furnace mainly used in chemical analysis, physical decomposition and synthesis,
super hard materials (such as ceramic), Rare and precious metal smelting and purification,
metal heat treatment of sintering process research and other scientific experiments.
Universities and colleges, scientific research institutes, medical and health, petroleum chemical
industry, mining enterprise, quality and technology supervision agencies,
and other units laboratory, laboratory are the use of such equipment.
1. Gravimetric analysis;
2. Sintering;
3. Quantitative analysis;
4. Heat treating;
5. Glass preparation;
Product Description
Tube furnace Structure:
High purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency.
Heavy duty double layer structure with cooling fan to keep furnace exteriors safe to touch.
Doble layer sreel case with forced air cooling to ensure lower saferface temperature.
One optional venting port is built on the top of furnace,need at extra cost .

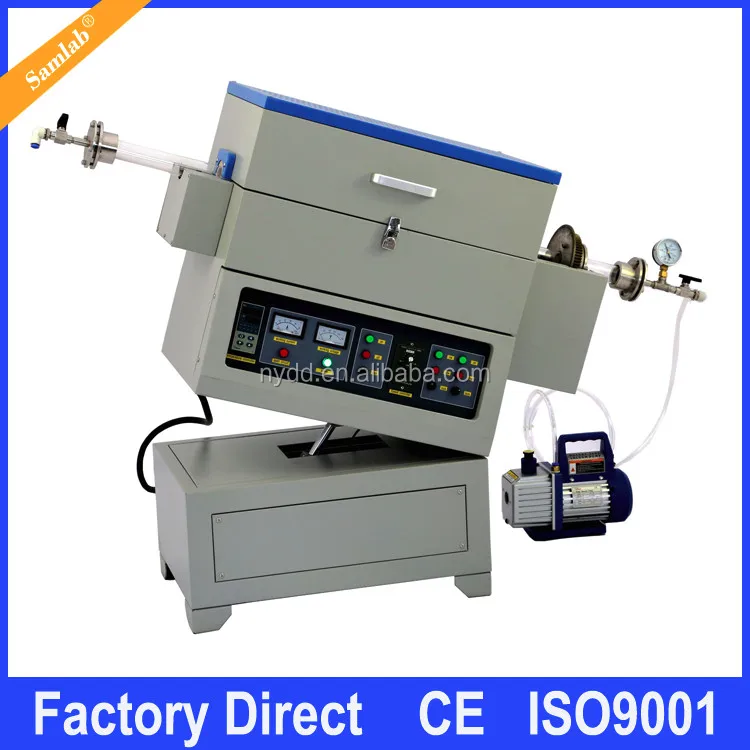

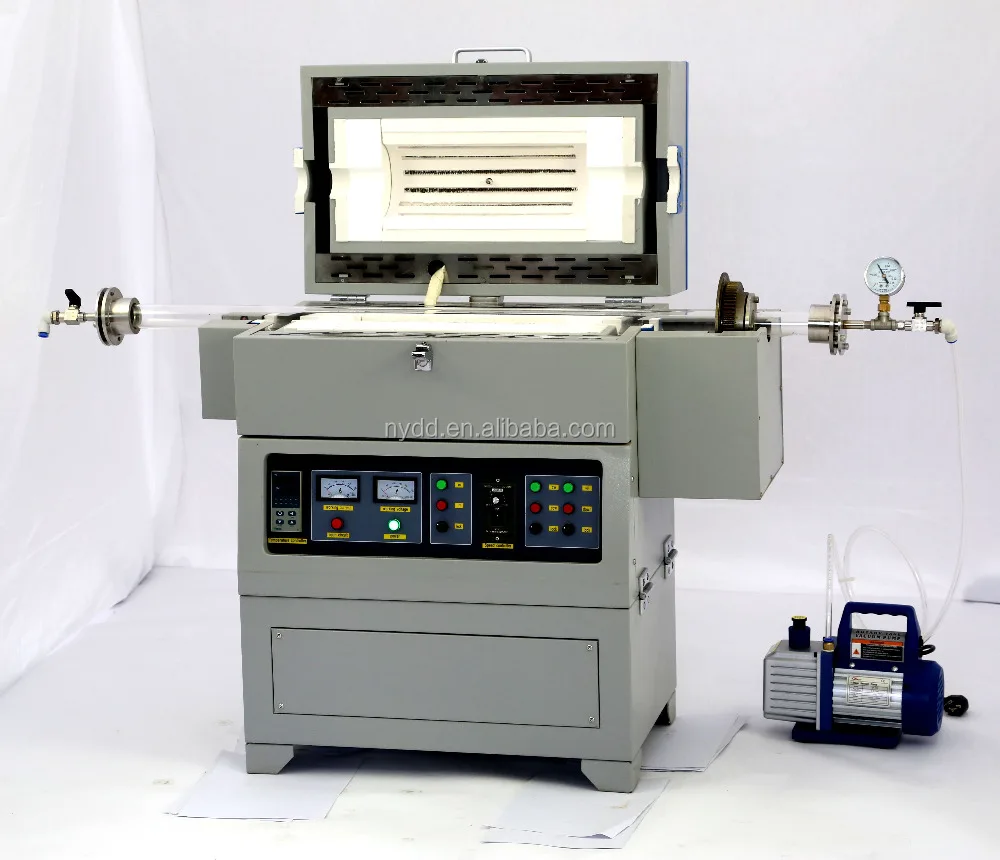

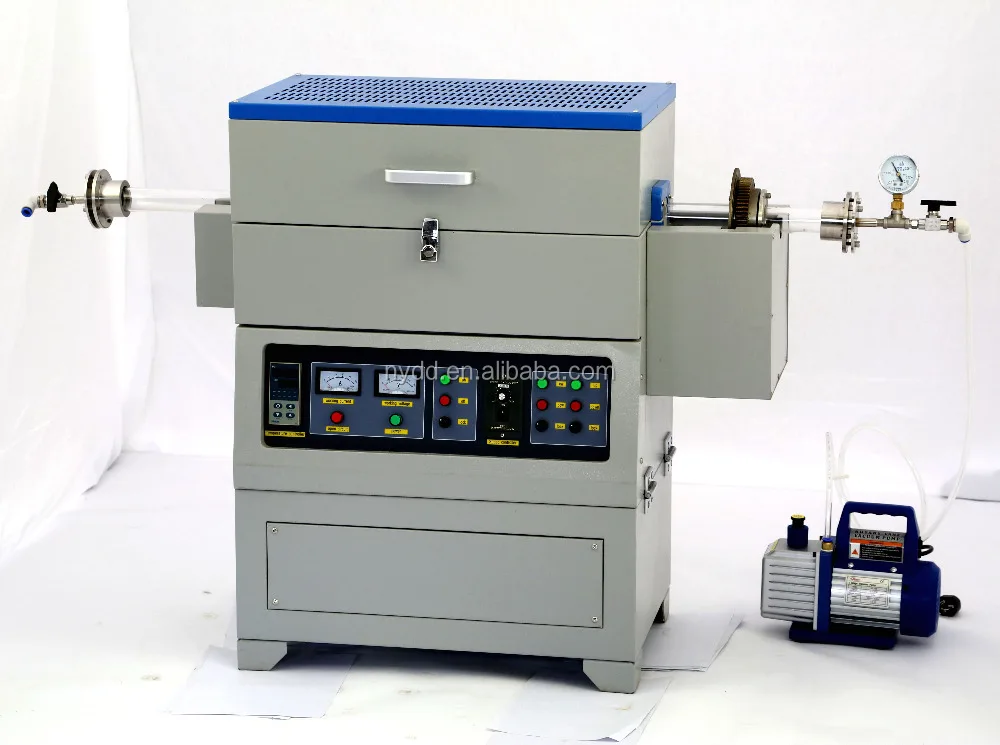

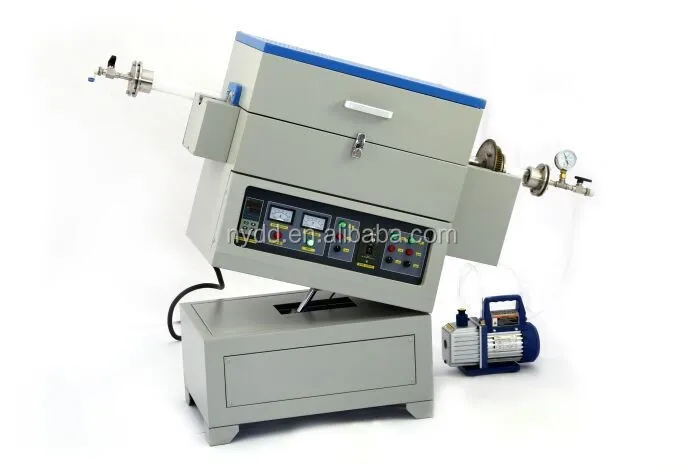

Rotary Tube furnace details picture:
 |
 |
Tube furance details specification:
| Item No. | SK2R-5-12TPC3 |
| Tube size: | Quartz tube Dia. OD80mm ID70mm, heating zone:300mm |
| Power: | 5k W Max. ( power cord is included ) |
| Voltage: | AC 220V 50/60 Hz |
| Max. Temperature : | 1200 °C for short time ; |
| Continuous Working Temperature: | 1100 °C Max. ; |
| Max. Heating Rate: | 0-30 °C /min,Suggest to be 20.C/min. |
| Temperature Controller : | PID automatic control and auto-tune function. 30 programmable segments for precise control. Built in protection for overheating and broken thermocouple. Large digital control panel for easy operation. |
| Temperature Accuracy : | +/- 1 °C |
| Heating Elements : | Fe-Cr-Al Alloy doped by Mo. |
| Thermocouple : | K type |
| Vacuum & atmospher | Max. -0.1Map; inert gas ,N2,O2 atmosphere available. |
| Furnace tilting angle: | 0-30.C adjustable; |
| Tube rotating speed: | 0-7 RPM variable. |
| Standard parts: | crucible tongs 1pc,high temperature gloves 1 pair,one user manual. |
Tube furnace Standard Sizes:
Type | heating zone | Working/Max.temperature | Delivery time |
1200.C tube furnace | OD40-120mm, 100-1000mm L. | 1100.C/1200.C | 3-30 days |
1200.C tube furnace | OD40-120mm, 100-1000mm L. | 1100.C/1200.C | 3-30 days |
1200.C tube furnace | OD40-120mm, 100-1000mm L. | 1100.C/1200.C | 3-30 days |
1200.C tube furnace | OD40-120mm, 100-1000mm L. | 1100.C/1200.C | 3-30 days |
Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
Packaging & Shipping
How to make an order
Company Information
Nanyang Dadi Electric Equipment Co., Ltd is a professional Heat treatment furnace manufacture which with more than 11 years experiences.
Mainly products:
Muffle furnace | Atmosphere furnace | Tube furnace |
Dental sintering furnace | Vacuum furnace | Crucible furnace |
Bottom loading furnace | Car bottom furnace | Etc. |
FAQ
1. Q: Are you muffle furnace manufacturer?
A: Yes, we are professional muffle furnace manufacturer of China.
2. Q:What kind terms of payment can be accepted?
A: L/C, T/T, Western Union, Paypal, Trade Assurance, etc
3. Q: Can I ask for customized furnace?
A: Yes, customized furnace is accepted.
4. Q: What about the delivery time?
A: Within 15 days after receiving your payment or based on order quantity and production schedule.
5. Q: What about the guarantee period?
A: The guarantee period is 12 months.
6. Q: What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
