MA 300A melamine dinnerware sets heat moulding machine
| Product description |
Suitable for the melamine, urea, bakelite, fiber and other thermosetting material production of tableware products. Such as bowl, cup, dish, chopsticks, spoon, plate, smack-box, starch imitation porcelain tableware plant fiber imitation porcelain tableware plate fiber imitation procelain tableware and so on.

| Application sample |

| Application |
|
| Model | ||||
Items | Unit | MA-100A | MA-200A | MA-300A | MA-300A | MA-450A |
Clamping Force | ton | 100 | 200 | 300 | 300 | 450 |
Piston Diameter | mm | 265 | 350 | 430 | 430 | 525 |
Platen Size | mm | 400*650 | 600*650 | 720*720 | 800*900 | 800*800 |
Opening Stroke | mm | 450 | 500 | 500 | 600 | 600 |
Maximum Opening Stroke | mm | 600 | 750 | 700 | 800 | 750 |
Pump pressure | kg/cm² | 210 | 210 | 210 | 210 | 210 |
Oil Tank Volume | L | 330 | 405 | 450 | 660 | 660 |
Motor Power | HP (kw) | 7.5 (5.5) | 10 (7.5) | 10 (7.5) | 15 (11) | 15 (11) |
Heating Power | kw | 8.8 | 12 | 11.4 | 12.4 | 12.4 |
Total Wattage | kw | 14.3 | 19.5 | 18.9 | 23.4 | 23.4 |
Machine Dimensions | m | 1.8*1.26*2.1 | 1.85*1.5*2.4 | 2.15*1.5*2.6 | 2.5*1.5*2.9 | 2.4*1.5*2.85 |
(L*W*H) | ||||||
Weight | ton | 2.5 | 4 | 5.5 | 8.3 | 8.3 |
| Product features |

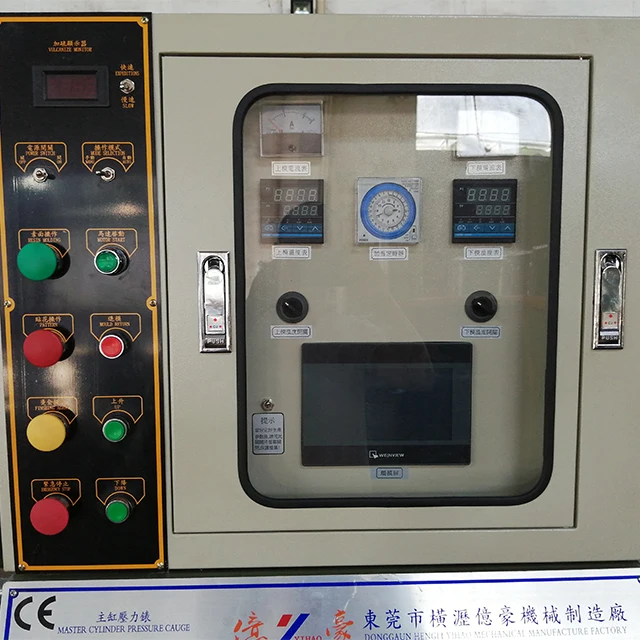

1.PLC control system, the operation is simple, low failure rate, the maintenance is convenient.
2.High and low pressure loop system,the machine moves smoothly without noise, fast and slow speed free adjustment.
3.The main structure accord with 3D mechanical design, strong and durable.
4.Equipped with safety grating in order to ensure safe operation.
5.Suitable for use in melamine, urea resin, bakelite, fiber etc hot hard raw material produce tableware products.
| FAQ |
Q1. How to get machines I want?
1. Please advise all details of your need. We offer best solution.
2. You can get all machines with lowest purchasing cost and least sourcing time.
Q2. How to use the machine?
1. We suggest you coming to our factory for free and full training till you know it.
2. User manual is offered along with the machine, making it easy to operate.
Q3. What can I do when the machine can’t work well?
To save your time and money when use our machines, we always have strict quality control from the beginning to the end. In case the machine can`t work well, pls get our services:
Our engineers are online for 24 hours, and offer a solution quickly.
| Packing/Delivery |
Standard shipping packing, shipping within 45 days after payment.
| About Us |
After several years of development, the factory has professional production and technical personnel to ensure that products could meet the customer demand.
The spirit of Yihao Mechanical Manufacture Factory is quality first, service first, customers first. The purpose is customer demand is our pursuit, the interests of customers is our interests.
We adhering to the modern enterprise scientific management methods, pioneering and innovative, forge ahead, has developed into a machinery manufacturing industry star enterprise. The customer on my Yihao machinery manufacturing plant products praise, achieve economic and social benefits. Yihao mechanical Manufacture Factory will be combined with the mechanical structure of the oil control system, circuit control system, production and service of professional R & D and manufacturing technology to manufacture in line with the needs of the hydraulic machinery and equipment.
We are willing to work with new and old customers to create a better future.
