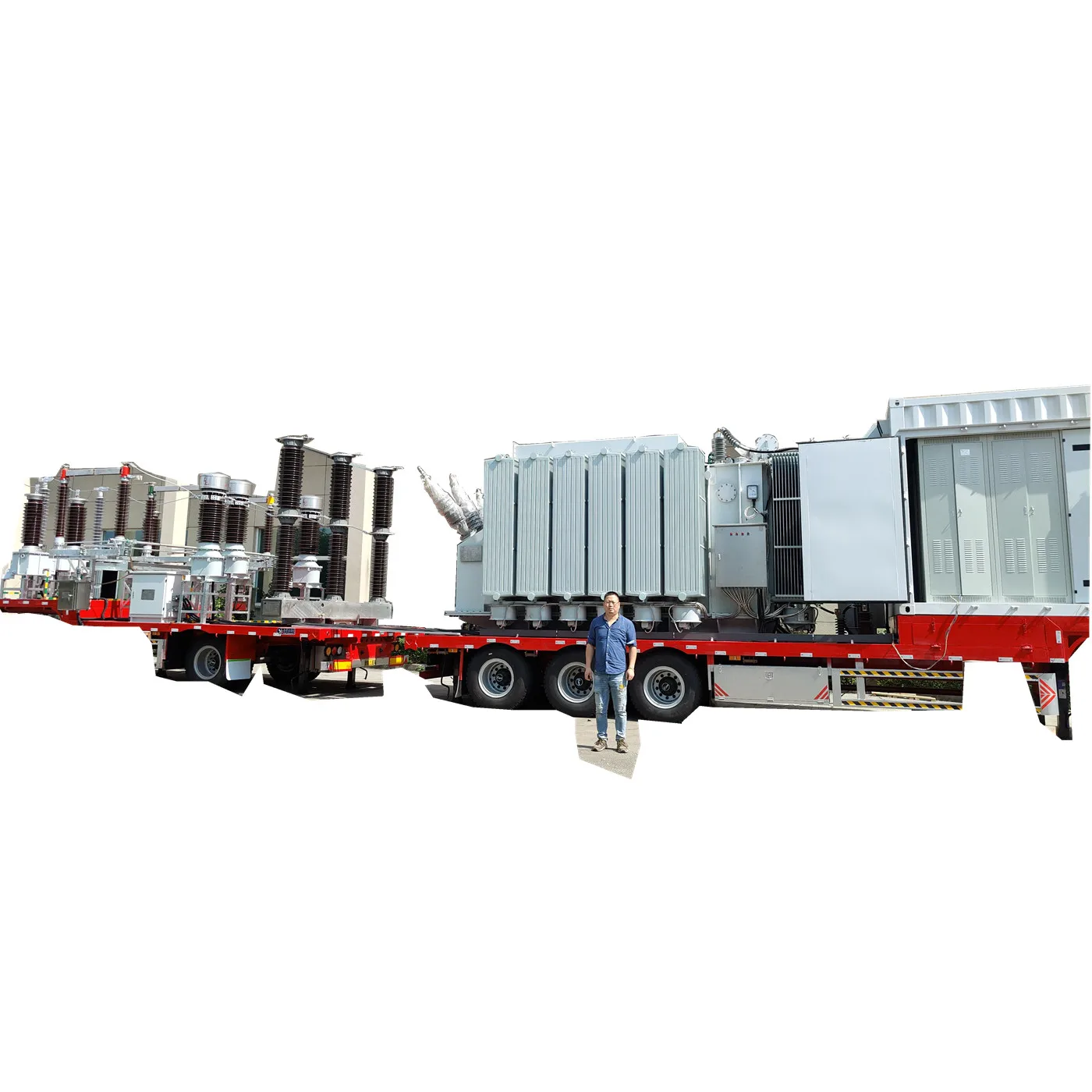

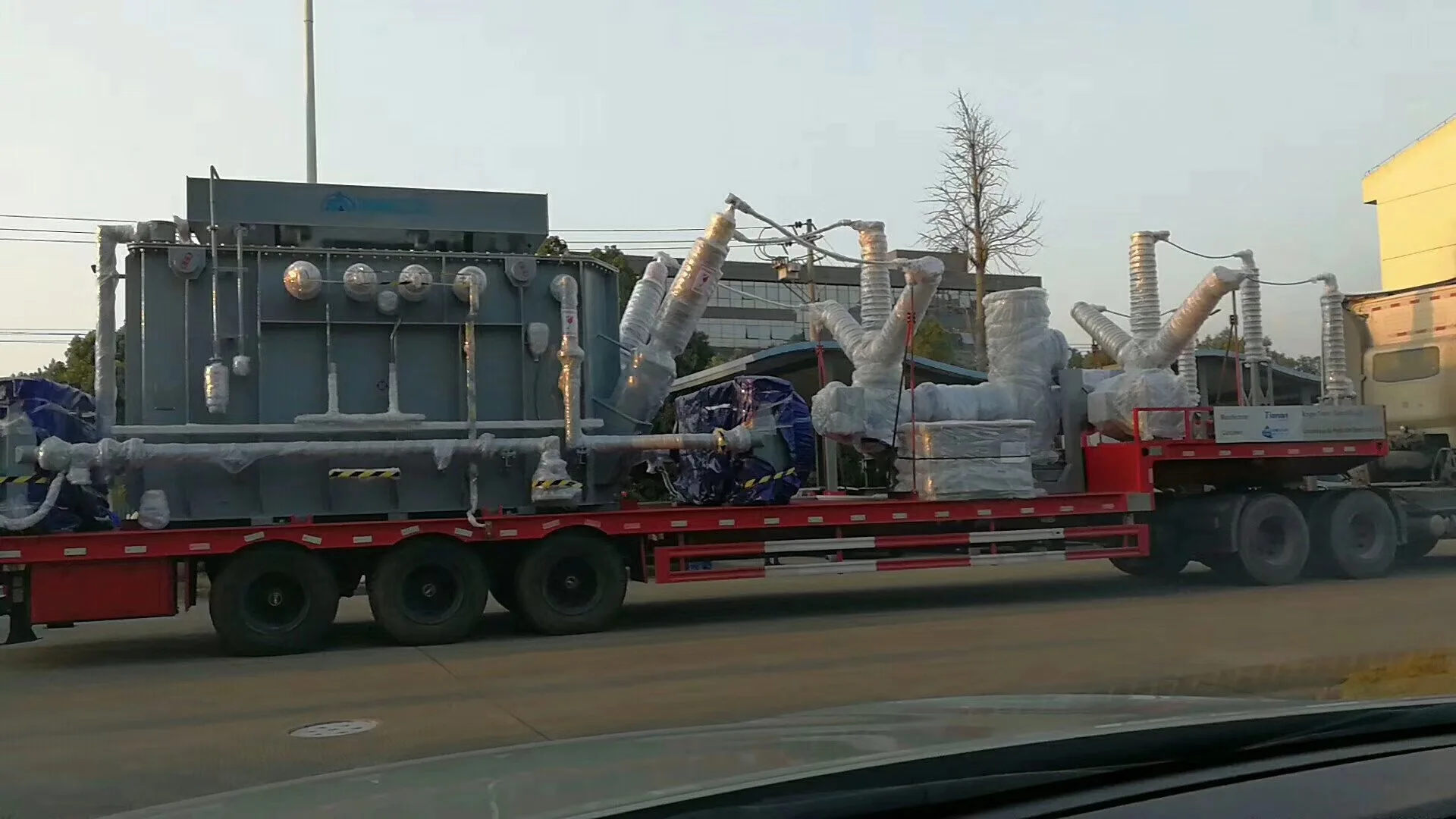

Electrical power transformer substation 110kv electrical mobile substation

Replace the conventional substation

in case of emergency;

Ease the tension of power supply;

Work as a temporary substation

With all functions as a conventional substation has:

Including control,protection,lighting protection and step-down etc;

Distribute power to several branch circuit users,

Convenient installation,quick commissioning

After finishing the cable connection, it can come to work.

With precautions against earthquakes, concerning shock pad,temporary support bar,soft connection of circuit components.

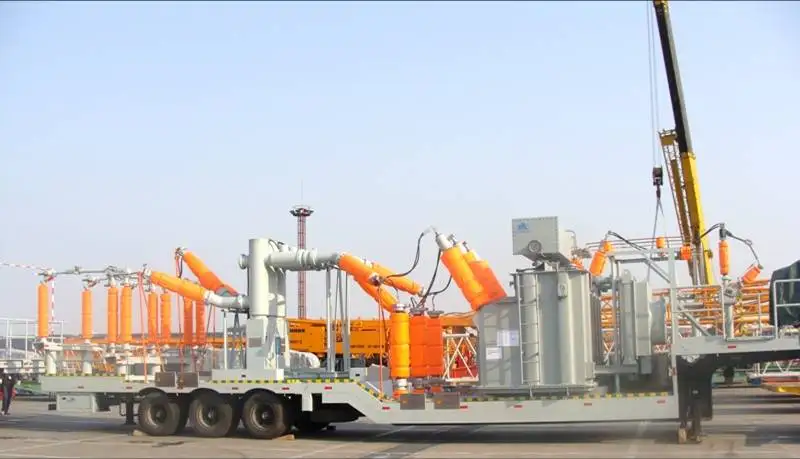

Structure

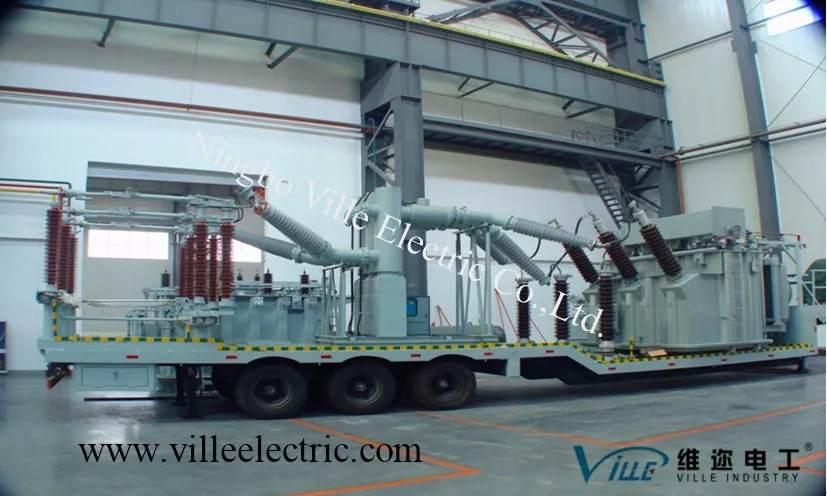

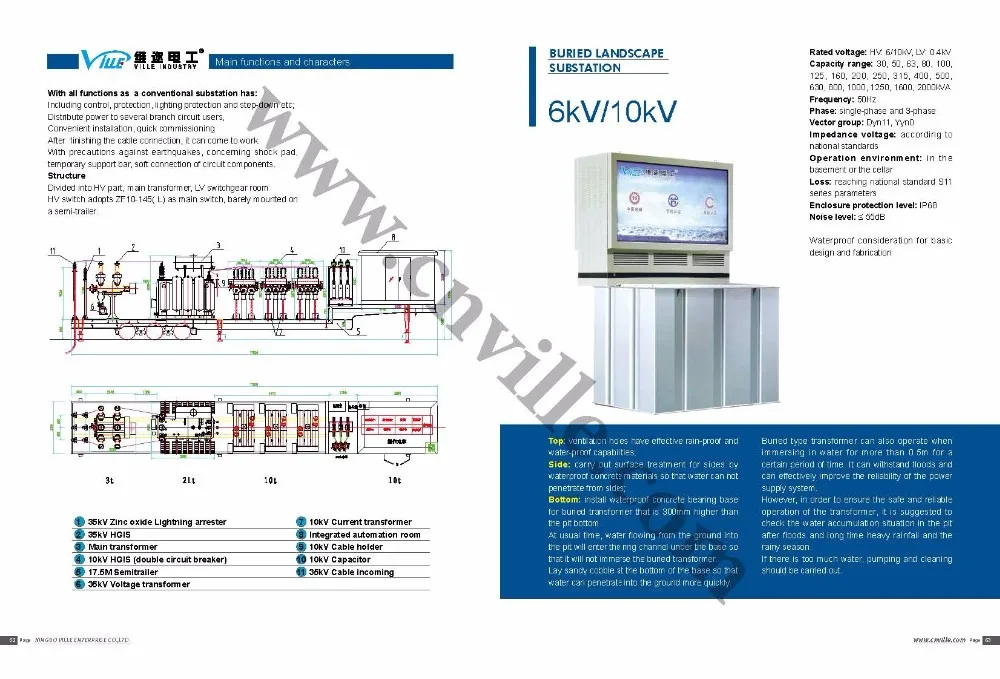

Divided into HV part,main transformer,LV switchgear room

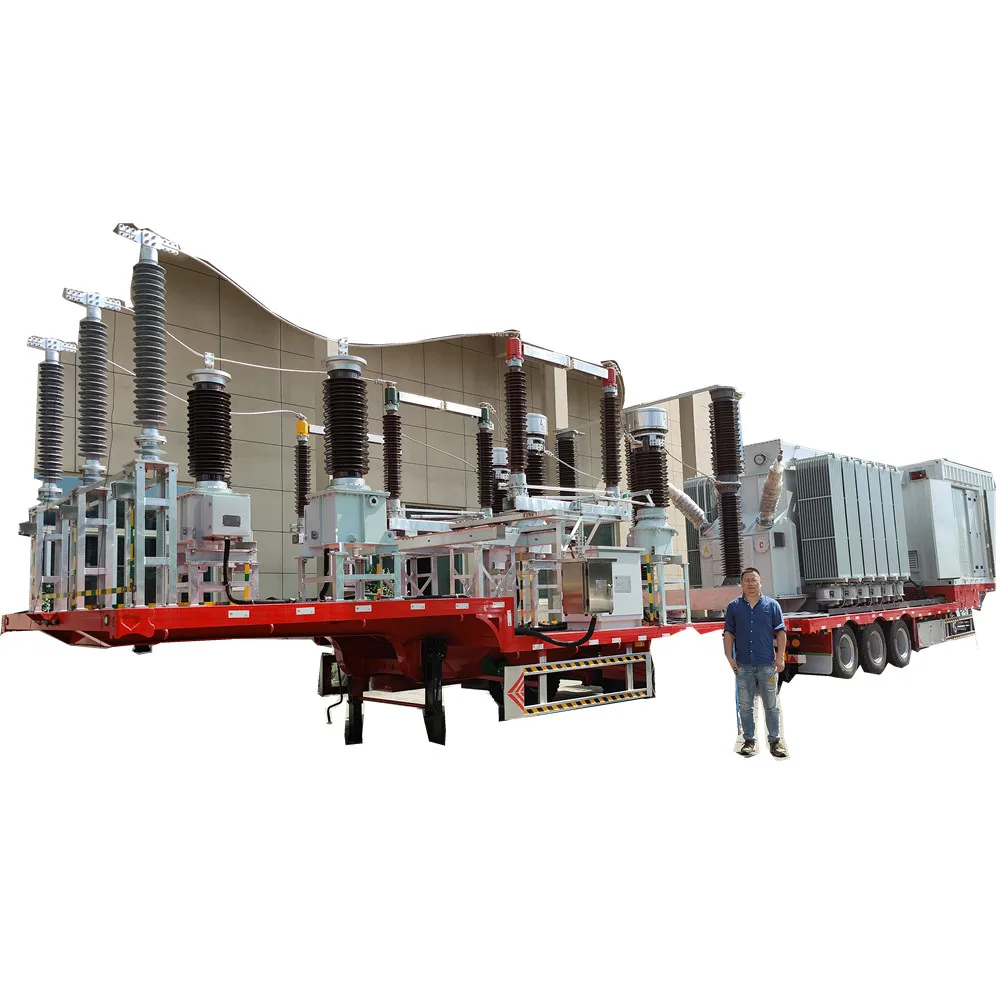

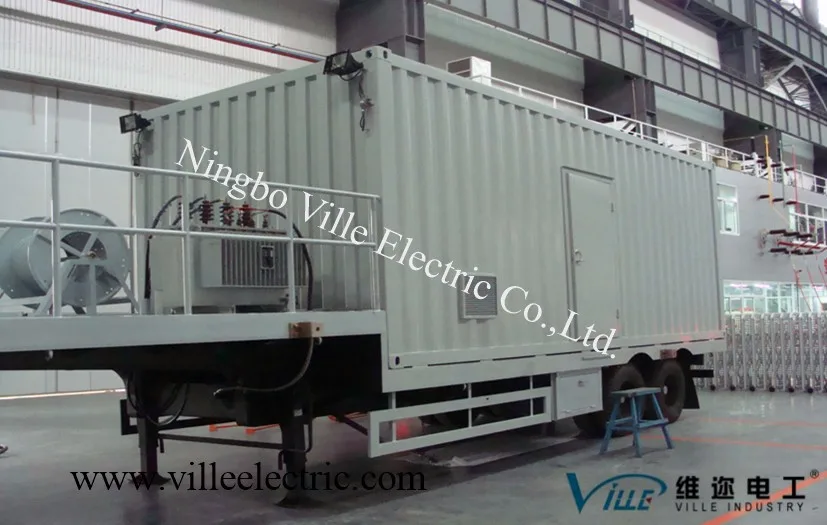

HV switch adopts ZF10-145(L)as main switch, barely mounted on a semi-trailer;

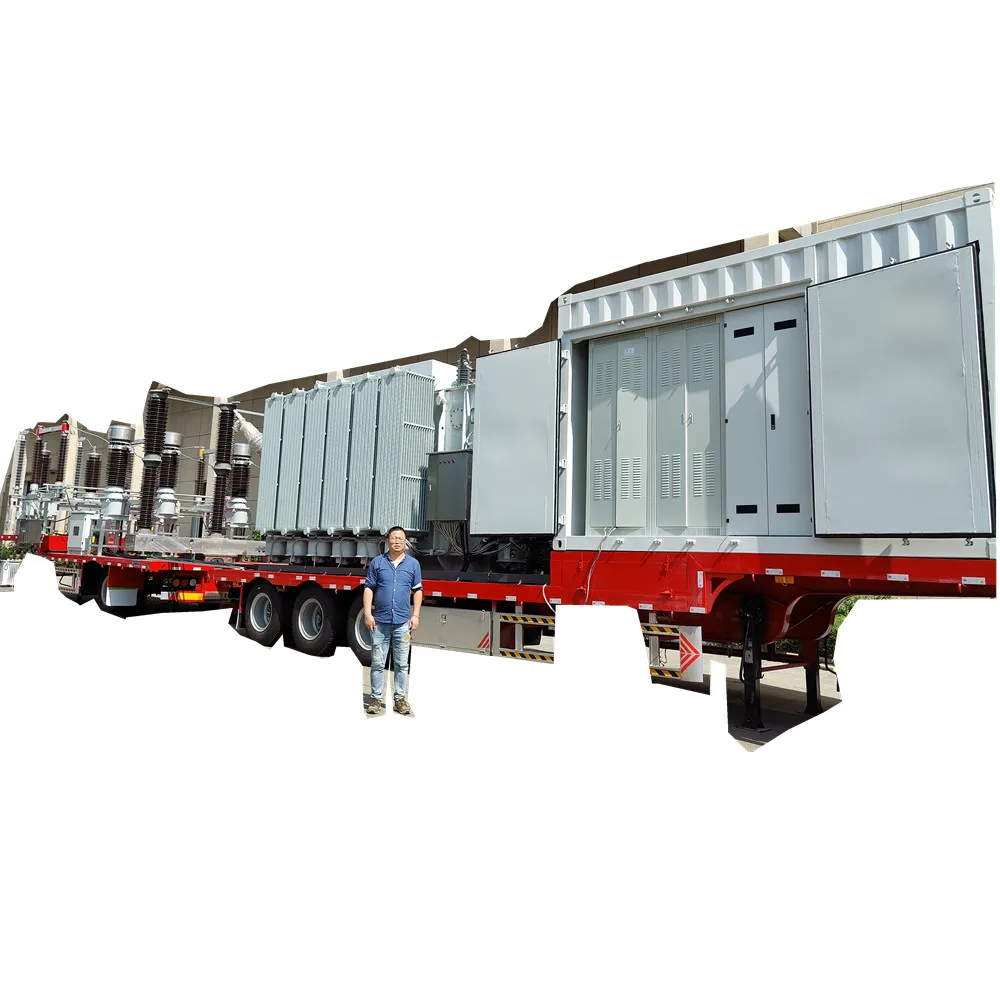

In LV switchgear room:

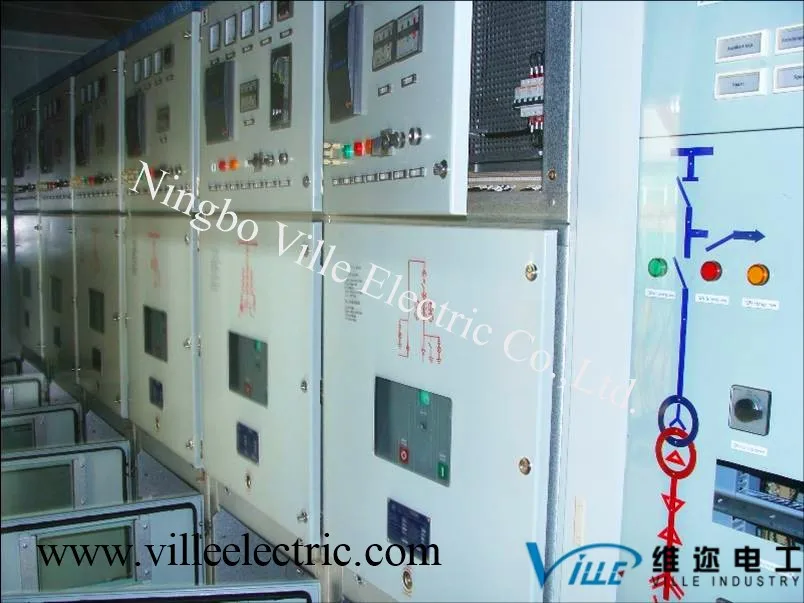

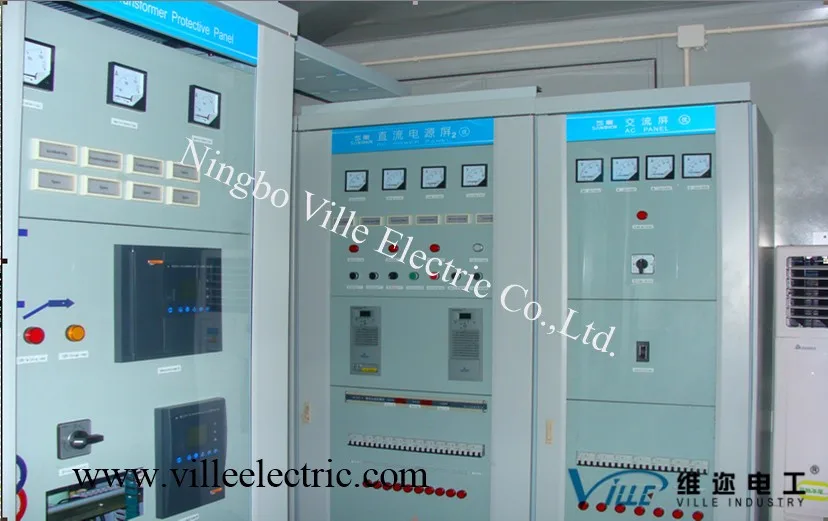

LV side switchgear,control power,DC panel and control protection device

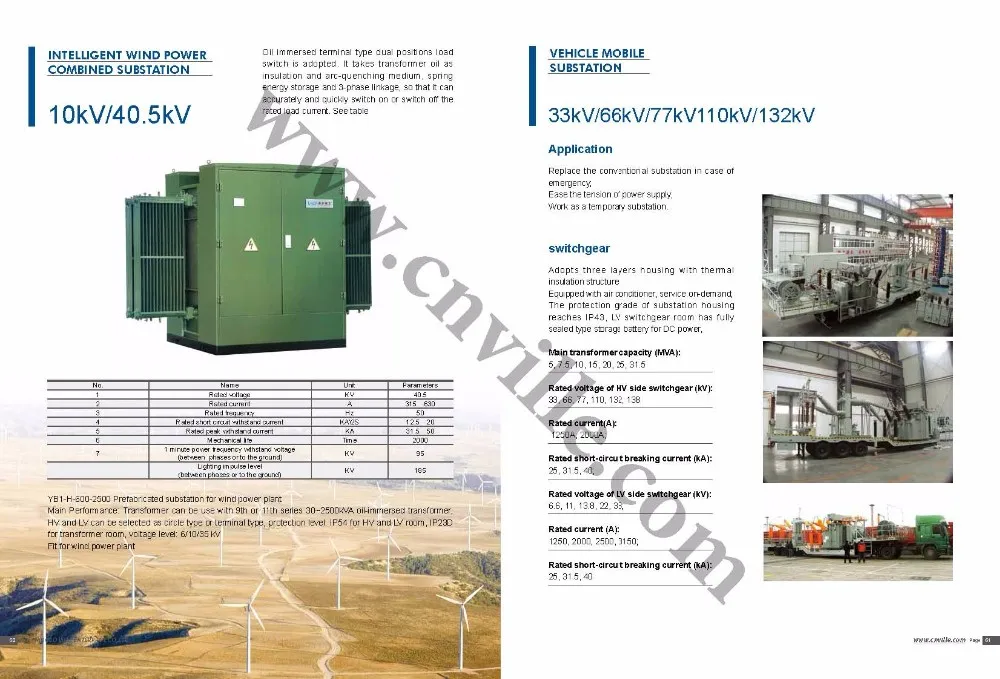

Adopts three layers housing with thermal insulation structure;

Equipped with air conditioner,service on-demand;

The protection grade of substation housing reaches IP43;

LV switchgear room has fully sealed type storage battery for DC power;

Compact structure,light weight,small space coverage

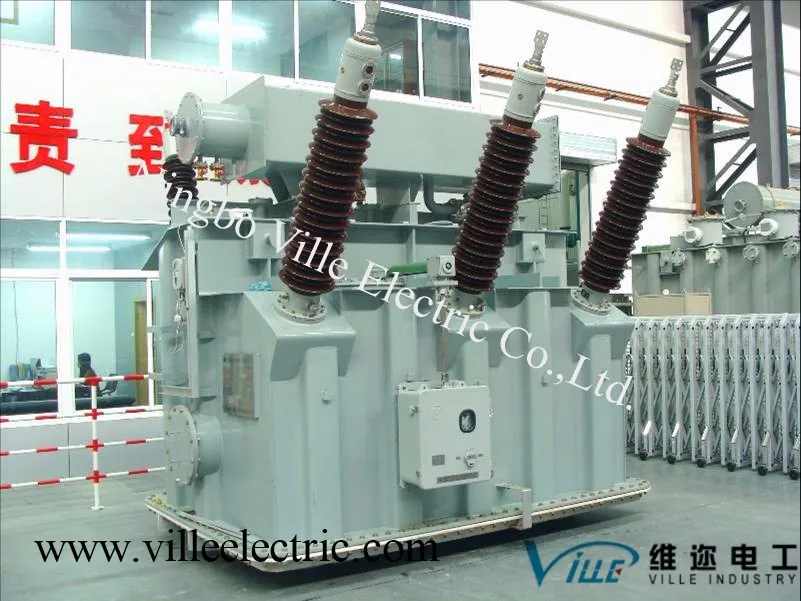

Adopts flat oil conservator or fully sealed oil tank;

HV bushing laid lower part of the oil tank in order to lower the general height;

ONAF radiator to compress the total volume;

Internal body positioning and lead wire clamping should be reinforced to meet frequent transportation need.

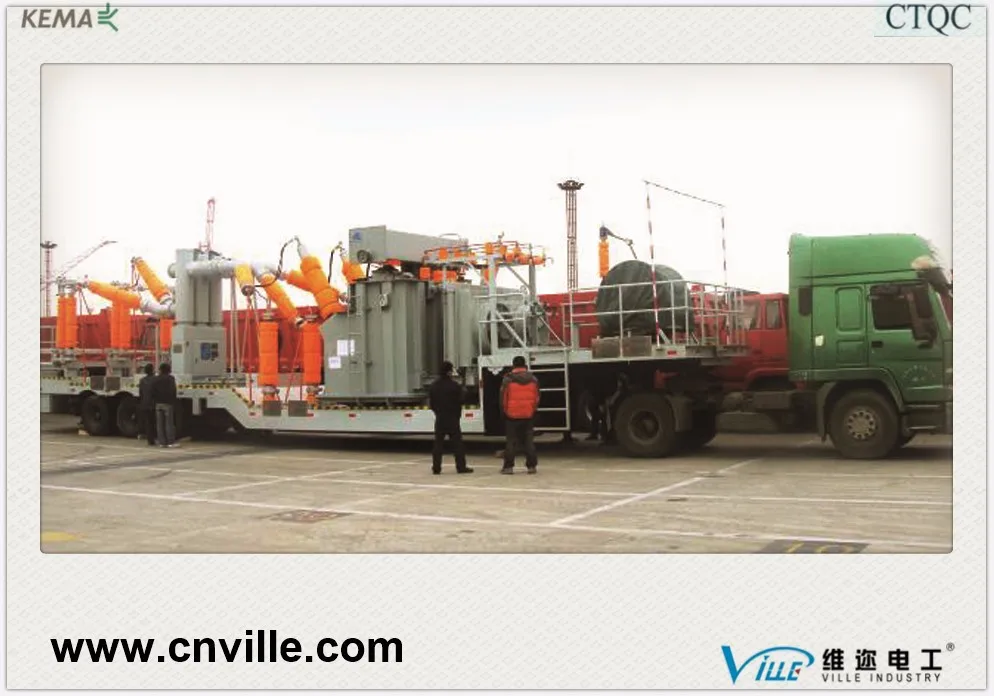

During transportation, avoid violent vibration ,in case of any internal breakdown ;

The speed on flat road

On smooth rood, the speed should be no more than 30 km/h;

On unevenness or curved road, the speed should be no more than 10 km/h.

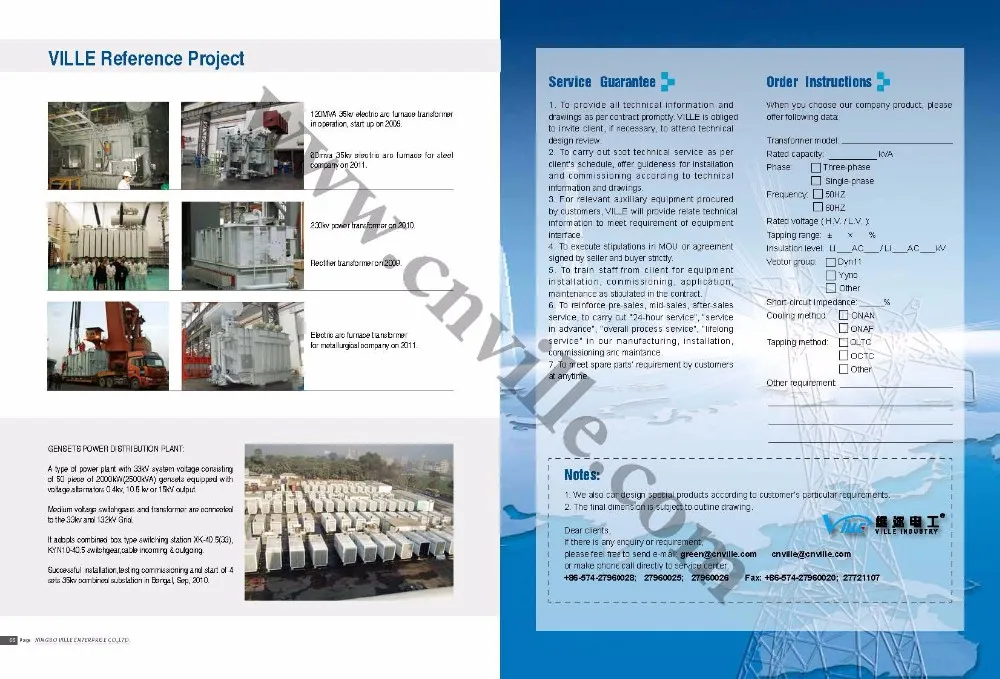

1.\tTo provide all technical information and drawings as per contract promptly. VILLE is obliged to invite client, if necessary, to attend technical design review.

2.\tTo carry out spot technical service as per client's schedule, offer guideness for installation and commissioning according to technical information and drawings.

3.\tFor relevant auxiliary equipment procured by customers, VILLE will provide relate technical information to meet requirement of equipment interface.

4.\tTo execute stipulations in MOU or agreement signed by seller and buyer strictly.

5.\tTo train staff from client for equipment installation, commissioning, application, maintenance as stipulated in the contract.

6.\tTo reinforce pre-sales, mid-sales, after-sales service, to carry out "24-hour service", "service in advance", "overall process service", "lifelong service" in our manufacturing, installation, commissioning and maintance.

7.\tTo meet spare parts' requirement by customers at anytime.
Order Instructions

When you choose our company product, please offer following data:

Transformer model:

Rated capacity: kVA

Phase : □Three-phase

              □\tSingle-phase

Frequency : □ 50HZ

                     □\t 60HZ

Rated voltage ( H.V. / L.V. ):

Tapping range: ± × %

Insulation level: LI AC / LI AC kv

Veotor group: □Dyn11

                         □Yyno

                         □Other

Short-circuit Impedance: %

Cooling method: □ONAN

                              □ONAF

Tapping method: □OLTC

                               □OCTC

                               □Other

Other requirement:

Notes:
1.\tWe also can design special products according to customer's particular requirements.

2.\tThe final dimension is subject to outline drawing.
