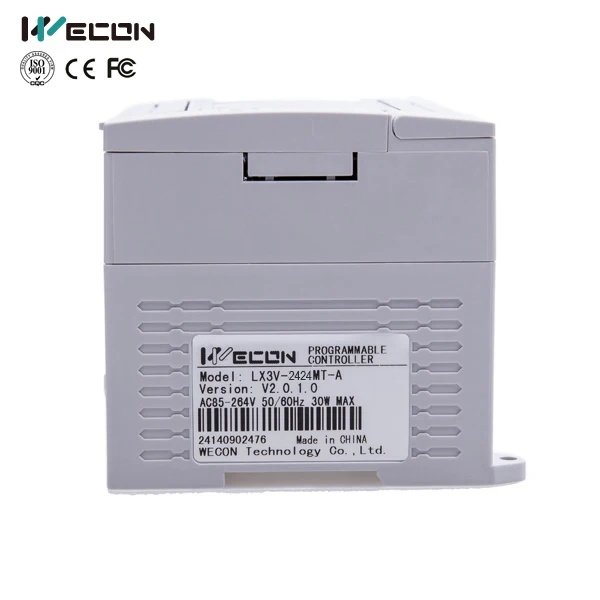

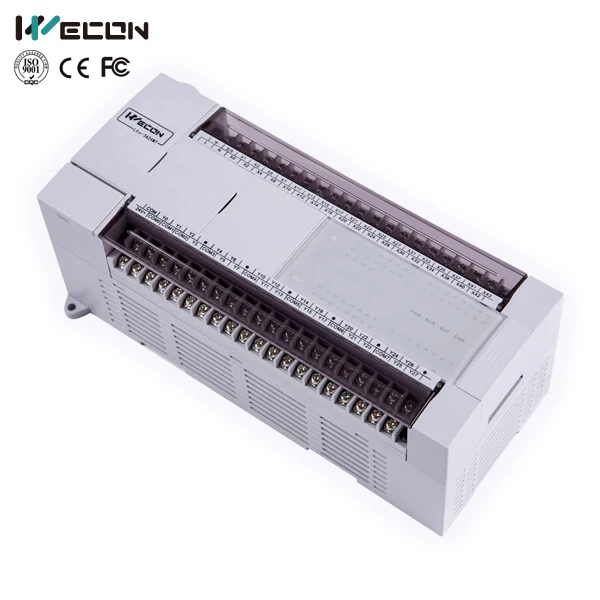

WECON LX3V PLC 24 input and 24 relay output home controller Ethernet supported

Feature

Description

Programming Software

GX Developer and GX Works2,WECON PLC   editor are available,lifetime free software and technical support,Ladder and   Instruction List support,Kernel mode encryption for downloading, uploading   and opening the PLC program.

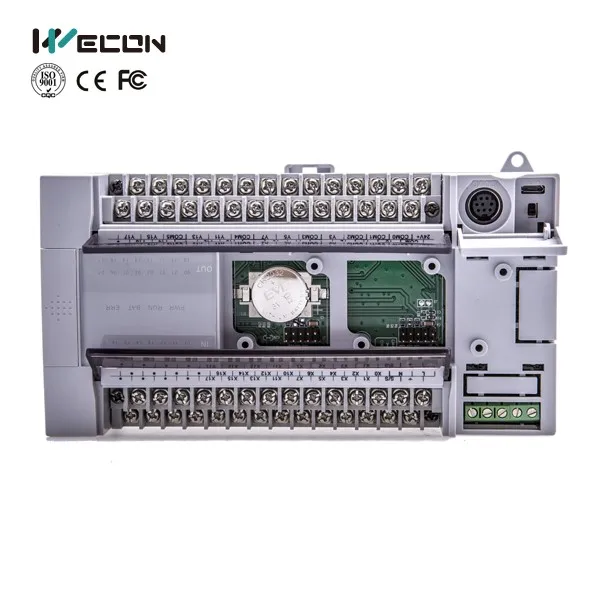

Stand-alone Mini USB interface

Stand-alone Mini USB interface for   downloading and uploading PLC program, also online monitoring included. you   can do anything with PLC without communication disconnection.

Communication   Protocol

Modbus RTU   and Modbus ASCII support, communication Protocol is compatible with   Mitsubishi FX1N, FX2N. You can select Mitsubishi protocol to communication   with Wecon PLC

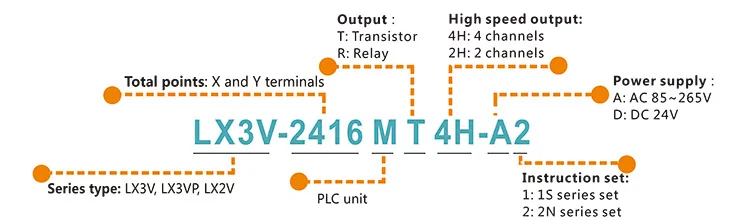

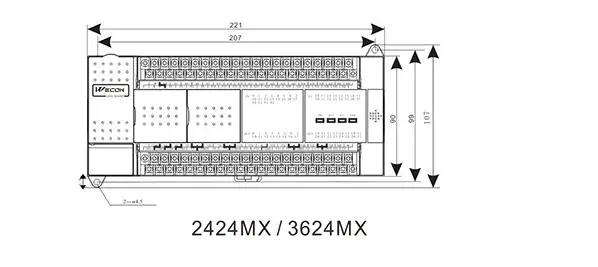

Item

1212MT-A

1412MT-A

1616MT-A

2416MT-A

2424MT-A

3624MT-A

General Specifications

PLC Running Mode

Scan round / Interrupt

Programming Language

Instruction List / Ladder

Instructions

Basic Instructions:27

Applied Instruction:136+2(2   instructions different from Mitsubishi)

Operation Speed

Basic Instructions:0.06us

Applied Instruction:1~10us

Program Memory

Flash Rom built-in

Program Capacity

16K Steps

Programming Software

Wecon PLC Editor

SecuritySettings

Upload/download/program password

Programming   Cable

Mini USB /USB   SC09-FX USB to RS422/Mitsubishi RS232 Programming cable

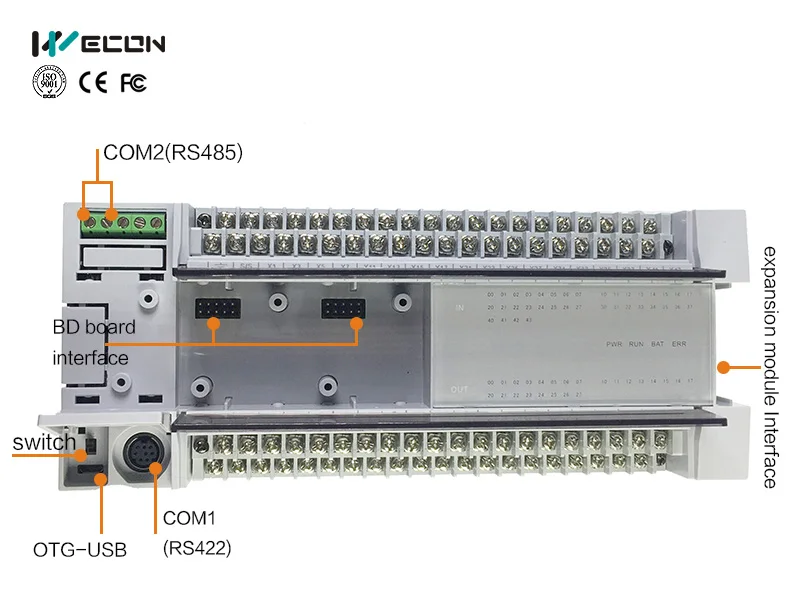

COM Port

COM1: RS422/ RS485, COM2:RS485

Digital Filtering

Yes,for all input terminal

Real Time Clock

Yes (Battery required)

High Speed Pulse Output

2 points (200K*2),Y1,Y2

High Speed Interrupt

6 points

Timer Interrupt

3 points

Communication Protocol

Wecon PLC Protocol/Mitsubishi FX2N No   Protocol/Modbus RTU

Certificate

CE/FCC

Action Indicator

LED indication

Environment Specifications

Operating Temperature

0~55℃

Storage Temperature

-20~70℃

Operating Humidity

35~85%RH (No-condensate)

Shock Resistance

147 m/s2, 4 times in X, Y, Z each   directions

Operating Environment

No corrosive gases or too much dust

Input / Output Specifications

Number of I/O Points

12/12

14/12

16/16

24/16

24/24

36/24

Expanded I/O Points

Max input: 256 points, Max output:   256 points

Rated Input Voltage

DC 24V±10%

Applied Voltage Range

DC 5~30V

Output Type

Transistor

Insulation Method

Optical coupling Insulation

Max. Load

0.5A / point,0.8A /COM port, 0.3A/HSPO point

ON / OFF Response Time

<0.2ms/ point,<5us/HSPO point

Power Supply Specifications

Power Consumption

<35W

<60W

Rated Power

AC 100V~240V 50Hz / 60Hz

Voltage range

AC 86V~256V 50Hz / 60Hz

Power Outage Time

<10ms

Power Fuse

250V/1A

250V/3.15A

Inrush Current

<15A 5ms (AC100V)

<30A 5ms (AC 200V)

Screw of Terminal

M3
