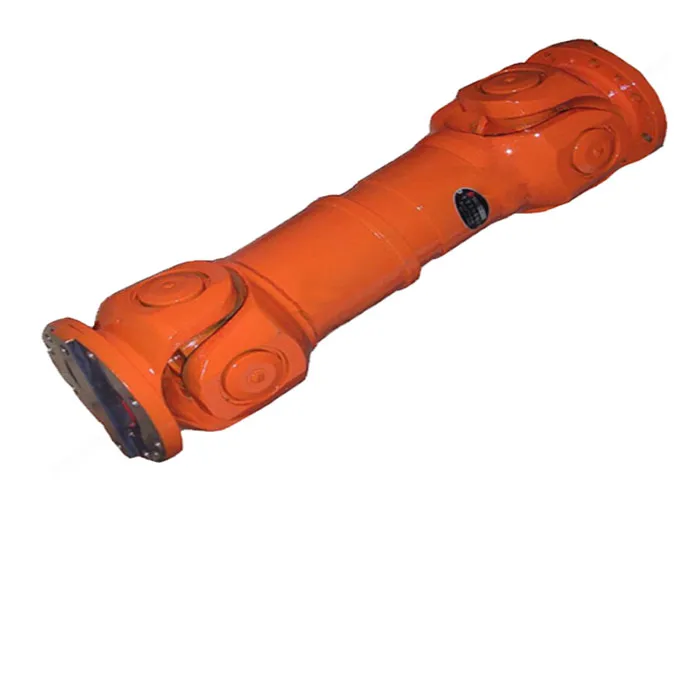

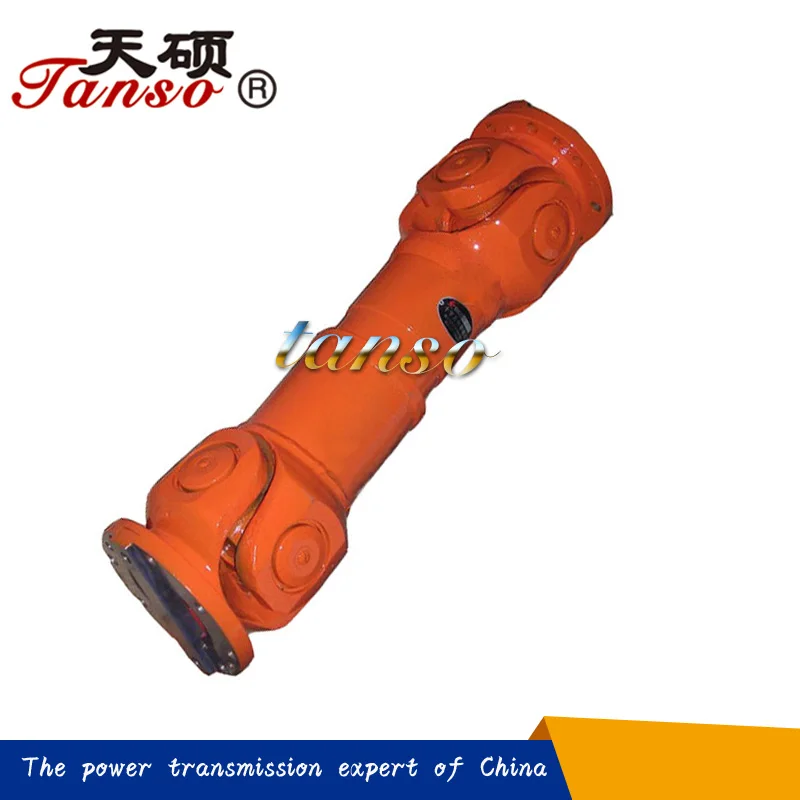

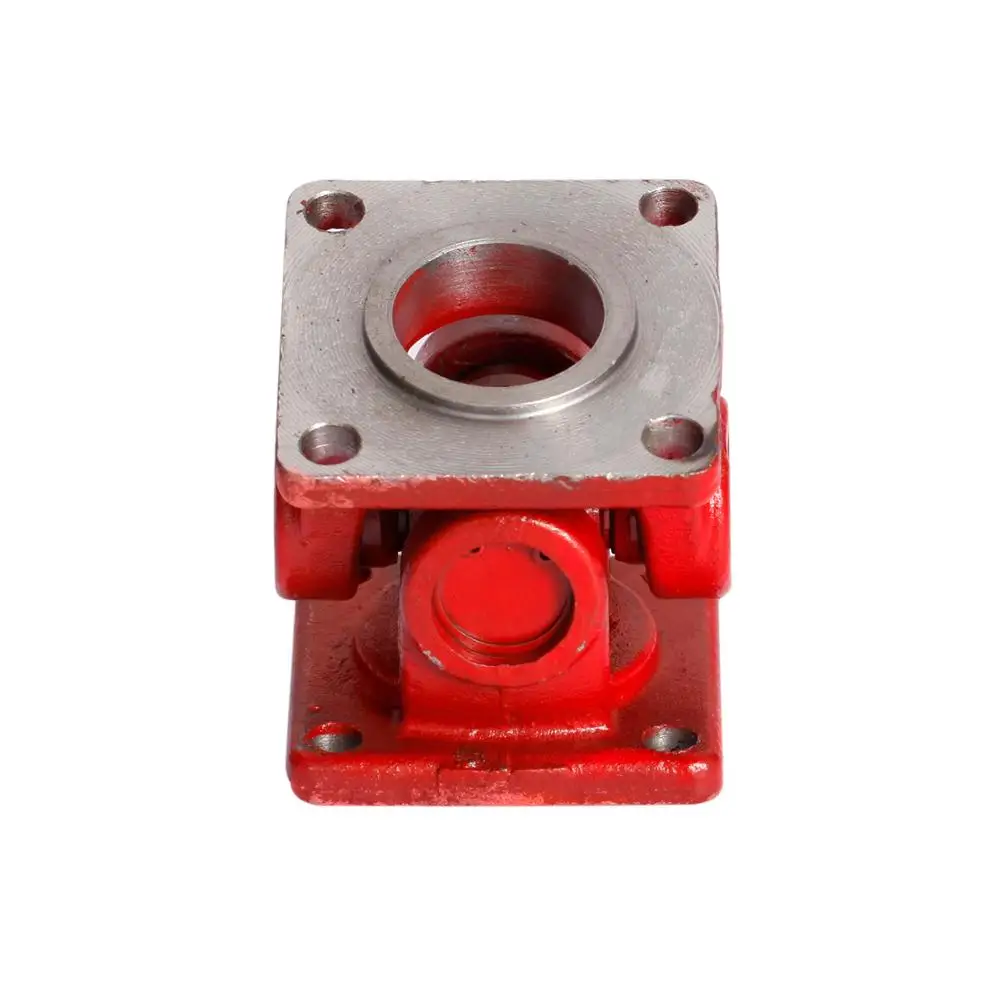

Chinese Manufacturer Industrial cardan shafts SWP250F

Product Overview

Description



General description

A universal joint, (universal coupling, U-joint, Cardan joint, Hardy-Spicer joint, or Hooke's joint) is a joint or coupling in a rigid rod that allows the rod to 'bend' in any direction, and is commonly used in shafts that transmit rotary motion. It consists of a pair of hinges located close together, oriented at 90° to each other, connected by a cross shaft. The universal joint is not a constant velocity joint.

No machine element other than a cardan shaft allows power transmission of torque between specially offset driving and driven shafts whose position can be changed during operation.

Spatial angular motion and changes of axial length are ensured by advanced constructional elements.

Thus, cardan shafts have become an indispensable transmission component in automotive engineering and industry.

Specific product description

SWP universal coupling/joint is mainly used in rolling milll,hoisting and other heavy machinery.

Features of SWP series cardan shaft:

1.Gyration diameter:160~640mm

2.Nominal torque:16~1250KN*m

3.Max angular misalignment: 10^o

4.Reasonable configuration,high safety and long service life

5.High transmission efficiecy:98.6%

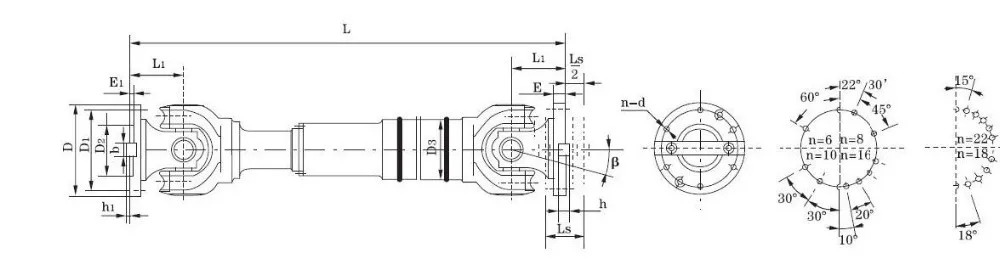

Type	D	Nominal torque	Weary torque	Angle	LS	Lmin	D­1	D2	D3	E	E­1	b×h	h1	L1	n-d	Moment of inertia		Mass
		Tn/	f/	β/			(js11)	(H7)								I/kg·m2		m/kg
		kN·m	kN·m	(°)≤												Lmin	Increase per 100mm	Lmin	Increase per 100mm
SWP160F	160	16	8	10	150	770	140	95	114	15	4	20×12	6	85	6-13	0.14	0.0059	51	2.1
SWP180F	180	20	10		170	830	155	105	121	15	4	24×12	7	95	6-15	0.23	0.0072	64	2.3
SWP200F	200	31.5	16		190	950	175	125	127	17	5	28×16	8	110	8-15	0.4	0.0114	88	3.4
SWP225F	225	40	20		210	1070	196	135	152	20	5	32×18	9	130	8-17	0.66	0.029	120	6.6
SWP250F	250	63	31.5		220	1110	218	150	168	25	5	40×25	12.5	135	8-19	1.06	0.0407	158	7.3
SWP285F	285	90	45		240	1270	245	170	194	27	7	40×30	15	150	8-21	2.24	0.0702	255	9.4
