continuous coconut shell charcoal briquette making machine bamboo charcoal carbonization furnace biomass wood stove

1.The charcoal charbonize  furnace suit materials

This machine can change wood log, wood briquette

coconut shell and bamboo Palm shells etc directly

into final charcoal

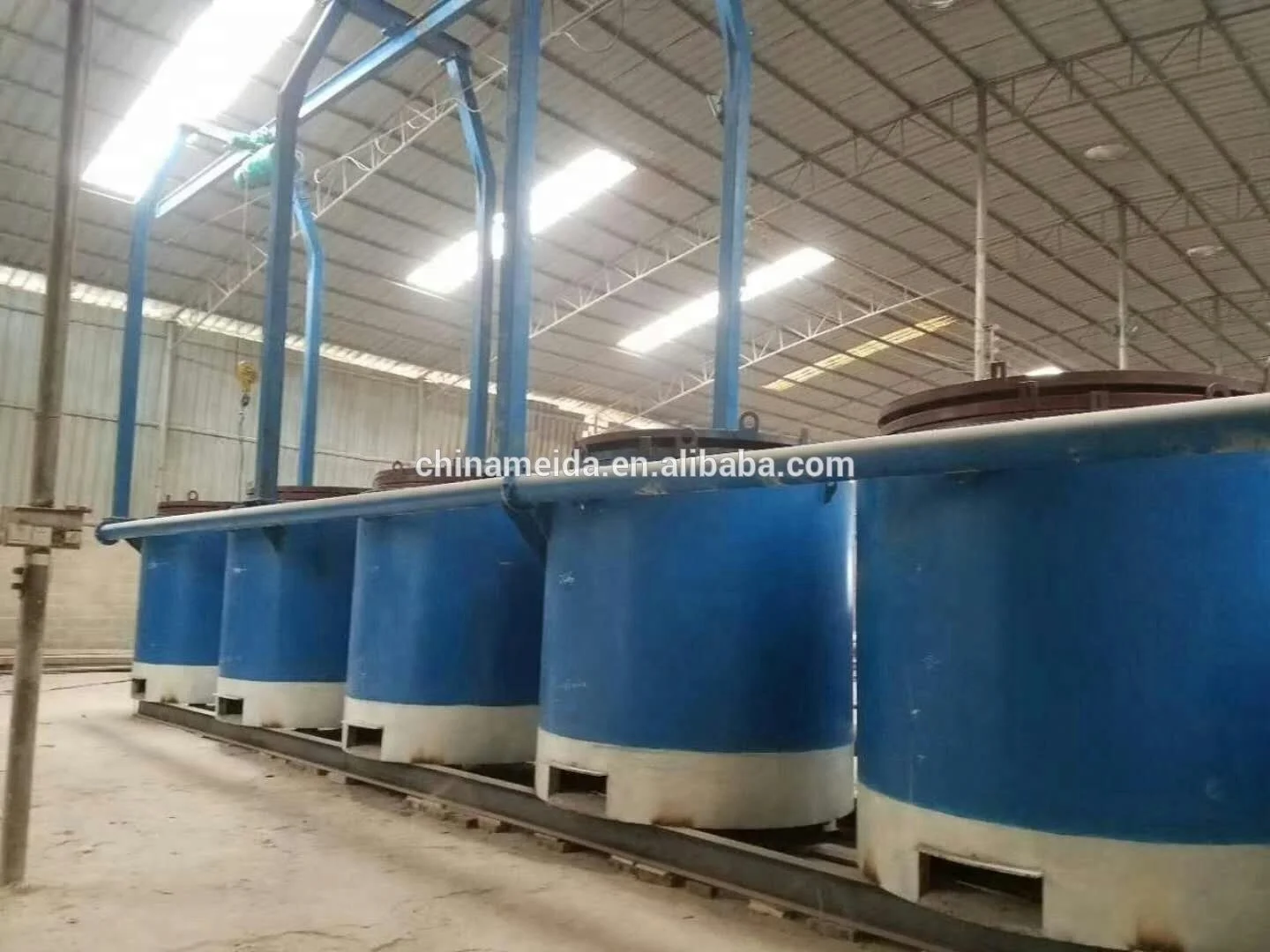

2.The charcoal charbonize furnace include four parts

One whole set machine = one outer stove+ three

inner stoves+ electric hoist + clean system.

3 Its daily productivity of one whole sets machine

2-3T/24hrs for dry wood with moisture less than

8% or woodbriquettes.

Note : different moisture of the raw materials, the

daily productivity will be different & try to make

sure the wood log to be similiar size, or the carbonize

effect will be effected & make sure moisture no more

than 50%

4 Basic Work Principle-

Main Features : continuous carbonization +Smoke recycle burning + Self Purifiying

A put fuel into the heating part and light it until temperature reach about 400 degree(there is a

temperature indicator on the machine ) ,then

put the inner pot full with wood log etc into the

outer stove to be carbonization

B during carbonization process, the inside charcoal

briquette will produce flammable air,this air will from

top to the bottomto be burning again, then it

continuous to do this circulationprocess,so there is no pollution at all during the whole process

C after one pot wood finish carbonize, then lift it out

to let other pot into the outer stove

By doing this repeatly,the machine can work without

stop

5 The charcoal charbonize  furnace make materials

Mn High temperature resistant plate 6-12mm

according different part

6  fuel consume

20-30 kg firewood or 15 kg liquefied gas per time

Only pre-heating need consume fuel, pre heating

time is about 80-100minutes

7 carbonization time

Wood logs ( 8-10hours), wood briquettes (8hours),

coconut shell (6hours)

8 about cooling

after carbonizing, we need to take the inside pot out,

let it cool by natural way,

the longer cooling time the better for charcoal quality

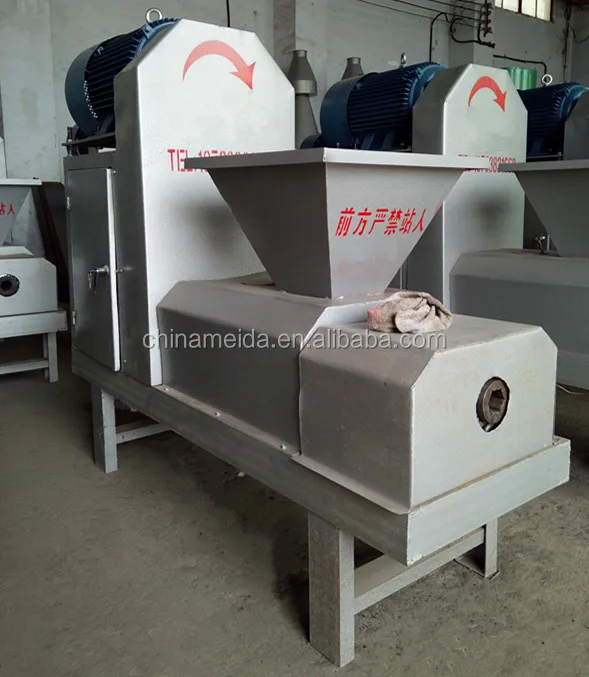

1 raw materials

sawdust made from wood, peanut, coconut shell, straw , plant stalk; leaf,corn straw,wheat straw .... anything which can be burning, all can be raw materials

2 raw materials moisture

8-12%

3 final biomass briquette density

900-1400kg/m

4 final briquette length

the machine with a automatic cutter, any length can be make

5 final briquette shape

hexagon or square shape

6 final briquette size

diameter 50mm & inside hole 15mm

7 spare parts

spare parts include mould, heating ring, oil seal, propeller, welding rod, temperature controlled meter.

Model

Power

Weight

Capacity

Size

250

18.5kw

1100kg

250-300kg/h

1.6*0.55*1.25m

450

22kw

1400kg

350-450kg/h

1.7*0.55*1.55m

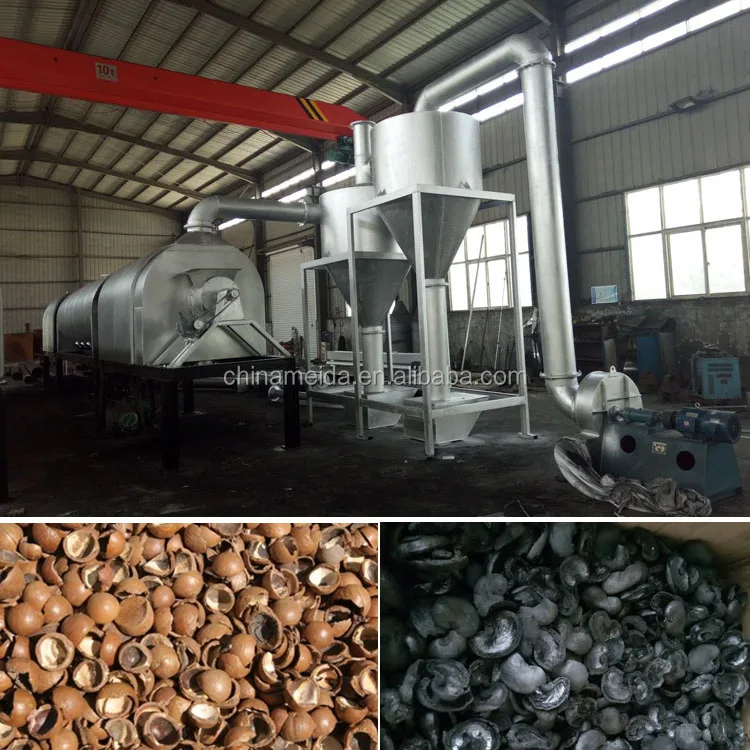

Raw material

Any Carbon-containing organic materials can be as raw materials , such as sawdust, rice hulls, sawdust, bamboo, palm shells, peanut shells, coconut shells, stalks, stalks, etc.( raw materials size < 15mm )

Main Feature

1 The sustainability of production.

2 closed quenching

3 controllable adjustable carbonization temperature.

4 High heat transfer and high wear resistance composites form a highly efficient carbonization chamber.

5 All gas return to the furnace for combustion without exhaust pollution

Heating Source

biomass fuel as heating   or    natural gas heating

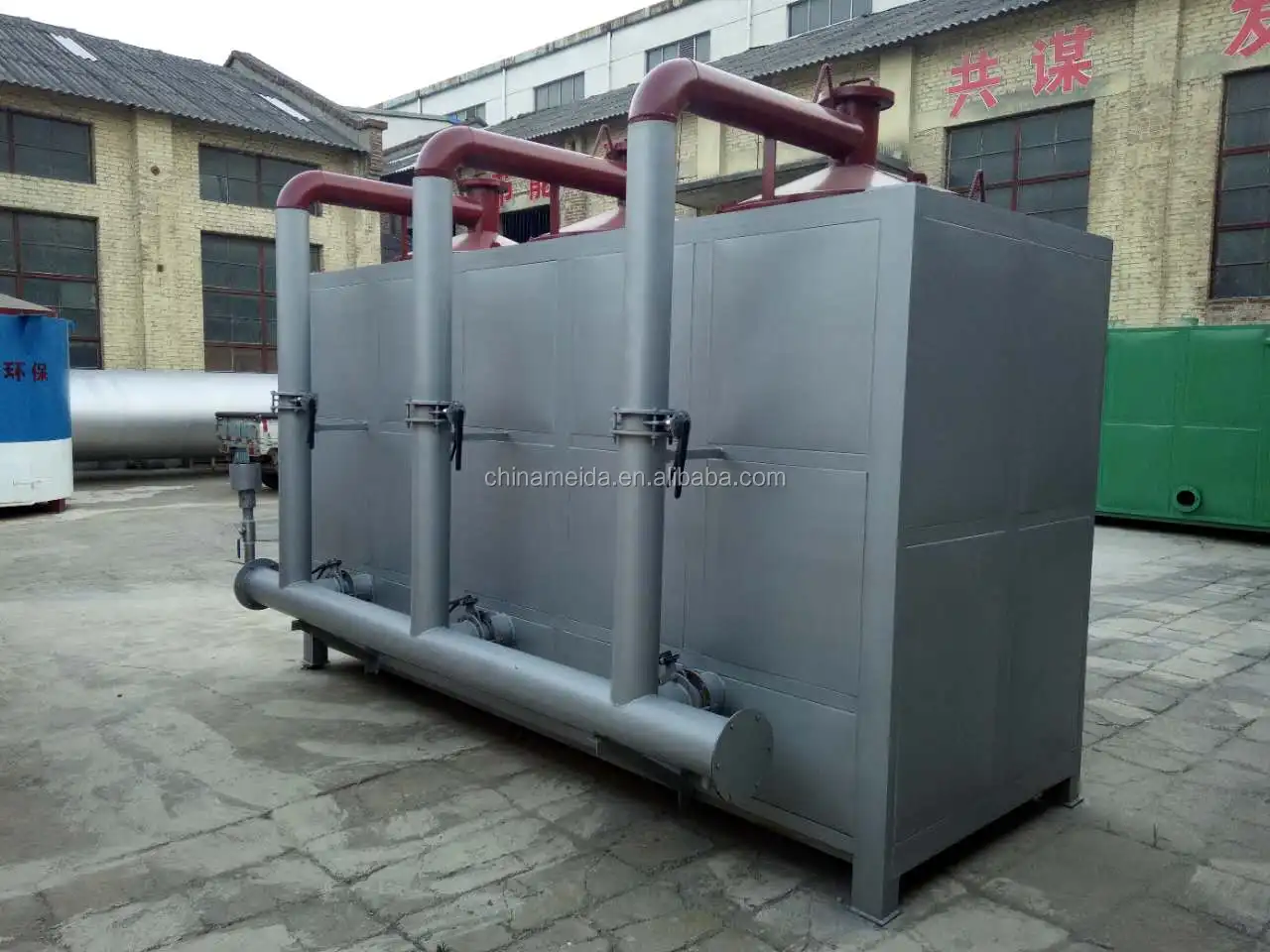

Work Principle

1 Using dry carbonization. The combustion gases generated by the carbonization process, such as carbon monoxide, methane, hydrogen, etc., are fully utilized, and the wood tar and wood vinegar are separated by a flue gas purification system to obtain a pure combustible gas. The heating requirements of the main components (temperature is 600 degrees) are provided by the self-contained burner.

2 The outlet uses a separate combustible gas recovery pipeline. The material is carbonized at high temperature carbonization, decomposing many combustible gases, passing through the recovery pipeline, flue gas purification system, burner heating cylinder, and circulating heating.

3 The initial carbonization ignition is provided by the biomass gas furnace

Charcoal function

Industrial circle :  explosive , rubber’s additive ,  metallurgy,

chemical engineering,medicine, cosmetic, environmental protection

Agricultural circle :  improve ground temperature , improve soil , keep soil moisture , relivers for fertilizer,

Daily Life :  hot pot fuel ,dehumidizer,ink,mosquito incense,water purifier
