Single Roller Steering Web Guide Control System End Pivot
- Category: >>>
- Supplier: Suzhou Magni Machinery Co. Ltd.
Share on (60625869492):
Product Overview
Description
Product Overview

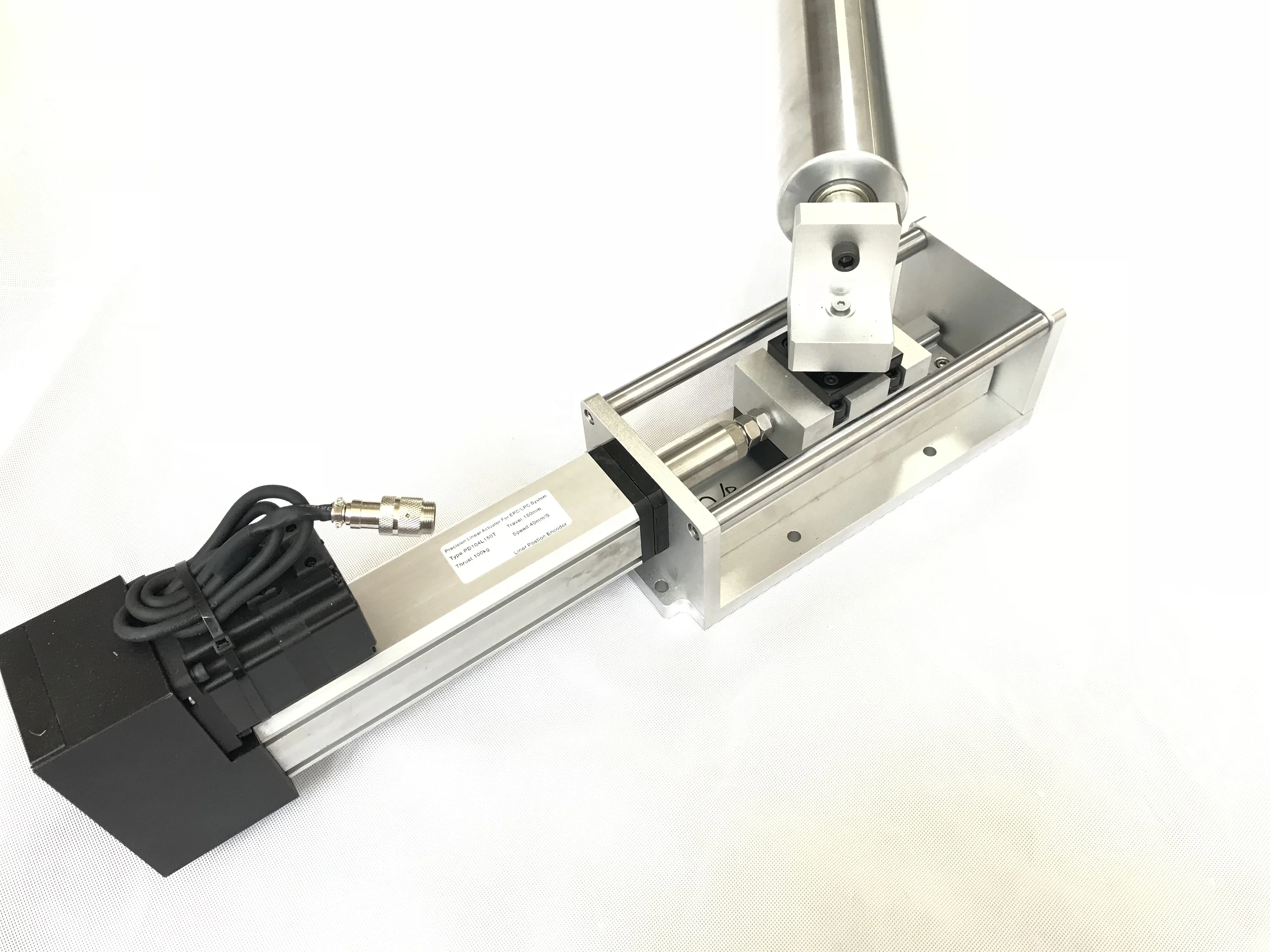

Single Roller Steering Web Guide Control System End Pivot

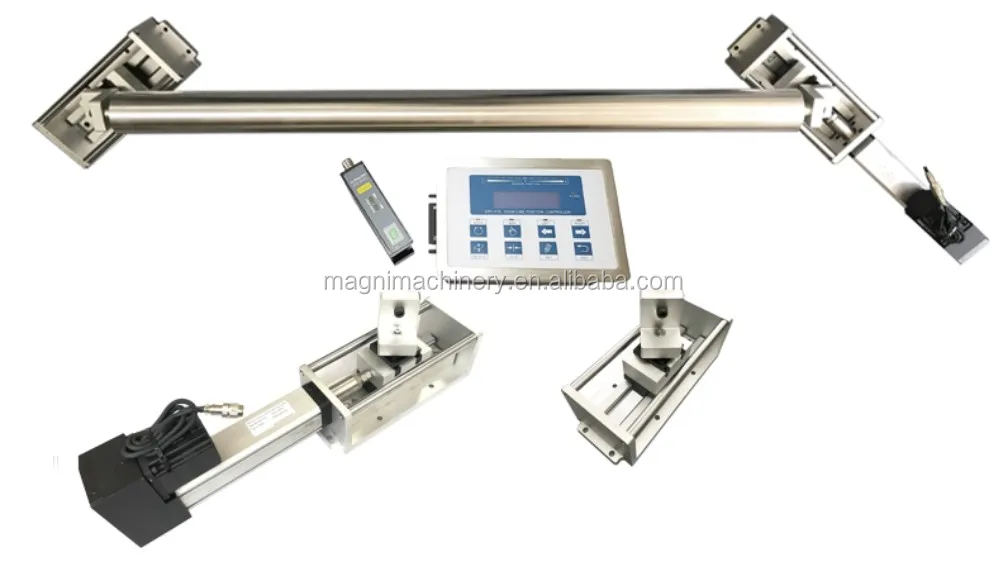

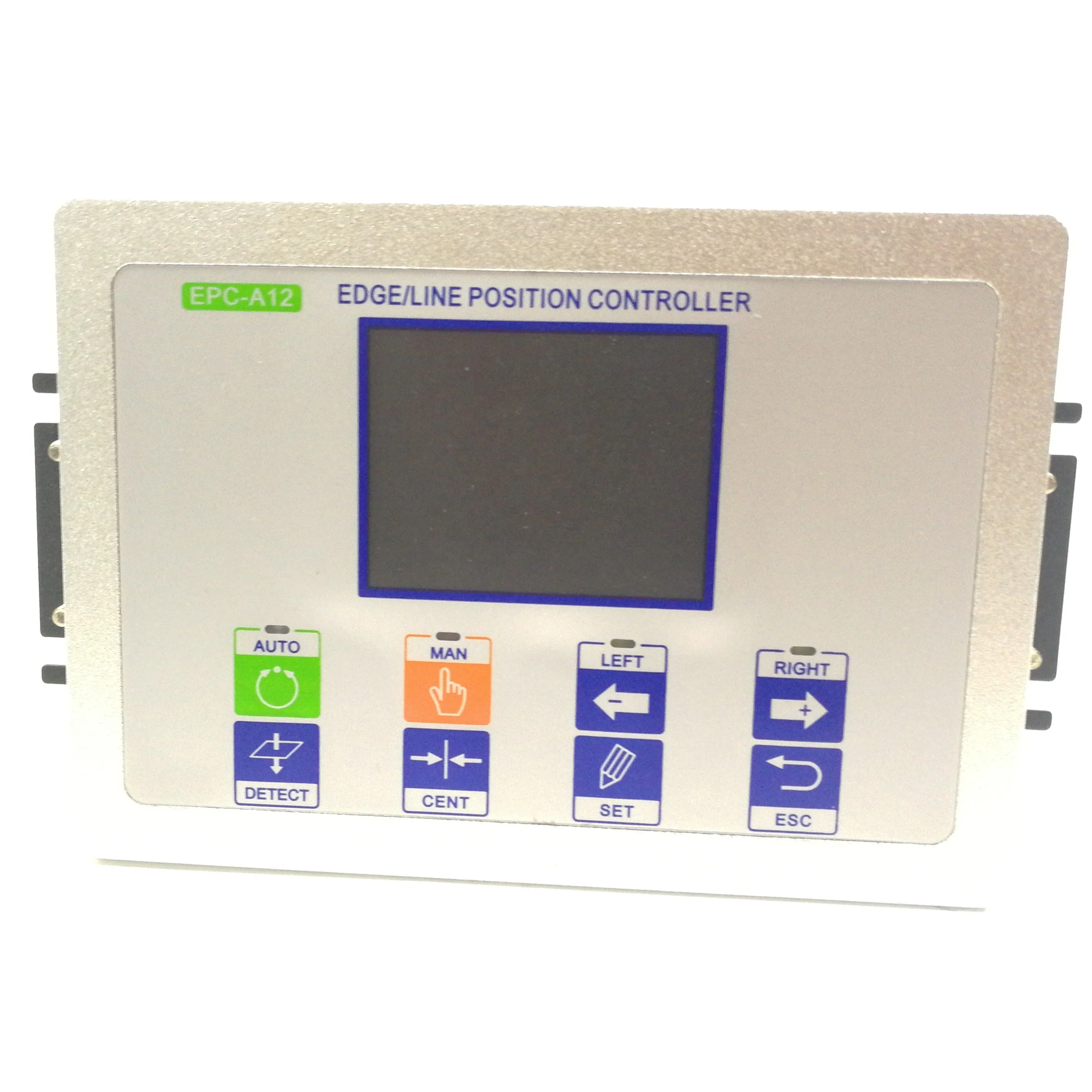

The roller steering guides web control system consists of a controller, sensor, servo motor, a web guide frame and a guide roll.
These five parts constitute a closed-loop control system. The system corrects the coil precisely through a long entrance span
feeding way. This innovative deviation correction system can correct the lateral error of coil.
These five parts constitute a closed-loop control system. The system corrects the coil precisely through a long entrance span
feeding way. This innovative deviation correction system can correct the lateral error of coil.
Features
* The length of guide roller is special customized.
* Single guide roll or double guide roll can be optional used.
* Adopt high precision servo motor control system, Fast and accurate correction.

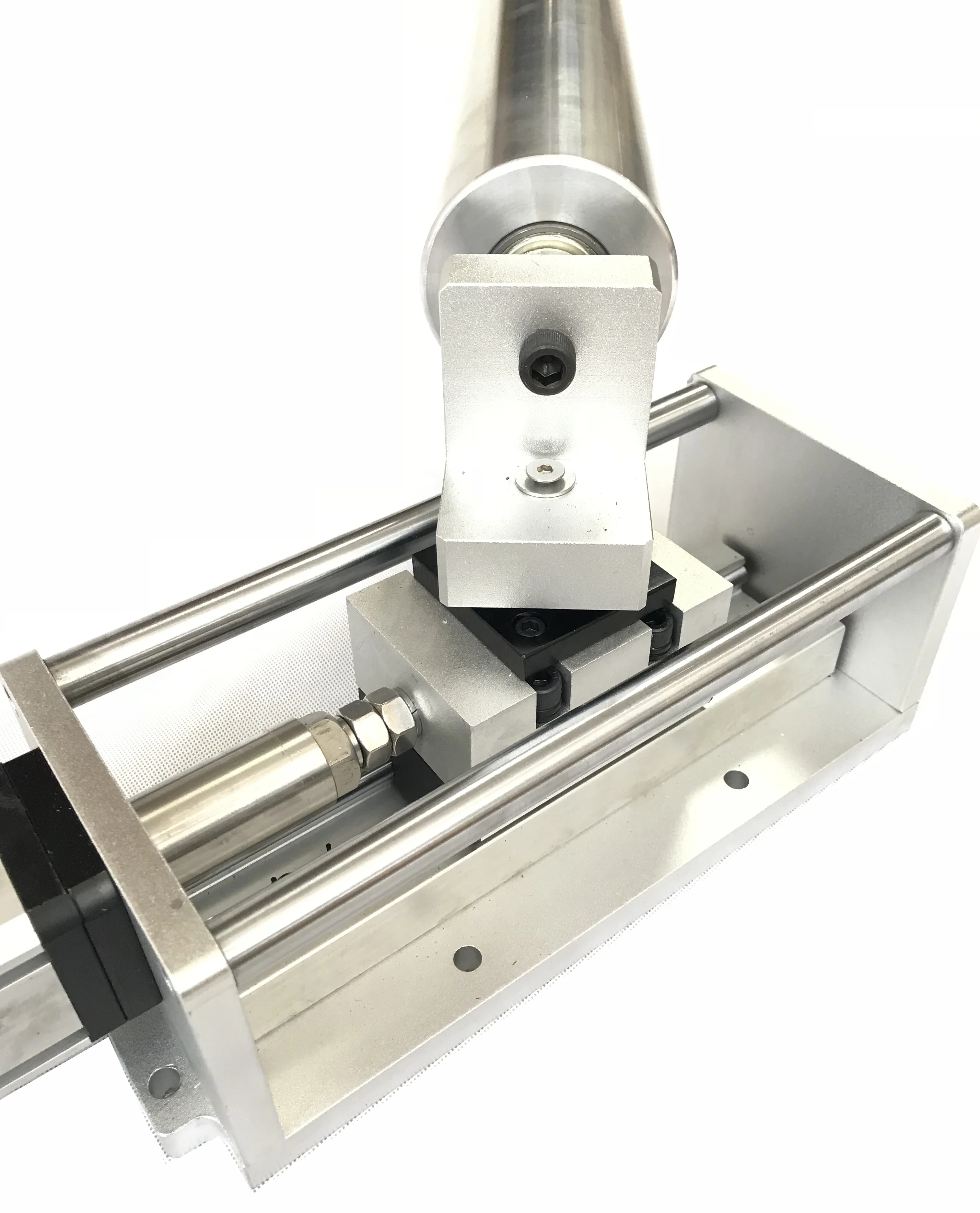

* Low friction ball bearings and precision guide rods are used to drive parts.
* High durability, long-term continuous operation and low maintenance rate.

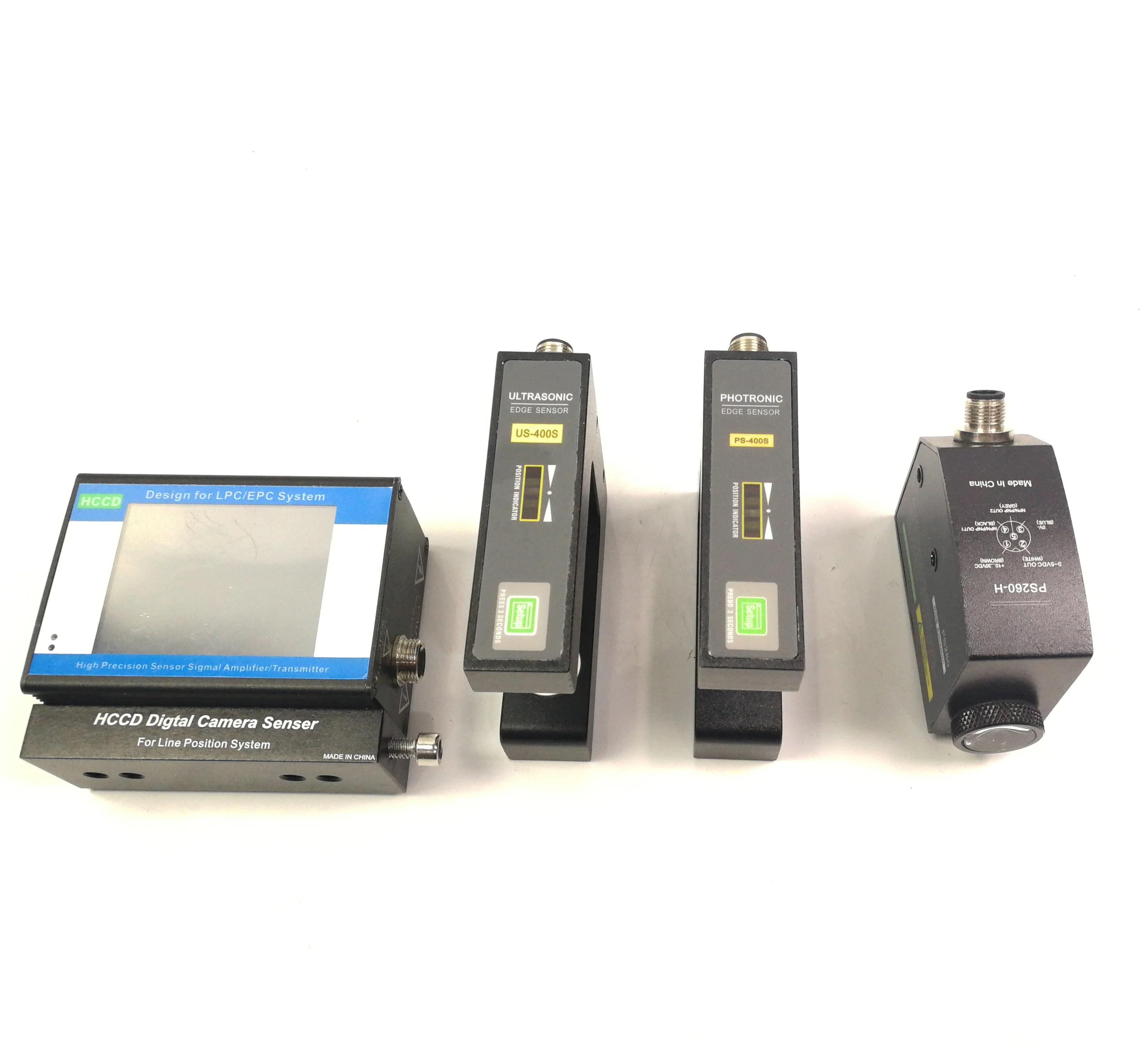

* Selection of sensors based on coil material.
* Optional configuration of LPC, EPC, CPC.
* Modular assembly to achieve rapid compliance.
* Single guide roll or double guide roll can be optional used.
* Adopt high precision servo motor control system, Fast and accurate correction.
* Low friction ball bearings and precision guide rods are used to drive parts.
* High durability, long-term continuous operation and low maintenance rate.
* Selection of sensors based on coil material.
* Optional configuration of LPC, EPC, CPC.
* Modular assembly to achieve rapid compliance.
PRODUCT SPECIFICATIONS
Model | Roll Dia(mm) | Thrust Weight | Max drive speed | Guide stroke | Sensor | Alignment Mode | ||||||

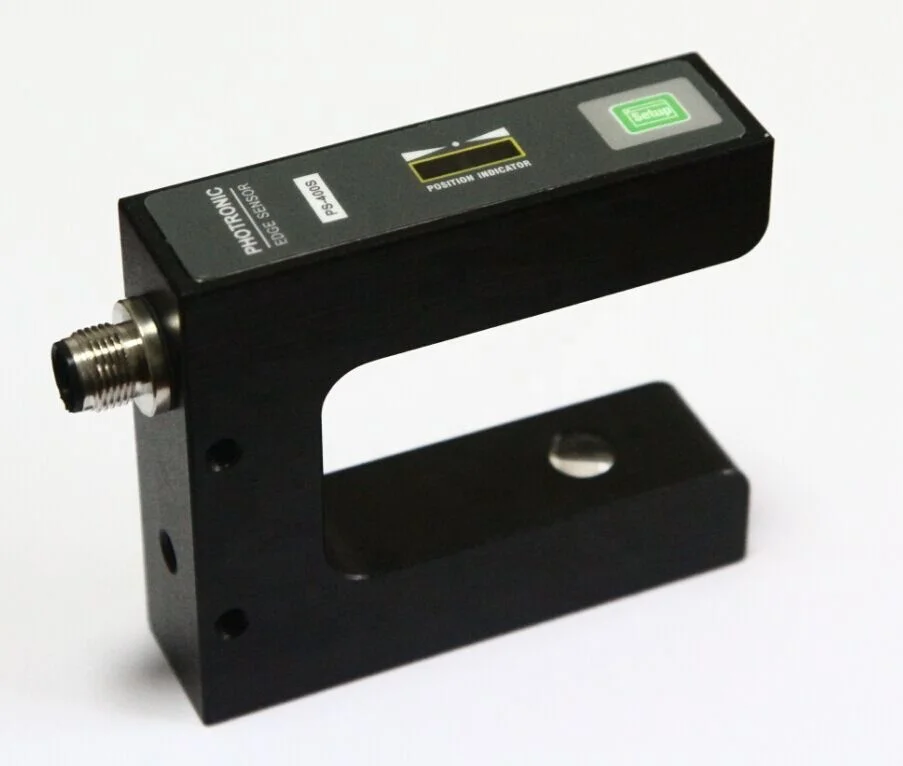

GSPD104L | 80/100 | 1000Kg | 40mm/s | 150mm | US-400S/PS-400S/PS-260 | EPC/LPC/CPC | ||||||
GSPD204L | 80/100 | 2000Kg | 40mm/s | 150mm/200mm | US-400S/PS-400S/PS-260 | EPC/LPC/CPC | ||||||

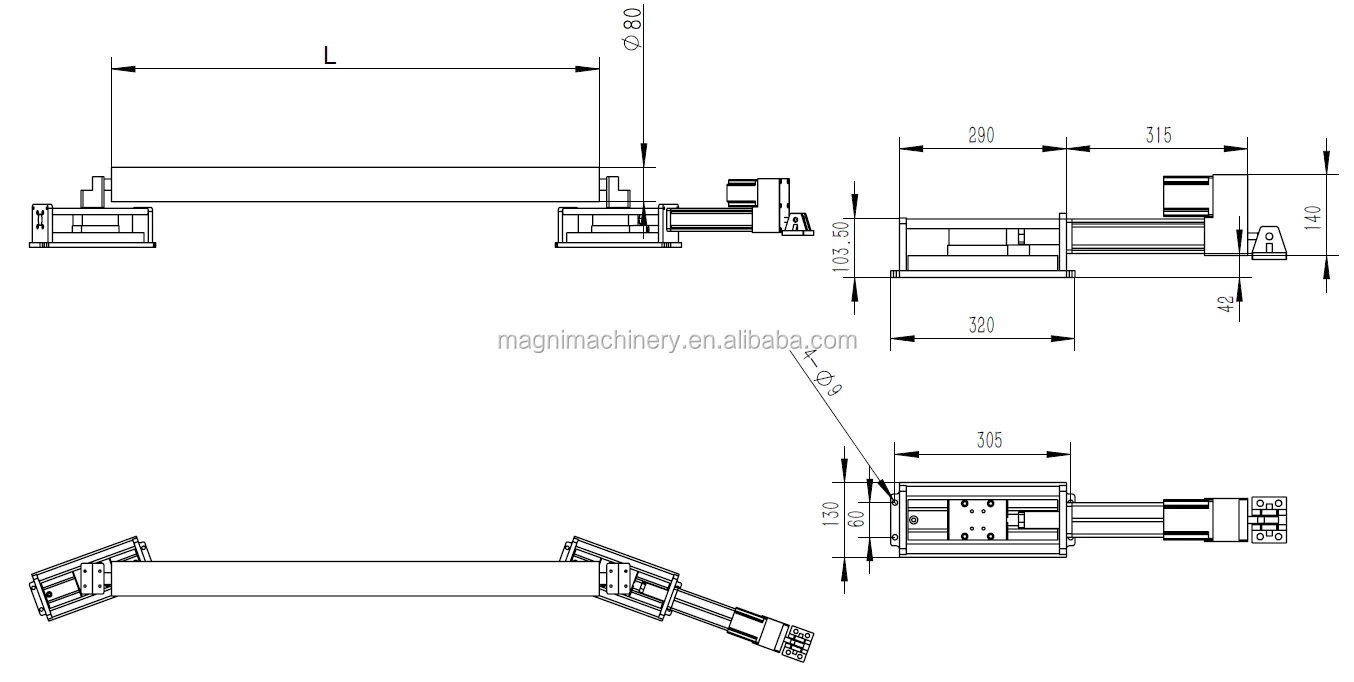

Guide roll length: Special made | 3 | Operating weight | 125Ton | |||||||||

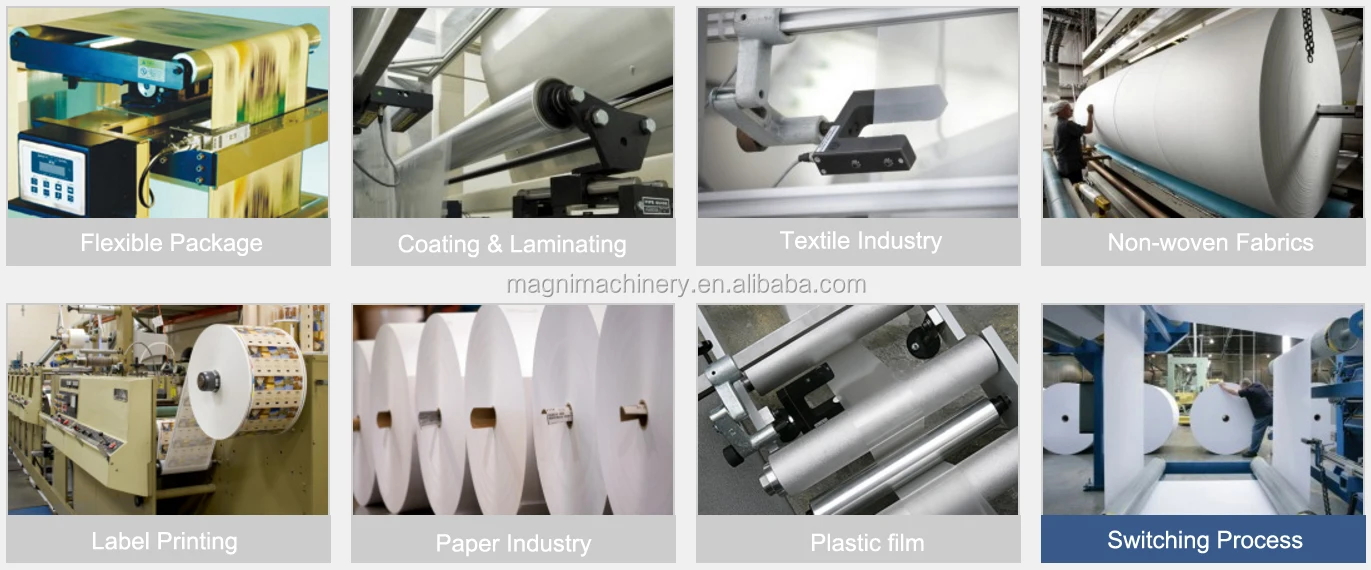

Application of Steering Web System
EPC System
LPC System
CPC System

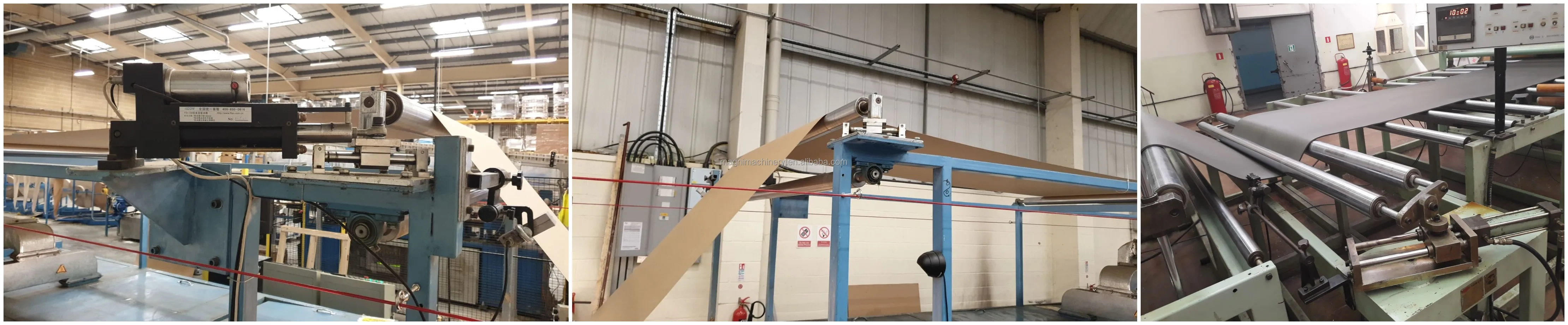

Successful Project
