water meter body forging machine

Product Overview

Description

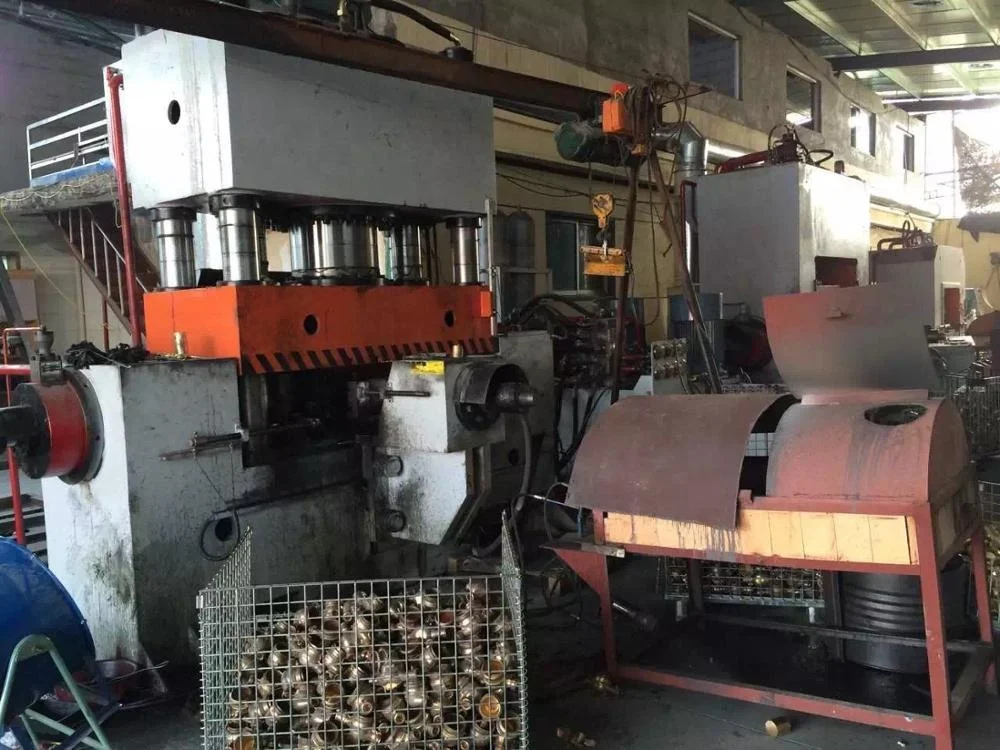

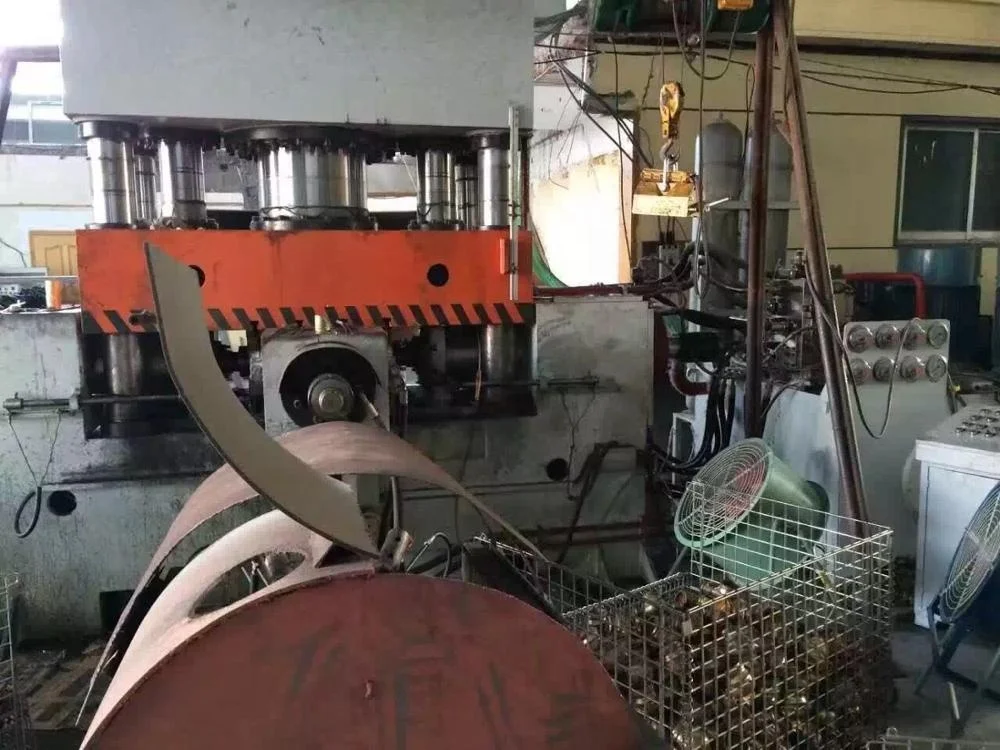

water meter body hydraulic press machine

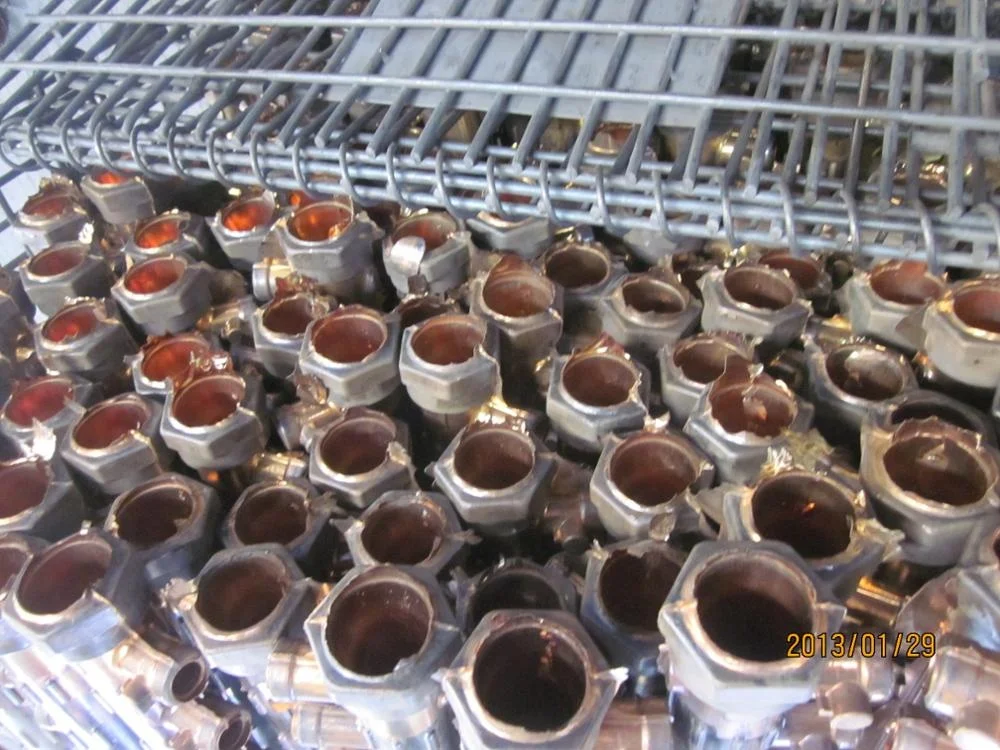

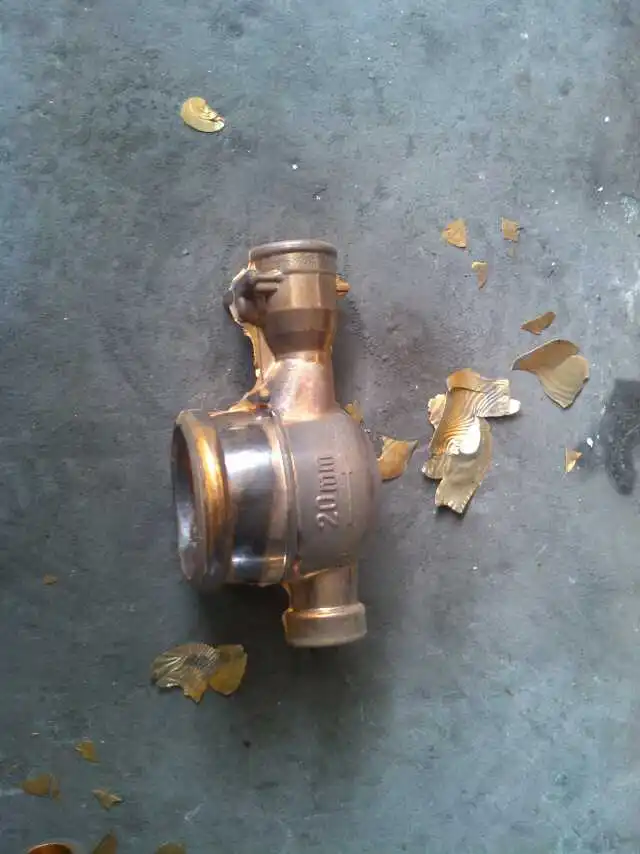

The hydraulic machine is mainly for water meter body making .



Okcan brand hydraulic machinery is safety reliable,quality guarantee for two years,cost maintenance for life.



1..It can produce 4 pieces/minute



2..Performance and features:

Synchronous stability, fast extrusion speed.

Dedicated machine, convenient and reliable.

The processing precision of machine body is high.

The product has low reject rate.

Four-column type and frame type is optional.







3..Technical parameters:

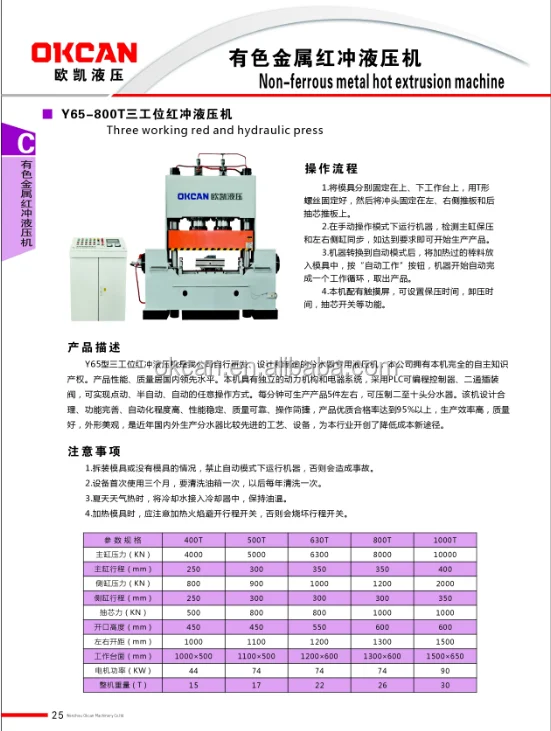

Parameter	YHT-400T	YHT-500T	YHT-630T	YHT-800T	YHT-1000T
Master cylinder pressure(KN)	4000	5000	6300	8000	10000
Master cylinder stroke(mm)	250	300	350	400	400
Side of the cylinder pressure(KN)	1700	2000	2000	2500	2500
The side cylinder stroke(mm)	250	300	400	400	400
Core pulling force(KN)	500	600	800	1000	1000
max daylight (mm)	450	450	550	600	600
Left and right distance(mm)	1000	1100	1500	1600	1800
Working table(mm)	1000*500	1100*500	1500*600	1600*650	1800*650
The motor power(KW)	44	60	74	90	90
The weight of the whole machine(T)	15	17	22	26	30



4..Operating procedures:

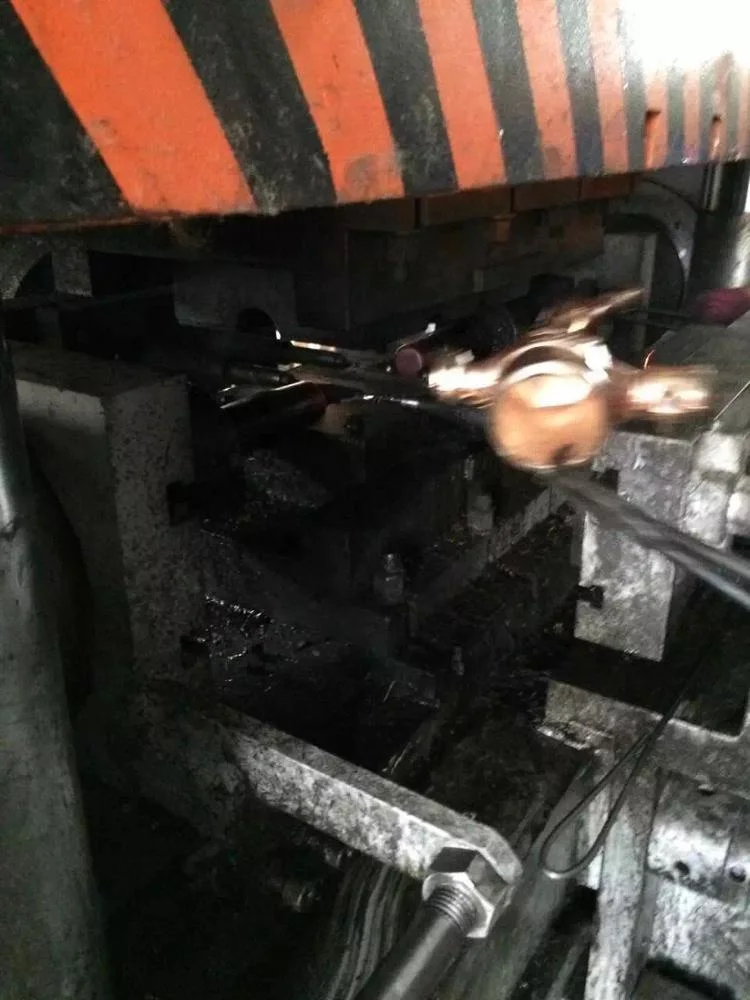

(1).The mold is put on work table, using T shaped screw fixed,and then fix the punch head on the left and the right side push plate and back core-pulling push plate.



(2).Run the machine in manual operation mode, check the synchronization of the master cylinder and the left and right side cylinders, when meet the requirements, can begin production.



(3).after the machine switch to automatic mode, put the heated bar stock into mould, according to automatic operation buttons, the machine automatically complete a cycle of work, take out the product.



(4)This machine is equipped with a touch screen, can be set the holding pressure time, unloading time, core pulling switches etc. function.

5..Note:

(1) .when Removal and mount mold or no mold, prohibit running the machine in automatic operation mode, otherwise it will cause an accident.

(2). Equipment used for the first time in three months, has to clean the oil tank once, then washed once a year.

(3). In summer , the weather is hot,the cooling water access cooler to keep the oil temperature.

(4.) When heating mould,the heating flame should keep away from the position switch, otherwise it
