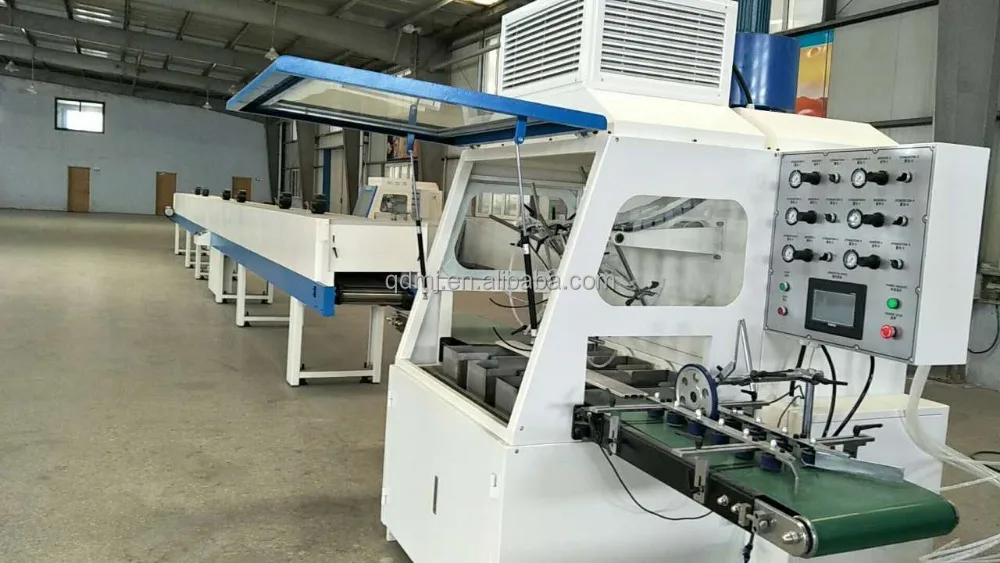

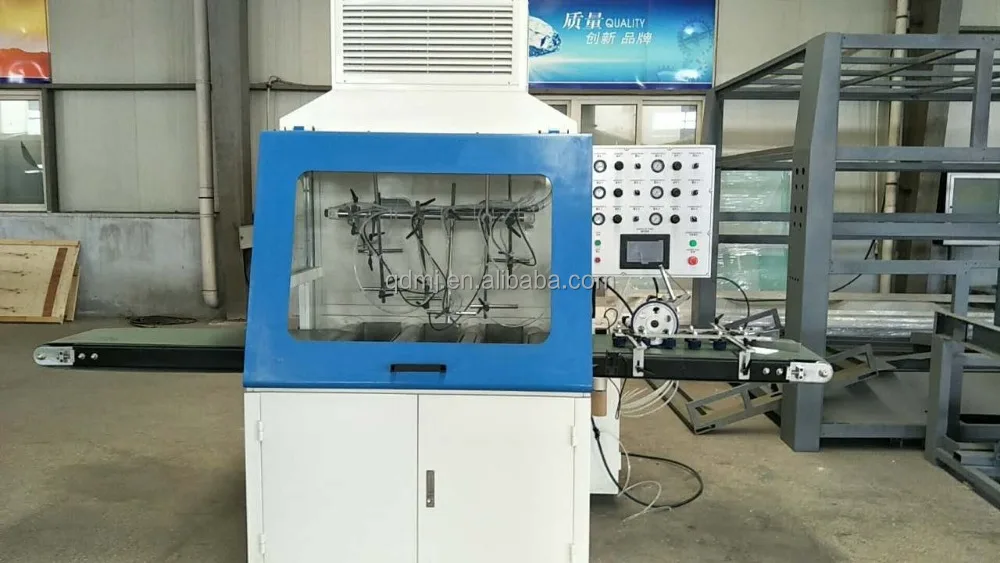

Woodworking Automatic Profile Spraying Paint Machine
- Category: >>>
- Supplier: Qingdao Haozhonghao Woodworking Machinery Co. Ltd.
Share on (60626348779):
Product Overview
Description
We supply high quality Woodworking Automatic Profile Spraying Paint Machine
Product Description
MODEL | LSPM400 | LSPM600 |
Working width | 10-400mm | 10-600mm |
Working thickness | 10-100mm | 10-100mm |
Min. working length | 700mm | 700mm |
Feeding speed | 0-50m/min | 0-50m/min |
Working spraying gun | 3pcs | 3pcs |
Working pressure | 0.5-0.8Mpa | 0.5-0.8Mpa |
Total power | 2.25Kw | 2.25Kw |
Figure Dimension | 3500*1700*2000mm | 3500*2000*2000mm |
Weight | 1600Kg | 1800Kg |

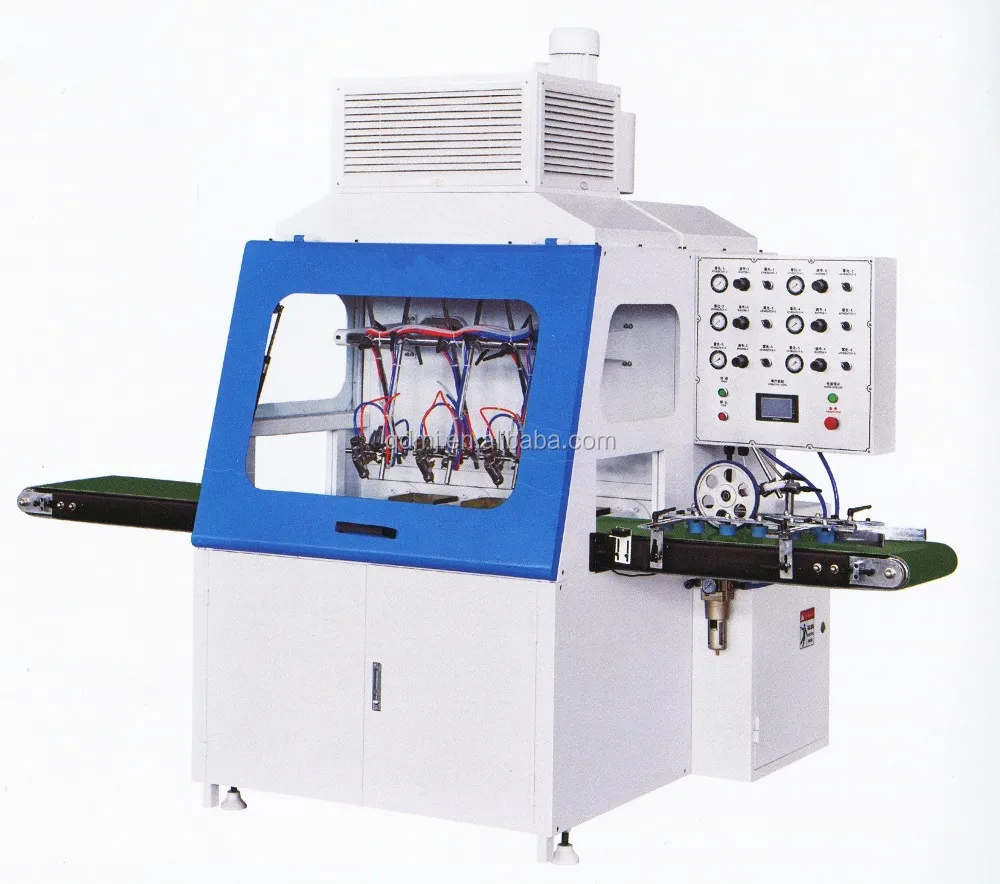

1This machine with Janpanese IWATA brand spraying guns
2 Adopt Taiwan Jely brand diaphragm pump
3 With paint recycle systm, the overspray paint can flow into tank in bottom of the machine, fliter and reuse

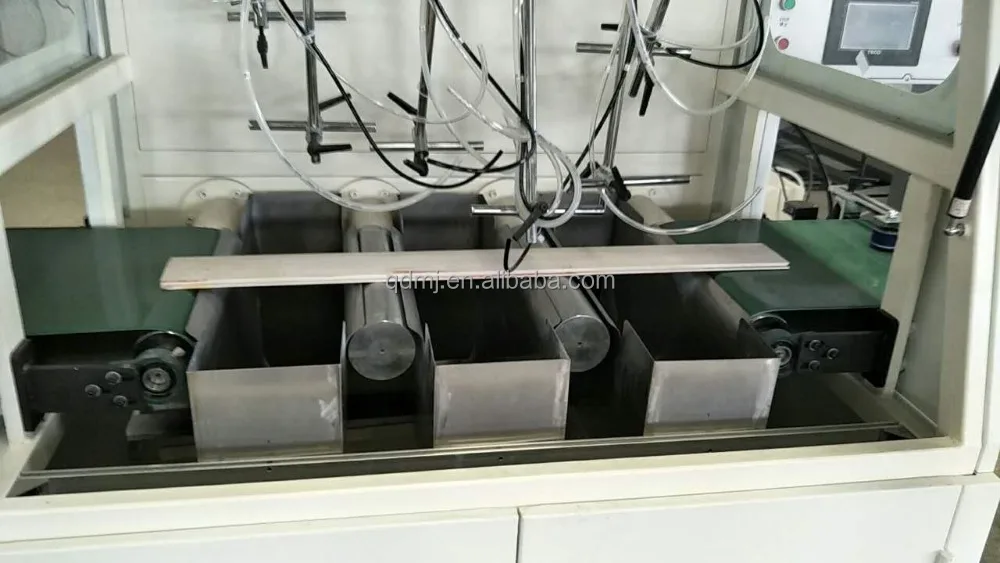

Paint recycle systm, the overspray paint can flow into tank in bottom of the machine
Other hot products

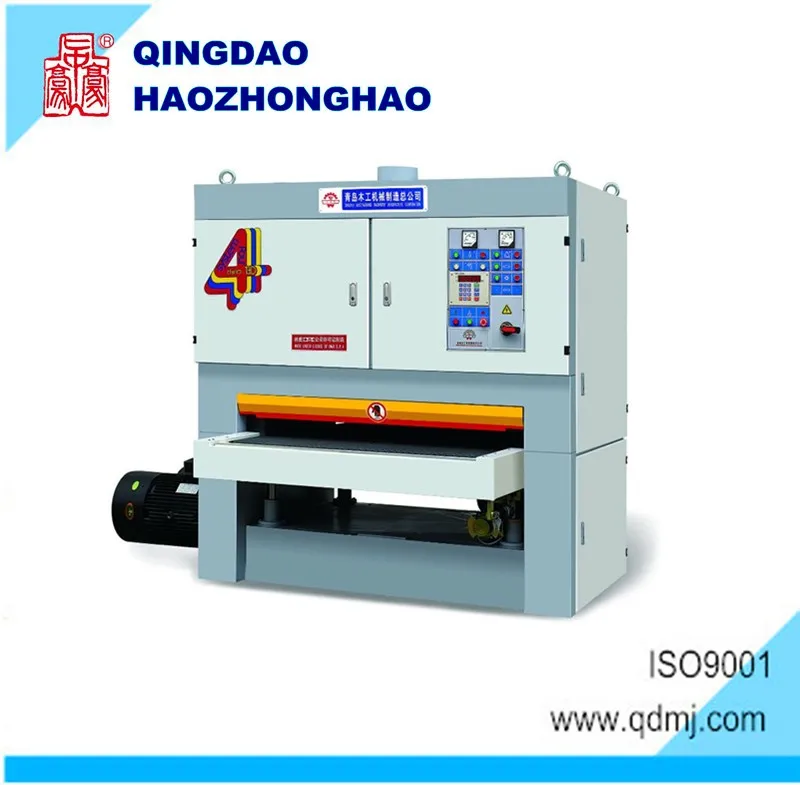

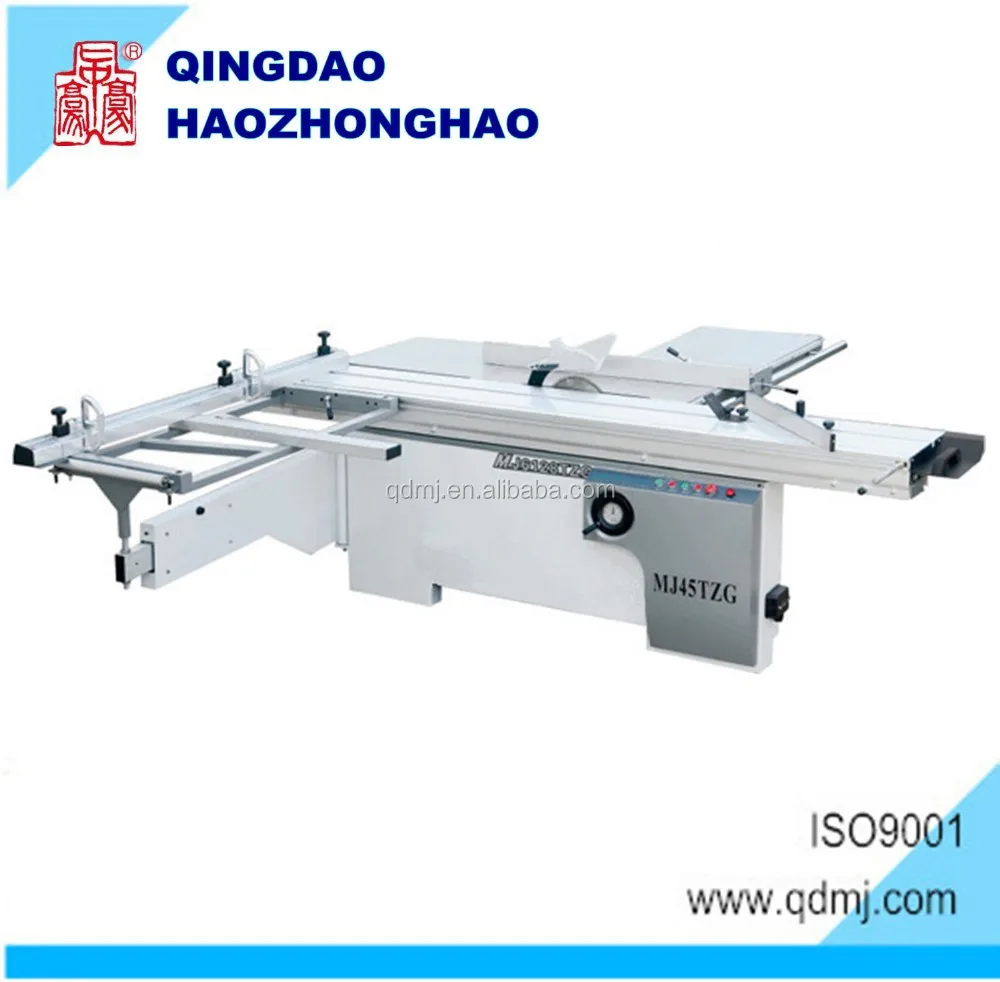

Sanding machine Planer sander Panel saw

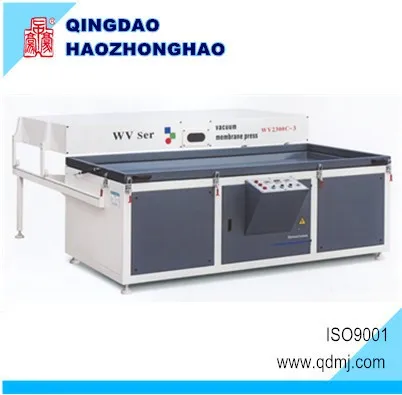

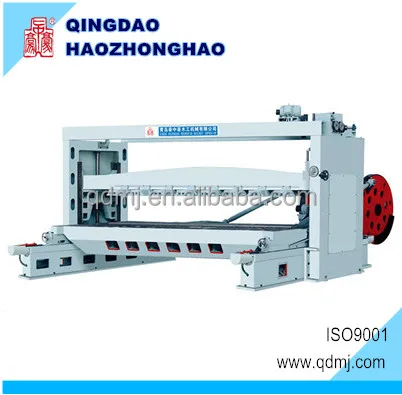

Panel saw Membrane vacuum press Veneer slicer

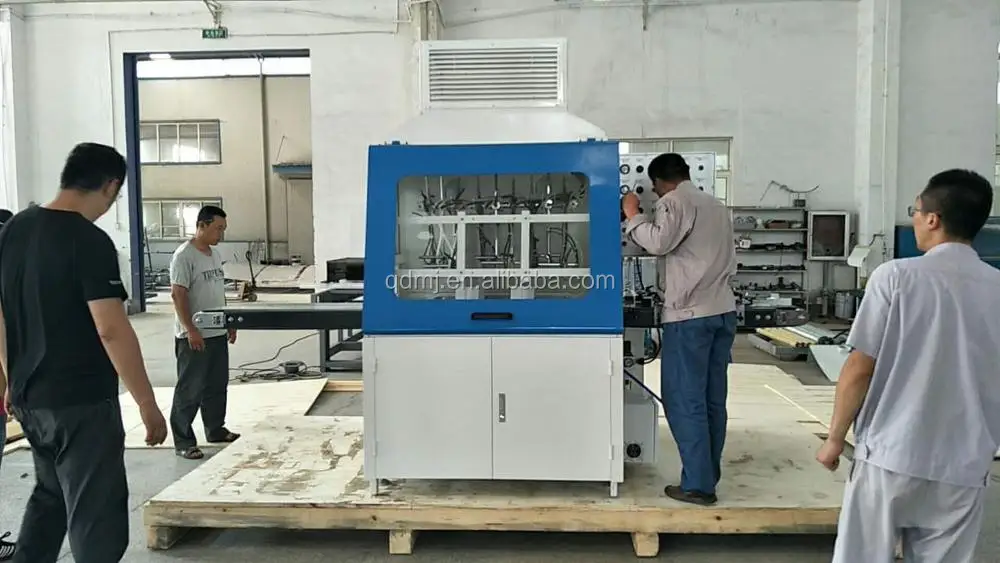

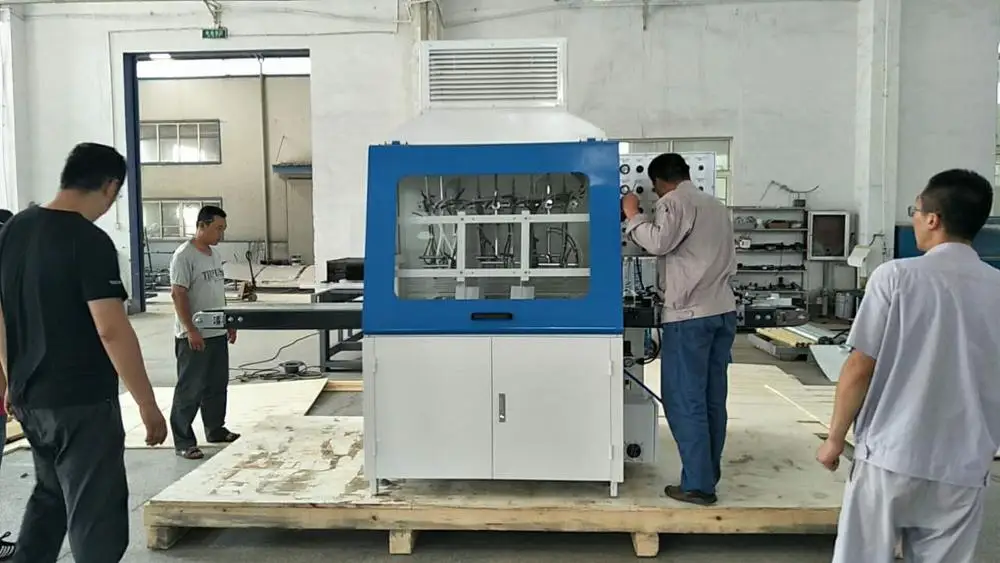

Packaging & Shipping
Package: Plastic film package is standard, if plywood case package pls inform us
Delivery: About 30 days after receive the down payment.

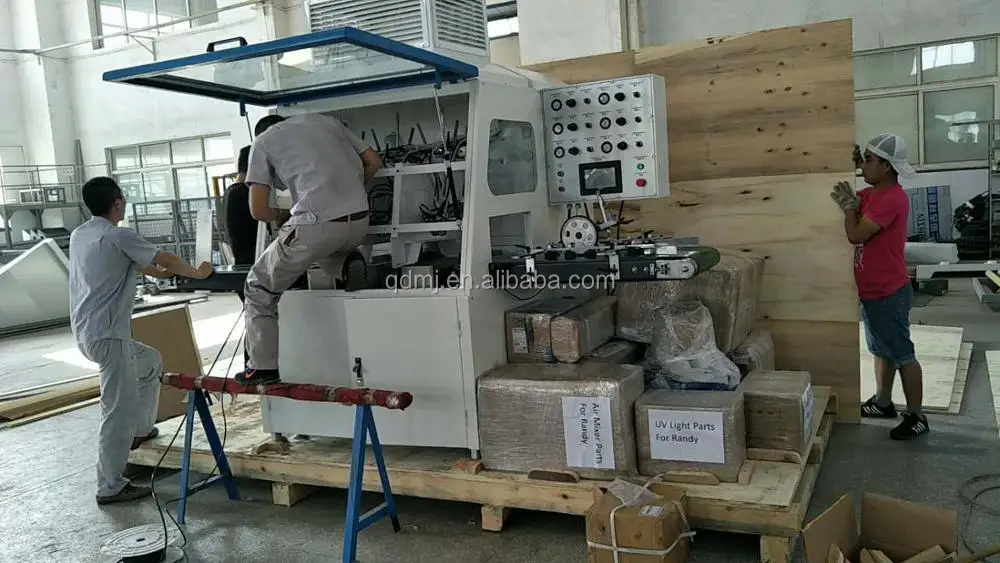

Plywood case package:
