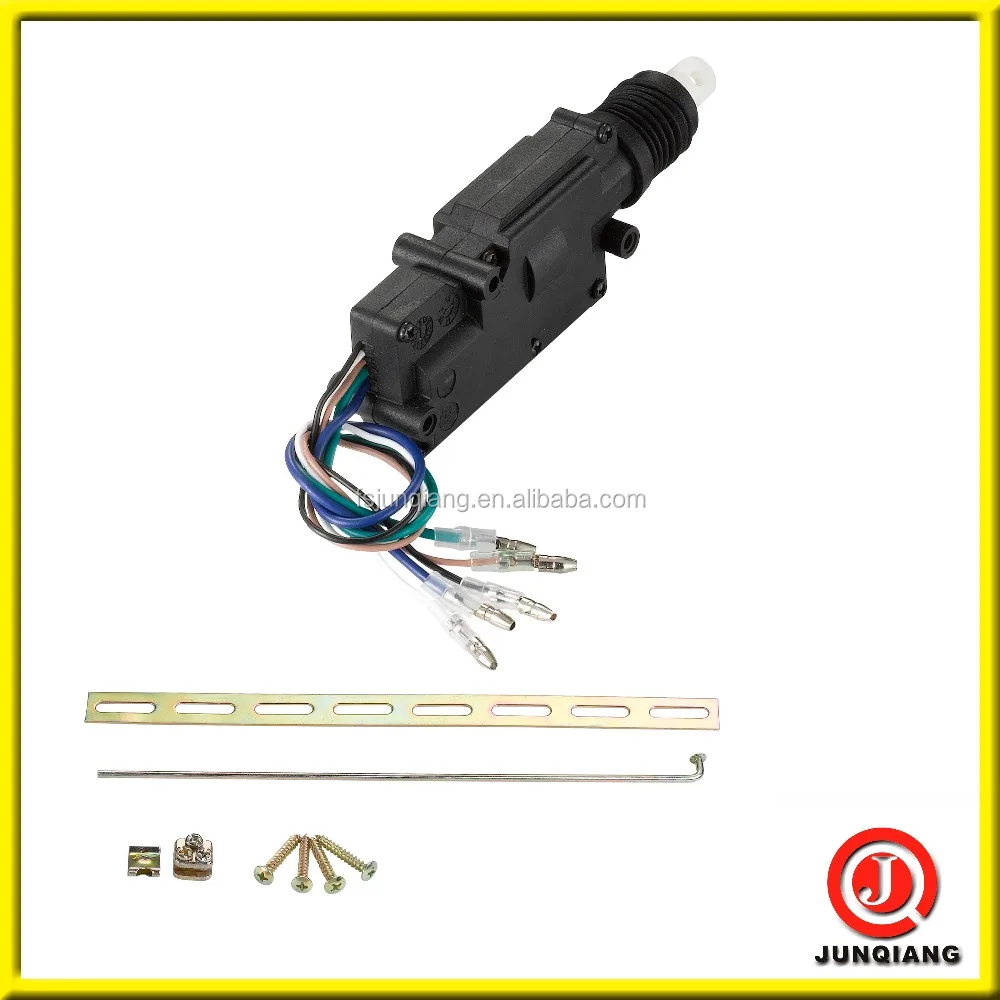

New 5 Wire Heavy Duty Central Door Lock Actuator

 New 5-Wire Heavy Duty Central  Door Lock Actuator

·5-Wire New clutch type heavy-duty actuator

·Convert any vehicle with manual door locks to central locking power door locks

·Universal features and fits any model of any brand

·Motor with Japanese technology

. Covers fixed with screws

·Nylon housing

·Adjustable positioning hardware for easy installation and quiet operation

·Hardware with 8 mounting holes for flexible installation

. Operating voltage: DC 12V ±10%

. Empty-load current: 1.5A ±5%

. Stall current: <5A

. Load current: 3A + 10%

. Pull force: 5.5 KGS + 5%

. Push force: 5.0 KGS + 5%

. Mechanical life:≥ 100,000 times (one up and down operation as one time)

. Electrical life: ≥ 80,000 times ±10%

. Travel distance: 22mm ± 0.5mm

. Operating pulse: 0.3~0.4 second

. Material of actuator case: PA66+GF30

. Operating temperature: -30°C~ +80°C

. Spec. of motor wire: Ø2.3 26*0.14 copper (AVS 0.41)
