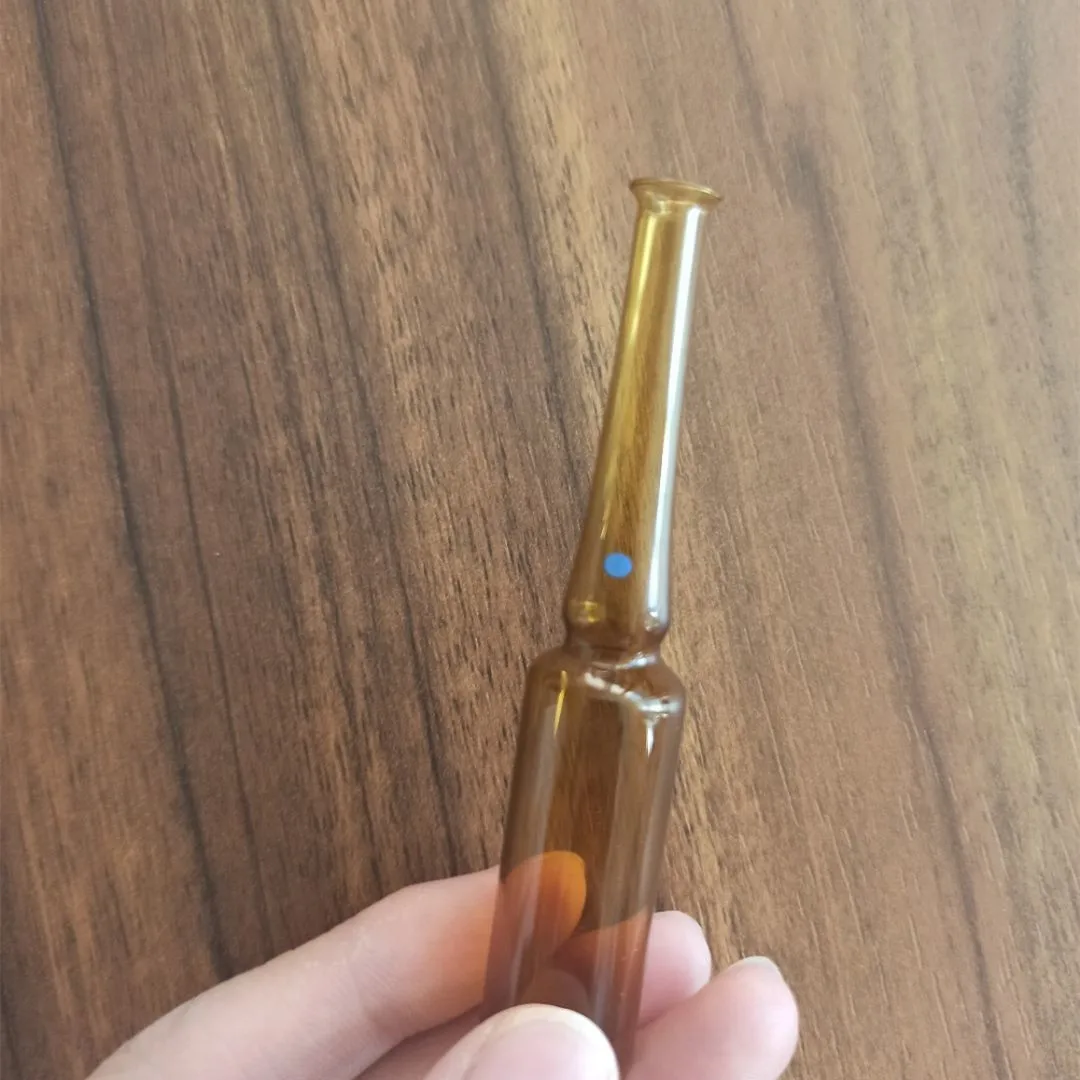

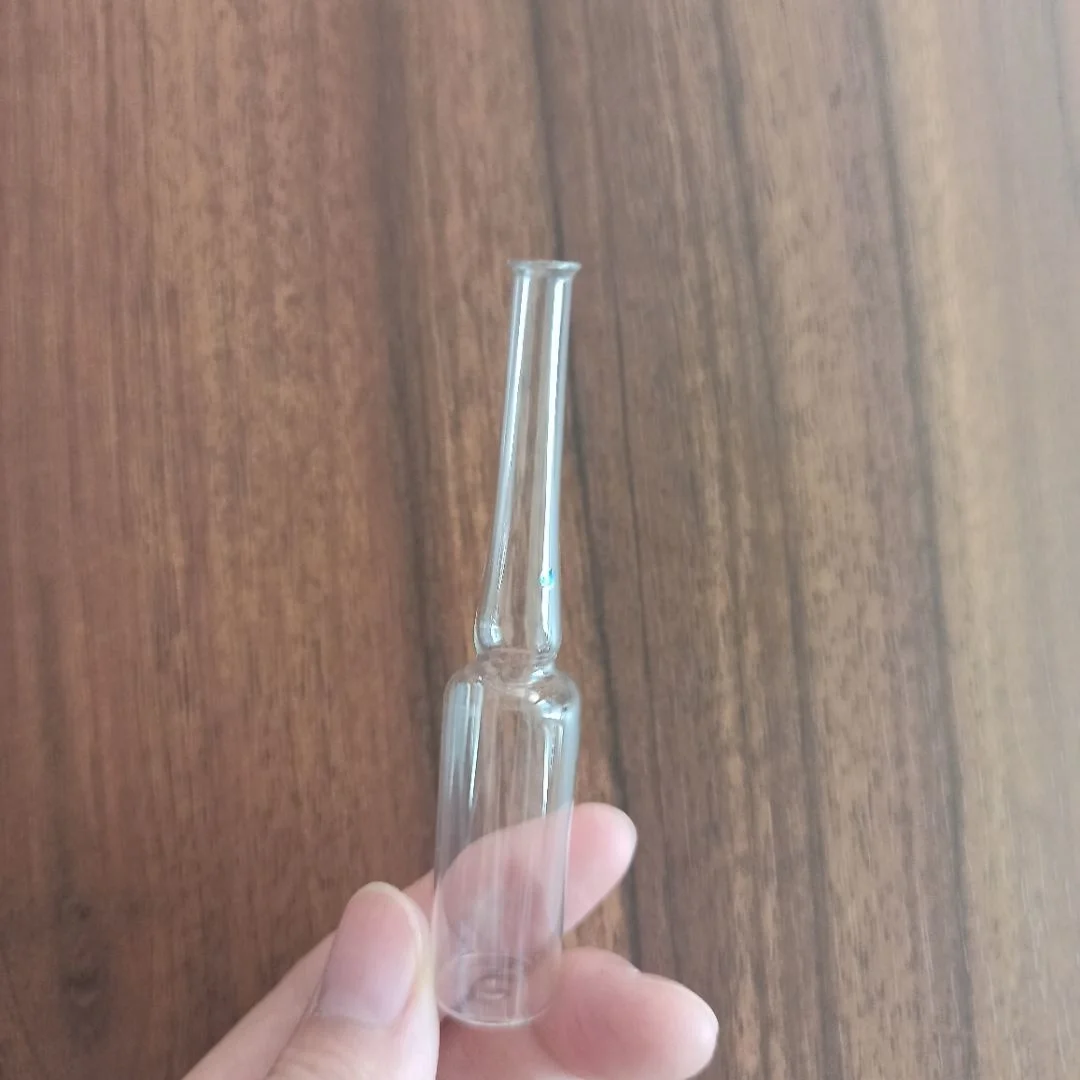

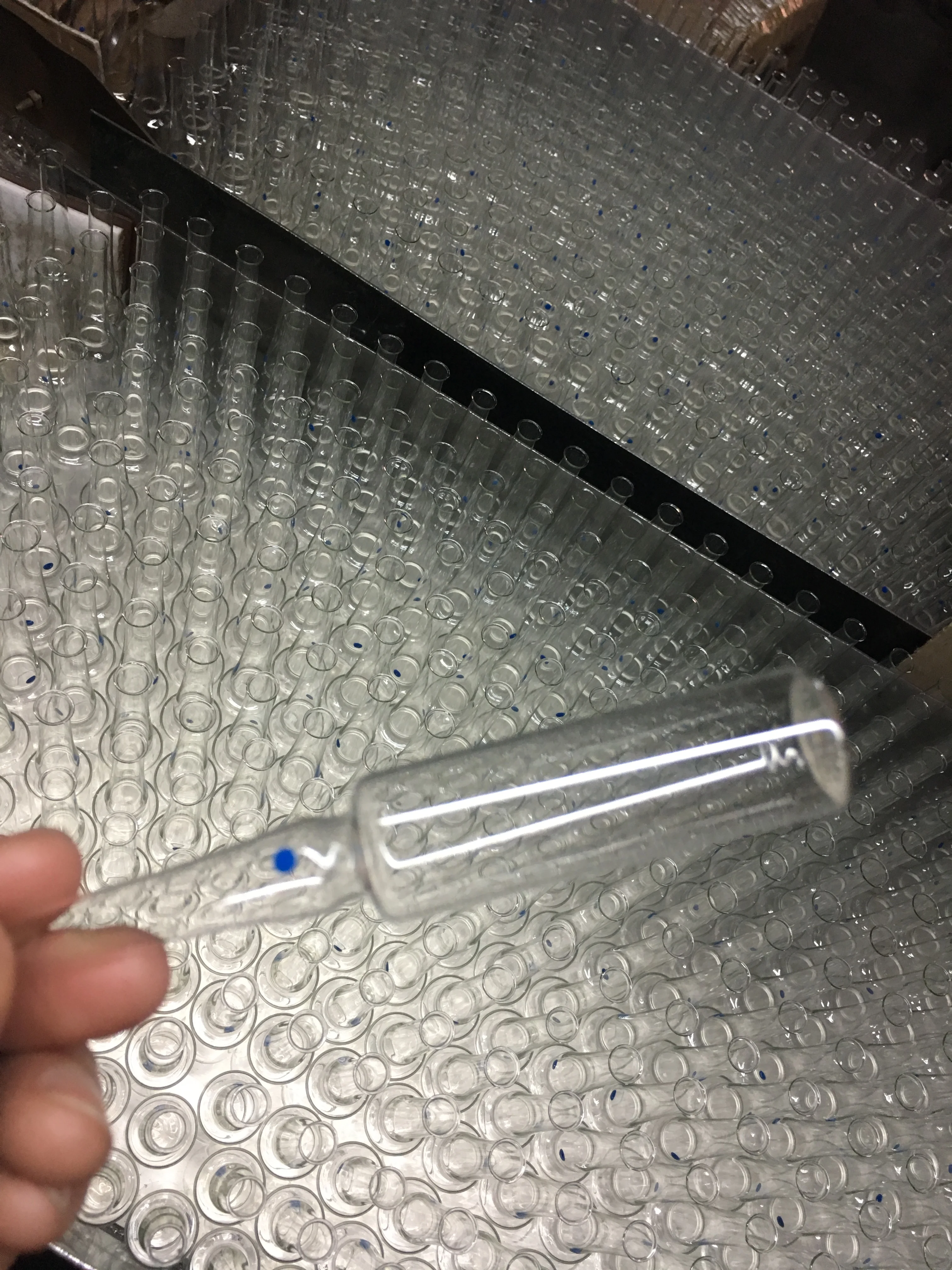

5ml ampoule for medical injection
- Category: >>>
- Supplier: Zhengzhou Frontier International Trade Co. Ltd.
Share on (60626511318):
Product Overview
Description
Product Description

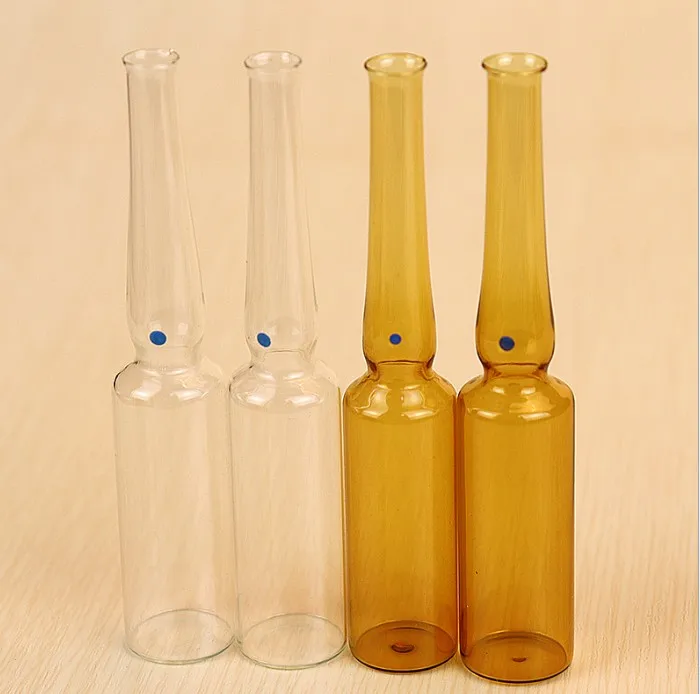

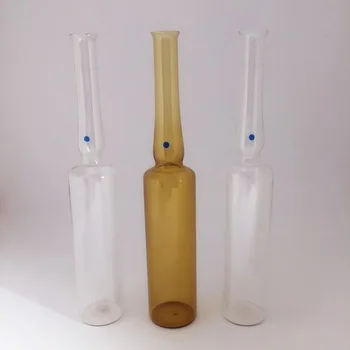

1) Appearance: Clear & Amber
2) FORM B&C&D
3) Dimensions of 1ml, 2ml, 3ml, 5ml,10ml, 15ml, 20ml; accept OEM.
4) Material: Low & Middle content borosilicate, Soda-Lime.
5) Producing Standard: ISO, YBB, Domestic standards.
| Enterprise standard: (Ref:YBB00322002/YBB00332002) | |||||||||||||||||||
| SPEC ml | Outer diameter | Height | Thickness | ||||||||||||||||
| OD1 | OD2 | OD3 | 0D4 | OD of colour point | overall height H1 | constriction height H2 | up to gauging point | up to shoulder | up to color point | Stem S2 | Body S1 | ||||||||
| Basic size | Tol.+ | Basic size | Tol.+ | Basic size | Tol.+ | Basic size | Tol.+ | Basic size | Tol.+ | Basic size | Tol.+ | Basic size | Min | Max | Min | Min | |||
| 1 | 10.00 | ±0.26 | 6.3 | ±0.8 | 7.8 | ±1.0 | 5.0 | ±0.6 | 2.0 ± 0.5 | 60.0 | ±1.0 | 25.0 | ±1.0 | 57.0 | 21.0 | 31.5 | 0.2 | 0.2 | |
| 2 | 11.50 | 7.0 | 8.5 | 5.5 | 70.0 | 36.5 | 67.0 | 32.0 | 43.0 | ||||||||||
| 5 | 16.00 | ±0.30 | 8.2 | ±1.0 | 10.0 | 6.0 | 87.0 | 43.0 | 84.0 | 38.5 | 50.5 | 0.3 | |||||||
| 10 | 18.40 | ±0.35 | 8.8 | ±1.2 | 11.0 | 6.8 | ±0.8 | 102.0 | 58.5 | ±1.2 | 99.0 | 53.5 | 66.5 | 0.25 | |||||
| 20 | 22.00 | 10.5 | 13.0 | ±1.2 | 7.3 | ±1.0 | 126.0 | ±1.3 | 76.5 | ±1.5 | 123.0 | 68.0 | 85.0 | 0.3 | 0.35 | ||||
| ISO 9187-1. (Remark: Dimensions somewhere of 1992 will differ 2010 in terms of ISO 9187-1:***. ) | |||||||||||||||||||
| SPEC ml | Outer diameter | Height | Thickness | ||||||||||||||||
| D1 | D2 | D3 | D4 | OD of colour point | overall height H1 | constriction height H4 | up to gauging point h5 | up to shoulder | up to color point | Stem S2 | Body S1 | ||||||||
| Basic size | Tol.+ | Basic size | Tol.+ | Basic size | Tol.+ | Basic size | Tol.+ | Basic size | Tol.+ | Basic size | Tol.+ | Basic size | Min | Max | Min | Min | |||
| 1 | 10.75 | ±0.15 | 6.5 | ±0.5 | 8.5 | ±0.5 | 6 | ±0.5 | 2.0 ± 0.5 | 60.0 | ±1.0 | 25.5 | ±0.5 | 47 | 21.0 | ||||
| 2 | 10.75 | 6.5 | 8.5 | 6 | 70.0 | 37.5 | 57 | 33.0 | |||||||||||
| 5 | 14.75 | ±0.15 | 7 | ±0.5 | 9 | 7 | 87.0 | 46.5 | 68 | 41.0 | |||||||||
| 10 | 17.75 | ±0.25 | 7.5 | ±0.5 | 9.5 | 7.1 | ±0.5 | 102.0 | 62 | ±1.0 | 87 | 55.0 | |||||||
| 20 | 22.5 | 8.5 | 12.0 | ±1.0 | 7.8 | ±0.8 | 126.0 | ±1.3 | 76 | ±1.3 | 100 | 65 | |||||||
Production Process
Packaging & Shipping
Packaging: Any merchandise will be in poly bag, then fit in double-layered carton
Shipping:Express Delivery for sample and small orders
Air Freight for Fast Delivery
Sea Freight for bulk and economic shipping
Our Services
1. Samples can be provided for testing quality.
2. OEM & ODM welcome.
3. Public mold can be choosed.
4. Strict quality control
5. Factory price
6. Prompt reply
7. Convenient and safety shipping
8. Professional after-sales service
Company Information
Zhengzhou Frontier International Trade Co., Ltd was founded in 2013,serving as exporting branch of our factory. Our factory have been engaging in producing glass ampoules since 1990. (Zhengzhou Frontier will represent our factory below.) By focusing strongly on the needs and demands of our customers, Zhengzhou Frontier has been able to grow strongly and today we are a significant player in the South and North China pharmaceutical markets. Employing highly skilled staff in a built almost 100,000 square meter factory. Zhengzhou Frontier Products has a strong focus on export, and 60% of the production is sold to Entire Asia market, Russia and South&Middle America. We have worked alongside our clients for more than 20 years and much of our success, experience and goodwill is due to this.
Feedback
FAQ
1. Q: Can you offer sample for quality checking ?
A: Samples can be provided as your requirements.
2. Q: Could you accept customized ?
A: Yes, Customized designs, materials, sizes, colors, etc. OEM & ODM orders are welcomed. We will protect the customers’ designs, brands, trademarks carefully.
3. Q:Can we do printing or label printing on the glass bottle ?
A:Yes, we could offer various printing ways, decal, silk printing, also we could do color spraying and so on.
4. Q: Can we get support if we have our own market position?
A: Please inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
5. Q: Why do we choose you?
A: Since the establishment of our company, our products have been exported and used in more than 50 countries.Our value is to ensure our product will meet clients' satisfaction in term of quality and price, and provide the best lead time according to your project schedule and need. The additional, we are not just aiming selling products, but solving problems for you.
