we specialize in R&D,manufacture and sell the highest-guality die cutting machine(production line) with more than 10 years experience in china. we havea professional service team to provide users with fast and efficient after-sale service. from shanghai to our company has four hours' drive.Jiangsu A tong adhere to the road of science and technologgy innovation and development,has with Italy,Britain,the Czech republic and other countries and regions with counterparts close technical cooperation and trade relation,the best-selling products at home and abroad market area.
COMPANY HOMOR
INTERNATIONNAL COOPERATION
cardboard EVA Foam fabric jigsaw puzzle paper die cutting machine
use and character This machine is suitable for blanking of the nonmetallic materials as small-knife mold、 ticket clip units、 handset sleeve、 small toys.、adornments、 leather bag fittings etc.

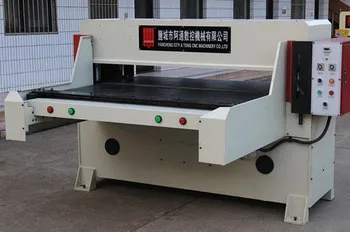

cardboard EVA Foam fabric jigsaw puzzle paper die cutting machine
Model number : JSAT1-800 Max cutting force :800KN Distance between the upper platen and
the working table surface :50-200mm Cutting table area :
1600*810mm/1250*810mm/Customised Motor power：7.5KW

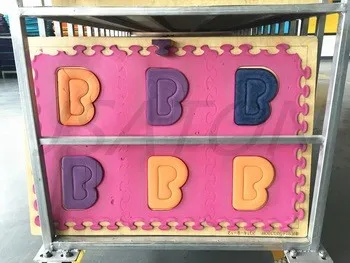

MASS PRODUCED PRODUCTS
1.Features and Advantages
1、The machine is applicable for whole-broken or semi-broken operation of various nonmetal slices materials by die cutter. For example: such industries as plastics packing, pearl cotton packaging, rubber and printing etc. 2、Microcomputer controlled, with simple, prompt and accurate operation. 3、The main machine adopts double oil cylinder, double-crank connecting rod balancing, four-column precise guiding mechanism, which can guarantee that the cutting depth at every cutting position is same. 4、The pressing board carries out slow cutting when it presses downward to contact the die cutter, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials. 5、The central oil supply automatic lubricating system guarantees the service life and precision of machine. 6、Single-side or double-side automatic feeding system can be allocated to enhance the production efficiency of machine twice or thrice. 7、Cutting board micro-movement device can be allocated to evenly consume the cutting board and save cost. 8、Die cutter pneumatic clamp device can be allocated to make the replacement of die cutter convenient and prompt. Optional: a. Single-side and double-side automatic feeding systems; b. Cutting board micro-movement device; c. Die cutter pneumatic clamp device.
2.Technical Parameters
Machine Detail
Model number
Maximum cutting force
Distance between the upper platen and the working table surface
Area of the working table
Motor power
JSAT1-400
400KN
50-200mm
610*1600mm 610*1250mm
3KW
JSAT1-500
500KN
50-200mm
810*1600mm
810*1250mm
4KW
JSAT1-600
600KN
50-200mm
810*1600mm 810*1250mm
5.5KW
JSAT1-800
800KN
50-200mm
810*1600mm 810*1250mm
7.5KW
JSAT1-1000
1000KN
50-200mm
810*1600mm 810*1250mm
7.5KW
JSAT1-1500
1500KN
50-200mm
910*1600mm
910*1250mm
11KW
JSAT1-2000
2000KN
50-200mm
1100*1600mm
1100*1250mm
15KW
Electric suppl voltage
3*440/415/400/380/220V,50/60HZ
2*380/220v,50/60HZ
Color
red/blue with dark green/white
Voltage
Three/single phase,380v/220v
Hydraulic oil
46# 48# 68#
Function
Cutting ( cardboard EVA Foam fabric jigsaw puzzle paper die cutting machine)
4.Product application
This cardboard EVA Foam fabric jigsaw puzzle paper die cutting machine is suitable for all kinds of plastic, sponge, EPE pearl cotton, carpets, automotive interior, gloves, bags, puzzles, EVA, PAC, PVS, plastic floor, ceiling, floor mats, car cushion car seat, decoration materials, square tiles, flooring, carpet, football, sandpaper, grinding wheel, polishing, polishing CD, insoles, shoe uppers and shoe soles, leather, rubber, chemical fiber, paper, canvas, nylon, non-woven fabric, cotton fabric and various non-metallic materials in one layer or multilayer sheet and coil using the knife mold cutting so as to achieve the purpose of molding.
Configurations
The product name
Origin
brand
Intermediate relay
Japan
And spring
contactor
Taiwan
The shilin
Thermal relay
Taiwan
The shilin
The seals
The United States
Parker
The oil pump
Sinojpanesen joint venture
Spirit
The tubing
Germany
QC610
Oil cylinder
Sinojpanesen joint venture
Pioneer
Cylinder
Taiwan
Of the DE
Solenoid valve
Taiwan
Northern precision machine
Check valve
Taiwan
Northern precision machine
The overflow valve
Taiwan
Northern precision machine
Switch operation
Taiwan
Northern precision machine
Ball screw
Taiwan
Northern precision machine
The motor
Shanghai
DEDONG
The servo motor
Taiwan
ABBA
Infrared safety device
Taiwan
TIANDE
PLC
Japan
Mitsubishi
The man-machineinterface
Taiwan
Dangerous Aaron
The inverter
Japan
Mitsubishi
The encoder
Japan
Mitsubishi
6.the cutting-dies & PP board
We can according to your material,requirements,design the mould for you
How to choose the most suitable hydraulic die cutting machine for your business? 1)material: nonmetal 2)Cutting area depends on your material size. 3)Feeding system depends on your material style ( rolls or sheets). 4)The force depends on the perimeter of the die blade. Welcome to contact us for select the right model. Attention: we can produce different cutting force and cutting area of your machine according to your demand. factory direct sales, one year guarantee OEM orders welcomed cardboard EVA Foam fabric jigsaw puzzle paper die cutting machine with dies to cut the soft materials into small different shapes. DIES SAMPLES ( if you need the factory product the dies for your cutting machine, pls send the drawings of dies)

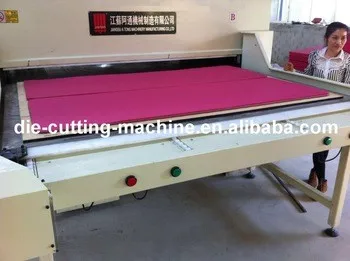

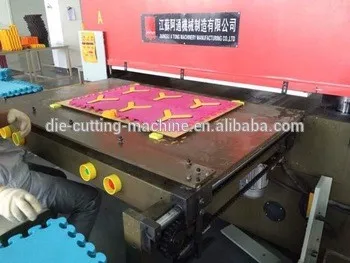

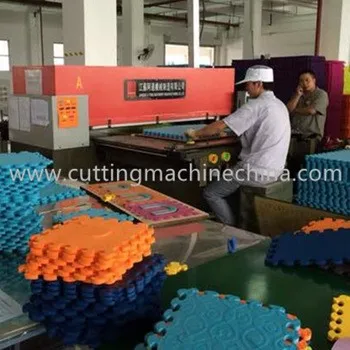

What Working of our die cutting machine?
Please contact us to see the video!

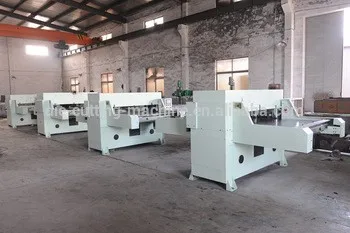

7.Working Shop ( Machine Manufacturing Process):
why choose us? 1.Q:Are you a factory or trading company? A: Yes,we are a factory. you are most welcomed to visit us. 2.Q:Where is your factory located? How can I visit there? A: Our factory is located in Yancheng City, Jiangsu Province, China, about 4 hours from Shanghai.All our clients, from home or abroad, are warmly welcome to visit us. 3.Q:What is the material of your products? A: The material is mainly steel,Cast iron(Ductile cast iron) We can also choose material as customers’ requirements. 4.What is the artwork of your products,can print our logo? A: Yes,we can provide your logo. 5.Q: What is your MOQ of this item? A: 1 set per style 6.Q: What is the lead time? A: It depends on your order quantity. 7.Q: Is it all right to make customer's own brand name? A: That’s all right to make your own brand name. 8.Q: Where is your Loading Port A: Shanghai. port,China. 9.Q: What are your payment terms? A: 30% deposit and balance T/T before shippment or L/C at sight. 10.Q: What is your company's available production capacity? A: Usually 200 sets monthly.
cardboard EVA Foam fabric jigsaw puzzle paper die cutting machine
Packing & Shipping Packing Details: Wooden Case. Delivery Detail: 5-15days after order placed and receiving 30% of T/T deposit. Depends on quantity. Our lead time is punctual and fast We will offer our factory price with guaranteed quality. We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us We can produce the product under your brand name, also the size can be changed as your requiremen Factory direct sale; Guarantee Period one year Note: we can produce different types, tons and cutting area of machine according to your demand.
