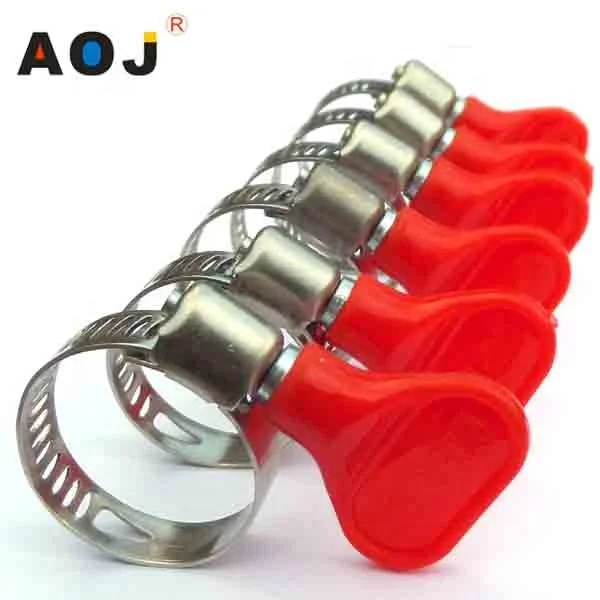

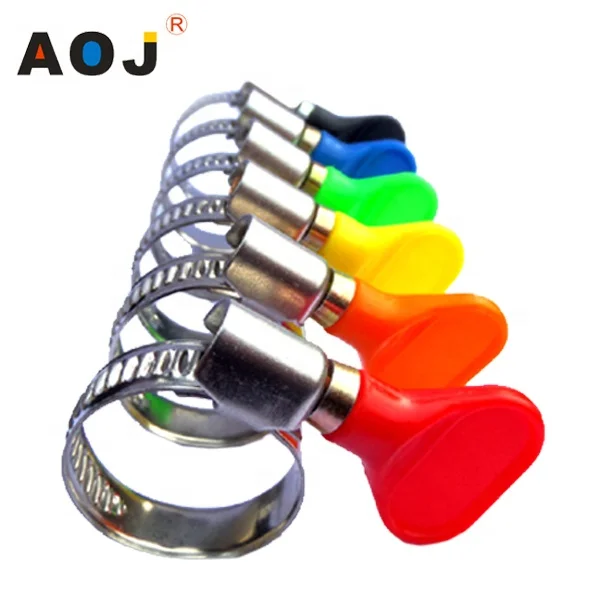

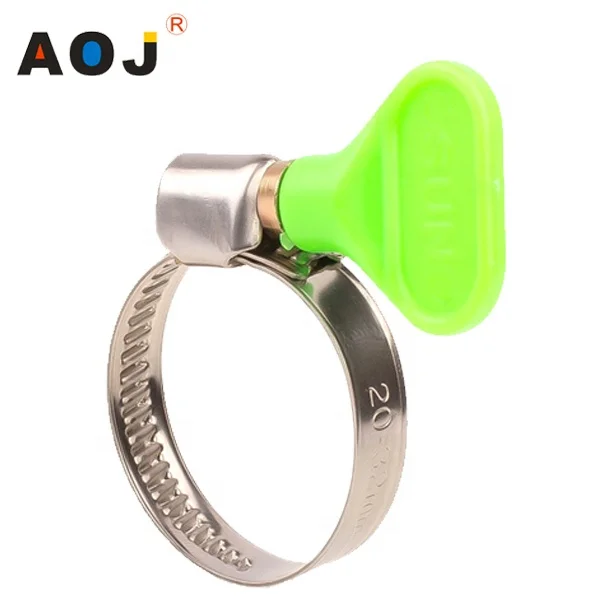

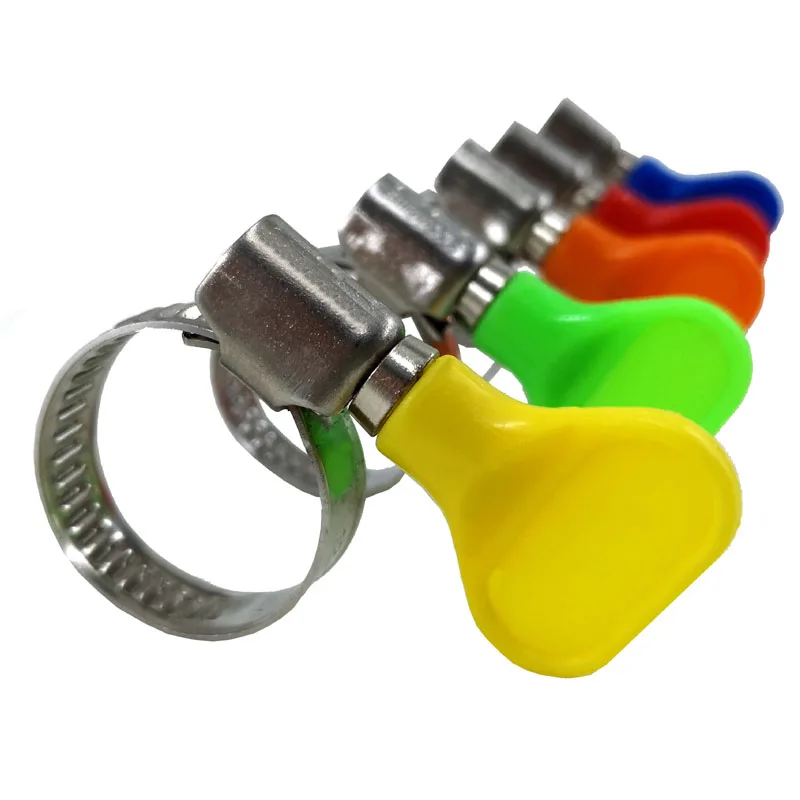

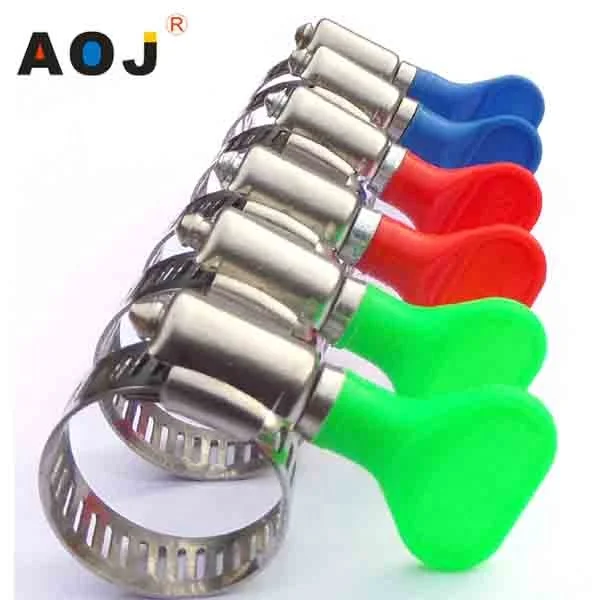

Color plastic butterfly handle hose clamp

Product Overview

Description

Color plastic butterfly handle hose clamp



Specifications:
cope of application:	German style hose clamps are preferred by the European markets.The non-preforated and rolled band protects the soft-hoses surface from shearing during installation.This style of hose clamp is commonly used in automotive,industrial,mining,marine and general hardware applictions.
Band material	Galvanized iron ,stainless steel 201,stainless steel 301,stainlesssteel 304,stainless steel 316
Band Thickness	Galvanized iron			Stainless steel
	0.7-0.8mm			0.6-0.65mm
Band width	9mm/12mm
Wrench	7mm
Housing Material	stainless steel or galvanized iron
Screw style	W1		W2		W5/W4
	Head crossed(or as you request)		Hesd crossed		Solt type screw
Connection	welding
Model number	As your requirement
Structure	Swivel clamp
Product feature	Volt-endurance;torque balance;large adjustment range
Certificate	ISO9001:2008
MOQ	1000
Supply ability	3000000 pieces per month
Payment terms	30%T/T Before production and 100% before shipment
Delivery time	10-35days afer T/T at sight
package	Plastic bag,carton
Company website	//tjaojin.en.alibaba.com
Feature:
1.Use the open internal and external circle structure,and with screw fixed.It is effectively to solve the problem that when small diameter solft tube connect the hared tube,it is easy appear dead angle,and liquid or gas leakage problem.Easy structure,Easy maked.
2.Edge is no burrfree,it is ability to prevent the tube damaged
3.By a  efficiently hydrogen relief treatment,long-term use needn't to worry fracture and other problems
4.Accord with DIN3017 Standard.By 48 hours salt and fog test,it has a good corrosion resistance
5.By last 36 hours elastic test,to insure a high strength mechanical properties.
6.Easy to fix.
W1--all of the band, housing and screw is galvanized steel;
W2-- band and housing 200ss or 300ss stainless steel, screw galvanized steel;
W4--all of the band, housing and screw is 200ss or 300ss stainless steel;
W5--all of the band, housing and screw is 316ss stainless steel.
NO.1  German style hose clamp 9mm
Size(mm)	Item NO				Bandwidth	pcs/bag	pcs/carton
	W1	W2	W4	W5
8-12	AJDS9A812	AJDS9B812	AJDS9D812	AJDS9E812	9mm	100	2000
10-16	AJDS9A1016	AJDS9B1016	AJDS9D1016	AJDS9E1016	9mm	100	2000
12-20	AJDS9A1220	AJDS9B1220	AJDS9D1220	AJDS9E1220	9mm	100	2000
16-27	AJDS9A1627	AJDS9B1627	AJDS9D1627	AJDS9E1627	9mm	100	1000
20-32	AJDS9A2032	AJDS9B2032	AJDS9D2032	AJDS9E2032	9mm	100	1000
25-40	AJDS9A2540	AJDS9B2540	AJDS9D2540	AJDS9E2540	9mm	50	1000
30-45	AJDS9A3045	AJDS9B3045	AJDS9D3045	AJDS9E3045	9mm	50	1000
32-50	AJDS9A3250	AJDS9B3250	AJDS9D3250	AJDS9E3250	9mm	50	1000
40-60	AJDS9A4060	AJDS9B4060	AJDS9D4060	AJDS9E4060	9mm	20	1000
50-70	AJDS9A5070	AJDS9B5070	AJDS9D5070	AJDS9E5070	9mm	20	500
60-80	AJDS9A6080	AJDS9B6080	AJDS9D6080	AJDS9E6080	9mm	20	500
70-90	AJDS9A7090	AJDS9B7090	AJDS9D7090	AJDS9E7090	9mm	20	500
80-100	AJDS9A80100	AJDS9B80100	AJDS9D80100	AJDS9E80100	9mm	20	500
90-110	AJDS9A90110	AJDS9B90110	AJDS9D90110	AJDS9E90110	9mm	20	500
100-120	AJDS9A100120	AJDS9B100120	AJDS9D100120	AJDS9E100120	9mm	20	500
110-130	AJDS9A110130	AJDS9B110130	AJDS9D110130	AJDS9E110130	9mm	20	250
120-140	AJDS9A120140	AJDS9B120140	AJDS9D120140	AJDS9E120140	9mm	20	250
130-150	AJDS9A130150	AJDS9B130150	AJDS9D130150	AJDS9E130150	9mm	20	250
140-160	AJDS9A140160	AJDS9B140160	AJDS9D140160	AJDS9E140160	9mm	20	250
150-170	AJDS9A150170	AJDS9B150170	AJDS9D150170	AJDS9E150170	9mm	20	250
160-180	AJDS9A160180	AJDS9B160180	AJDS9D160180	AJDS9E160180	9mm	20	250
170-190	AJDS9A170190	AJDS9B170190	AJDS9D170190	AJDS9E170190	9mm	20	250
180-200	AJDS9A180200	AJDS9B180200	AJDS9D180200	AJDS9E180200	9mm	20	250
NO.2  German style hose clamp 12mm
Size(mm)	Item NO				Bandwidth	pcs/bag	pcs/carton
	W1	W2	W4	W5
12-20	AJDS12A1220	AJDS12B1220	AJDS12D1220	AJDS12E1220	12mm	100	1000
16-27	AJDS12A1627	AJDS12B1627	AJDS12D1627	AJDS12E1627	12mm	100	1000
20-32	AJDS12A2032	AJDS12B2032	AJDS12D2032	AJDS12E2032	12mm	100	1000
25-40	AJDS12A2540	AJDS12B2540	AJDS12D2540	AJDS12E2540	12mm	50	1000
30-45	AJDS12A3045	AJDS12B3045	AJDS12D3045	AJDS12E3045	12mm	50	1000
32-50	AJDS12A3250	AJDS12B3250	AJDS12D3250	AJDS12E3250	12mm	50	1000
40-60	AJDS12A4060	AJDS12B4060	AJDS12D4060	AJDS12E4060	12mm	20	1000
50-70	AJDS12A5070	AJDS12B5070	AJDS12D5070	AJDS12E5070	12mm	20	500
60-80	AJDS12A6080	AJDS12B6080	AJDS12D6080	AJDS12E6080	12mm	20	500
70-90	AJDS12A7090	AJDS12B7090	AJDS12D7090	AJDS12E7090	12mm	20	500
80-100	AJDS12A80100	AJDS12B80100	AJDS12D80100	AJDS12E80100	12mm	20	500
90-110	AJDS12A90110	AJDS12B90110	AJDS12D90110	AJDS12E90110	12mm	20	500
100-120	AJDS12A100120	AJDS12B100120	AJDS12D100120	AJDS12E100120	12mm	20	500
110-130	AJDS12A110130	AJDS12B110130	AJDS12D110130	AJDS12E110130	12mm	20	250
120-140	AJDS12A120140	AJDS12B120140	AJDS12D120140	AJDS12E120140	12mm	20	250
130-150	AJDS12A130150	AJDS12B130150	AJDS12D130150	AJDS12E130150	12mm	20	250
140-160	AJDS12A140160	AJDS12B140160	AJDS12D140160	AJDS12E140160	12mm	20	250
150-170	AJDS12A150170	AJDS12B150170	AJDS12D150170	AJDS12E150170	12mm	20	250
160-180	AJDS12A160180	AJDS12B160180	AJDS12D160180	AJDS12E160180	12mm	20	250
170-190	AJDS12A170190	AJDS12B170190	AJDS12D170190	AJDS12E170190	12mm	20	250
180-200	AJDS12A180200	AJDS12B180200	AJDS12D180200	AJDS12E180200	12mm	20	250
NOTE:	1,The standard packing material in bags and cartons.
	2,Other sizes are available for us too.
	3,All the information is just for your reference,can't be used as specification.
Main Products Outline:
1 British hose clamps: band thickness is usually about 1 mm, double the thickness of other hose clamps. So the band tension is very strong. Widely used in larger pressure occasions. With out tooth traces at inner ring of the band can protect the soft surface of hoses.
2 German hose clamps: the unique side pressing design, and non-perforated design can effectively prevent the soft surface of the silicone tube and hose from damage.
3.American hose clamps: with band thread through-hole, and teeth of the screw fitted in, they have more powerful locking. and accurate Occlusal. Also,american hose clamps can be used in non-circular objects, they can bundle the square columnar objects, such as flue, electric vehicle batteries,etc.
4.T bolt hose clamps: similar to their brothers ---- the single-head solid strong clamps, both of them belong to the powerful hose clamps , which also called European clamps. The common bandwidth 20MM, 24MM, 26MM,etc., have a larger Strong torque. Widely used in places with strong fastening force requirements.
5.V band hose clamps: traditional flange replacing products. beautiful appearance. cheap. fast and easy installation. high strength, good sealing performance. Pipes are connected with high concentricity. and easy removal. They can be used as an active connection of round or oval ducts and pipes which require constant maintenance and activities.
6.U shape pipe clamps:are used for pipe fixing on various surfaces and support structures. U tube clamps is suitable for fixed pipeline with oil, water, gas medium in metallurgy, petroleum, chemicals, vehicles, ships, power hydraulic systems. U pipe clamps under stamping, sheet metal, galvanized surface treatment , taking shape with "U" style,have a unique advantage of damping, silencers, sound absorption, abrasion etc..
7.Spring-loaded T-bolt hose clamps: spiral spring design prevents the occurrence of leakage when temperature changes, and have a self-compensation function (constant pressure). Widely used in truck air intake, cooling ventilation systems. T-spring hoops made of high quality stainless steel and thin band material, provide uniform sealing pressure with special bending process ,forming a completely reliable seal. they are dedicated to the environment of vibration and large diameters.
8 rubber coated hose clamps: with good flexibility, tensile strength, flame retardant, waterproof, anti-aging, anti-static, high temperature resistance, corrosion resistance, wear-resistant, anti-UV performance.

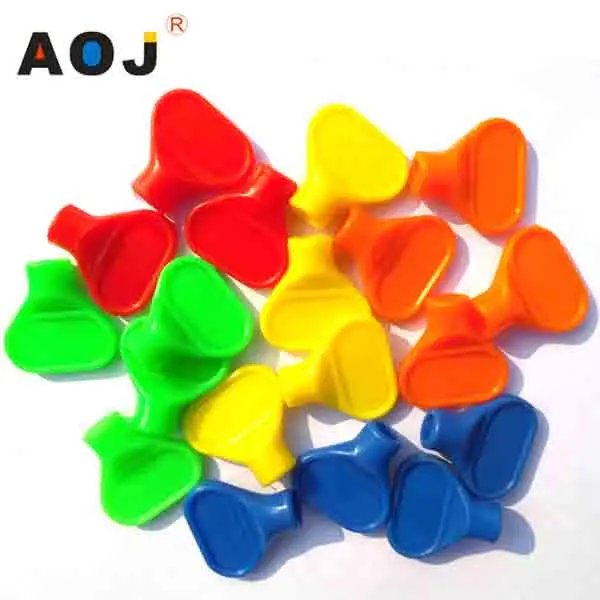

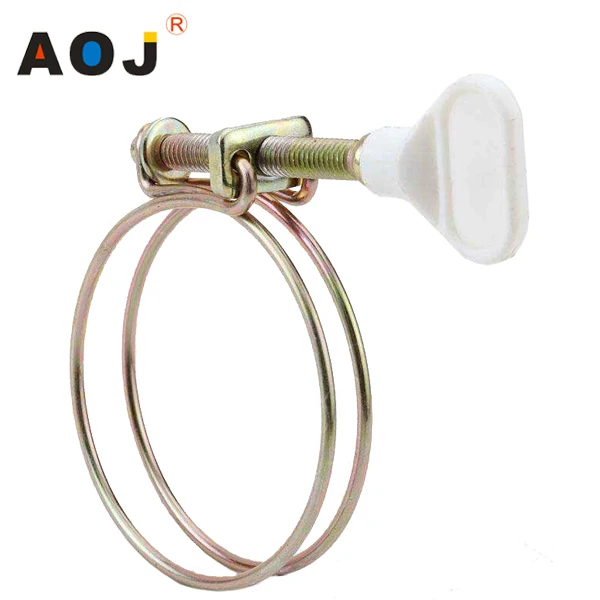

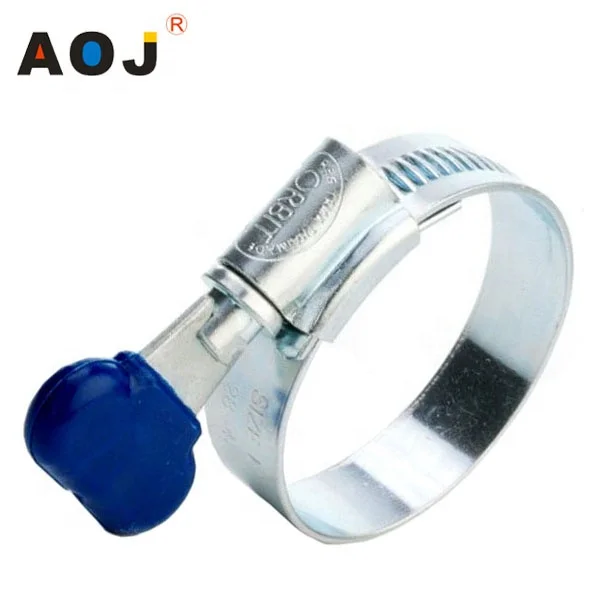

9. Handle/thumb screw hose clamps: simple and easy to use, without any tools. Handle/thumb screw can be plastic coated or not.
10 quick release hose clamps: mainly used in fast conversion, such as sealing of the air duct, dust channel interface. meets quickly tied needs to enable work very efficient.
Export advantages:
1.We always inspect every hose clamp to avoid any shortcoming,so we promise every hose clamp reaches the export standard.
2.Our factory is located in Tianjin,which is the second largest port of china..So we could save the inland freight for you,also as a production-oriented enterprise,we will give you the best quotation.
3.We have passed the certification of ISO9001 in 2008.Also we could offer ODM,OEM and Buyer Label Service.So we promise our product quality and our service.
4.We have a strong production ability,also professional quality control department,so we could promise our delivery time and product quality.
