100 ton press floating die set, HPP 1000P automatic Mechanical metal powder compacting press

Product Overview

Description

1. Factory Information

Yangzhou Haili Precision Machinery Manufacturing Co., Ltd, which manufacturing full-automatic powder compacting press, sizing machine, net making machine and net piece setting machine.HPP-P, HPP-S, HPP-F, HPP-N, HPP-H, HPP-T series full-automatic powder compacting press machine and HSP-J, HSP-H, HSP-P series sizing machine which widely used in powder metallurgy, hard alloy, magnetic material, fine ceramic, electrical carbon and so on. They are ranged from 1T to 850T.



Our company already in powder metallurgy 30 years.It has 40,000 square meters area; the construction area is 26, 000 square meters.

We have vertical boring and milling machine center, turning machine center, screw grinder, deep hole grinder, ultra precision cylindrical grinder, ultra precision surface grinder and other key equipment; the three-coordinates gauging machine and other precision inspection equipment; and CNC machine, CNC milling machine, large housing pane, large planer-type milling machine and other about 160 sets of metal cutting machines.

Our company has been through the ISO9001 international quality certification and European CE certification. We also have 7 patents, 47 utility model patents.

Our products are qualified for the testing and regulation requirements in different markets.

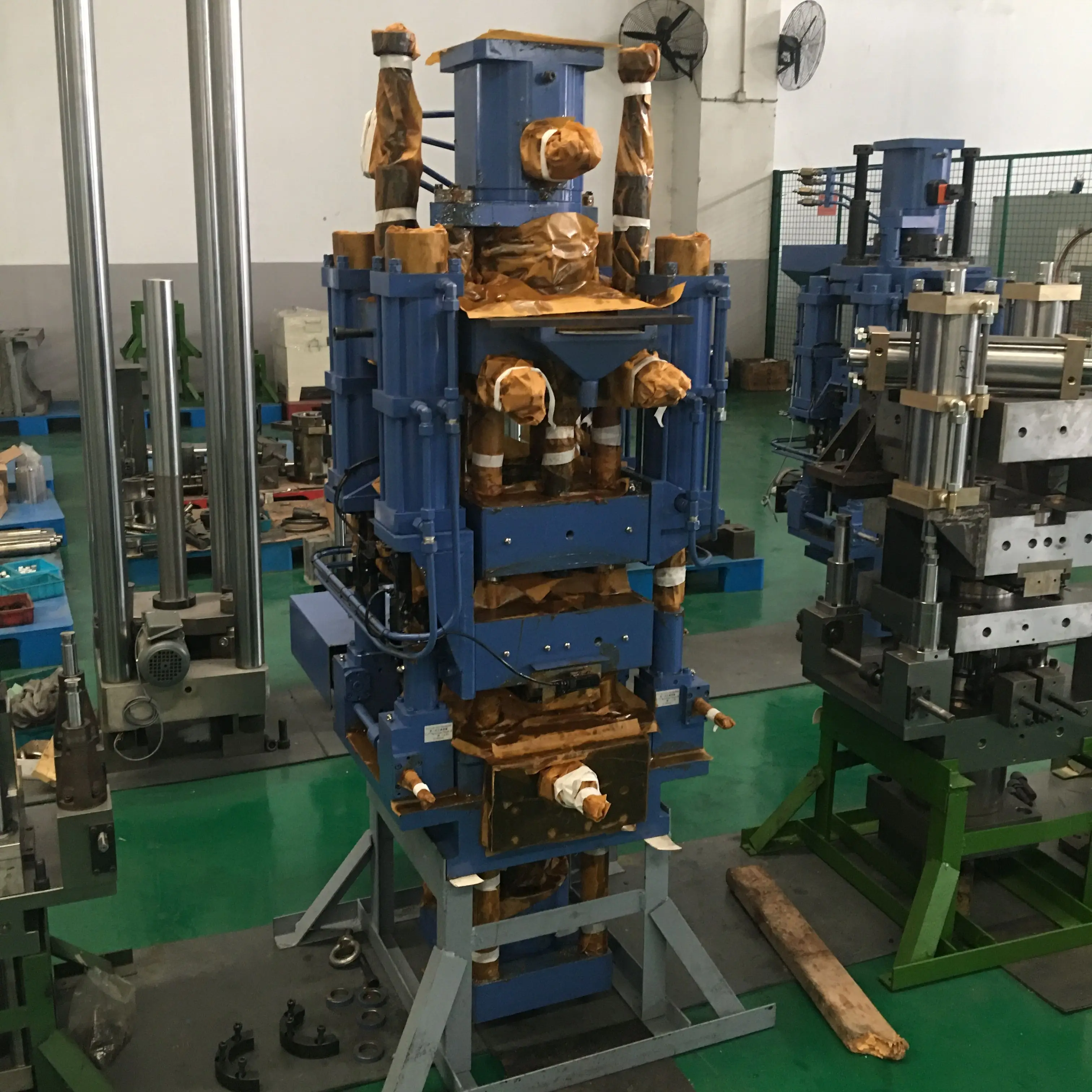

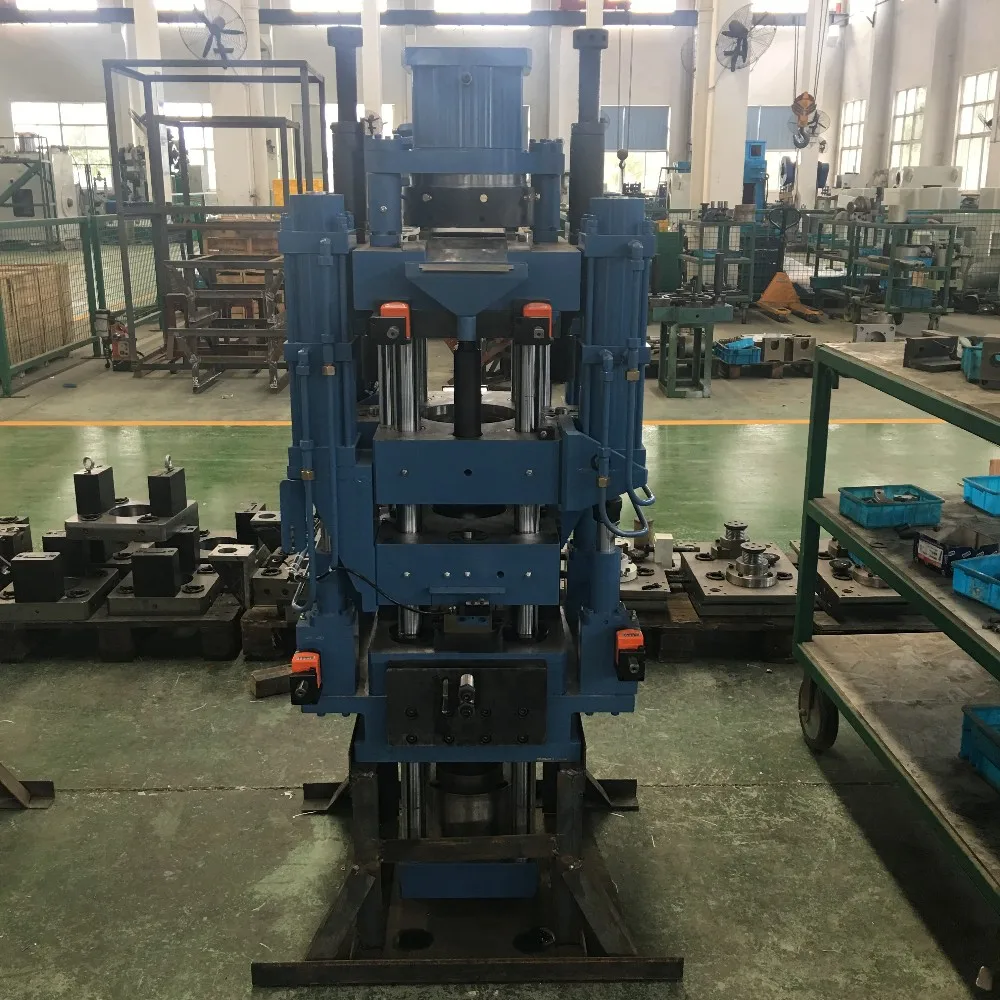

2. Floating die set of Press Machine Specification and photo

2.1 Devices precision standards

Verticality of upper block movement towards the die set mounting surface

                                                                                                                      tolerance 0.04 mm /200mm

Parallism of bottom of upper T shape surface towards the die set mounting surface

                                                                                                                       tolerance 0.04 mm /100mm

Parallism of bottom of lower T shape surface towards the die set mounting surface

                                                                                                                       tolerance 0.04 mm /100mm

Verticality of bottom sliding rod movement towards die set mounting surface

                                                                                                                       tolerance 0.04 mm /100mm

Precision of bottom T shape repositioning                                            tolerance 0.012mm



2.2 Die set precision standards

Parallism of upper punch mounting surface towards the adapter mounting surface                                                                                                                                                 tolerance 0.02/100mm

Parallism of lower punch mounting surface towards the adapter mounting surface                                                                                                                                                 tolerance 0.02/100mm

Parallism of die mounting surface towards the die set mounting surface                                                                                                                                                                     tolerance0.02/100mm

Parallism of connecting plate mounting surface which above the upper punch and die set (within diameter 80 mm)                                                                           tolerance 0.01/100mm
Powder press Machine Inspection Process

Step 1: Our technicians check all the press machine specification first whether meet the requirements

Step 2: Customer come to factory with mould and powder to test the press machine operation

Step 3: Our technicians go to customer factory to commissioning the press machine when machine arrived.

Our technicians also provide the free press machine training course.

Each year, we attend the Asia, Europe and the World powder metallurgy conference , Auto expo, Forming exhibition,and other related exhibition all over the world.

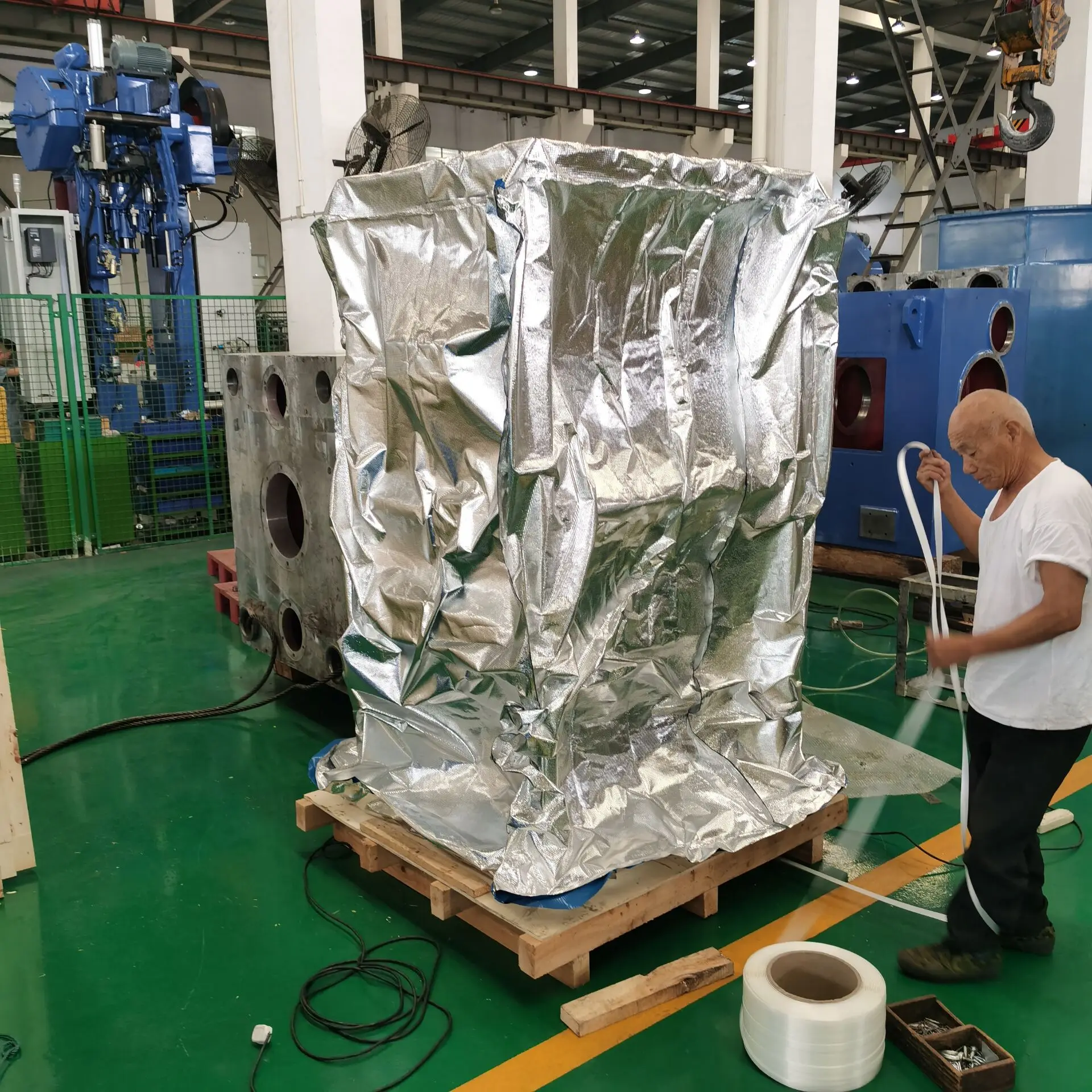

In order to protect the press machine during the transportation, our company use special seaway package.
