300W 500W cabinet air condition with good quality

Product Overview

Description

300w 500w cabinet air condition for outdoor telecom cabinet ,With telecommunication rapid development by 2G, 3G and beginning of 4G, it is giving deep influence for people life and communication. By full knowledge and various thermal products range,



Here is 300W 500W cabinet air condition with good quality specification sheet

Name	outdoor cabinet air conditioner
Model	A 003/N/E/A
Mounting Method	Semi-embedded mounting
Power supply	230VAC±15%   50HZ/60HZ

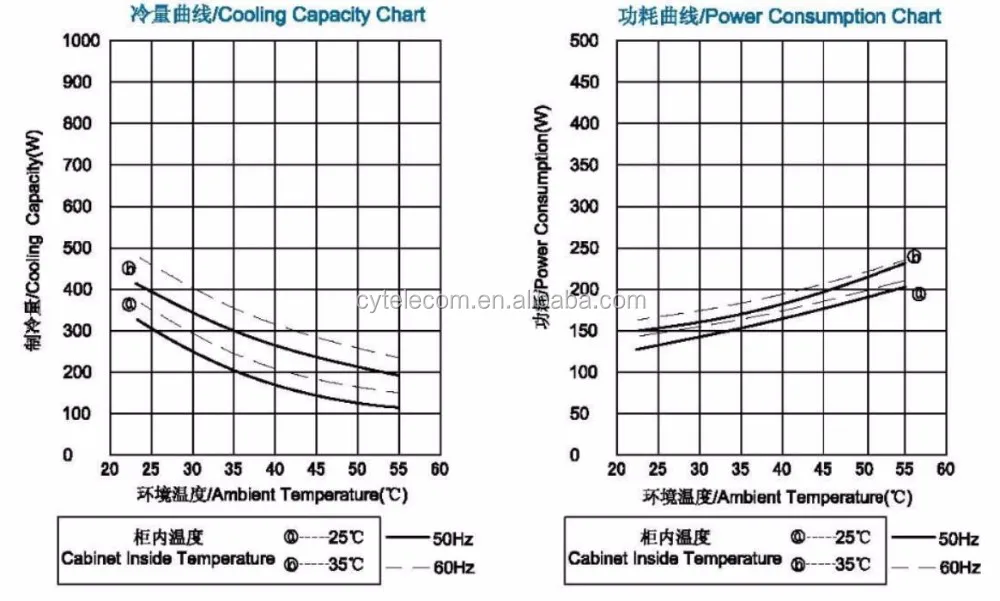

Cooling Capacity	300W@L35/L35
Power Consumption	170W@L35/L35
Cooling Capacity	190W@L35/L55
Power Consumption	230W@L35/L55
Internal Airflow	100M³/h
Working temperature range	-40℃~+55℃
Max Noise Level	60db(A)
IP Grade	IP55
Net Weight	14kg
Refrigerant	R134a
Dimensions	550*320*175(mm,H*W*D)
CE&Rohs Compliant	YES
Surface Treatment	outdoor type poweder coating,standard color RAL7035
Heater	500W optional
Hydrogen Function	Optional



Cabinet  air condition is different from the traditional commercial and household air conditioning. With extremely high SEER, moisture condensation active control and other cut-edge technologies, it protects power and electronic equipment by providing precise temperature and humidity control. Since the product design and installation are originated from household air conditioners, it can be widely deployed in telecommunication outdoor base stations, power state outdoor cabinet, outdoor LED screen, where require the temperature level below than 35 degree situation. Chen tong yuan provides the DC and AC power input type products according different power input. Air condition with DC power input type use BLDC motor and PWM driven technology, the product COP will >=4.0. At seasonal conditions, the COP value will be higher by 15% than heat exchangers, by 25% than aircon-HEX combine units and by 60% than normal air conditioners.

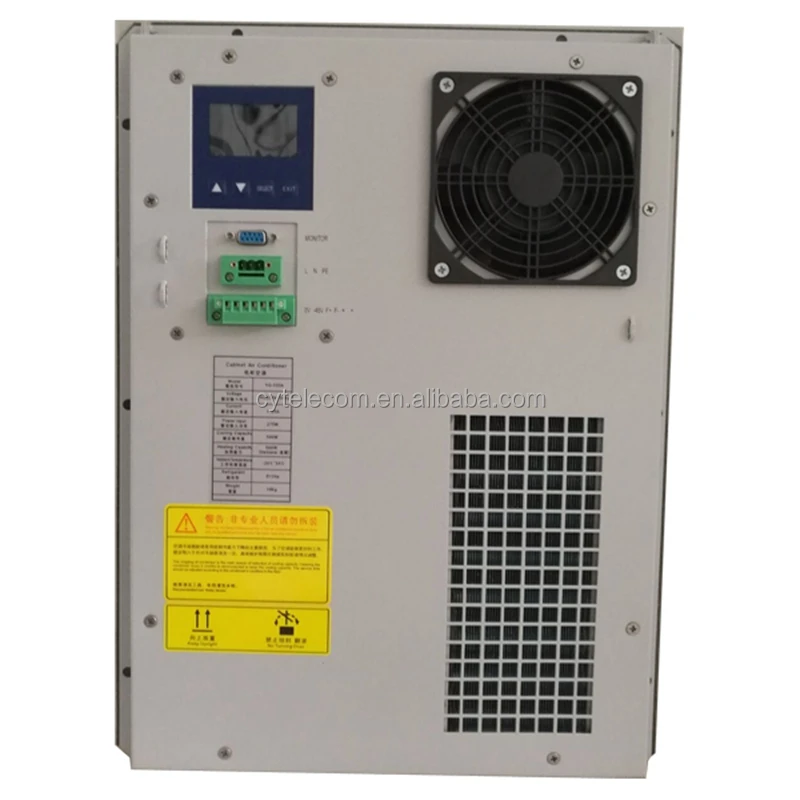

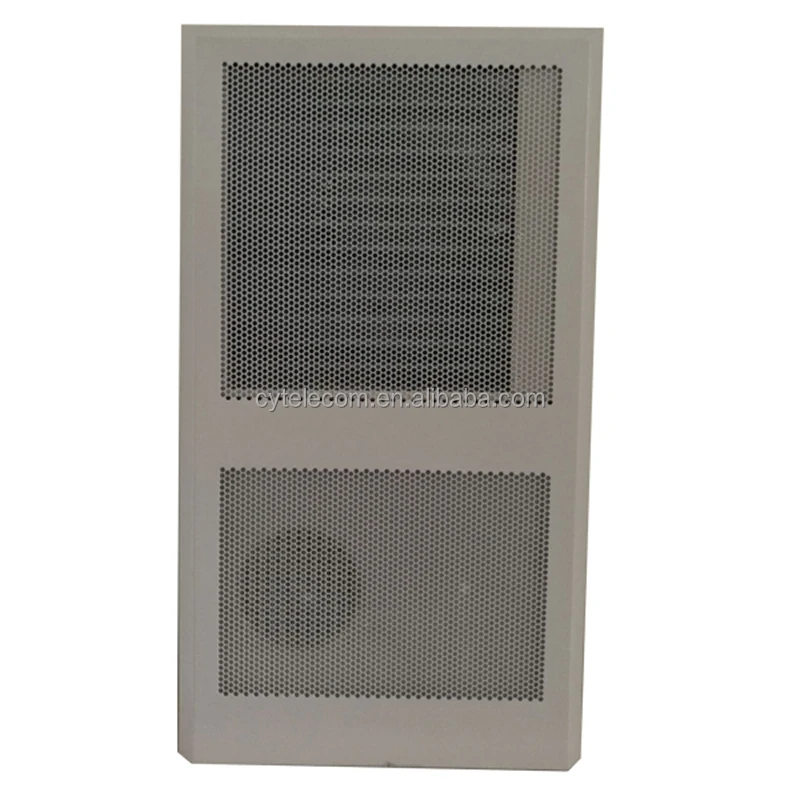

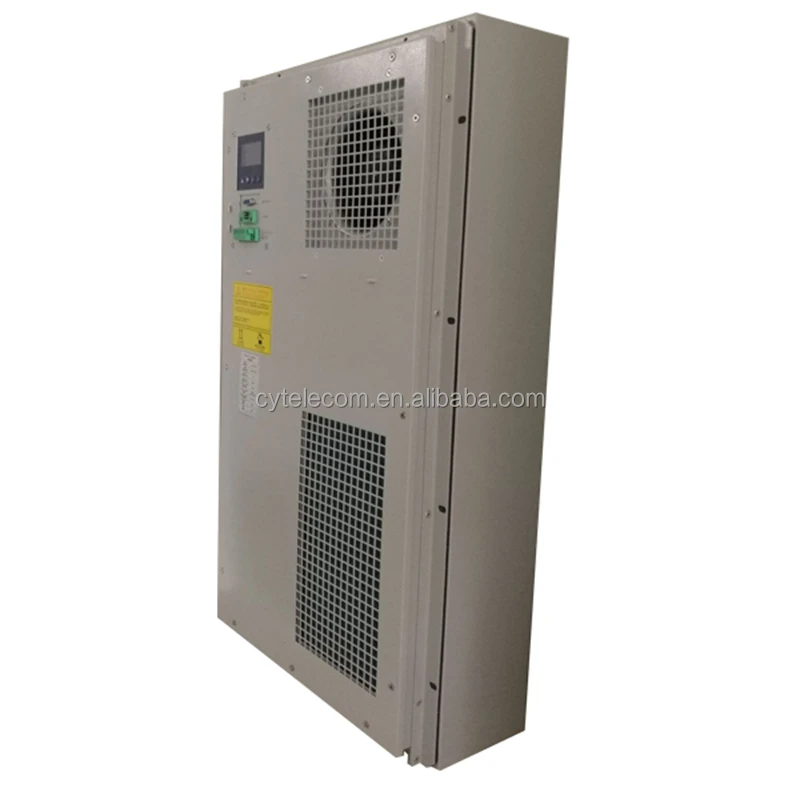

Photos of 300W 500W cabinet air condition with good quality





The applications of 300W 500W cabinet air condition with good quality









for telecom outdoor cabinet ,power cabinet ,battery cabinet ,integrated cabinet use



Air conditioner -----AC series   300w 500w cabinet air conditioner for outdoor telecom cabinet



Recommended Application

Power supply is 220V AC ,mainly used for telecommunication field cabinet climate control.



Using environment friendly refrigerant R134A



Compact product line is a mono-block unit with a plug and play feature ensures immediately set up also with flange design for convenient through-wall(or cabinet door)mounting



Closed loop cooling protects equipment from ambient environment ,with adjustable indoor temperature set point from 20-40 degree ,ventilation not recommend any more since the system highest efficiency.



Adaptable for T3 condition which up to 55 degree tropic area



Cooling capacity :300w ,500w ,800w,1000w,1300w,1500w,2000w,2300w,2500w,3000w



Cooling capacity (W)	P/N	PRODUCT MODEL	DIMENSION H*W*D	CERTIFICATION
300	86280	CYUC A 003/N/E/A	Refer to fig.6	CE
500	86281	CYUC A 005/N/E/A	Refer to fig.6	CE
800	88270	CYUC A 008/N/E/A	Refer to fig.7	CE
1000	8832B 8832C 8832D	CYUC A 010/N/E/A	Refer to fig.8	CE  CCC
1300		CYUC A 013/N/E/A		CE  CCC
1500		CYUC A 015/N/E/A		CE  CCC
2000		CYUC A 020/N/E/A		CE  CCC
2300		CYUC A 023/N/E/A		CE  CCC
2500	88230	CYUC A 025/N/E/A	Refer to fig.9	CE  CCC
3000	88230	CYUC A 030/N/E/A	Refer to fig.9	CE  CCC
