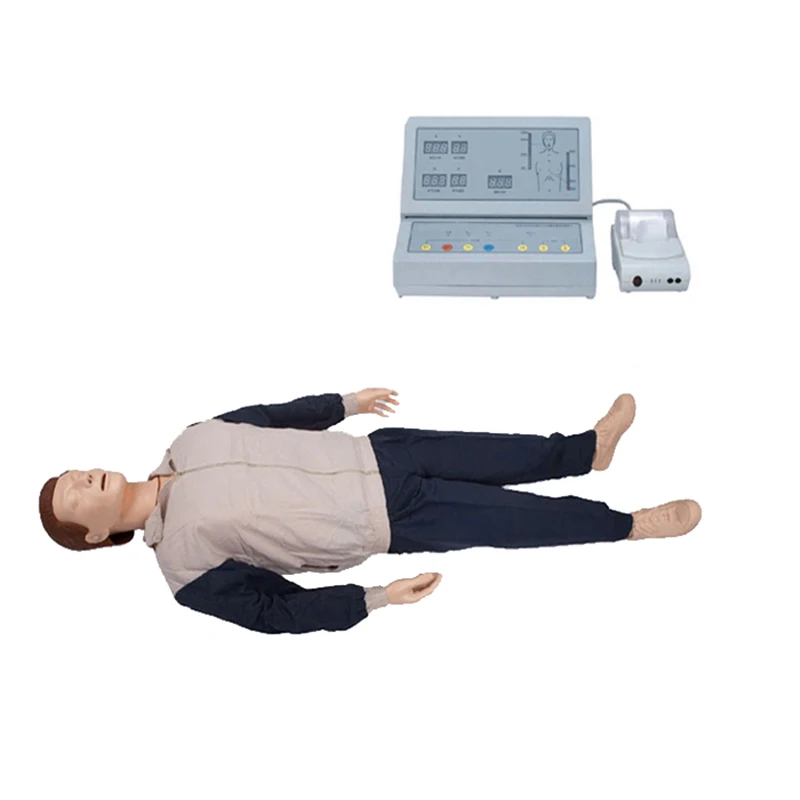

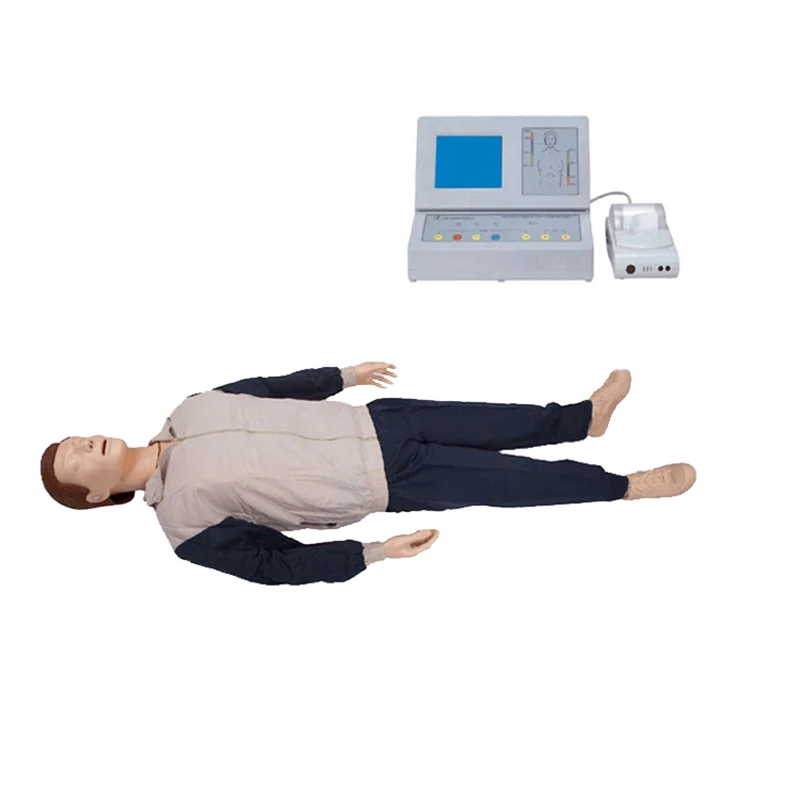

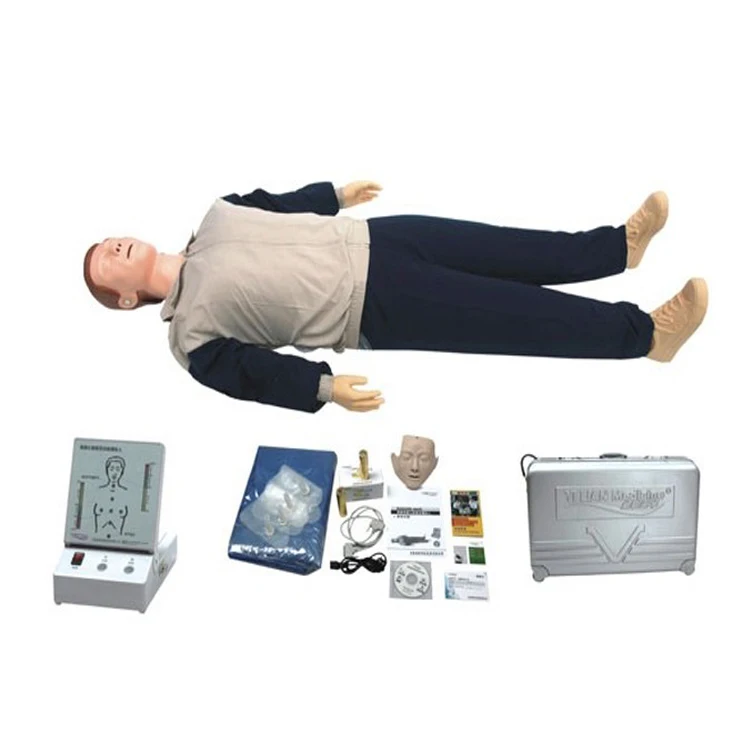

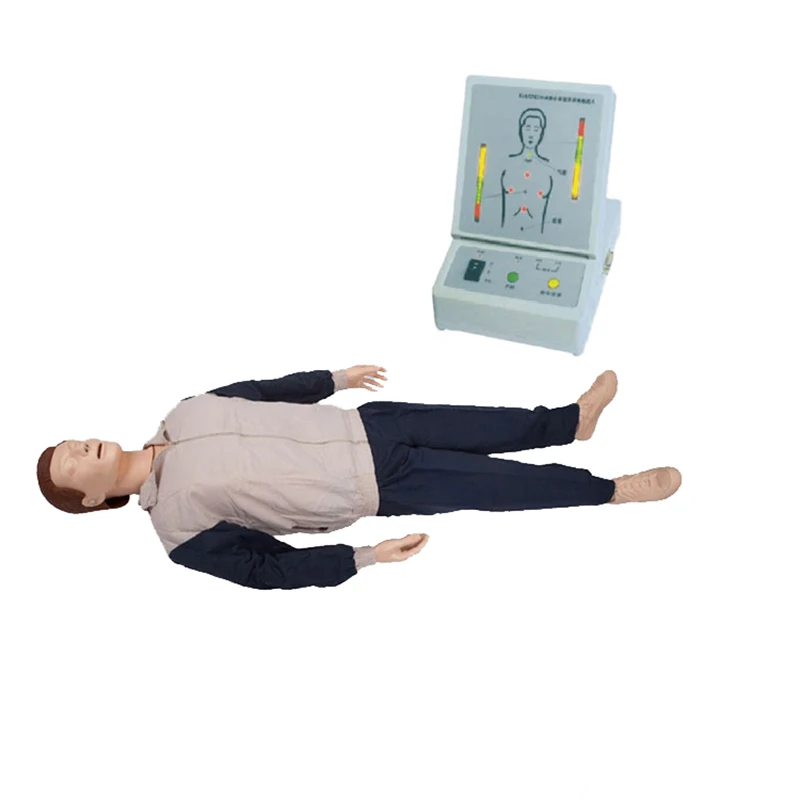

Medical Emergency Training Used Medical CPR Manikin 280 For Medical Education

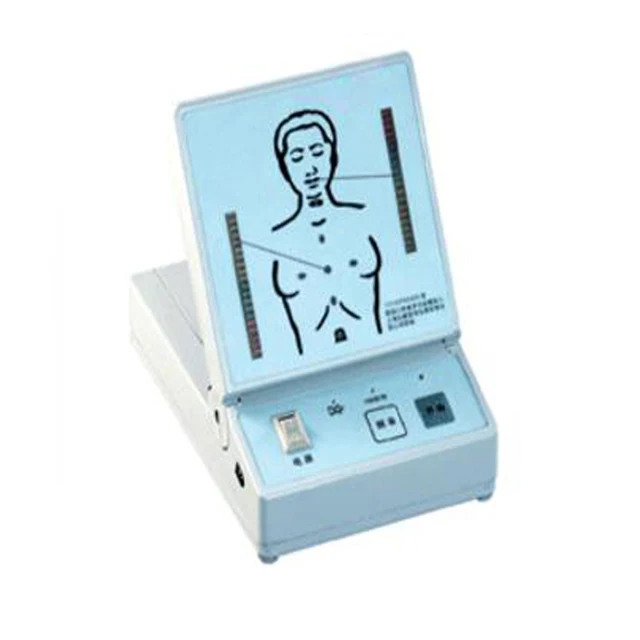

This Simulation of Adult Model is designed according to the International CPR standard. In this model there is Light Indicator Display for Correct and Incorrect Artificial Respiration (mouth-to-mouth). There is Light Indicator Display for Correct Compression position display, Wrong Compression position display, digital counter. This model simulates the patient revival through first aid by measures of Heart Pressure and mouth-to-mouth respiration. This model also shows whether the operation is correct or not by Light Indicator, Audio Prompting and Grade Printing. An Ideal model for use in Hospitals, Medical Colleges and Nursing Training Institutes.

Face skin, cervical skin, chest skin and hair are made of thermoplastic elastomer and using technique of plastic injection mould with high temperature.The manikin has features of good touch, realistic operation feel.

1. Simulating standard open airway
2. External breast compression: display device and alarm device
(a) indicator light display of correct and wrong compression ; alarm of wrong compression;
(b) Intensity display of correct (at least 5cm) and wrong (less than 5cm) compression; alarm of wrong compression.
3. Artificial respiration (inhalation): display device and alarm device
(a) Inhalation <500-600ml or > 600ml, wrong indicator light display and alarm prompting; inhalation between 500-600ml right indicator light display;
(b) Indicator light display open airway;
(c) Inhalation too quickly or too much result in air entering into stomach; indicator light display and alarm prompting.
4. Ratio of compression and artificial respiration: 30:2 (one or two person).
5. Operating cycle: one cycle includes five times of 30:2 ratio of compression and artificial respiration.
6. Operation frequency: at least 100 times per minute
7. Operation methods: exercise operation
8. Working conditions: Input power is 220V
