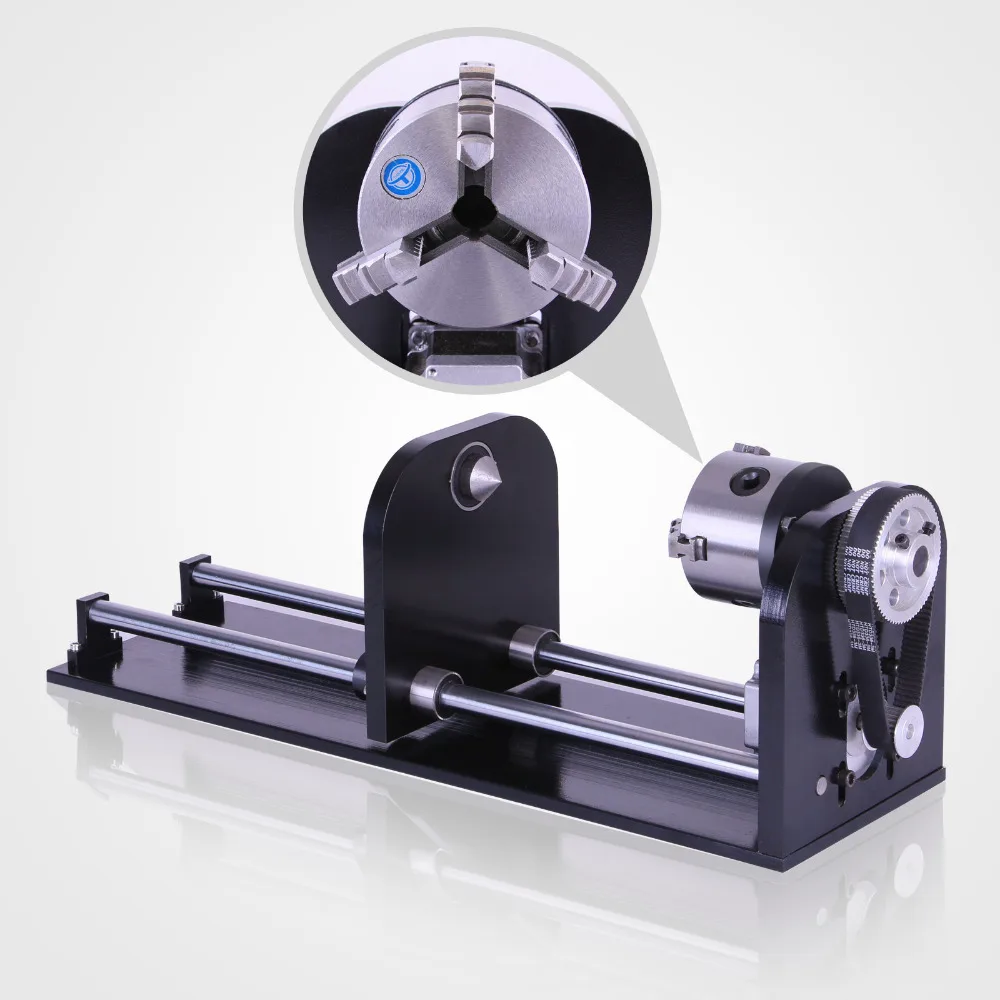

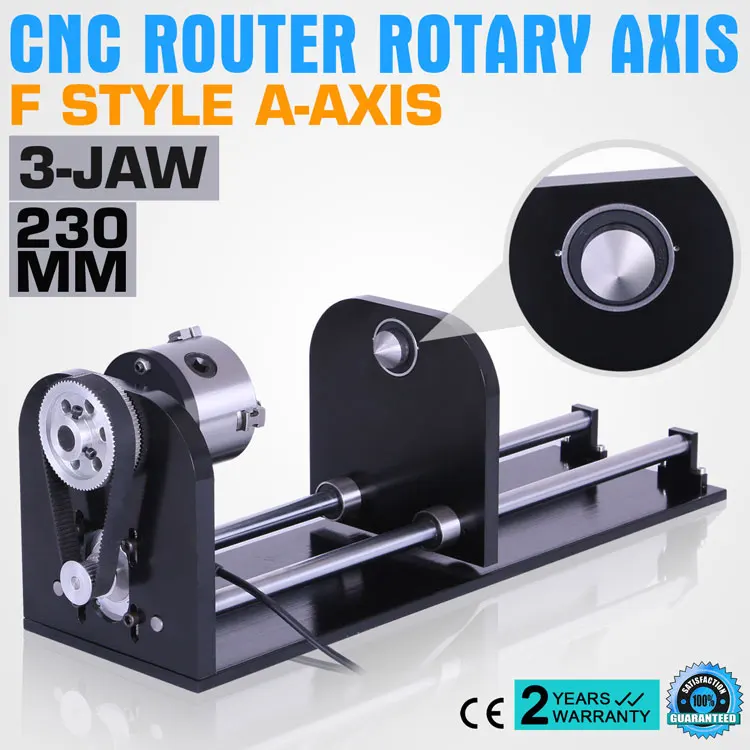

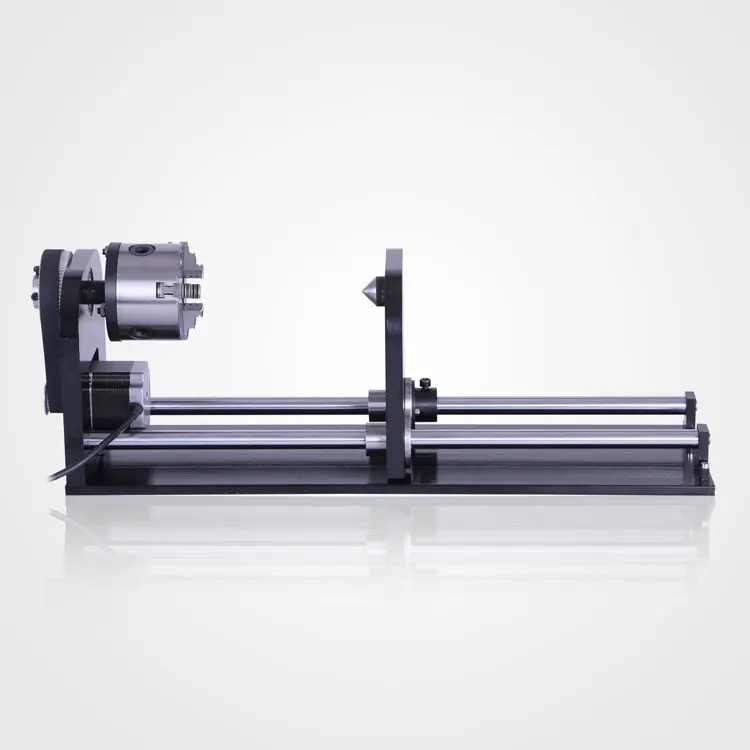

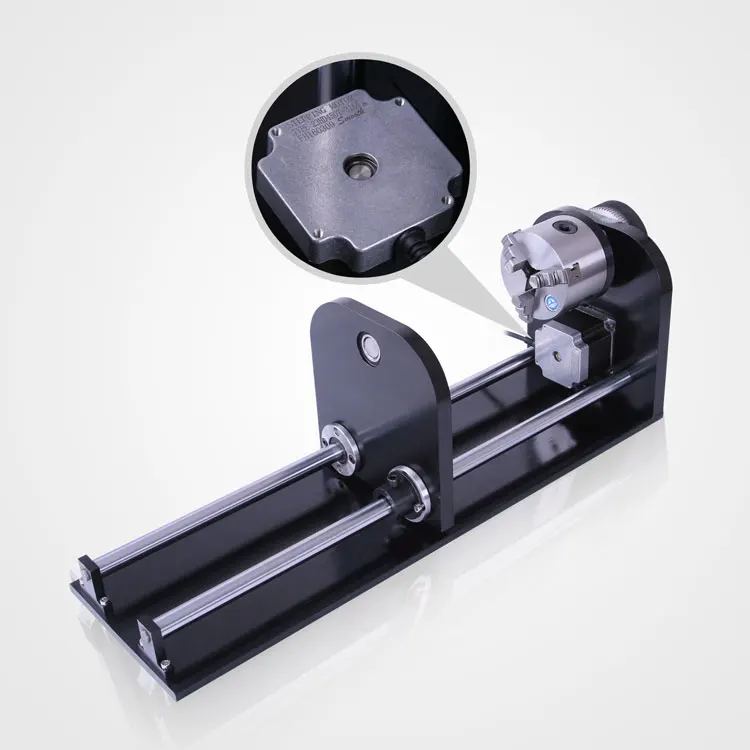

CNC ROUTER ACCESSORY F STYLE A AXIS, ROTARY AXIS WITH 80MM 3 JAW 230MM TRACK for CO2 Laser Engraving machine

80mm 3-Jaw Scroll Chuck
Stainless Anti-Dust Cover
Surface Steel Plate With Anti-Rusty Coating
Ratio: 1:2.5 Synchronous Pulley Induction
Maximum Holding Range With Jaws:2-70mm

Features:

Closed-Loop Control, No Longer Lose Any Steps, Up To Its Maximum Torque
Reduced Motor Heating And More Efficient
Smooth Motion And Super-Low Motor Noise
Higher Torque And Higher Speed

Technical:

No Tuning And Always Stable
Zero-Speed Stability
Fast Response
Lower Cost

Rated Voltage:2.07v Dc
Phase Resistance (20℃) 1.38×(1±15%)ω/Phase
The Maximum Statictorque≥780mn.M
Swing( Shaft To See ):A-Ab-B-Clockwise Direction
Maximum No-Load Running Frequency≥2500pps
Electrical Strength:Ac600v/1ma/1s
Rotor Inertia:220g.㎡
Step Angle:1.8°±0.09°
Rated Current:Dc 1a/Phase
Inductance (1khz):30×(1±20%)Mh/Phase
Detent Rorque:320g.Cm Ref.
Maximum No-Loadstart Frequency≥1500 Pps
Insulation Resistance≥100mω(Dc 500v)
Insulation Grade:B
Quality 0.8kg Ref.
Material Of Pulley:H62
Tooth Form:Mxl
Number Of Teeth Z=20
Pitch Of Teeth P=2.032
Pitch Circle:φ12.936
Outer Circle:φ12.428±0.003
