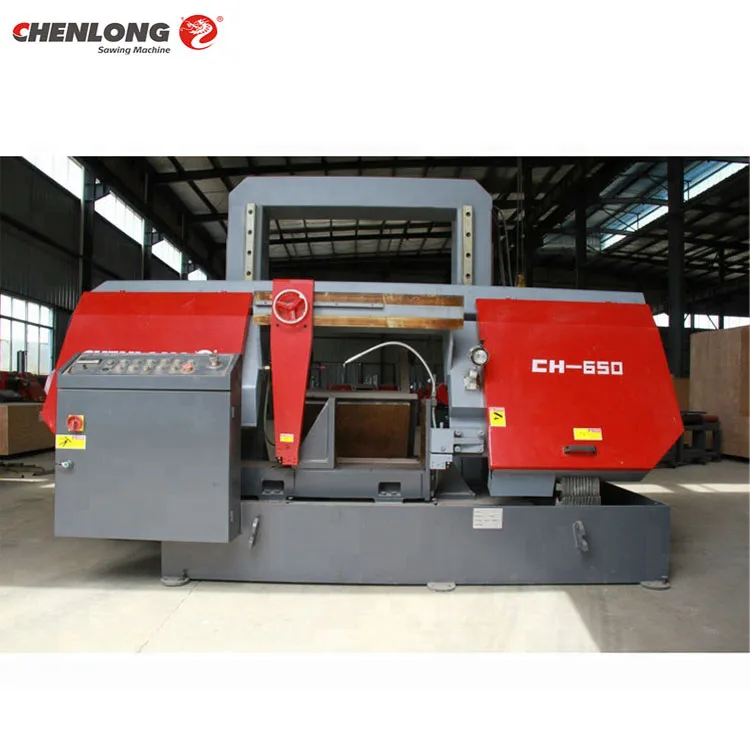

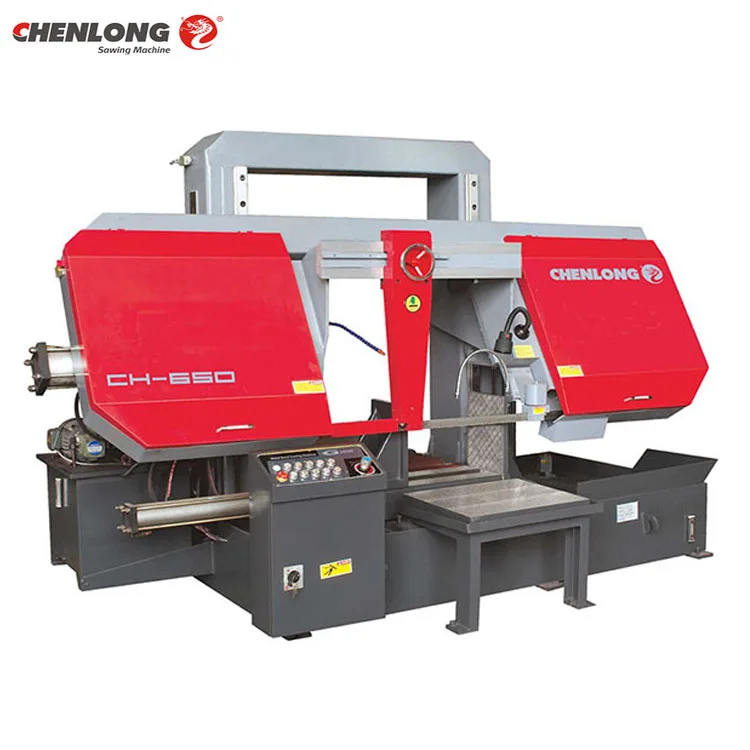

CHENLONG CH 650 Horizontal Metal Band Saw Machine / Metal Cutting Saw
- Category: >>>
- Supplier: Zhejiang Chenlong Sawing Machine Co. Ltd.
Share on (60627353889):
Product Overview
Description
| Product parameters | |||
| Model No. | CH-650 | ||
| Max.cutting | Round | 650mm | |
| capacity | Quadrate | 650×650mm | |
| Saw blade | Speed | 20/40/65m/min | |
| Size | 41×1.3×6860mm | ||
| Guides | Carbide and bearing blade guides | ||
| Cleaning | Wire brush &flood coolant | ||
| Tension | Manual | ||
| Motor output | Blade | 5.5kw | |
| Hydraulic | 1.5kw | ||
| Coolant | 0.09kw | ||
| Work Vice | Hydraulic | ||
| Work feeding | Power feeding | ||
| Machine weight | 3300KGS | ||
| Machine size(L×W×H) | 3390×1760×2260mm | ||
| Standard Equipment: | Optional Equipment: | ||
| 1.Blade cleaning brush. | 1.Variable vice pressure. | ||
| 2.Working lighting. | 2.Power roller table 2M lone | ||
| 3.Saw frame height selector gauge. | 3.Laser projector | ||
| 4.Out feed with auxiliary plate table. | 4.Roller table 2M long | ||
| 5.One piece of bi-metal saw blade. | 5.Inverter | ||
| 6.One set of tools with tool box. | |||
| 7.Power roller table 2M long . | |||
| 8.Hydraulic blade tension | |||
