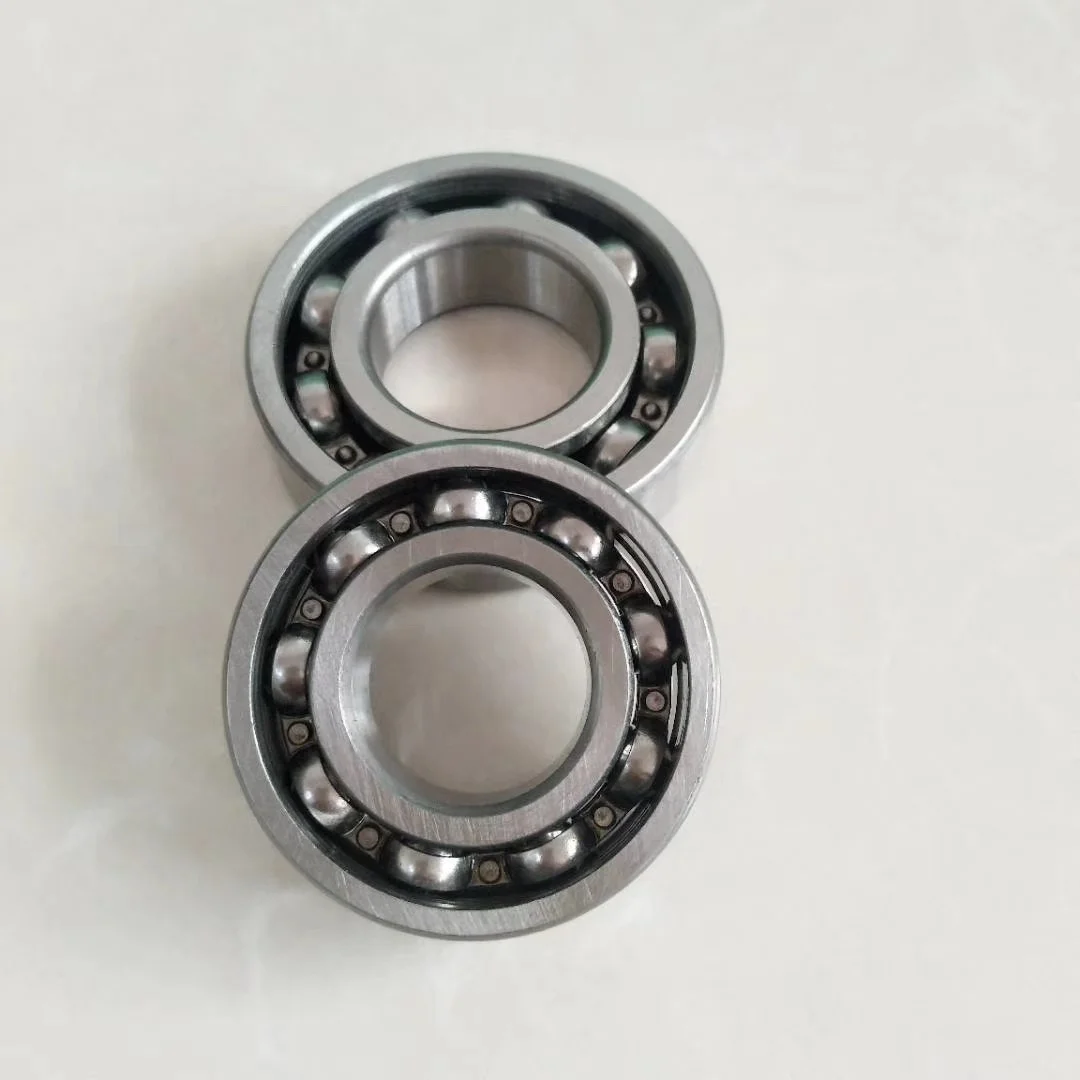

XTSKY export standard deep groove ball bearing 6230

Product Overview

Description

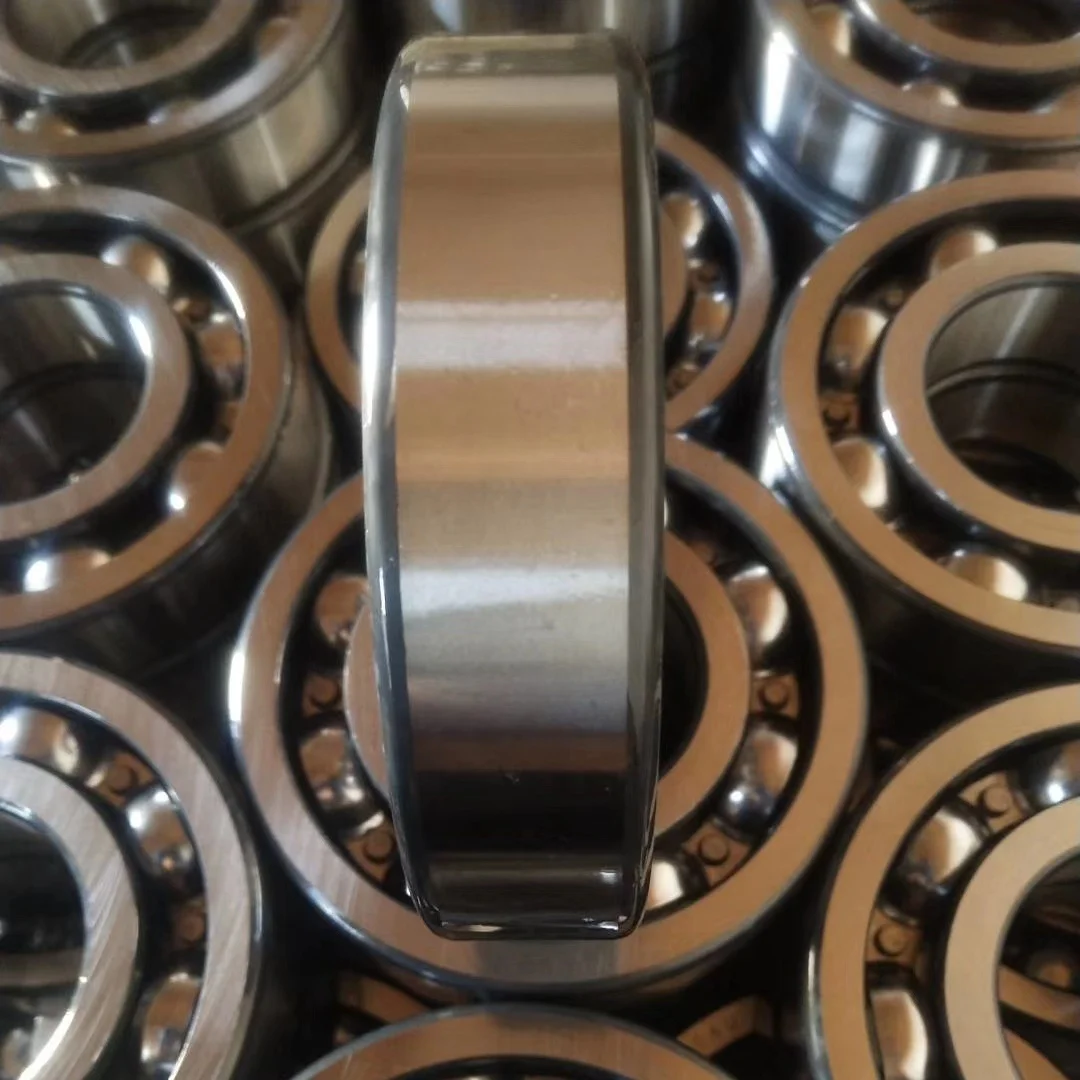

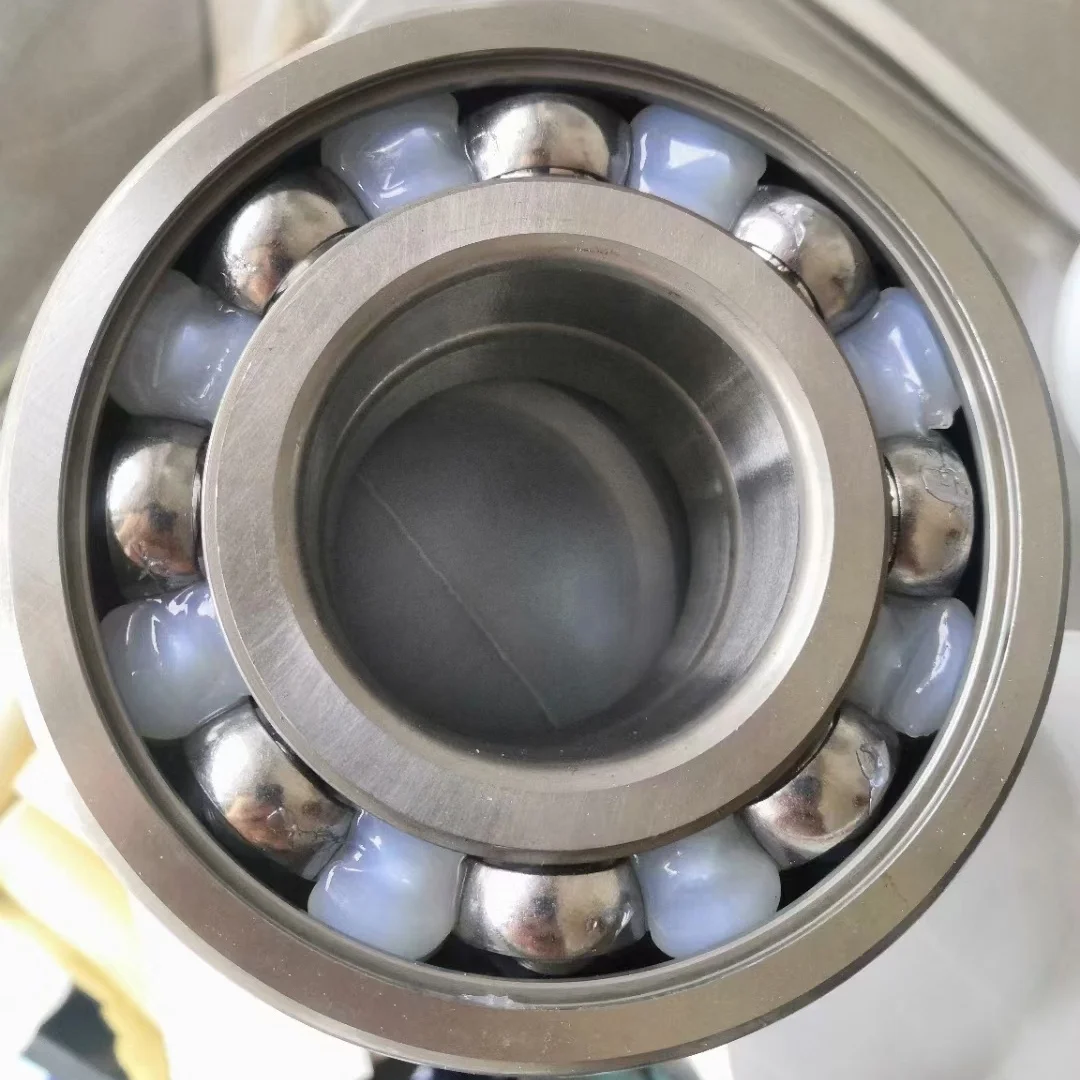

XTSKY export standard deep groove ball bearing 6230





1) Material Used:
GCr15_China/ (AISI) 52100_American/ (Din) 100Cr6_Germany;
2) Types Specialized:
6000, 6200, 6300, 6800, 6900 Series, with ZZ, 2RS, OPEN available;
3) Dimension Range:
d (ID): 10-220mm; D(OD): 30-400mm; B(Width): 9-65mm;
4) Radial Play (Clearance):
C2, C0, C3, C4, C5;
5) Tolerance:
ABEC1, ABEC3, ABEC5 (P0, P6, P5);
6) Vibration:
Z1V1, Z2V2, Z3V3;
7) Application:
Motorcycles, Electric Bicycles, Electric Motors (Scooters), Electric Tools,
Fans, Sports Apparatus, Skateboards, Washing Machines, Dust Collectors,
Ventilators, Textile Machines, Running Machines (Treadmills), Household
Appliances, Water Pumps, Agricultural Machines, Precision Machineries, etc.




Bearing No.	Boundary dimensions				Basic load ratings (kN)		Limiting speed		Mass
	mm				Dynamic	Static	rpm		Kg
	d	D	B	rs min	Cr	Cor	Grease	Oil	≈



6220	100	180	34	2.1	122	93.1	3500	4200	3.14
6221	105	190	36	2.1	133	105	3400	4000	3.7
6222	110	200	38	2.1	144	117	3200	3800	4.36
6224	120	215	40	2.1	155	131	2900	3400	5.15
6226	130	230	40	3	167	146	2700	3100	5.82
6228	140	250	42	3	166	150	2500	2900	7.57
6230	150	270	45	3	176	168	2300	2700	9.41
6232	160	290	48	3	185	186	2100	2500	11.7
6234	170	310	52	4	212	223	2000	2400	14.5
6236	180	320	52	4	227	241	1900	2200	15.1
6238	190	340	55	4	255	281	1800	2100	18.2
6240	200	360	58	4	269	310	1700	2000	21.6
6244	220	400	65	4	297	365	1500	1800	30.2















We are the Original Manufacturer of the ball bearing, with no Middleman
involved, so we can provide you Competitive Price and more Efficient
Cooperation!!!

Looking forward to be a Good Business Partner of you.

Do not forget to write to me for more details and photos.
