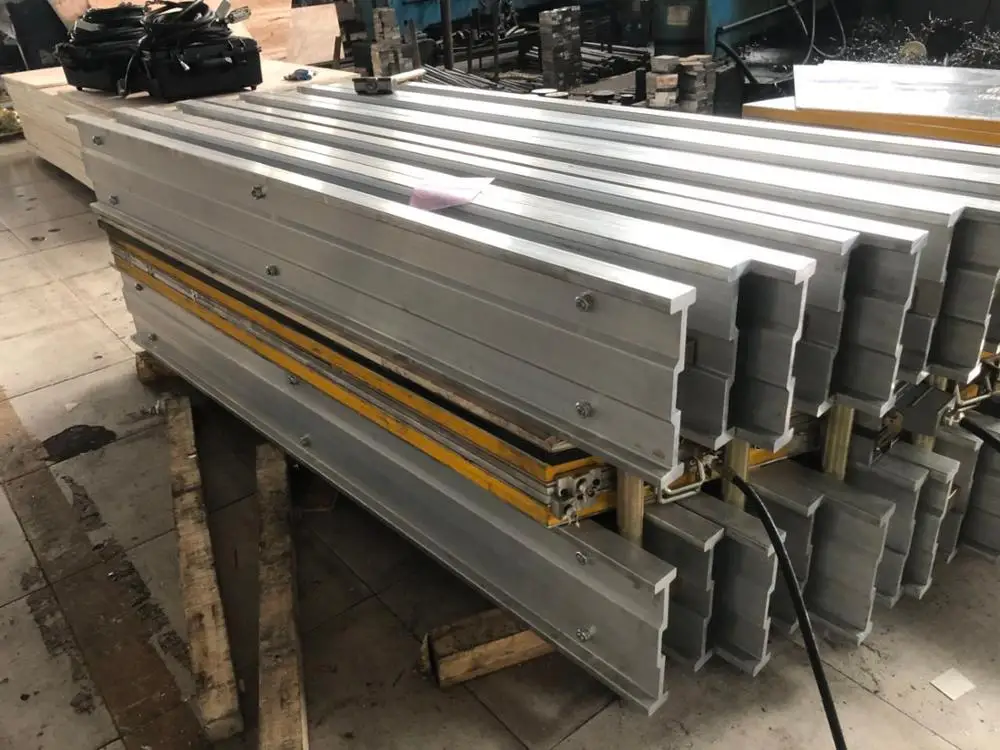

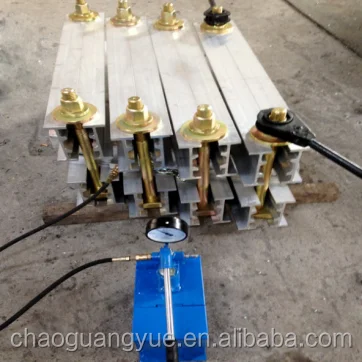

 high quality conveyor belt vulcanizer hot splicing press machine

24 hours customer's service system

100% munufacture in China





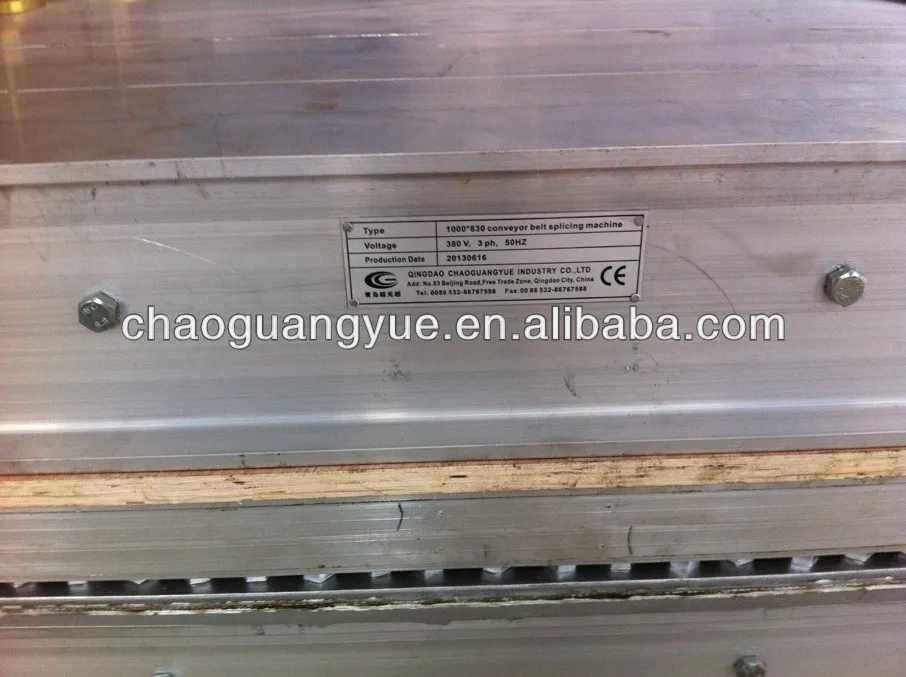

1. Specification



Curing pressure: 1.0-2.0 mpa;

Curing temperature: 145 °C;
Vulcanization plate surface temperature difference: + 5 °C;
Heating time (room temperature to 145 °C) is not more than 30 mins;
Related voltage: 380 v. 50 Hz ac;
The electric output power: 36 Kw;
Temperature adjustment range: 0 ~ 200 °C;
Timing adjustment range: 0 ~ 99 mins

Item No.	Jointing Width (mm)	Spec. (mm)	Heating plate L*M(mm)	Power (kw)	W (kg)	Overall Dimensions L*W*H(mm)	Total weight (kg)	Accessory
								Handing Pump	Electric controller
TOP-650	650	650*830	830×820	9.8	56	1320×830×585	398	1	1
		650*1000	1000×820	11.8	66	1320×1000×585	460	1	1
TOP-800	800	800×830	830×995	11.97	70	1450×830×585	485	1	1
		800×1000	1000×995	14.4	79	1450×1000×585	550	1	1
TOP-1000	1000	1000×830	830×1228	14.7	82	1700×830×585	556	1	1
		1000×1000	1000×1228	17.8	95	1700×1000×585	596	1	1
TOP-1200	1200	1200×830	830×1430	17.2	96	1950×830×750	784	1	1
		1200×1000	1000×1430	20.7	113	1950×1000×750	900	1	1
TOP-1400	1400	1400×830	830×1653	23.8	107	2150×830×900	857	1	1
		1400×1000	1000×1653	23.9	132	2150×1000×900	1080	1	1
TOP-1600	1600	1600×830	830×1867	22.3	120	2380×830×900	1102	1	1
		1600×1000	1000×1867	27	146	2380×1000×900	1400	1	1
TOP-1800	1800	1800×830	830×2079	24.9	137	2620×830×900	1247	1	1
		1800×1000	1000×2079	30	164	2620×1000×900	1500	1	1
TOP-2000	2000	2000×830	830×2303	27.6	154	2830×830×900	1385	1	1
		2000×1000	1000×2303	33.2	182	2830×1000×900	1750	1	1
TOP-2200	2200	2200×830	830×2478	29.7	165	2997×830×900	1446	1	1
		2200×1000	1000×2478	35.8	198	2997×1000×900	1800	1	1

Application of conveyor belt vulcanizing machine :
Suitable for the jointing in these fields: metallurgy, chemical industry, metal mining, power plant, ports, docks. The surface of the jointing is smooth, and it can reduce the abrasive and make the conveyor belt to work for a long time.





2. Technical Parameters

1.Power Voltage: 380V. 660V. 480V. 440V. 415V. 400V or 220V

2.Vulcanizing pressure: 0.6~1.2 MPa (6~12kg / cm2) (Determined by detailed rubber belts) Other vulcanizing pressure can also be available at negotiated price.

3.Vulcanizing temperature: 145°C (adjustable 0~200°C)

4.Temperature-rising time (from normal temperature to vulcanizing temperature): no more than 35 min

5.Time of heat preservation for vulcanizing could be adjusted according to thickness of rubber belt;





3.Industries application:



• Metallurgical plants
• Mines
• Electric power plants
• Docks
• Rubber
• Escalator

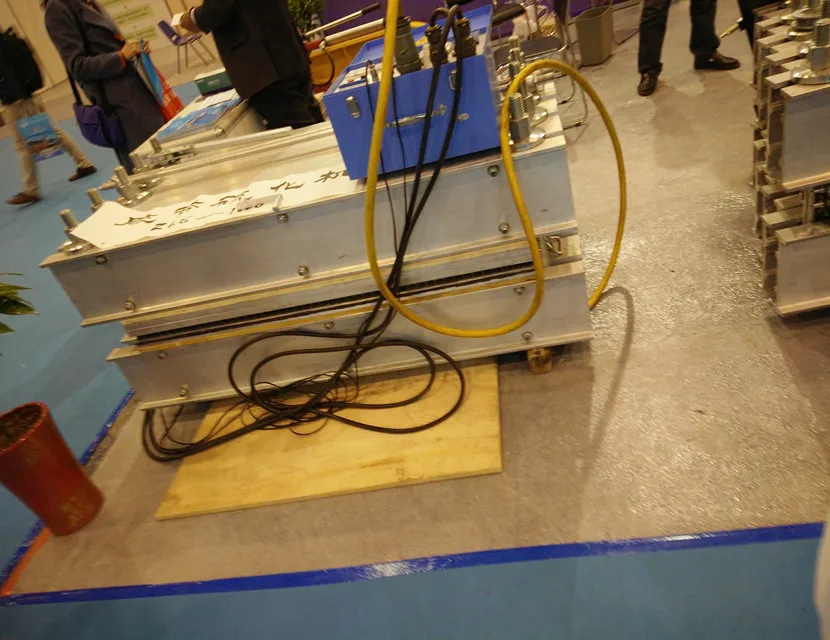

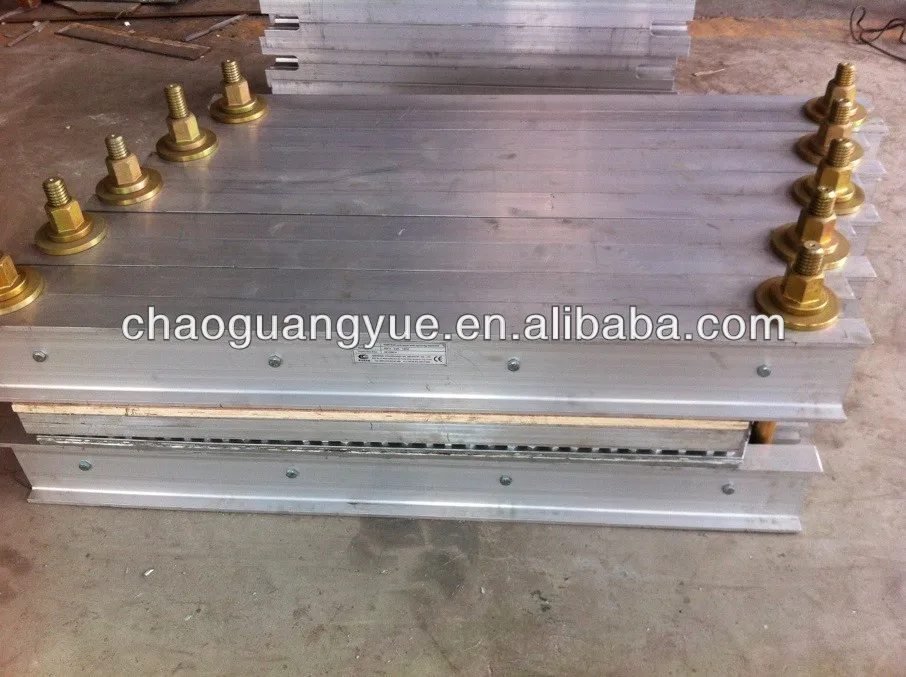

Standard Press will include below components:



• Standard is Auto Electric pumps (if small press, also will suggest use manual pump, save cost)
• Standard heating platen with Water cooling system and with new plug & socket
• With Almex style pressure bag (double layers rubber bag, without aluminum alloy frame, is complete integral)
• For 200PSI, we will choose steel bolts & nuts and for 100PSI, we will choose aluminum bolts & nuts
• Standard high quality auto controller

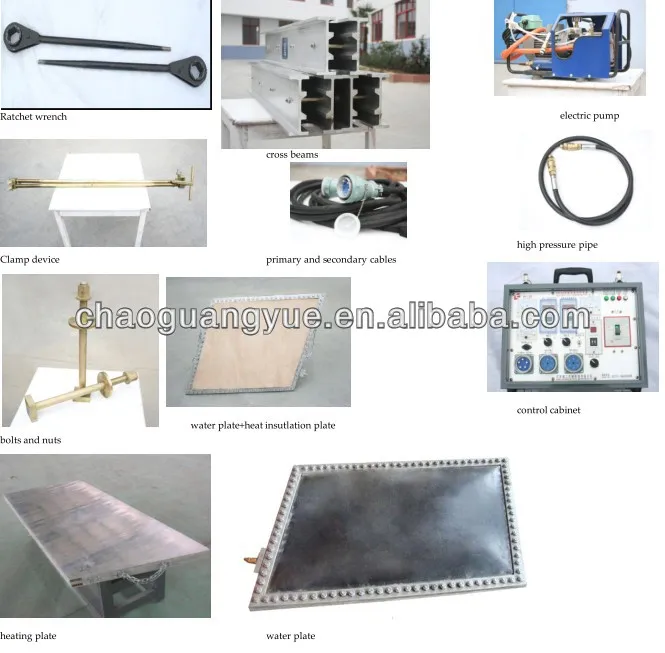

  4. Main components and packing:









5, Before order, or send inquiry to us, pls include below informaiton:







• Belt max width
• Heating platen length
• what kind of press, normal type or 2pcs type.
• Working pressure
• Working voltage
• Any other special requirements, for example like 2 sets small heating platens for one big press etc.  thanks.
