  • Custom 18650 pcb pcm module round cylinder 1S 2A 3A li ion battery bms system
Custom 18650 pcb pcm module round cylinder 1S 2A 3A li ion battery bms system
Custom 18650 pcb pcm module round cylinder 1S 2A 3A li ion battery bms system
Custom 18650 pcb pcm module round cylinder 1S 2A 3A li ion battery bms system

Custom 18650 pcb pcm module round cylinder 1S 2A 3A li ion battery bms system

Share on (60627457251):


Price:$0.50

Quantity:


Product Overview

Description



Products Description








Product Parameter


Shenzhen Li-ion Battery Bodyguard Technology Co.,LTD
PCM Specifications For 3.7V (1S）Li-ion Battery Packs
Model: LWS-D14(1S）Same port
No.
Test item
Criterion
1
Voltage
Charging voltage
DC：4.2V CC/CV
Balance voltage for single cell
2
Current
Balance current for single cell
Current consumption
≤10uA
Maximal continuous charging current
2.5A
Maximal continuous Discharging current
2.5A
3
Over charge Protection
Over charge detection voltage for single cell
4.28±0.05V
Over charge detection delay time
500mS—1500mS
Over charge release voltage for single cell
4.08±0.05V
4
Over discharge protection
Over discharge detection voltage for single cell
3.0±0.08V
Over discharge detection delay time
10ms—150ms
Over discharge release voltage for single cell
3.0±0.08V
5
Over current protection
Over current detection voltage
0.15±0.015V
Over current detection current
3±0.5A
Detection delay time
5ms—15ms
Release condition
Cut load
6
Short protection
Detection condition
Exterior short circuit
Detection delay time
200-500us
Release condition
Cut load
7
Resistance
Protection circuitry（MOSFET）
≤60mΩ
8
Temperature
Operating Temperature Range
-40～+85℃
Storage Temperature Range
-40～+125℃

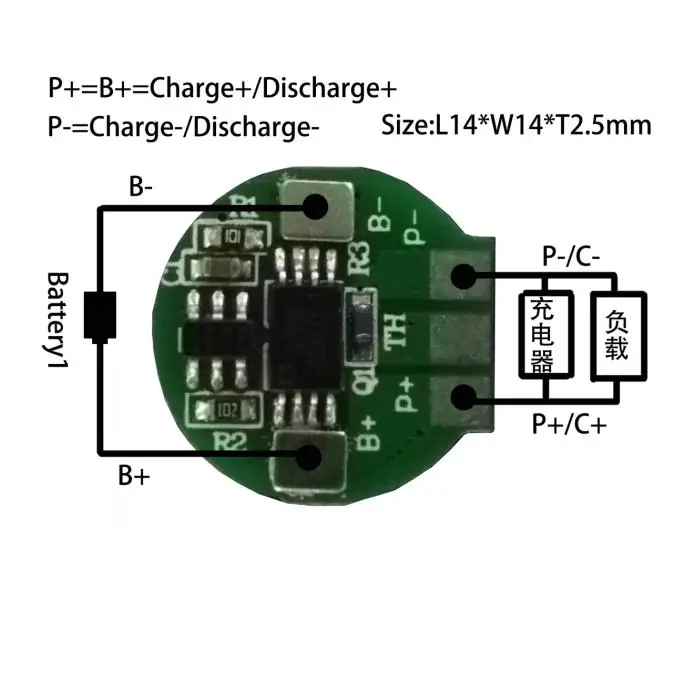

Wiring Picture:




Related Products








Application:






Main Function:
Over Charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection.


Advantage:

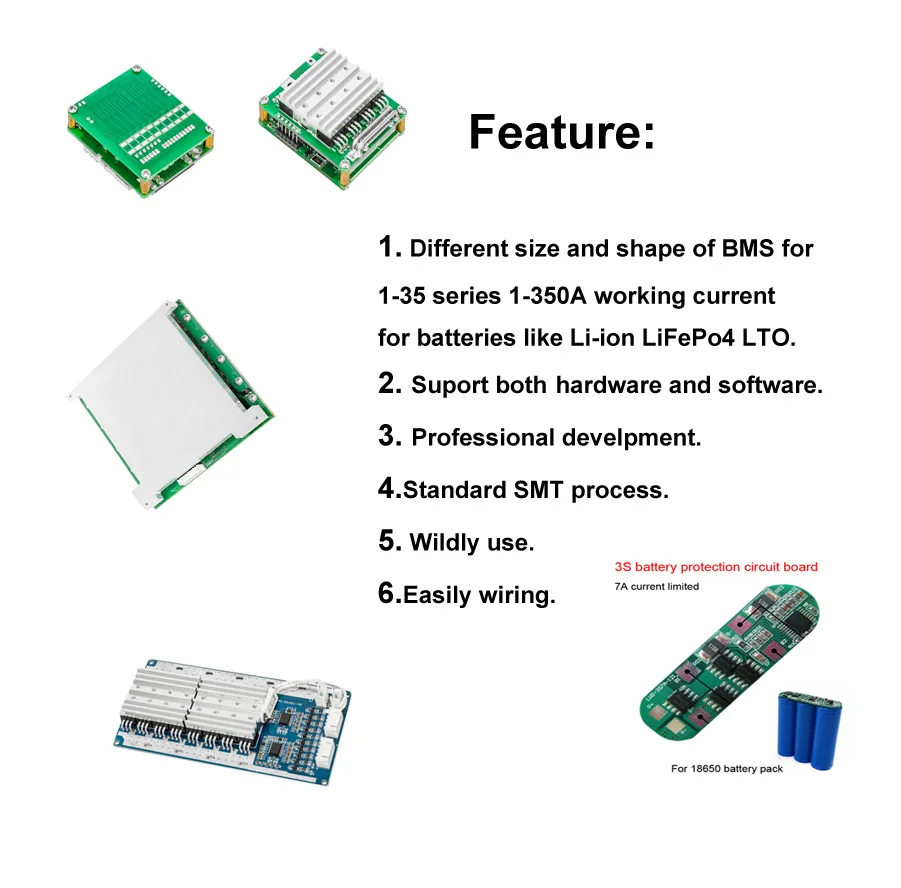

1.Use top quality (A-level) protective integrated circuit IC, from the solution of Seiko of Japan.
2.Strong load ability, constant discharge current can be 350A max,use high voltage resistance, low inner resistance power Mosfet. The heat sink will greatly help cooling.
3.IC itself has power balancing fucntion.The circuit is simple and reliable.
4.Typical voltage detection of each cell. Each battery will be prevented from over charge or discharge ,over current and short circuit .
5. Extreme low power consumption
6.BMS is coated with a conformal coating, for INSULATION, MOISTURE-PROOF, LEAKAGE-PROOF.


Packing&Shipping

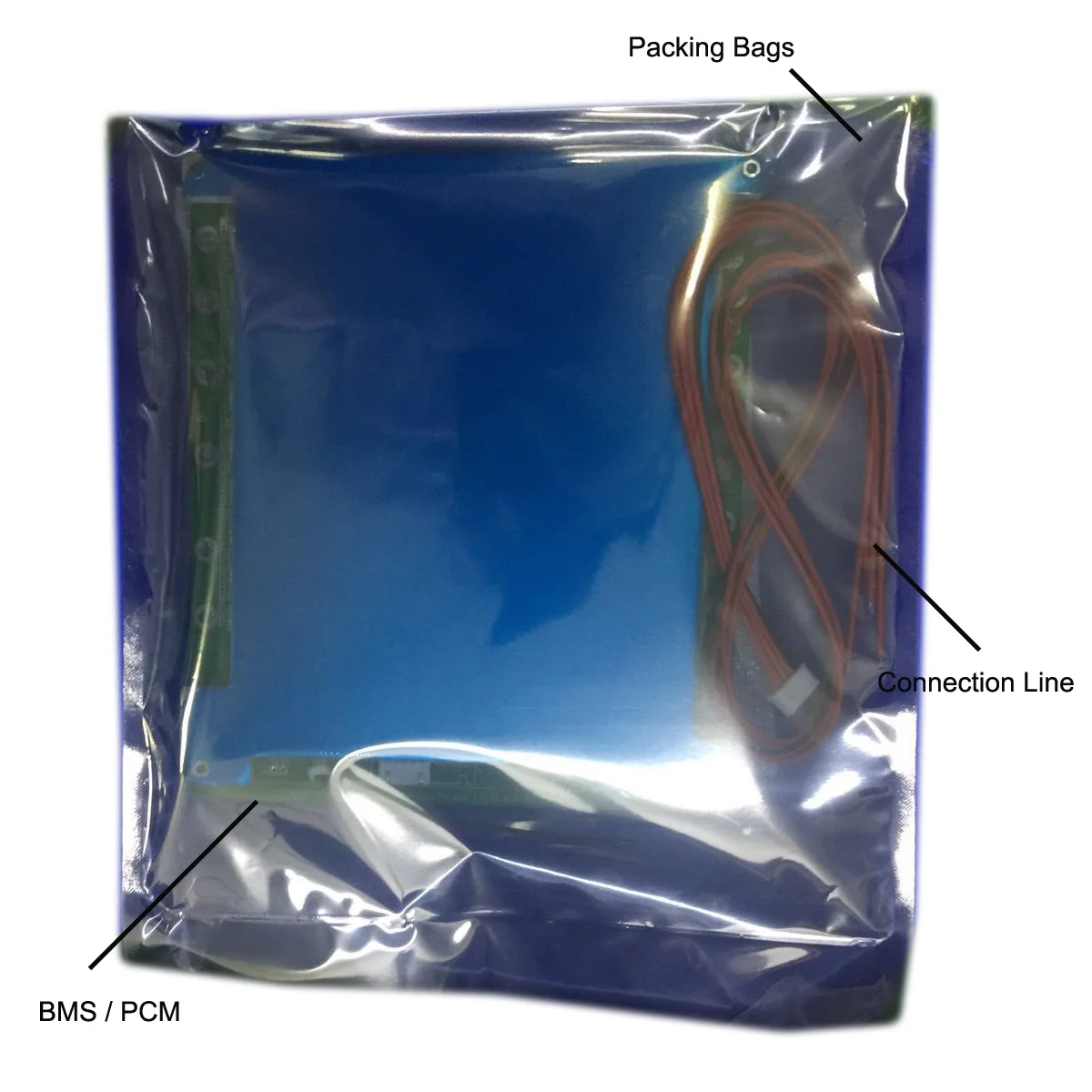

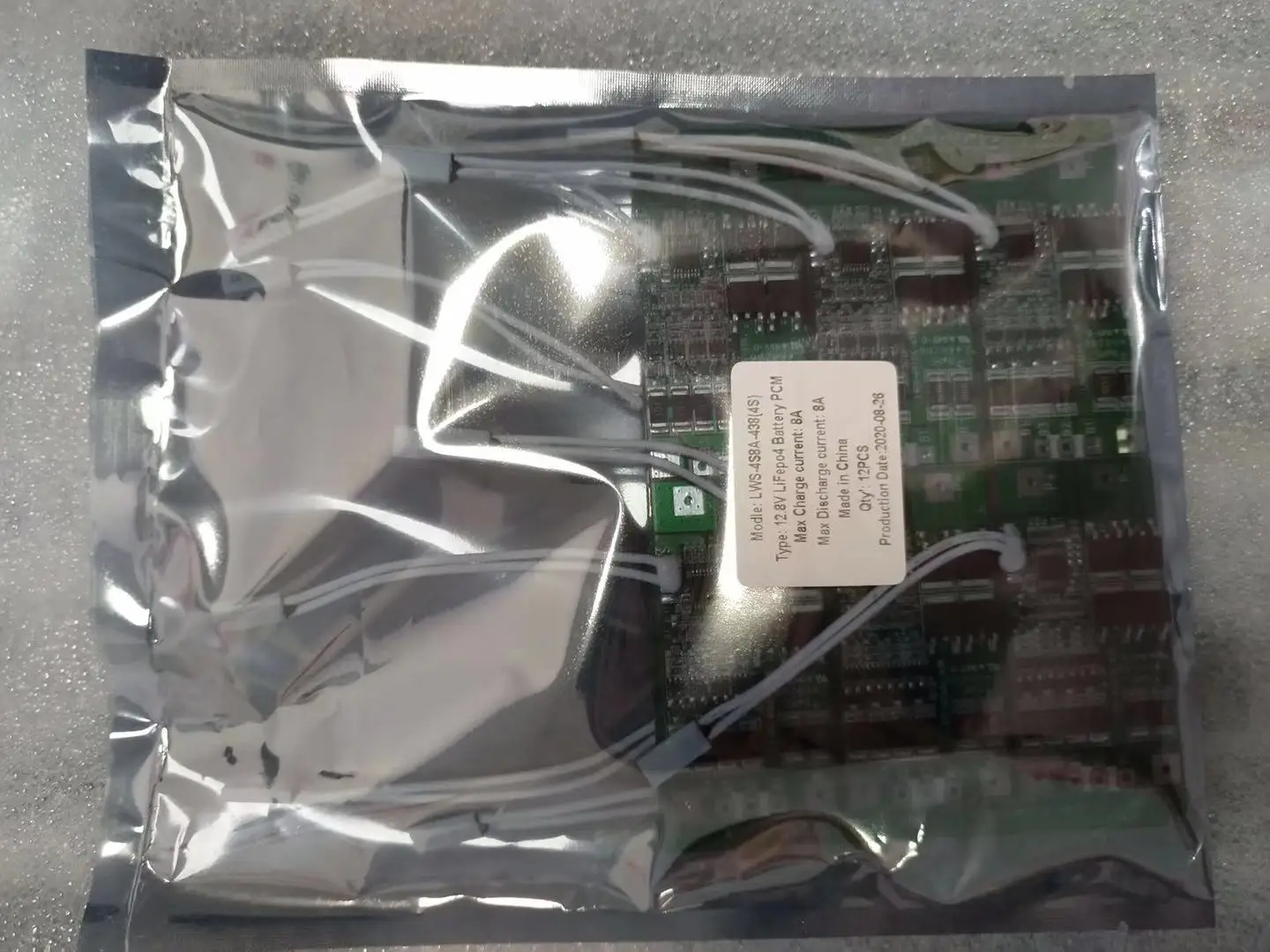

Pack the BMS board in an anti-static bag, add foam to prevent impact, put a layer on each partition, and then put it in a carton. Four cartons are placed in a larger carton.








Company Profile




Certifications




Exhibition


International and domestic exhibitions
Our company actively participate in the exhibition every year.
We've attended exhibition in Shenzhen, Hong-Kong, India, Germany, etc.


FAQ


Q: How do I judge what material my battery is ?
A: Please take a look at the battery body.
LiFePO4 battery: 3.2V or 3.3V.
Li-ion or Li-polymer battery: 3.6V or 3.7V.
LTO battery: 2.3V or 2.4V.

Q: How to choose a suitable BMS/PCM for my battery packs?
A: Please tell us following required details and we will advice for you:
Battery material & Battery series & Capacity & working current & Application
(For example: LiFePO4 BMS, 13 series, charge 40A, discharge 40A, application for e-bike 1800W.)

Q: Do you have Minimum Order Requirement (MOQ)?
A: Small PCM: 10 PCS MOQ; Large PCM: 1 PCS MOQ.
Sample orders or bulk orders are all welcome.

Q: Can I require products size?
A: We can provide various size and specification is per your requirements, also ODM / OEM is welcome.
