Сопло 145,0076 Binzel 25AK

Product Overview

Description

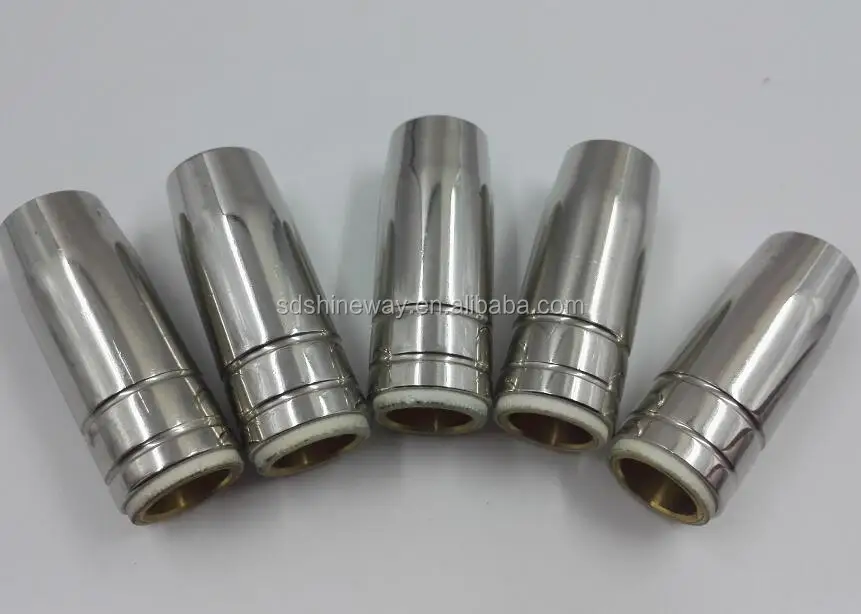

145.0076 Binzel 25AK Nozzle



1> Application: Binzel 25AK Air cooled

2> Code Number: 145.0076

3> CO2:  250A   Mixed Gas:220A

4>  Duty circle:60%

5>Diameter of Welding Wire:0.8mm--1.2mm

6>Length of welding torch: 3m, 4m,4.5m

7>Cooling style:Air-cooled













Rateing: 250A CO2
220A MIXED GASES
Duty cycle: 60%
Wire size: 0.8 ~ 1.2mm
No.	Description	Order No.	Refe. No.
	24KD Compelte Torch-3M	EW  012.0103	012.0103
	24KD Compelte Torch-4M	EW  012.0104	012.0104
	24KD Compelte Torch-5M	EW  015.0105	015.0105
1	Cylindrical Nozzle Ø17mm	EW  145.0047	145.0047
2	Conical Nozzle Ø 12.5mm	EW  145.0080	145.0080
3	Tapered NozzleØ10mm	EW  145.0128	145.0128
4	M6x28x0.8 Contact Tip,E-Cu	EW  140.0051	140.0051
	M6x28x0.9 Contact Tip,E-Cu	EW  140.0169	140.0169
	M6x28xl.0 Contact Tip,E-Cu	EW  140.0242	140.0242
	M6x28xl.2 Contact Tip,E-Cu	EW  140.0379	140.0379
	M6x28x0.8 Contact Tip,CuCrZr	EW  140.0054	140.0054
	M6x28x 1.0 Contact Tip,CuCrZr	EW  140.0245	140.0245
	M6x28x 1.2 Contact Tip,CuCrZr	EW  140.0382	140.0382
5	Contact Tip Holder	EW  142.0003	142.0003
6	Gas Diffuser	EW  012.0183	012.0183
7	Swan Neck	EW  012.0001	012.0001
8	Plastic Nut	EW  400.0044	400.0044
9	Handle
10	Switch	EW  185.0031	185.0031
11	Switch Connector Collet	EW  175.A022	175.A022
12	Ball Joint Cable Support
13	Cable Assembly,3M
	Cable Assembly, 4M
	Cable Assembly, 5M
14	Cable Support	EW  400.1010	400.1010
15	Cable Support Machine Side	EW  501.2248	501.2248
16	Adapter Nut	EW  500.0213	500.0213
17	Central Connector KZ-2	EW  501.0003	501.0003
18	Nut M10x1	EW  501.0082	501.0082
19	Liner,For wire Ø0.8-1.0, 3.5M
	Liner,For wire Ø0.8-1.0, 4.5M
	Liner,For wire Ø0.8-1.0, 5.5M
20	Spanner	EW  191.0001	191.0001



Other Binzel series we can supply as following,

15AK,24KD,25AK,36KD,410D
