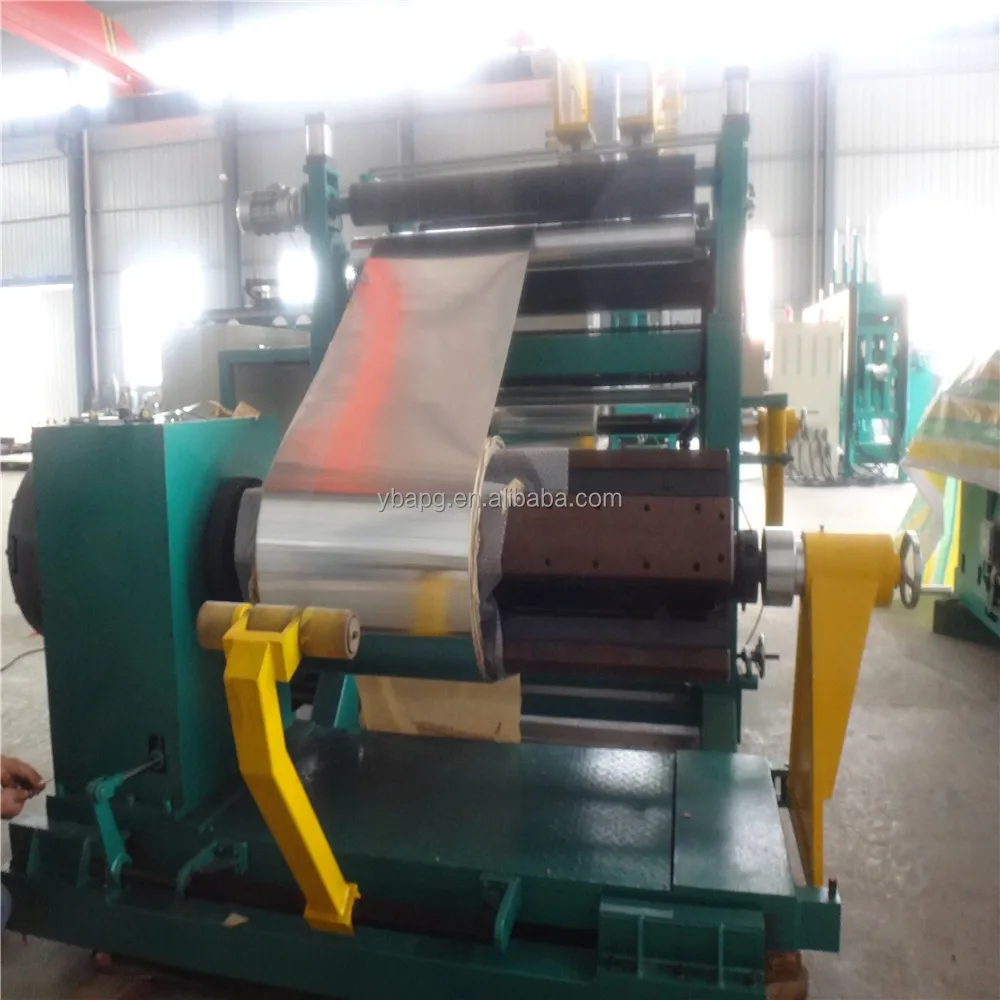

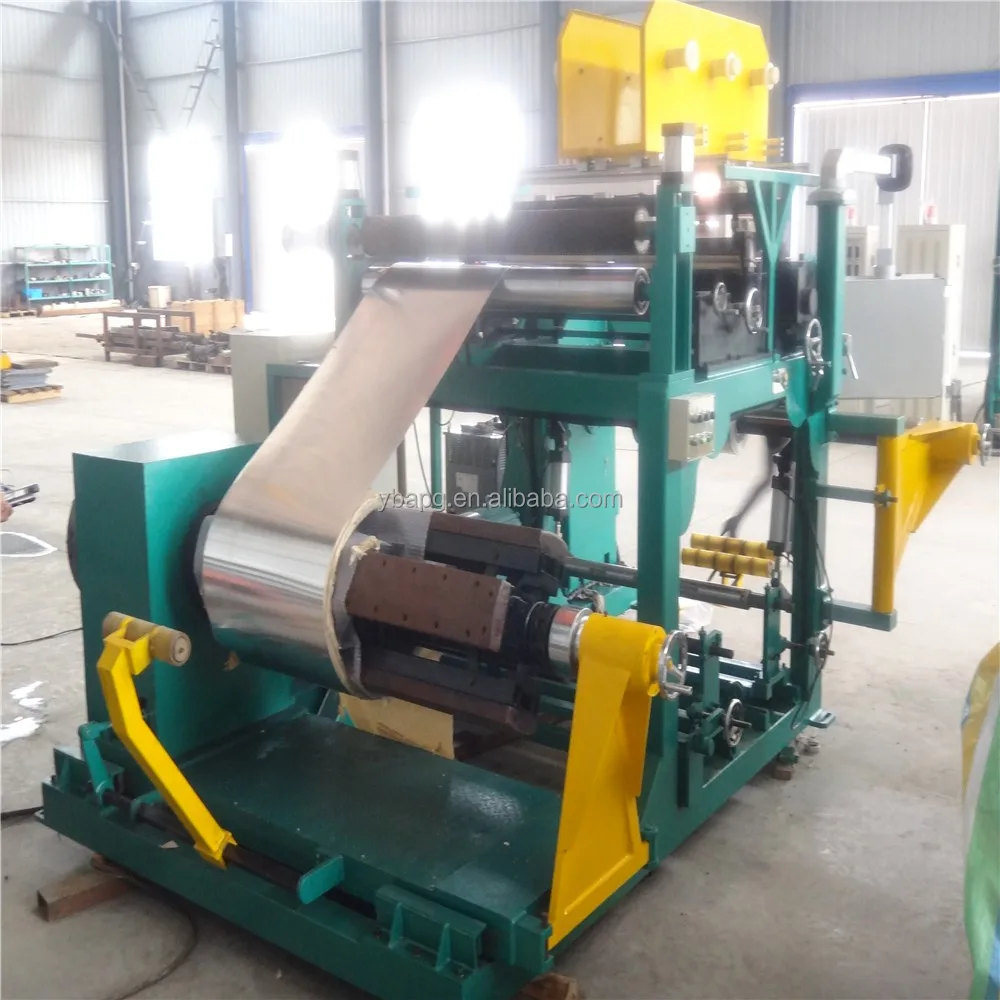

semi automatic Foil winding machine for power transformer making YIBO factory

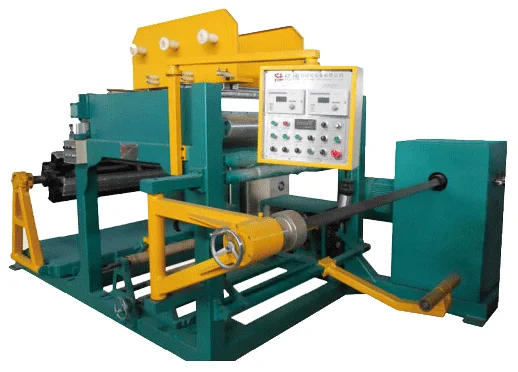

BRJ-1400 easy-to-operate foil winding machine is a special equipment used in transformer production line. It can wind copper and aluminum foils  The equipment is  developed by our factory based on full understanding of the application in  transformer production. It is of high quality and great efficiency.

By using magnetic powder clutch tension controller,  Consistent tensions are applied to foil  and insulation tape for both winding and rewinding to avoid uneven tightness. The tension can be steplessly adjusted.

Overview:

1. Unwinding and rectification devices


2. Feeding device


3. layer insulation device


4. Shear device


5. Winding device


6. Welding device


7. Photoelectric edge control device


8. Cleaning device


9. raw edge trimming device


10. Electric control box


11. Argon tungsten-arc welding

Steps of Quality Control

1. Strictly control the purchase standard of raw materials.


2. With high-precision equipments and experienced workers to process components, make sure each procedure up to standards.


3. Assembly procedure, double-check the quality of the components, the machine outlook, etc.

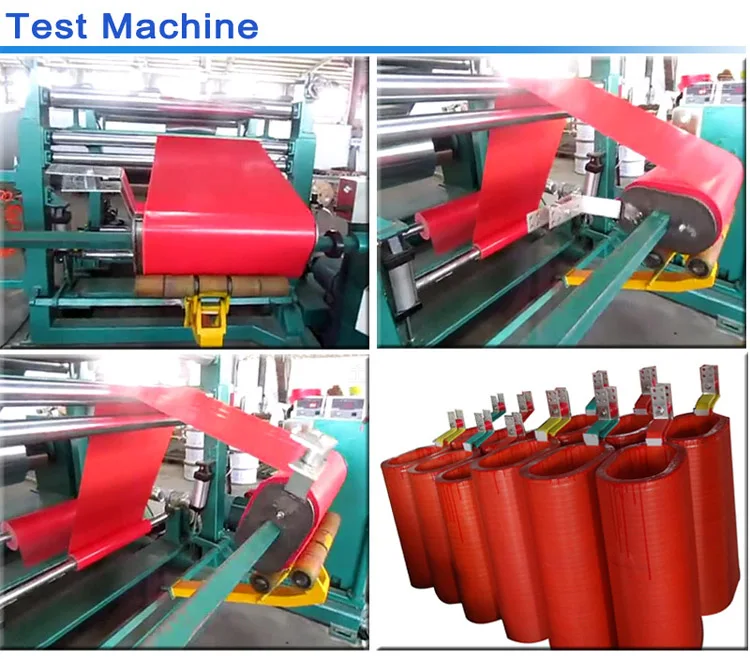

4. Before shipment, test all operating procedures by winding the coil to ensure the machine functions well.

YIBO Company:

The only manufacturer who can provide one-stop  solutions for transformer production with best factory price and fast shipment.

With Professional and experienced  engineers and research team, we offer training for the operation of the machine.

Have a line and lab specially  for producing CT and PT.we can winding samples and test in our lab.

1. 24 hours service, email or call contact.


2. Offer technology support before and after the sale.


3. Provide high quality machines.


4. Provide spare parts.


5. Provide after-sales service
