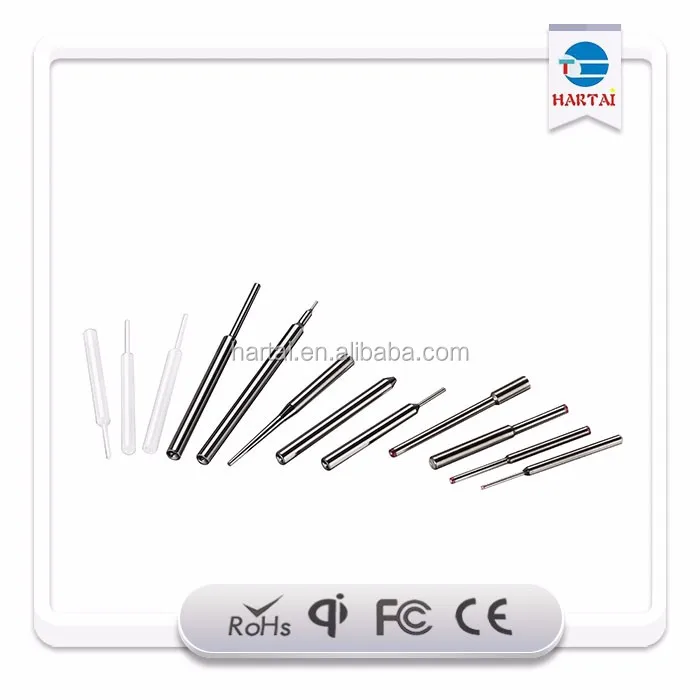

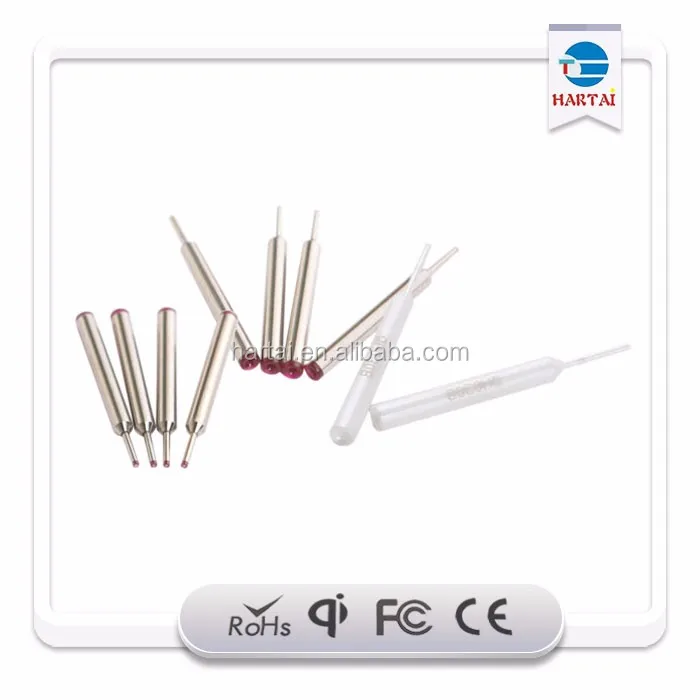

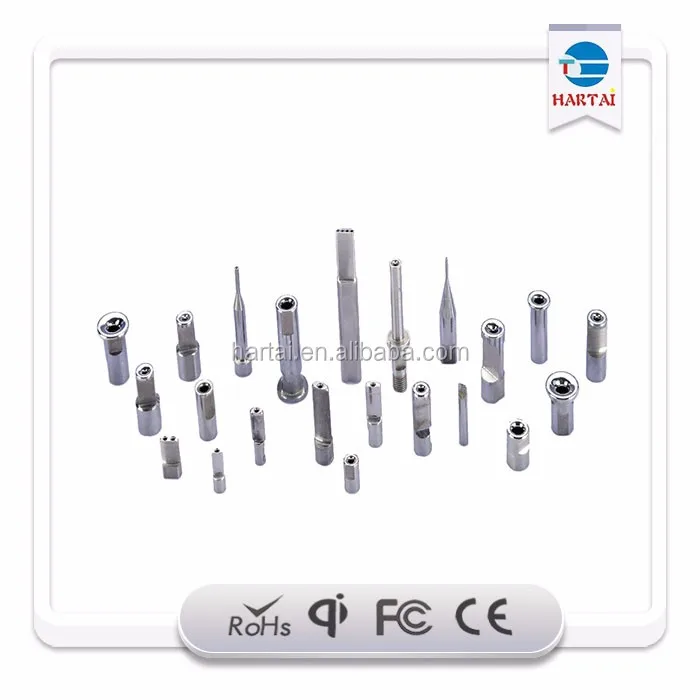

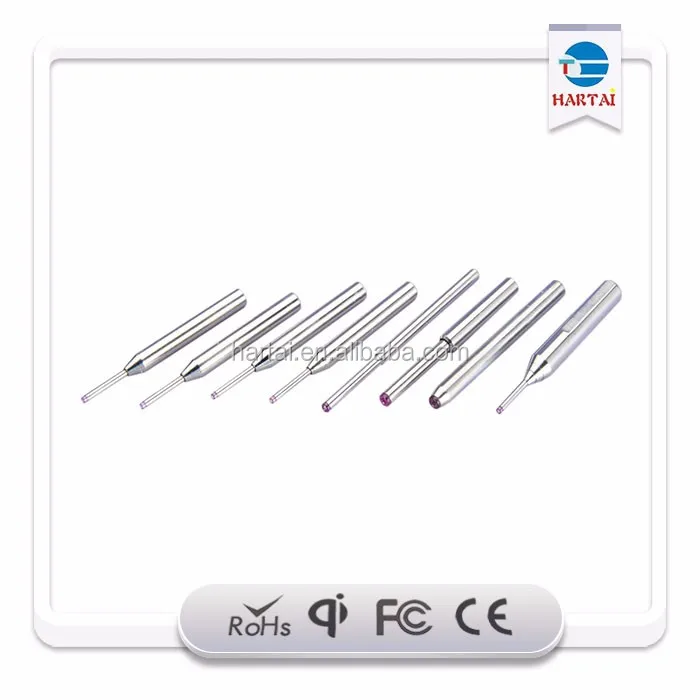

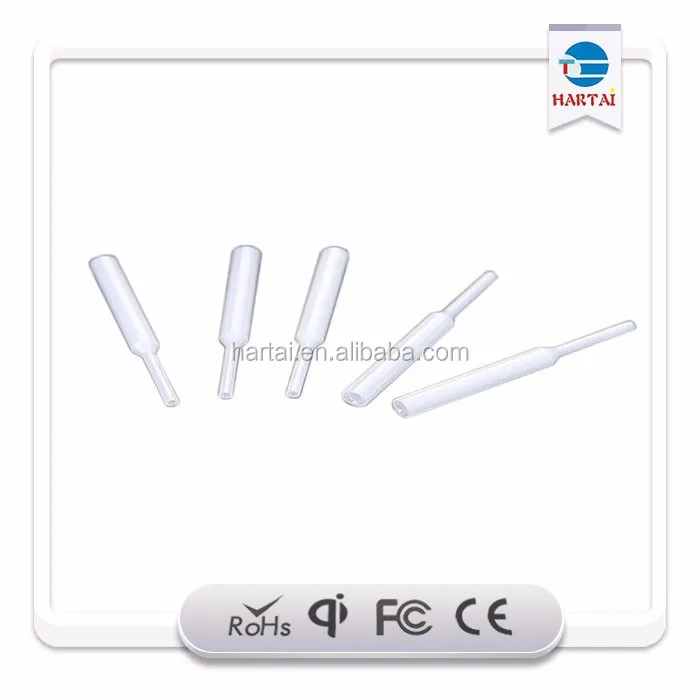

Tipped Coil Winding Nozzle (RC0330 3 1007) Wire Tube Guide For copper coil winding Machinery
- Category: >>>
- Supplier: Dongguan City Defuli Hardware Electronic Material Co. Ltd.
Share on (60627862858):
Product Overview
Description
Product Description
Tipped Coil Winding Nozzle (RC0330-3-1007) Wire Tube Guide For copper coil winding Machinery
| 1. High Wear Resistance This is assured by the choice of materials for wear elements possessing a minimum hardness in excess of Vickers 1, 000 (HRC 70). 2. Scratch-Proofing Eliminate wire insulation film damage, low friction resistance, stable wire tension. The wire-guiding surfaces are mirror finished by diamond lapping to a surface roughness of 2 -4 micro inches Ra or better, material permit. 3. Straightness and Stiffness Straightness and Stiffness are defined by the wire exit being concentric and inflexible with respect to the nozzle locating? . In plain terms, the wire should exit from the nozzle concentric to the locating? To within 0.02 mm, with or without load. A geometric characteristic presentation is shown at upper left. Concentricity to within 0.01mm. 4. Precise Exit Radii Because the coil winding nozzle's Exit Radii governs the angle of the wire exit from one coil to the next, it should be monitored to + / - 0.025 mm. This is done by digital measurement, shown at upper right. |
Packaging & Shipping
Company Information
Main products:
Coil winding tensioners, nozzles, pulleys, ceramic guides, and precision machineries
Wireless charger, coils&PCB for charger
Our Services
1. Competitive price
2. Good after-sale service
3. Fast delivery
4. High quality control
5. Customized size, design
FAQ
1. How can I get a quotation?
You can find our contact information below this page and some detail information will be very helpful to get an exact quotation. We will give quotation within 24hours, if urgent, please tell us and we will regard your inquiry priority.
2. How can I get a sample?
As the price confirmed, you can require for samples.
3. Can you do the design for us?
Yes, we have our factory and we can make OEM order.
4. How long can I expect to get the sample?
Normally it takes 7-15days to produce the sample.
5. What about the lead time for mass production?
It depends on what kind of products you ordered. Generally, 15-25days for mass order.
We sincerely hope to get your inquiry of this coil winding nozzle! If any questions, please feel free to contact us. Thanks for visiting our website!
