top trending products 2024 12 Channel resting PC based portable ECG / EKG machine medical treatment

Product Overview

Description

 top trending products 2024 12 Channel resting PC  based portable ECG / EKG machine medical treatment



 CV200 ecg 12 channal

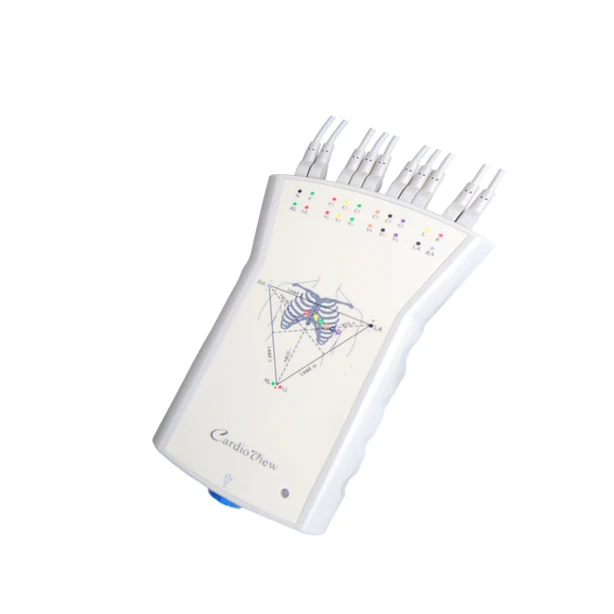

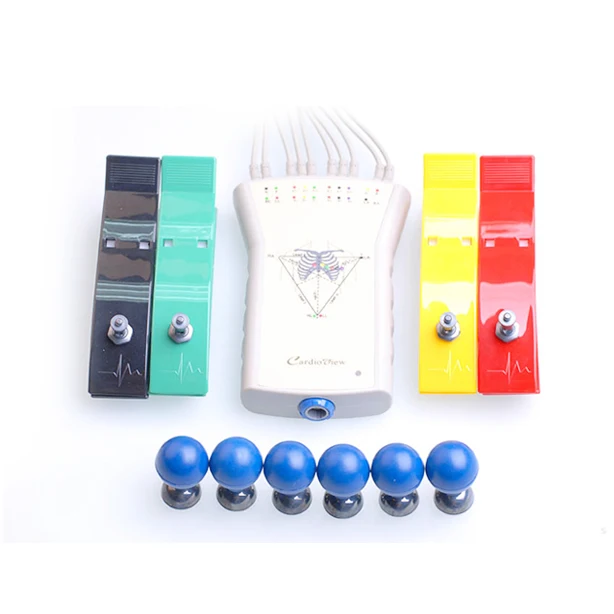

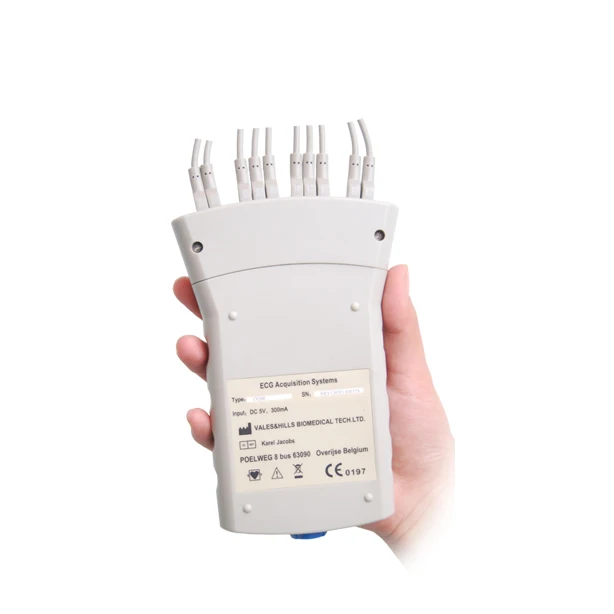

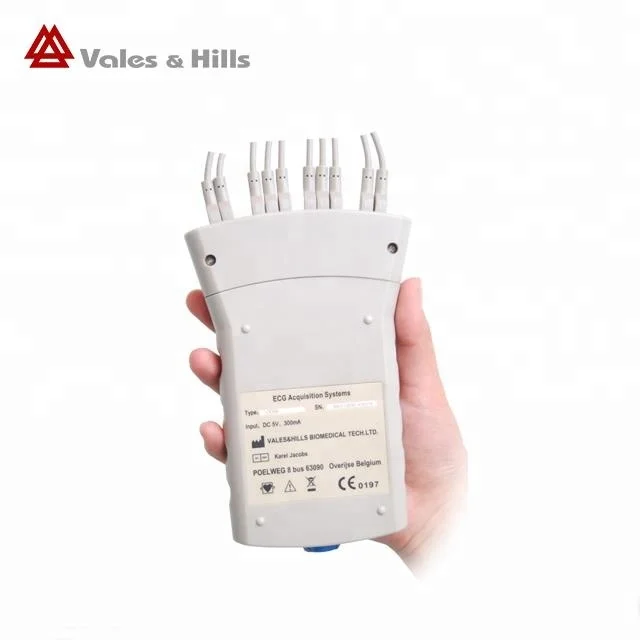

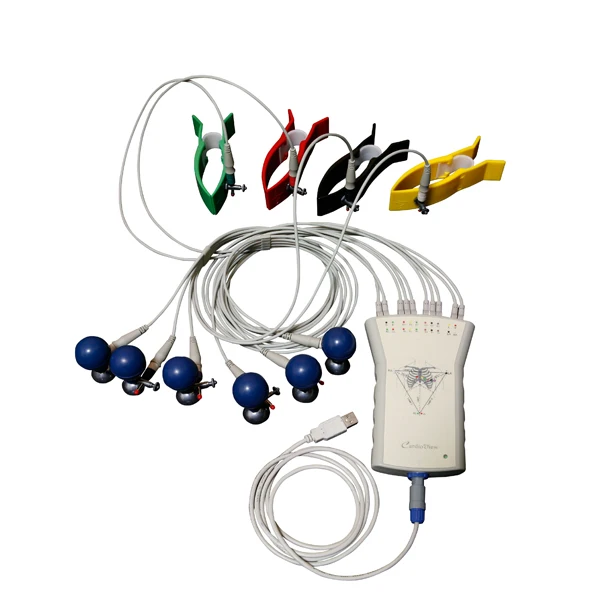

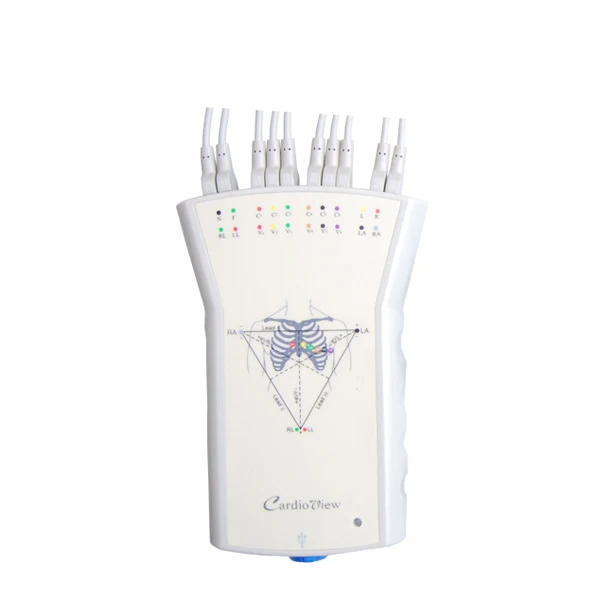

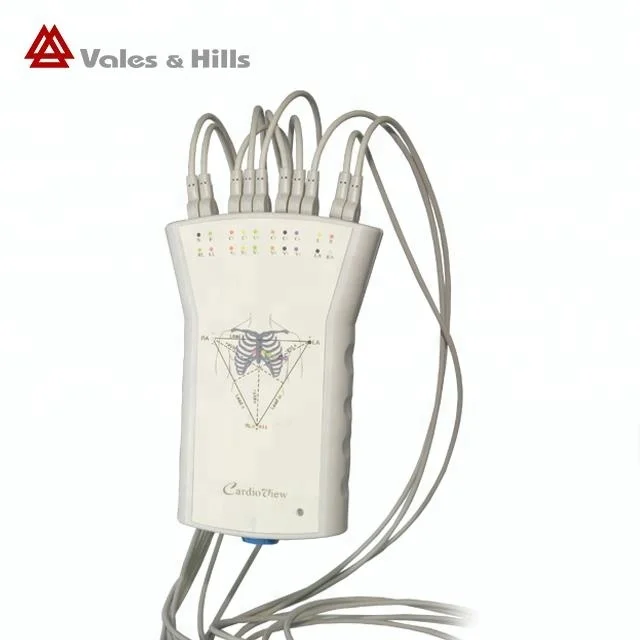

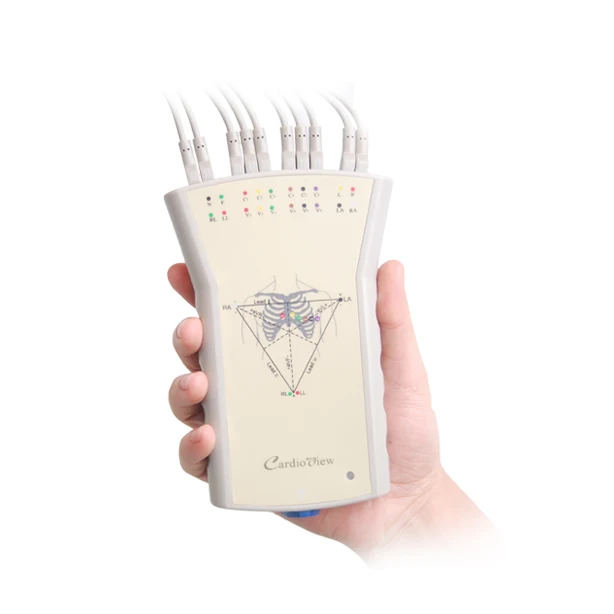

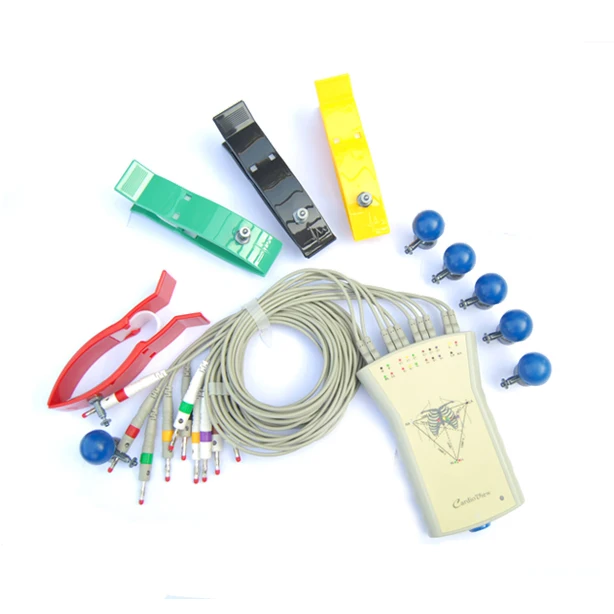

CARDIO VIEW CV-200 is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG) and Ventricular Late Potential (VLP).The system automatically stores, analyzes, averages, displays and prints the recorded ECG,VCG and VLP data. In the Windows XP environment, different reports can be viewed on-screen and printed in numerous formats on most Windows compatible printers. By means of regular updating of software,CV-200+ remains state-of-the-art both now and in the future. With the optical isolating ECG signal sampling recorder connected to PC USB interface,CV-200+ guarantees high quality ECG data acquisition, user-friendly environment and 100% safety for the patient.



Minimum Computer System Requirements:

• Pentium III Processor


• 128MB RAM


• 20G HD


• Windows XP Operating System


• VGA Compatible Display


• Windows XP Compatible Laser or Inkjet Printer

ECG Recorder Specifications:

VH- CV200+-ECG work station specification
Sampling	1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording
Digital Resolution	2µV
Frequency Response	0.05-250Hz(+3dB)
Common Mode Rejection	>90dB
Input Impedance	>10 M
Time Constant	3.2 Sec
Maximum Electrode Potential	+300mV DC
Dynamic Range	+10mV
Isolate Voltage	4000V
Current Leek	<10µA
Patient Cable	Standard 10-wire,15-Pin D Connector
PC Interface	USB Connector
Dimensions	14912226 mm(5.94.81.0 in.)
