calcium silicate insulation board LD270
- Category: >>>
- Supplier: Shanxi Province Yangquan Metals & Minerals Imp. Exp. Co. Ltd.
Share on (60627990683):
Product Overview
Description

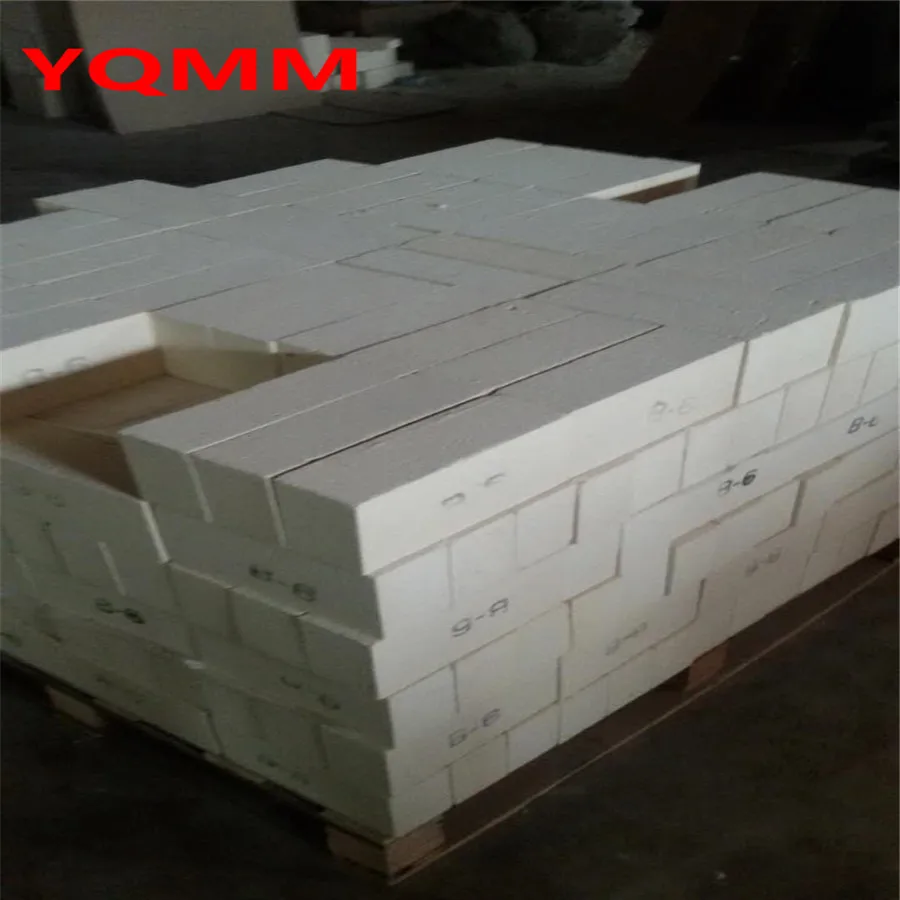

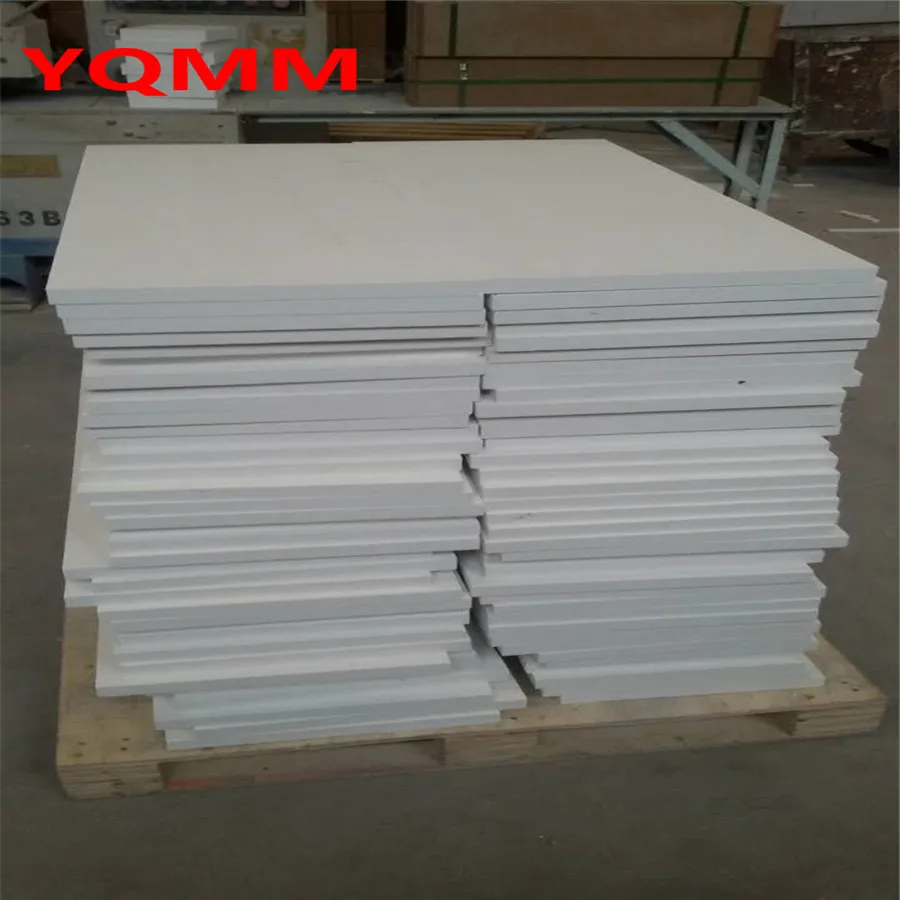

Low weight Calcium silicate insulation board-LD270
Low weight calcium silicate insulation board are special designed for the application as back-up insulation material in all kinds of refractory constructions and high temperature process equipments.Good machining performance allows for easy cutting by ordinary wood-working tools.Special shaps machined can be supplied for customers requirement.With excellent performance,the low weight calcium silicate insulation board can be consider as the best choice for energy saving.
Product Features
Back up insulation only
High working temperature
Real light weight
Excellent durability
Good machining performance
High heat resistance
Great adiabatic performance
Data sheet
Low weight Calcium Silicate Insulation Board-LD270 | |||
Type | LD23-27 | ||
Combustibility | Class A1 | ||
Density | 230kg/m³ Thickness>40mm | 270kg/m³ Thickness≤40mm | |
Thermal Conductivity | 100℃ | 0.065W(m.K) | |
200℃ | 0.075W(m.K) | ||
400℃ | 0.102W(m.K) | ||
600℃ | 0.142W(m.K) | ||
Flextural Strength | 0.4MPa | 0.5MPa | |
Working Temperature | 1000℃ | ||
Temperature Limit | 1000℃ | ||
Linear Shrinkage | 2%(1000℃x3h) | ||
Loss on lgnition | ~10% | ||
Color and odor | Off-white,Odorless | ||
Volatility | Non-volatility | ||
PH Value | 7-9 | ||
Moisture Content | ~7.5% | ||
Solubility | Insoluble | ||
Toxic Information | Asbestos free,Non-toxic under high temperature, flame and fire | ||
Size and Tolerances | ||
Length(±4mm) | Width(±4mm) | Thickness(+3mm,-1.5,,) |
400mm | 250mm | 25-120mm |
500mm | 500mm | 25-120mm |
600mm | 300mm | 25-120mm |
610mm | 150mm | 25-120mm |
610mm | 300mm | 25-120mm |
610mm | 400mm | 25-120mm |
900mm | 600mm | 25-120mm |
1000mm | 500mm | 25-120mm |
1080mm | 950mm | 60-120mm |
1220mm | 1220mmm | 60-120mm |
1236mm | 920mm | 60-120mm |
1360mm | 1080mmm | 60-120mm |
Can be supplied either as standard boards or as customized solutions | ||
