IMX6Q Processor ortex A9 Android Single Board Computer with 7' Capacitive Touch LCD on board LVDS Mini PCIE
- Category: >>>
- Supplier: Baoding Forlinx Embedded Technology Co. Ltd.
Share on (60628166288):
Product Overview
Description
Overview

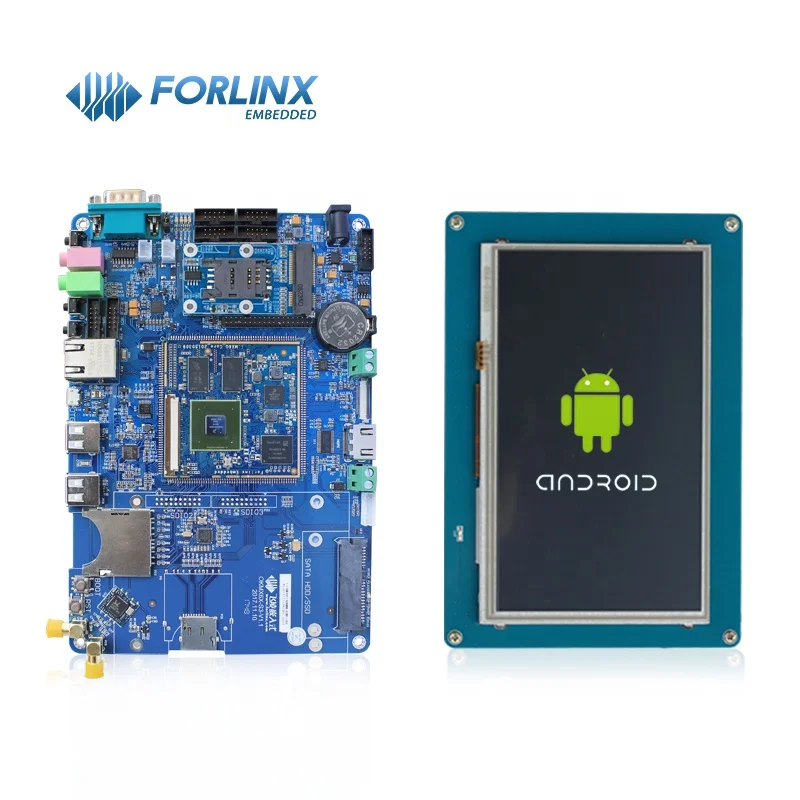

Freescale iMX6Q Processor ARM Cortex-A9 Android Single Board Computer with 7'' Capacitive Touch LCD on-board LVDS Mini PCIE
This Android development board with 7'' capacitive touch screen, it was designed based on Freescale i.MX6Quad core processor, 1G DDR3, 8G eMMC and 7'' capacitive LCD are available on this board.
The OS Android version is Android4.4.

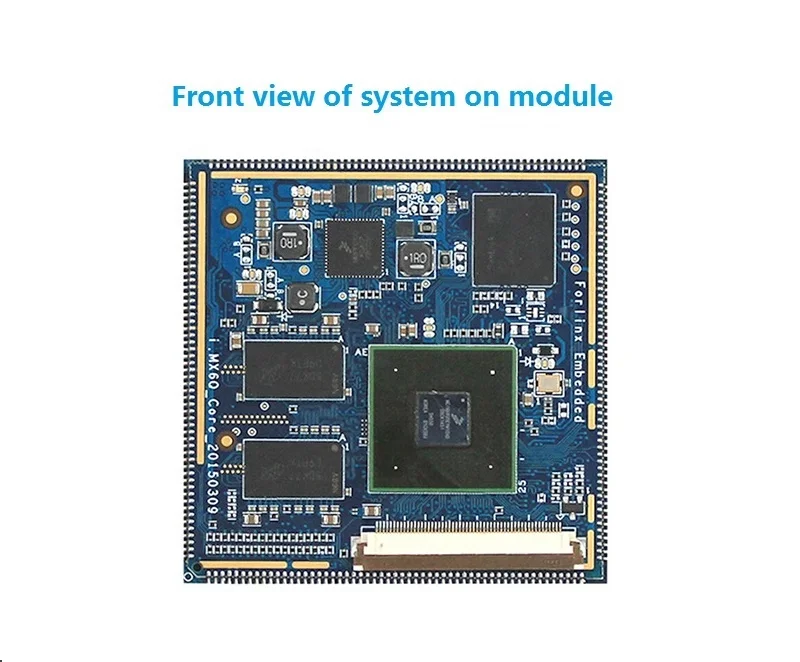

the CPU module FETMX6Q is integrated with minimum system
SoM with minimum system and with LCD interface, which is very convenient for usres to do incoming quality control and aging by running the system just with connection of a 4.2V power input but no need support of the carrier board.
CE&FCC certified to take users product quality guarantee
Product Description
i.MX6 CPU Module | ||||||
CPU | Freescal i.MX6Quad | IIC | 3-ch | |||
Architecture | Cortex-A9 | SPI | 2-ch | |||
Main Frequency | 1GHz | CAN | 2-ch | |||
RAM | 1GB DDR3 (2G optional) | USB Host | 1-ch, USB2.0 | |||
Flash | 8GB eMMC, (4G optional) | USB Device | 1-ch, USB2.0 | |||
Input Voltage | 4.2V | SD/MMC/SDIO | 2-ch, SD/MMC | |||
2D/3D | supported | Ethernet | 1-ch, Gigabit Ethernet | |||
GPU | IIS interface | Mini-PCIE | 1-ch | |||
PMU | MMPF0100NPEP | UART/IrDA | 5-ch, (1 debug port) | |||
Dimensions | 60mm*60mm | EINT/GPIO | supported | |||
Connection Type | CPU module soldered on carrier board | Video Codec | hardware codec | |||
OS | Android4.4/Android6.0 Linux3.0.35 QT4.8.5/ Linux4.1.15 QT5.6 | HDMI1.4 | 1-ch | |||
LCD | RGB888 (2-ch LVDS with 8-bit) | Camera | 1-ch, 5MP parallel camera | |||
Audio | IIS | SATA | 1-ch, SATA-II | |||
OKMX6Q Carrier Board | ||||||
Audio | 3-ch (1-ch phone, 1-ch MIC, 1-ch speaker) | IrDA | 1-ch, empty soldering | |||
IIC | 2-ch | User Key | 2-ch | |||
SPI | 1-ch | Boot | 1-ch | |||
CAN | 2-ch | Sleeping Awake | 1-ch | |||
Camera | 1-ch, 5MP parallel camera OV5640 | Reset | 1-ch | |||
SDIO | 2-ch | PWM | 2-ch | |||
SD/MMC | 2-ch | GPIO | supported | |||
USB Host | 2-ch, USB 2.0 | EINT | supported | |||
USB Device | 1-ch, USB 2.0 | LVDS | 2-ch | |||
Ethernet | 1-ch, 10M/100M/1000M adaptive | HDMI1.4 | 1-ch | |||
Power Jack | 1x mandatory power, 1x auxiliary power | SATA | 1-ch | |||
Mini-PCIE | 1-ch | WIFI&BT | 1-ch | |||
UART | 4-ch (1 debug port, 2-ch 3-wire serial port, 1-ch 5-wire serial port) | RTC | Supported | |||
OS Android 4.4/ Android 6.0 | ||||
Uboot Version | U-boot 2009.08-dirty | |||
Kernel Version | Linux 3.0.35 | |||
NIC (10M/100M/1000M) | RTC | |||
LED | Audio (IIS interface) | |||
LCD | SPI | |||
USB | Serial interface (3) | |||
PWM | User key | |||
Precisely capacitive touching | Bluetooth | |||
eMMC | Watchdog | |||
EXT4 file system | WIFI | |||
SD card | RS485 | |||
LCD FrameBuffer | CAN | |||
Application:
Automotive infotainment, digital signage, HMI, in-flight entertainment, intelligent industrial control system, IP phones, IPTV, portable medical, tablets.
Plenary product information for reference

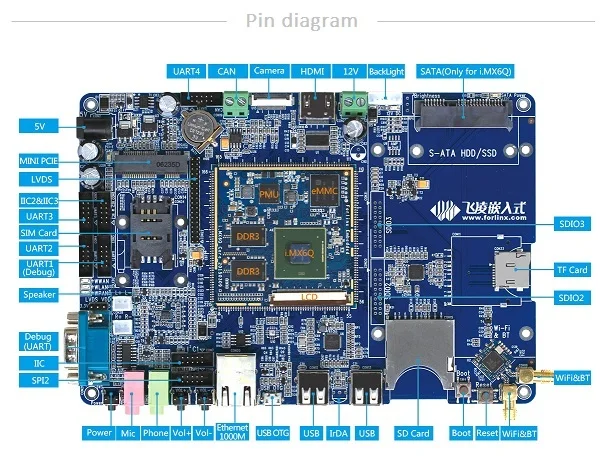

Detailed Images

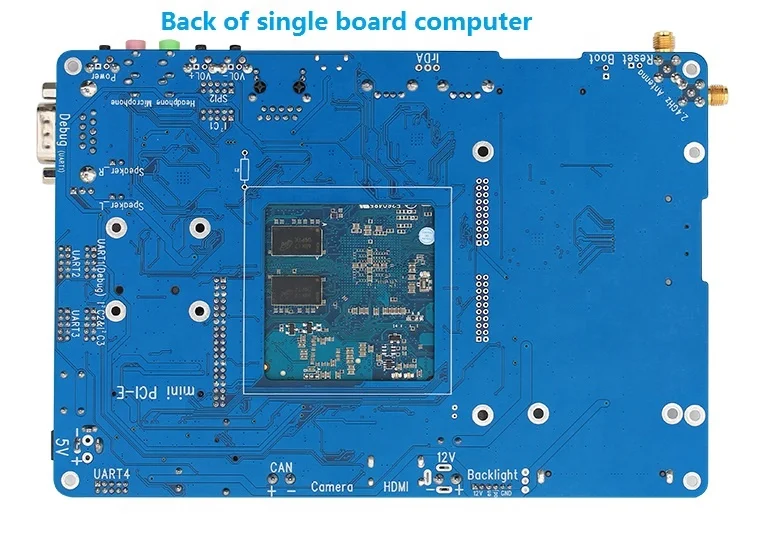

Structure dimensions: 130mm x 190mm
SOM is with hole of 49mm x 51mm
Artcraft: thickness: 1.6mm, 4-layer PCB
Power input: DC 5V(mandatory)+DC12V(auxiliary, only for 3.5'' hard disk and LVDS display)
Packing & Delivery
Generally the board could be packed as one pc a box (24*19*10cm), the parcel(s) could be sent out by express/air within 3~5 working days after receipt of full payment.
Application
Automotive infotainment, digital signage, HMI, in-flight entertainment, intelligent industrial control system, IP phones, IPTV, portable medical, tablets.
