VFD Display 20T202DA1E LCD Compatible Design 2x20 Vacuum Tube Fluorescent Display KH202SD58R1 M
- Category: >>>
- Supplier: Hangzhou Kinghigh Technology Co. Ltd.
Share on (60628312170):
Product Overview
Description
Products Description

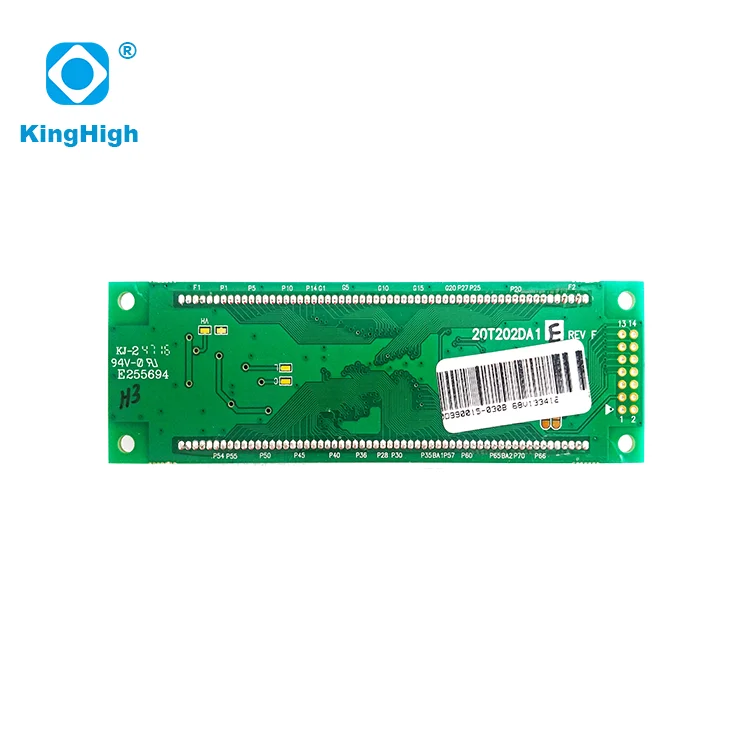

LCD Compatible Design 2x20 Vacuum Tube Fluorescent Display VFD Display 20T202DA1E KH202SD58R1-M
FEATURE：

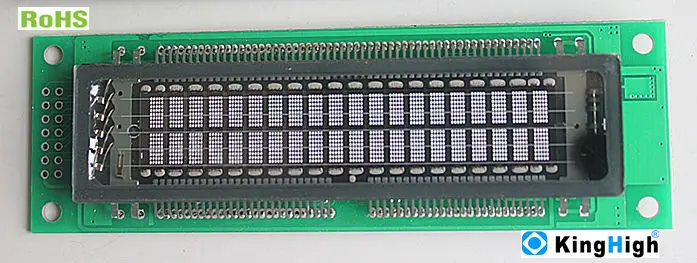

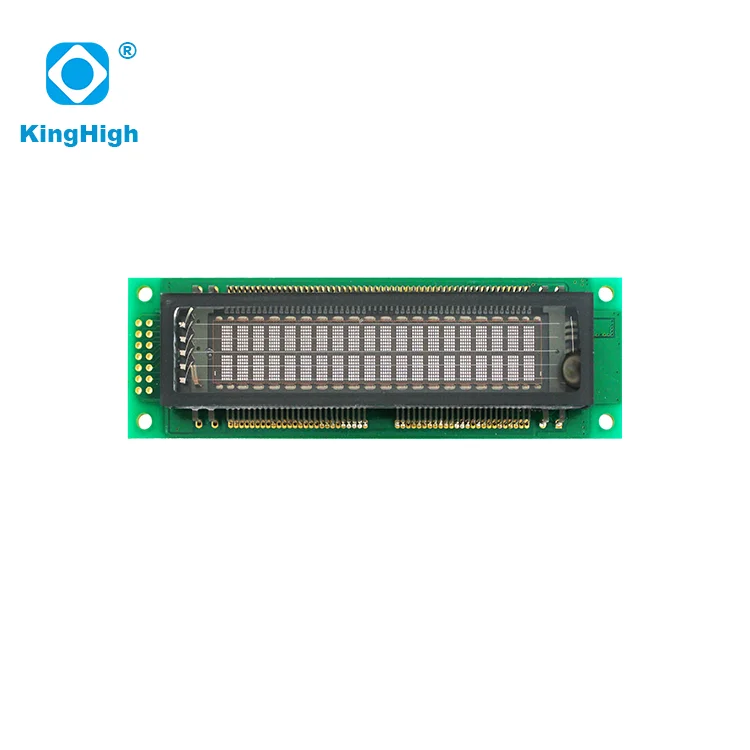

This vacuum fluorescent display (VFD) module consists of a 20 character by 2 line 5×8 dot

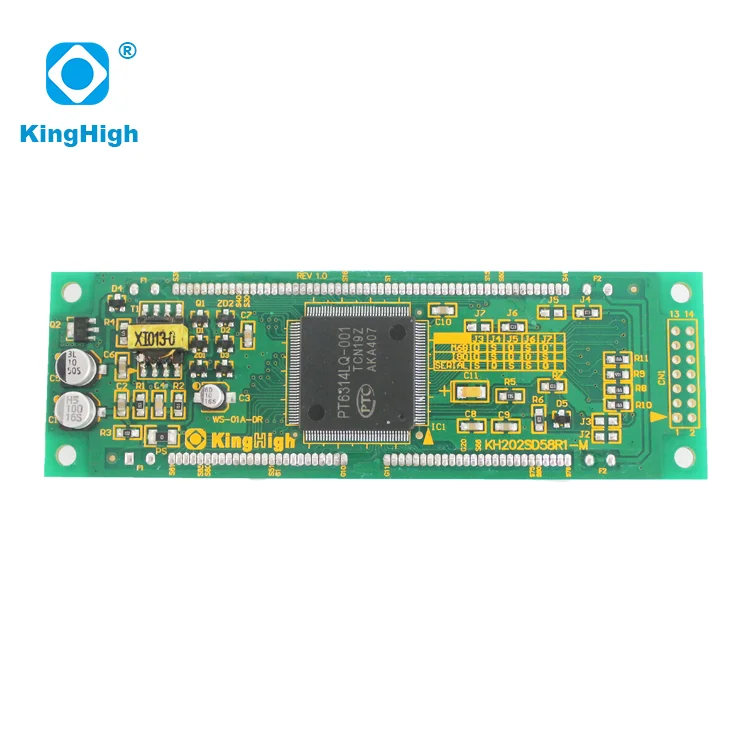

matrix display, DC-DC/AC converter,and controller/driver circuitry
The module can be configured for a Motorola M68-type parallel interface, an Intel I80-type parallel interface, or a synchronous
serial interface.
A character generator ROM with 240 5×8 characters is provided along with RAM for the user
to program an additional 8 characters. The luminance level of the VFD can be varied by
setting two bits in the function set instruction.
Two hundred and forty character fonts consisting of a alphabets, numerals and other symbols can be displayed.
This module has a dual-port RAM that allows data and instructions to be the module
continuously. Thus, the busy flag is always 0 and the host never has to read the busy flag bit to determine if the module is busy.
Due to this feature, the execution times for each instruction are not specified.
This vacuum fluorescent display (VFD) module consists of a 20 character by 2 line 5×8 dot
matrix display, DC-DC/AC converter,and controller/driver circuitry
The module can be configured for a Motorola M68-type parallel interface, an Intel I80-type parallel interface, or a synchronous
serial interface.
A character generator ROM with 240 5×8 characters is provided along with RAM for the user
to program an additional 8 characters. The luminance level of the VFD can be varied by
setting two bits in the function set instruction.
Two hundred and forty character fonts consisting of a alphabets, numerals and other symbols can be displayed.
This module has a dual-port RAM that allows data and instructions to be the module
continuously. Thus, the busy flag is always 0 and the host never has to read the busy flag bit to determine if the module is busy.
Due to this feature, the execution times for each instruction are not specified.
Item Value

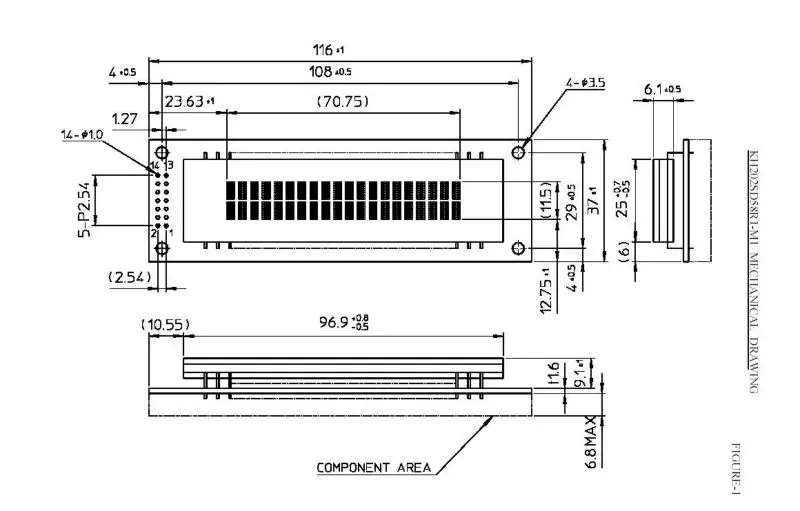

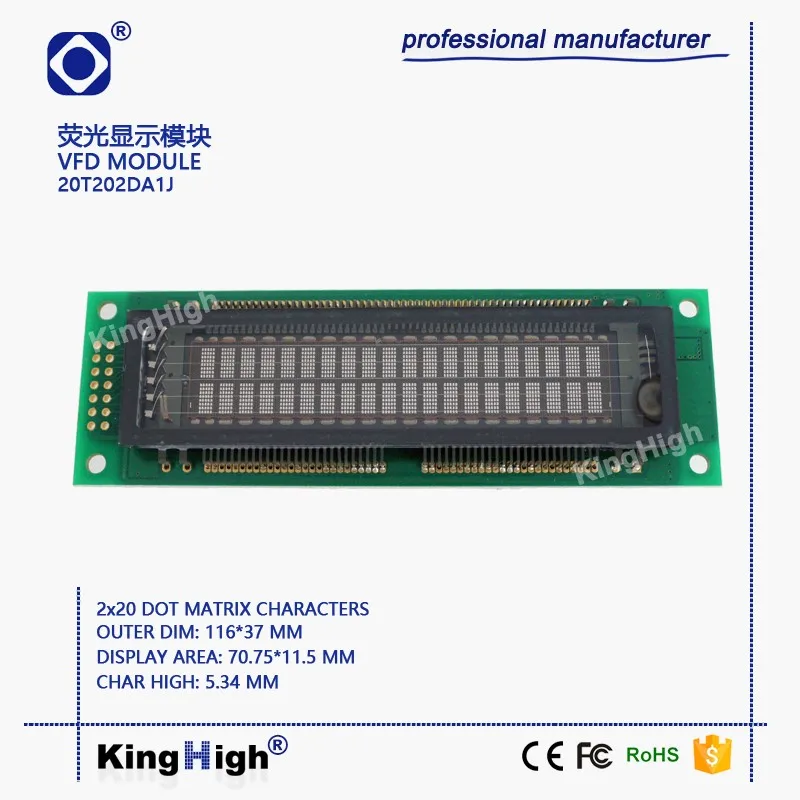

Number of characters 20 characters × 2 lines
Character configuration 5×8 dot matrix
Character Height 5.34 mm
Character Width 2.35 mm
Character Pitch 3.60 mm
Line Pitch 6.16 mm
Dot Size 0.39 × 0.58 mm
Dot Pitch 0.49 × 0.68 mm
Peak Wavelength of Illumination Green (λp=505nm) x=0.235, y=0.405
Luminance Minimum 350 cd/m2 , 102 fL
Typical 500 cd/m2 , 146 fL
Number of characters 20 characters × 2 lines
Character configuration 5×8 dot matrix
Character Height 5.34 mm
Character Width 2.35 mm
Character Pitch 3.60 mm
Line Pitch 6.16 mm
Dot Size 0.39 × 0.58 mm
Dot Pitch 0.49 × 0.68 mm
Peak Wavelength of Illumination Green (λp=505nm) x=0.235, y=0.405
Luminance Minimum 350 cd/m2 , 102 fL
Typical 500 cd/m2 , 146 fL
