i MX6 Quad Core Processor Embedded Android Linux System Board Development Board Evk
- Category: >>>
- Supplier: Baoding,Forlinx,Embedded,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Overview
i MX6 Quad Core Processor Embedded Android Linux System ARM Board Development Kit
this i.MX6Q Board could aslo support OS Linux. Both Linux QT and Linux Console are available for users' option.

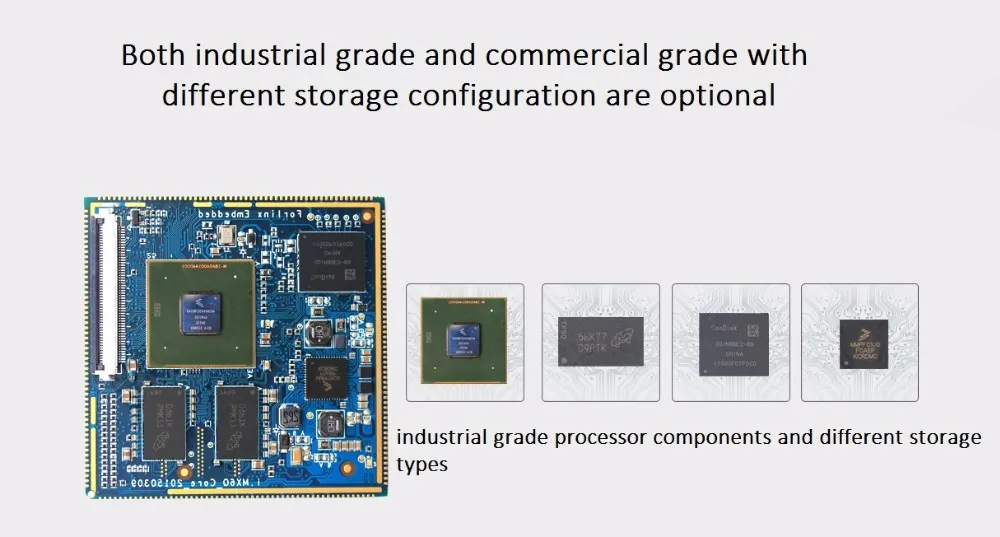

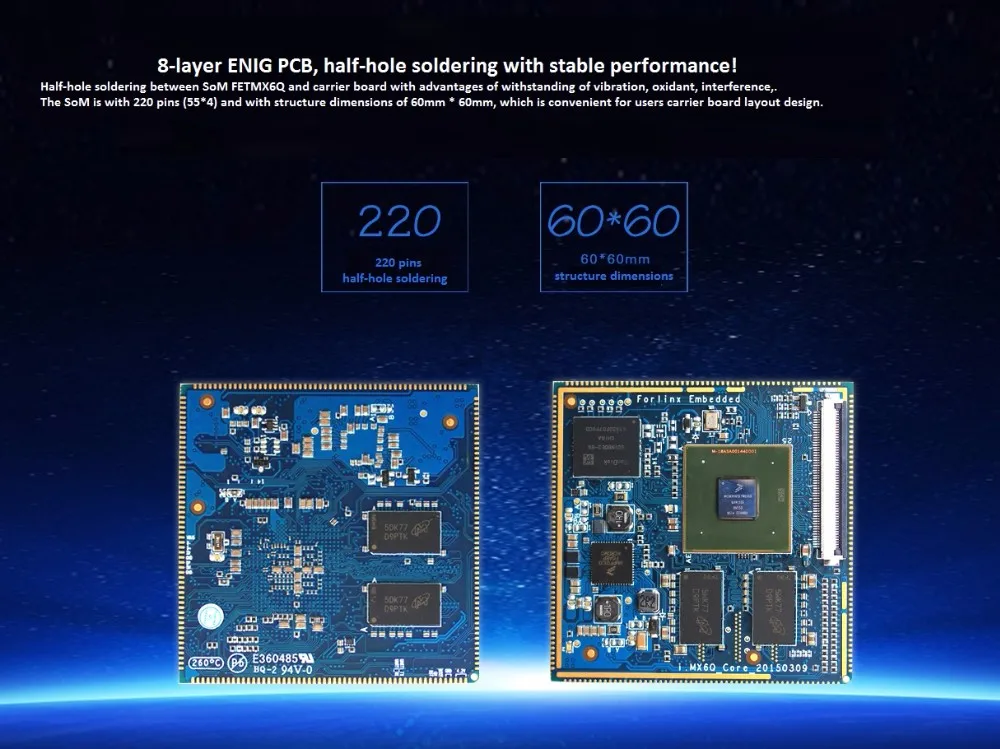

the CPU module FETMX6Q is integrated with minimum system
SoM with minimum system and with LCD interface, which is very convenient for usres to do incoming quality control and aging by running the system just with connection of a 4.2V power input but no need support of the carrier board.
Product Description
i.MX6 CPU Module | ||||||
CPU | Freescal i.MX6Quad | IIC | 3-ch | |||
Architecture | Cortex-A9 | SPI | 2-ch | |||
Main Frequency | 1GHz | CAN | 2-ch | |||
RAM | 1GB DDR3 | USB Host | 1-ch, USB2.0 | |||
Flash | 8GB eMMC | USB Device | 1-ch, USB2.0 | |||
Input Voltage | 4.2V | SD/MMC/SDIO | 2-ch, SD/MMC | |||
2D/3D | supported | Ethernet | 1-ch, Gigabit Ethernet | |||
GPU | IIS interface | Mini-PCIE | 1-ch | |||
PMU | MMPF0100NPEP | UART/IrDA | 5-ch, (1 debug port) | |||
Dimensions | 60mm*60mm | EINT/GPIO | supported | |||
Connection Type | CPU module soldered on carrier board | Video Codec | hardware codec | |||
OS | Android4.4/Linux3.0.35/ LinuxQT4.8.5 | HDMI1.4 | 1-ch | |||
LCD | RGB888 (2-ch LVDS with 8-bit) | Camera | 1-ch, 5MP parallel camera | |||
Audio | IIS | SATA | 1-ch, SATA-II | |||
i.MX6Q ARM Board Features | ||||||
Audio | 3-ch (1-ch phone, 1-ch MIC, 1-ch speaker) | IrDA | 1-ch, empty soldering | |||
IIC | 2-ch | User Key | 2-ch | |||
SPI | 1-ch | Boot | 1-ch | |||
CAN | 2-ch | Sleeping Awake | 1-ch | |||
Camera | 1-ch, 5MP parallel camera OV5640 | Reset | 1-ch | |||
SDIO | 2-ch | PWM | 2-ch | |||
SD/MMC | 2-ch | GPIO | supported | |||
USB Host | 2-ch, USB 2.0 | EINT | supported | |||
USB Device | 1-ch, USB 2.0 | LVDS | 2-ch | |||
Ethernet | 1-ch, 10M/100M/1000M adaptive | HDMI1.4 | 1-ch | |||
Power Jack | 1x mandatory power, 1x auxiliary power | SATA | 1-ch | |||
Mini-PCIE | 1-ch | WIFI&BT | 1-ch | |||
UART | 4-ch (1 debug port, 2-ch 3-wire serial port, 1-ch 5-wire serial port) | RTC | Supported | |||
OS Linux Console/ Linux QT4.8.5 | ||||
Cross-compiler | arm-fsl-linux-gnueabi-gcc-4.6.2 | ARMv7 instruction set, supported with hard floating point arthismetic | ||
Flash OS image to eMMC by USB | ||||
File(s) flashed to eMMC | ||||
EXT4 file system | ||||
MFG tool available in Window XP/Vista/Windows 7 | ||||
System booting mode selection (eMMC/ USB OTG) | ||||
RAM | ||||
Version: Linux-3.0.35 | LCD back light driver, 255-rating | |||
EXT4/NFS/FAT32/NTFS file system | LCD driver (7'' RGB capacitive LCD) | |||
eMMC (8G or 4G) | USB Host: U-disk/USB Hub/USB keypad and mouse | |||
Watchdog | USB device | |||
RTC | TF/SD/MMC card: up to 32GB | |||
IO | Serial interface | |||
User key | WM8962 audio recording and playing, ALSA interface, available for D-amplifier and speaker | |||
SPI | Ethernet (AR8031, 10/100/1000M) | |||
IIC | 3G MF210 | |||
OV5640 camera | USB to serial interface | |||
PWM | Capacitive touching | |||
LVDS (single channel resolution: 1366*768, dual channel resolution: 1920*1080) | ||||
WIFI | 3G | |||
Telnet | USB camera | |||
RTC | Audio (recording/playing) | |||
SPI converted to CAN MCP2515 | IIC | |||
Flexcan | GPU | |||
Sqlite | VPU | |||
Sleeping mode waken up | Speaker | |||
TTL to RS232 | RGB LCD back light | |||
RS485 | Video (1080P) and mp3 file playing | |||
Audio recording/playing | Watchdog | |||
GPRS | MMC/TF/SD card, U-disk, SATA2 ext4 hard disk auto mounting and removing | |||
GPS VK1613 | FTP | |||
SPI | Boa Web Server | |||
Application:
Automotive infotainment, digital signage, HMI, in-flight entertainment, intelligent industrial control system, IP phones, IPTV, portable medical, tablets.
Plenary product information for reference

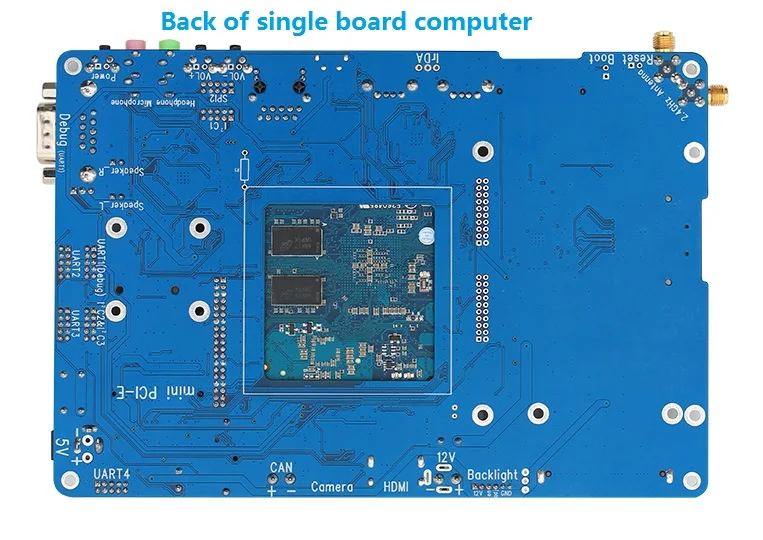

Detailed Images

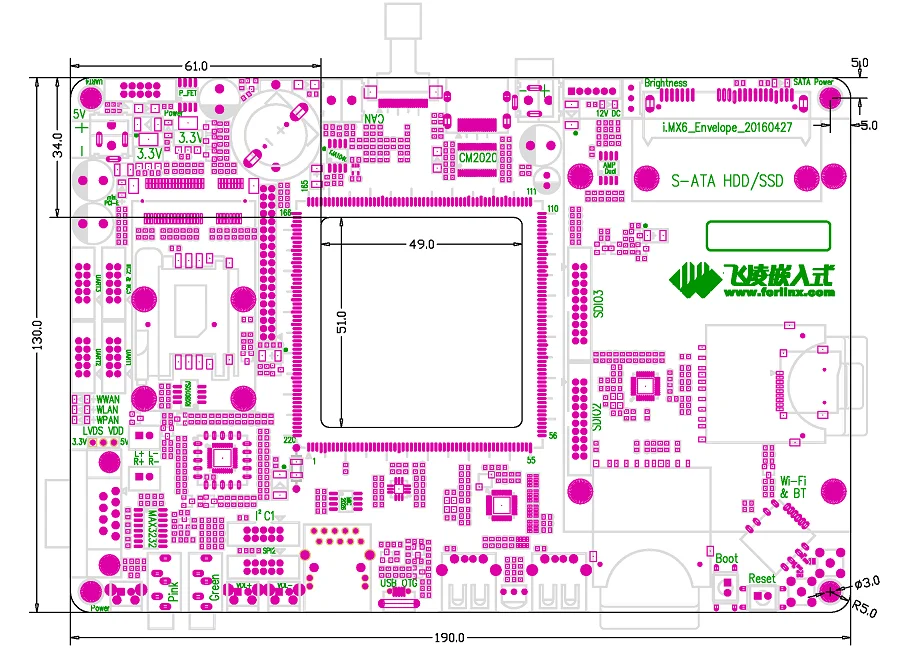

Structure dimensions: 130mm x 190mm
SOM is with hole of 49mm x 51mm
Artcraft: thickness: 1.6mm, 4-layer PCB
Power input: DC 5V(mandatory)+DC12V(auxiliary, only for 3.5'' hard disk and LVDS display)
Packing & Delivery

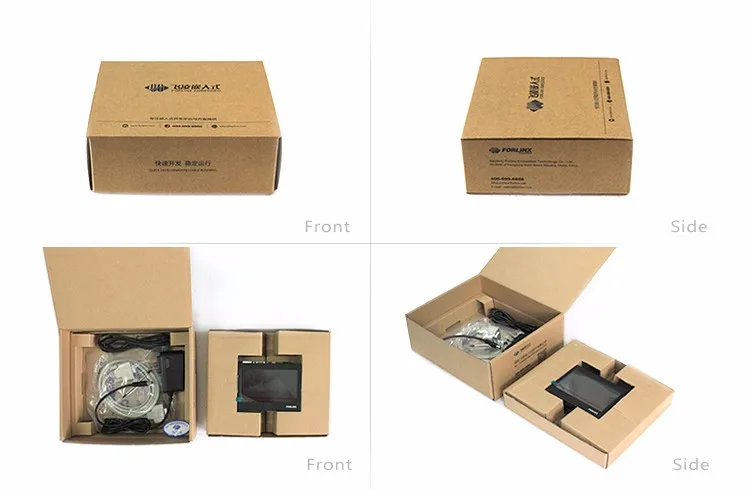

Generally the board could be packed as one pc a box (24*19*10cm), the parcel(s) could be sent out by express/air within 3~5 working days after receipt of full payment.
Application
Automotive infotainment, digital signage, HMI, in-flight entertainment, intelligent industrial control system, IP phones, IPTV, portable medical, tablets.
Our Superiority
1. We are an original manufacturer with our own R&D team, all of our products are designed by this excellent department, and also we kindly provide both OEM and ODM service
2. we are Freescale / TI Sitara IDH in China and we can provide customers with best products and service
3. Instant and professional after-sale technical support
4. More than ten years of experience in embedded industry
5. Board certified by CE&FCC
