Crawler Type 400m Water Well Bore Hole Drilling Rig
- Category: >>>
- Supplier: Win Trading Co. Ltd.
Share on (60628338297):
Product Overview
Description
Welcome
Product Description

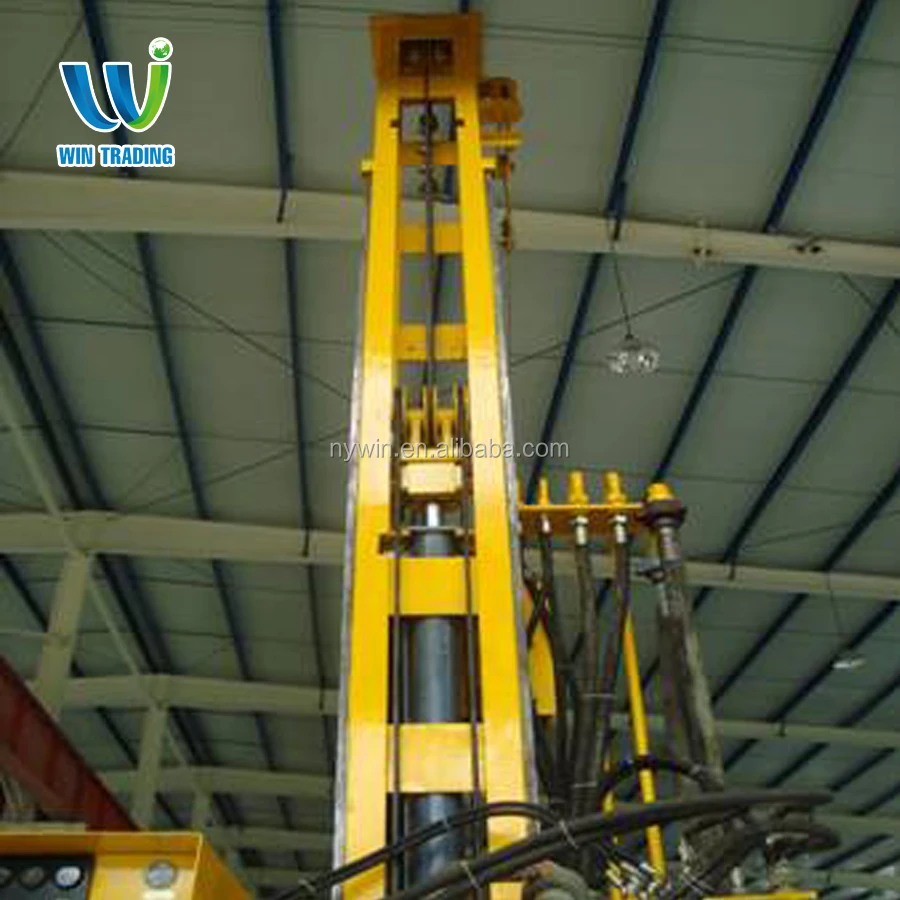

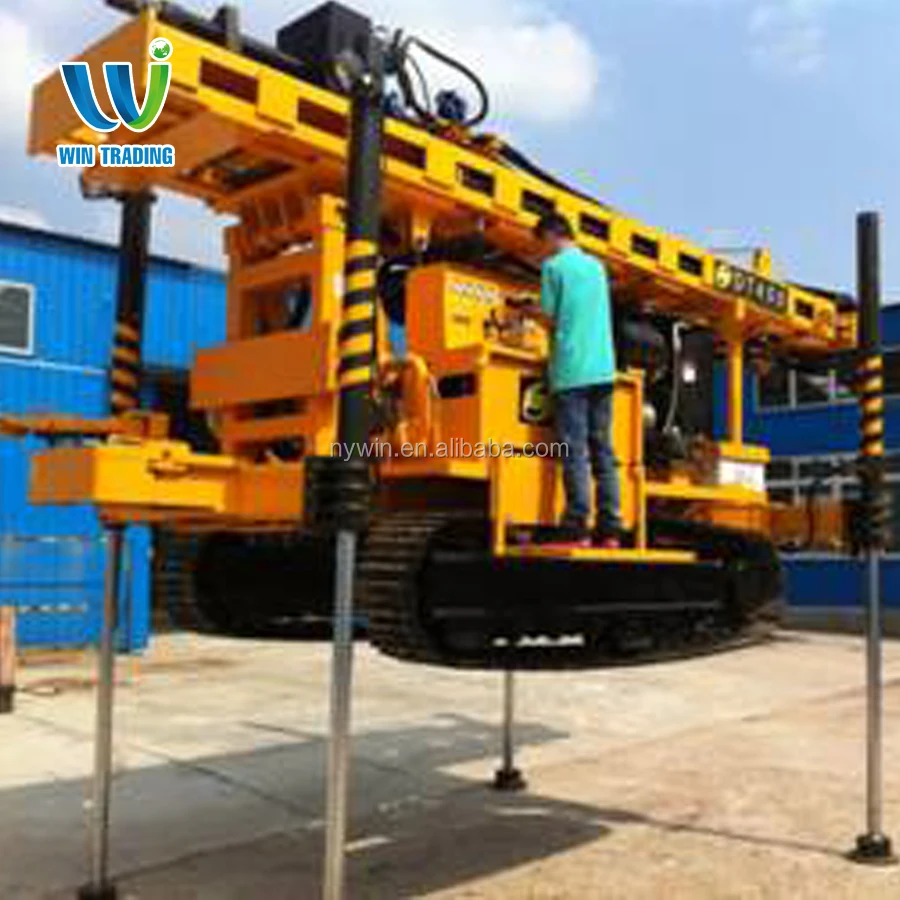

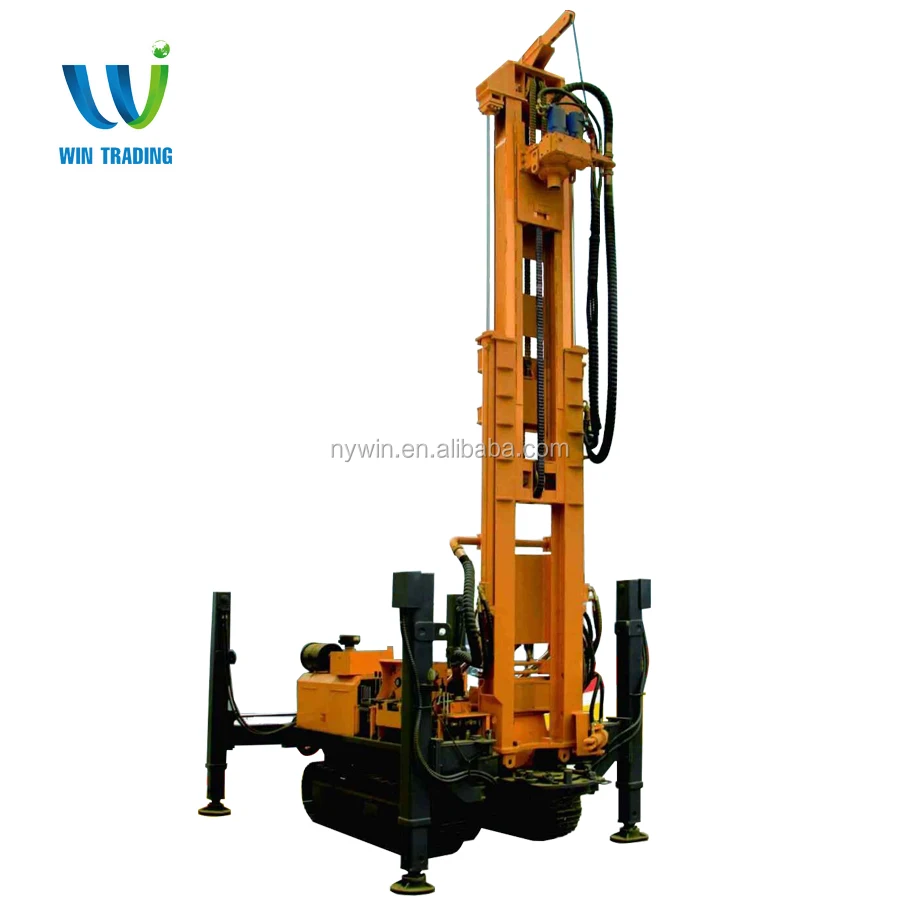

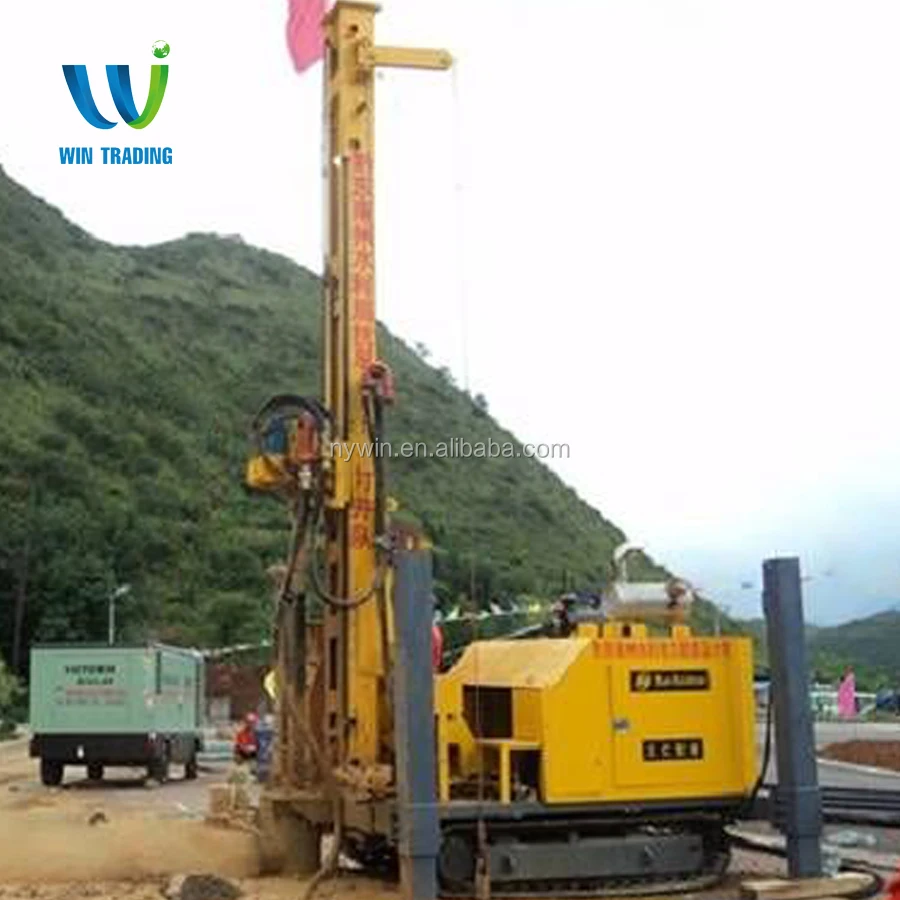

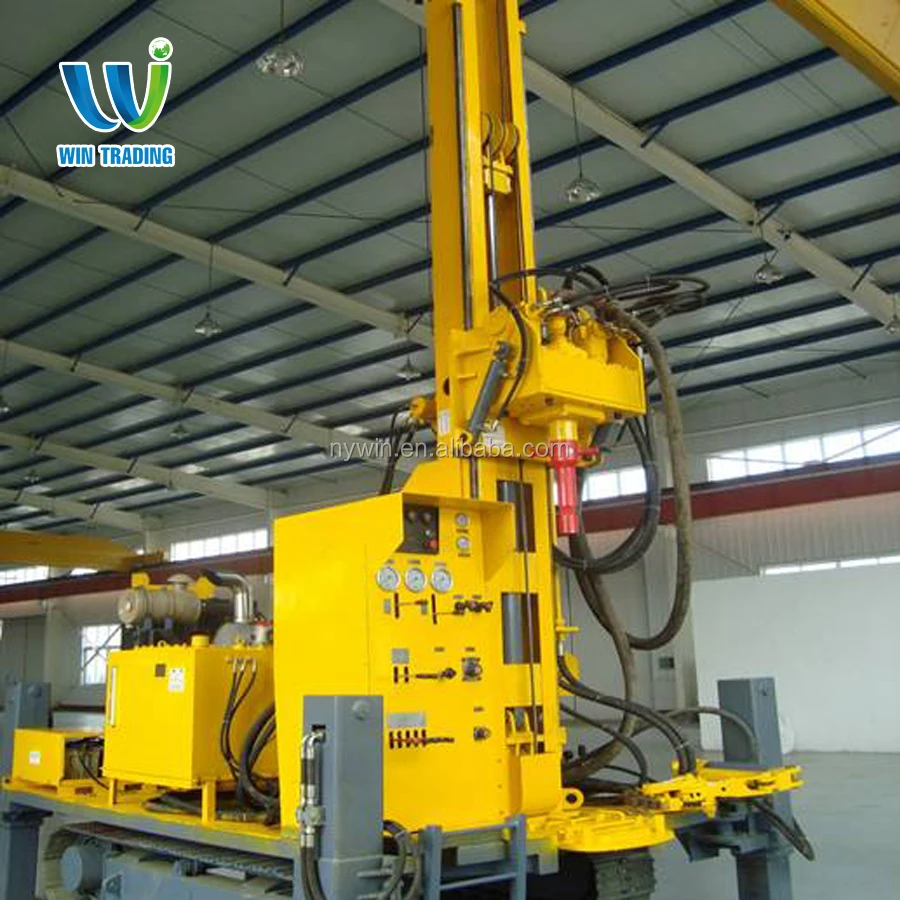

SYL series water well drilling rig is a kind of crawler type hydraulic top drive water well drilling rig with a stable quality and high efficiency, which is developed by the corporation according to the market need on the basic of accumulated technology. It is mainly used for the drilling operation of the water well, thermal well, exploration well and CBM. The drilling rig can adopt the technology of air downhole hammer drilling and mud drilling, which have the characteristics of high speed drilling and well effect of the hole.
| Crawler type hydraulic drilling rig | SYL20 | ||
| Drilling capacity | Max drilling depth | m | 400 |
| Max drilling diameter | mm | 650 | |
| Diameter of drilling pipe | / | 89 / 102 / 114 | |
| Length of drilling pipe | mm | 4500 | |
| Engine | Model | / | 4BTA3.9 |
| Rated power | kW | 93 | |
| Feeding system | Lifting force | kN | 250 |
| Max. pressuring force | kN | 80 | |
| Speed of lifting and lowering | m/min | 0~36 | |
| Power unit | Torque | Nm | 0~10000 |
| Rotary speed | r/min | 0~160 | |
| Inner diameter | mm | 76 | |
| Manifold pressure | Mpa | 11(slurry+air) | |
| Tool winch | Stroke | mm | 6600 |
| Lifting force | kN | 20 | |
| Travelling system | Travel speed | km/h | 3.3 |
| Gradeability | Angle | 20 | |
| Stroke | m | 1.1 | |
