Single jet Liquid Sealed Vane Wheel Water Meter

Product Overview

Description

LXS-FD4 Single-jet Liquid Sealed Vane Wheel Water Meter

Application

Measuring the volume of cold potable water passing through the pipeline.

Working Conditions

Water temperature: 40 .

Water pressure: 1.6MPa.

Features

The register is contained in a liquid filled sealed housing which is not subject to discoloration by scale, dirt or any deposit.

Wet dial.

Mechanical transmission movement equates to maximum reliability. Inlet strainer.

Can be equipped with reed switch option.

Particularly suited in lower quality water.

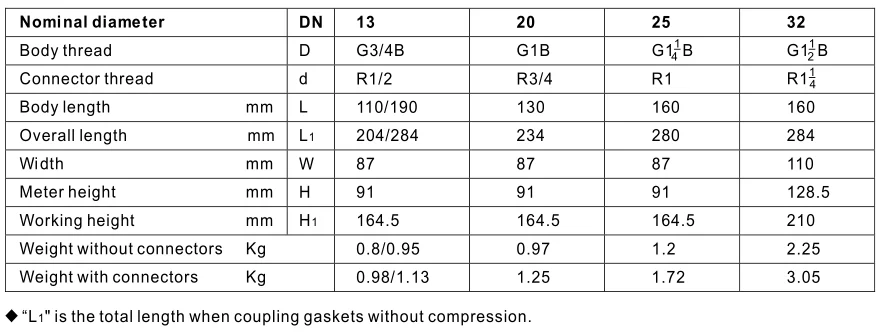

Dimensions and Weights

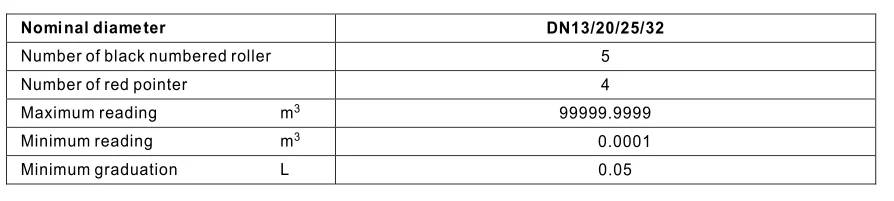

Description of the Register

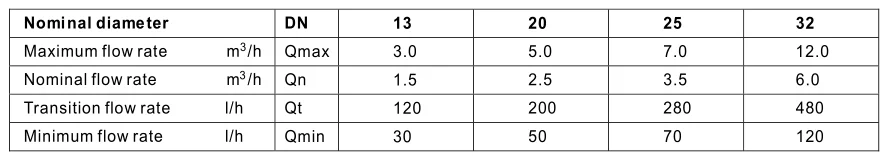

Main Technical Data
