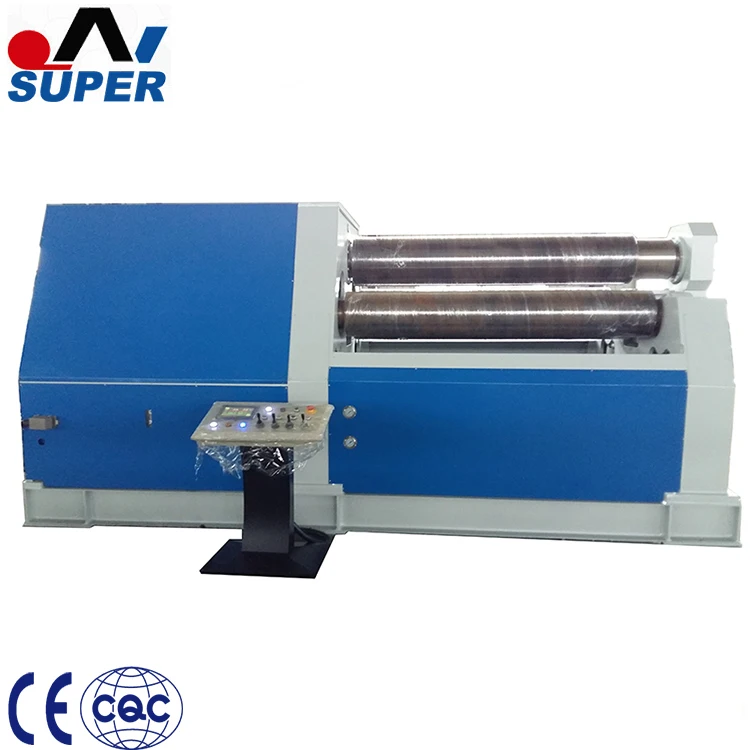

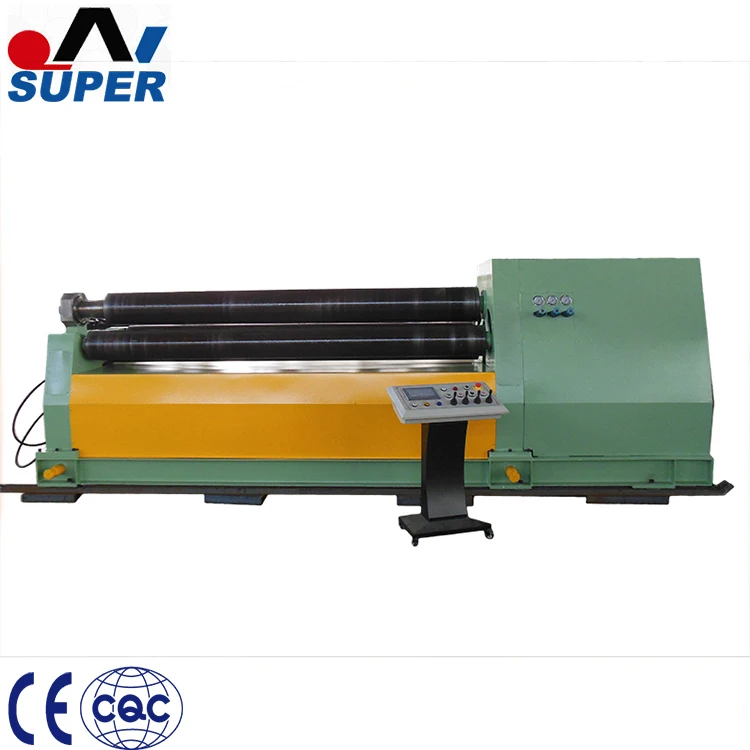

economical cone pre bending asymmetrical rolling machine
- Category: >>>
- Supplier: Nantong Super Machinery Co. Ltd.
Share on (60628444232):
Product Overview
Description
Product Description

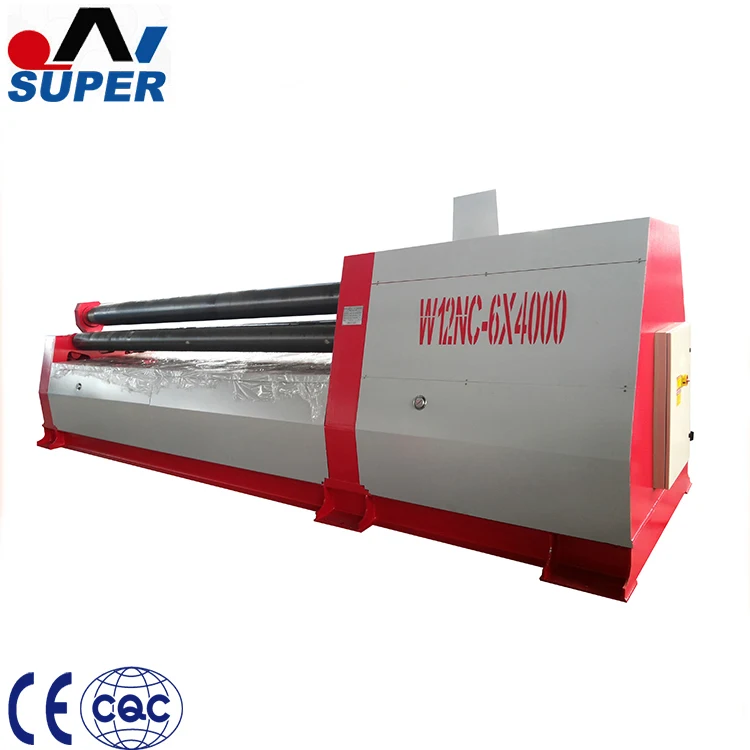

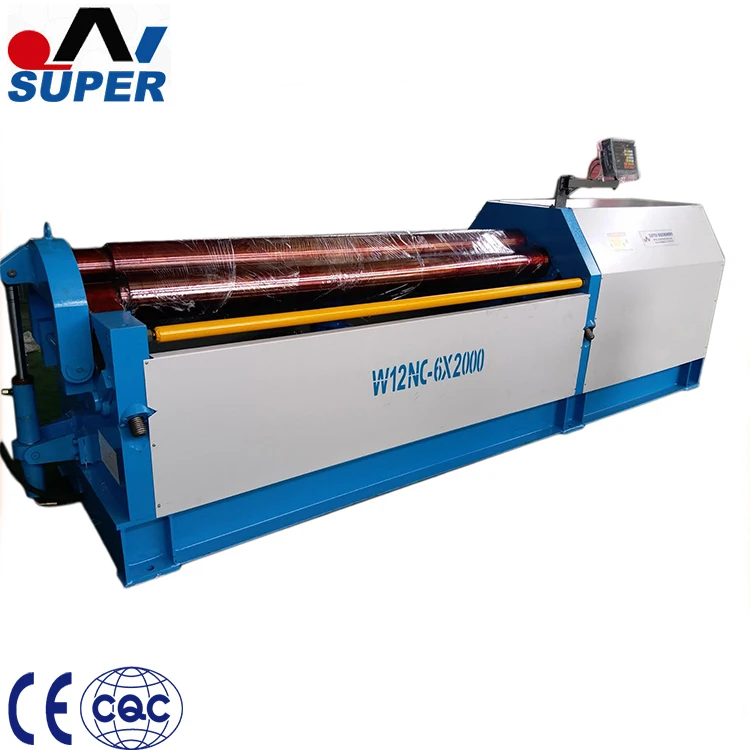

Name:CNC4-roller type hydraulic metal sheet plate roll bending machine

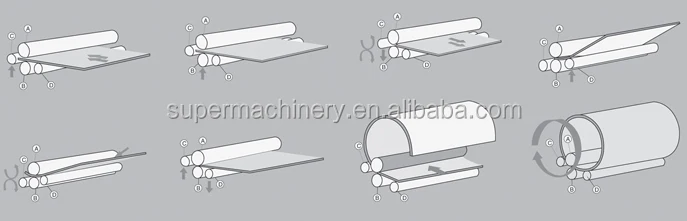

4 roller type for bending the metal sheet plate into a cylinder or arc or cone shape product.
Performance features:
1. Easy to operate, rich shape bending

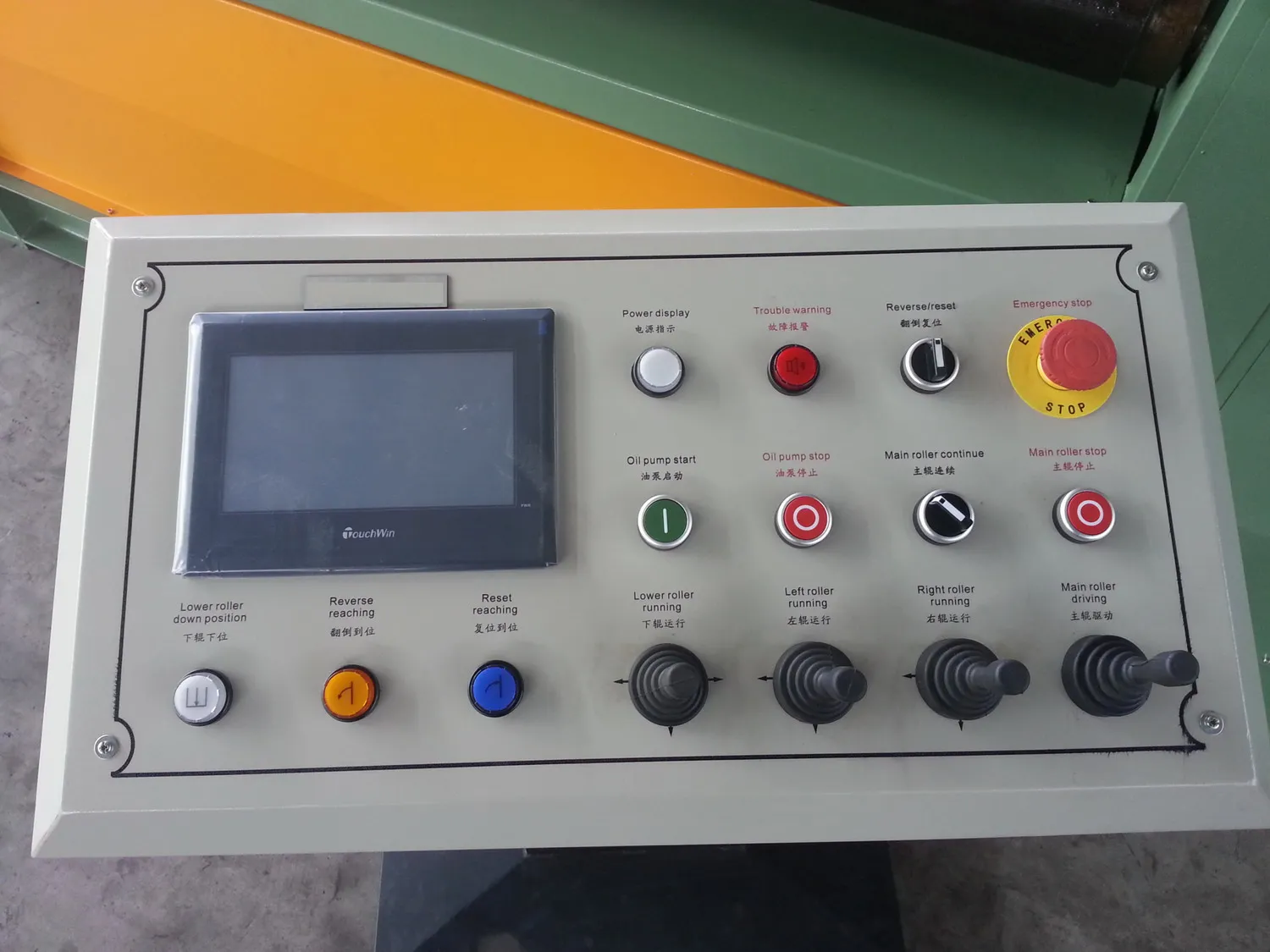

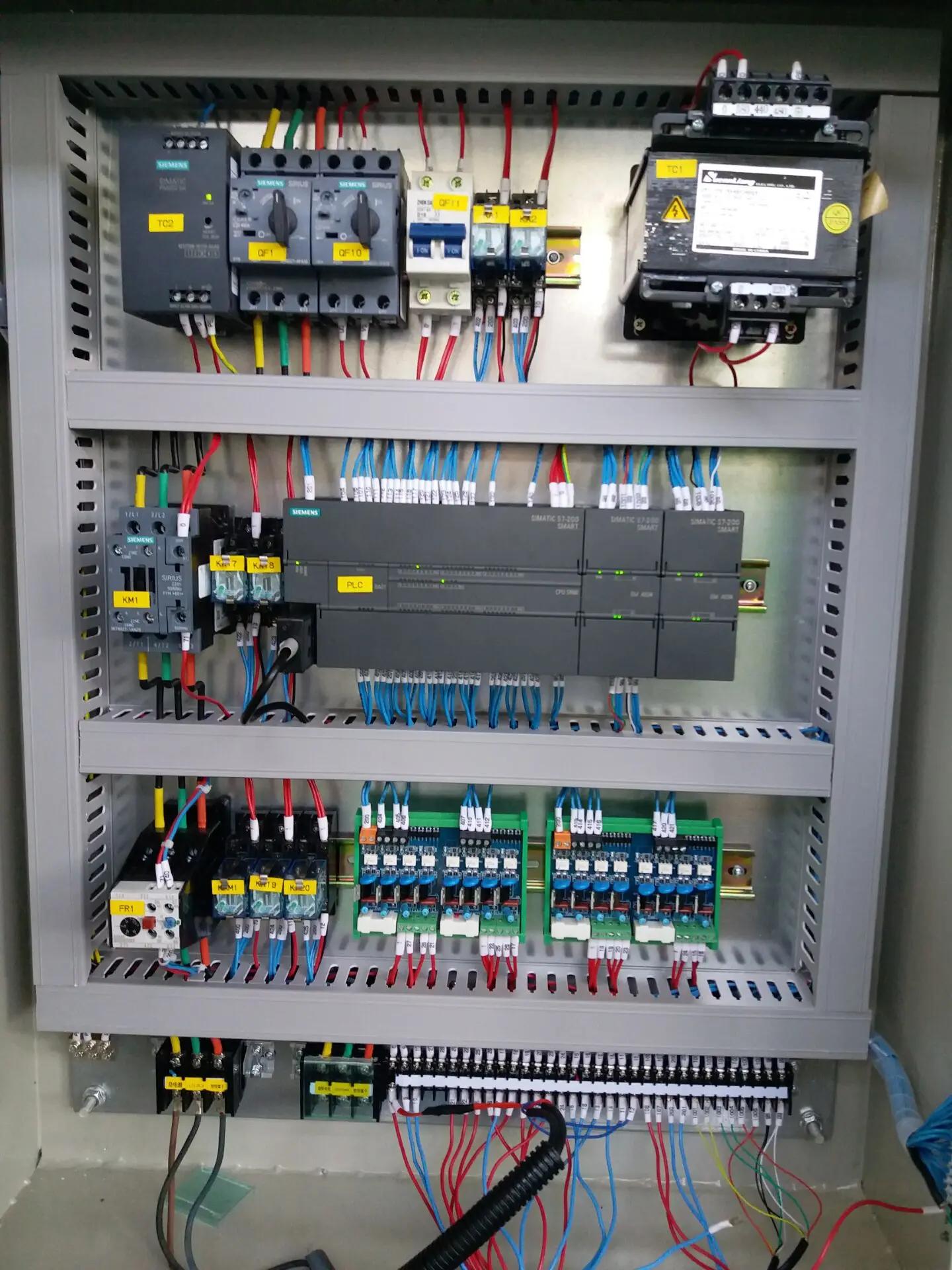

2. CNC control, digital readout for position of each rollers. High accuracy and precision circle

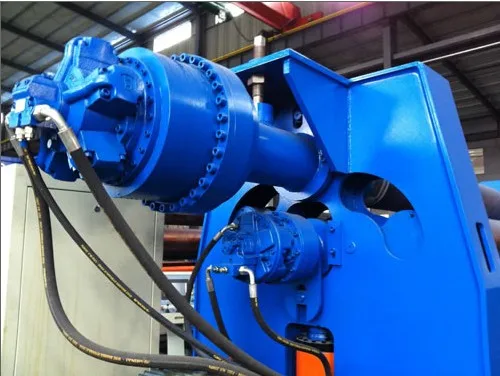

3. Full hydraulic drive, High efficiency and energy saving,the drive power is equivalent to the traditional 60%
4. Once forming, the productivity is higher 50%-80% than three roller bending machine
5. Aligning the material is convenient and accurate, avoide the wrong side phenomenon
6. Cone bending device
7. Permanent lubrication(bearing life without refueling)
8. The top and bottom roller clamp the plate during rolling without slipping
9. The minimum bending diameter of the cylinder can get to 1.1times the diameter of the top roller, the surplus flat edge smaller than any type of other plate rolling machine
10. CE certificate
Optional Accessories
1.\tfeeding device

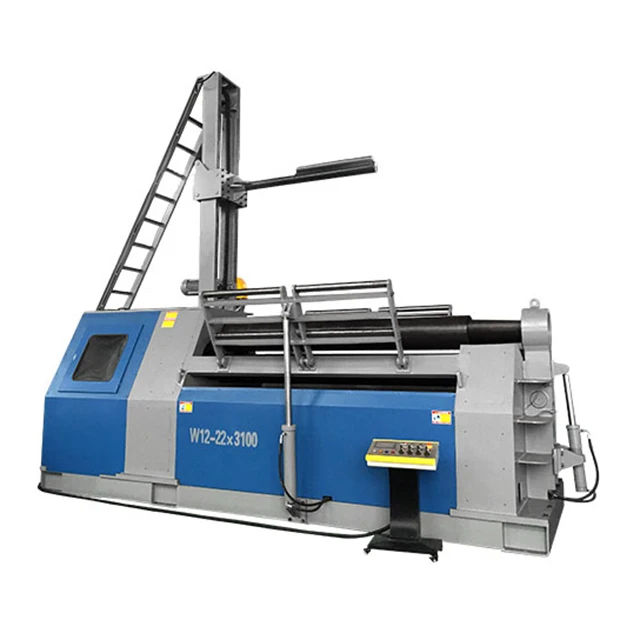

2.\tlift device
Optional Accessories
1.\tfeeding device
2.\tlift device
Products Parameter
Model | Max. Bending Thickness (mm) | Pre-Bending Thickness (mm) | roller working length (mm) | Yield limit (Mpa) | Top Roller Diameter(mm) | Bottom roller diameter(mm) | Side Roller diameter (mm) | Main Motor Power (kw) |
W12-4*2000 | 4 | 3.5 | 2050 | 245 | 160 | 140 | 120 | 3 |
W12-6*2000 | 6 | 5 | 2050 | 245 | 190 | 170 | 150 | 4 |
W12-8*2000 | 8 | 6.5 | 2050 | 245 | 210 | 190 | 170 | 5.5 |
W12-10*2000 | 10 | 8 | 2050 | 245 | 230 | 210 | 190 | 7.5 |
W12-12*2000 | 12 | 10 | 2050 | 245 | 270 | 250 | 220 | 11 |
W12-16*2000 | 16 | 13 | 2050 | 245 | 300 | 270 | 220 | 11 |
W12-20*2000 | 20 | 16 | 2050 | 245 | 330 | 300 | 240 | 11 |
W12-25*2000 | 25 | 20 | 2050 | 245 | 360 | 330 | 250 | 15 |
W12-10*2500 | 10 | 8 | 2550 | 245 | 270 | 250 | 210 | 11 |
W12-12*2500 | 12 | 10 | 2550 | 245 | 300 | 270 | 220 | 11 |
W12-16*2500 | 16 | 13 | 2550 | 245 | 330 | 300 | 240 | 11 |
W12-20*2500 | 20 | 16 | 2550 | 245 | 360 | 330 | 250 | 15 |
W12-25*2500 | 25 | 20 | 2550 | 245 | 390 | 360 | 300 | 18.5 |
W12-30*2500 | 30 | 25 | 2550 | 245 | 430 | 390 | 330 | 22 |
W12-35*2500 | 35 | 28 | 2550 | 245 | 460 | 420 | 360 | 30 |
W12-16*3000 | 16 | 13 | 3100 | 245 | 360 | 330 | 250 | 15 |
W12-20*3000 | 20 | 16 | 3100 | 245 | 390 | 360 | 300 | 18.5 |
W12-25*3000 | 25 | 20 | 3100 | 245 | 430 | 390 | 330 | 22 |
W12-30*3000 | 30 | 25 | 3100 | 245 | 460 | 420 | 360 | 30 |
W12-35*3000 | 35 | 28 | 3100 | 245 | 510 | 460 | 390 | 37 |
W12-40*3000 | 40 | 32 | 3100 | 245 | 550 | 510 | 420 | 45 |
W12-50*3000 | 50 | 40 | 3100 | 245 | 610 | 560 | 480 | 55 |
W12-60*3000 | 60 | 48 | 3100 | 245 | 670 | 620 | 520 | 75 |

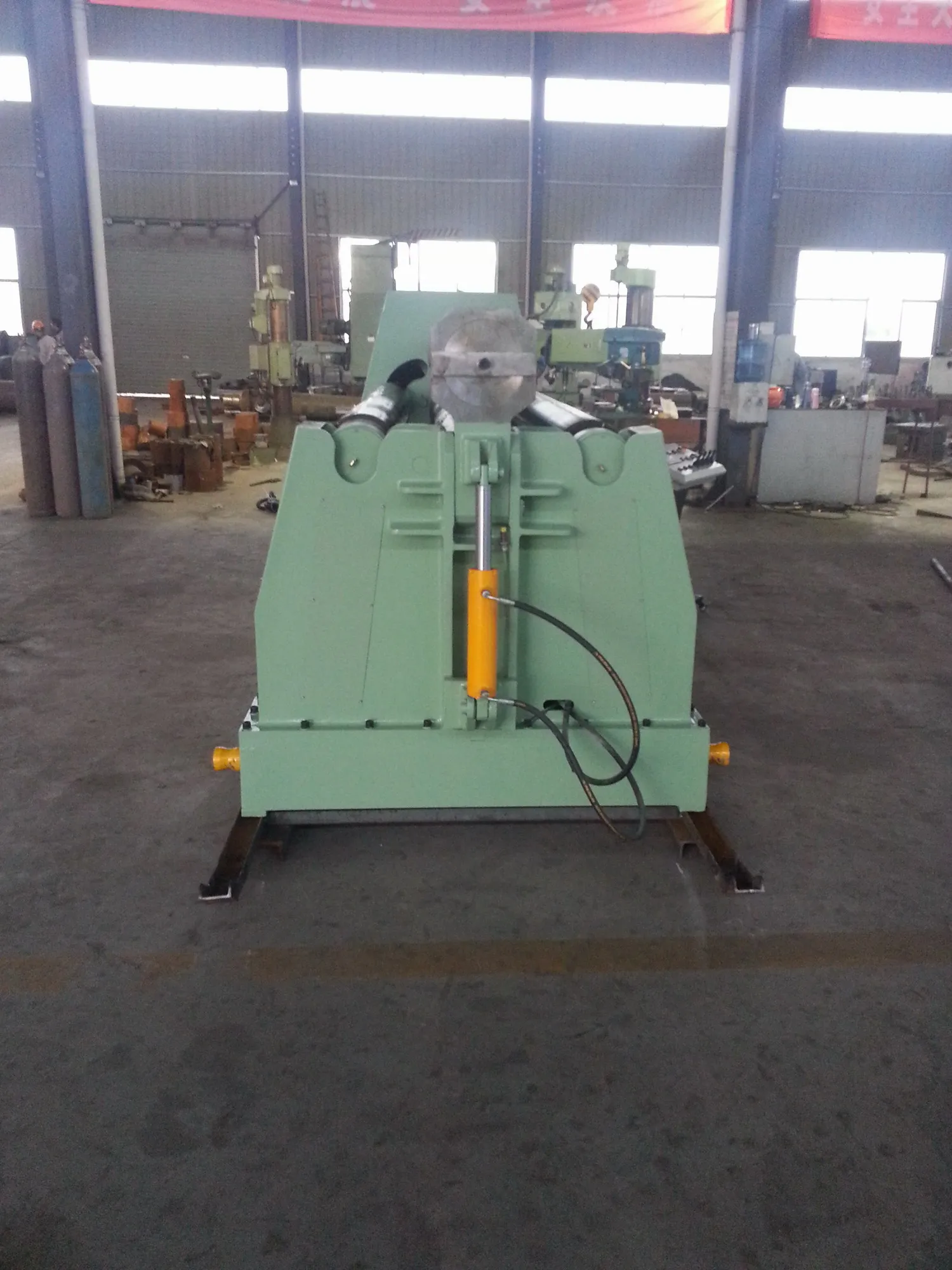

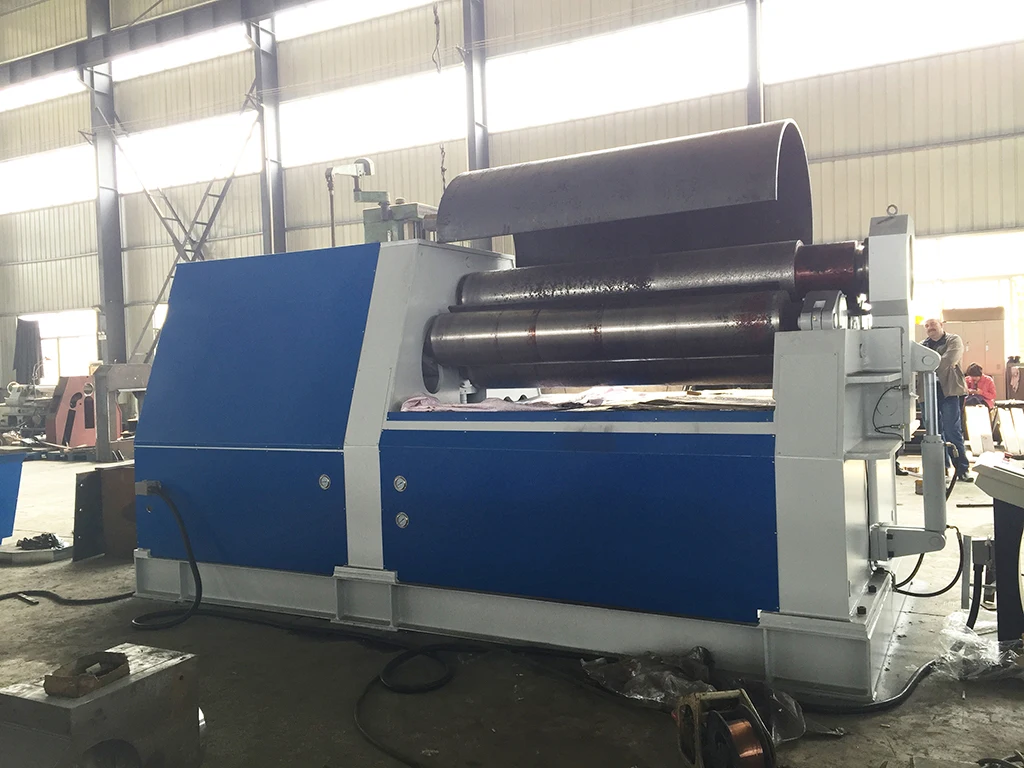

Machine details
