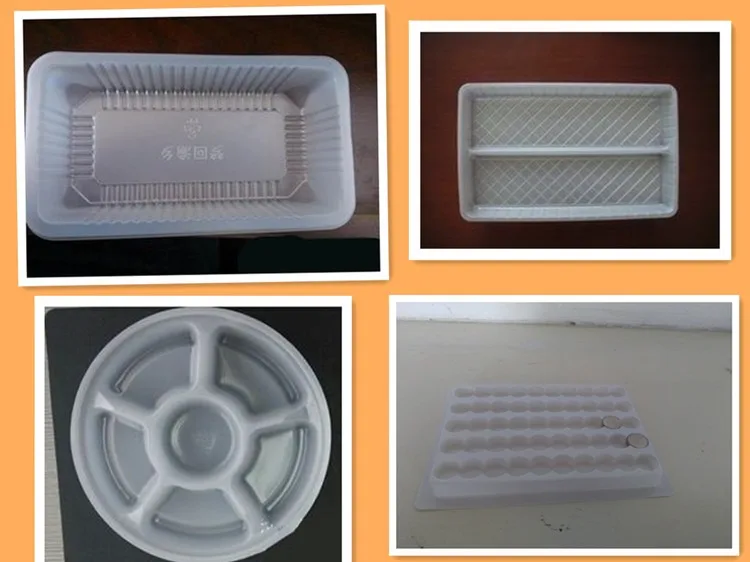

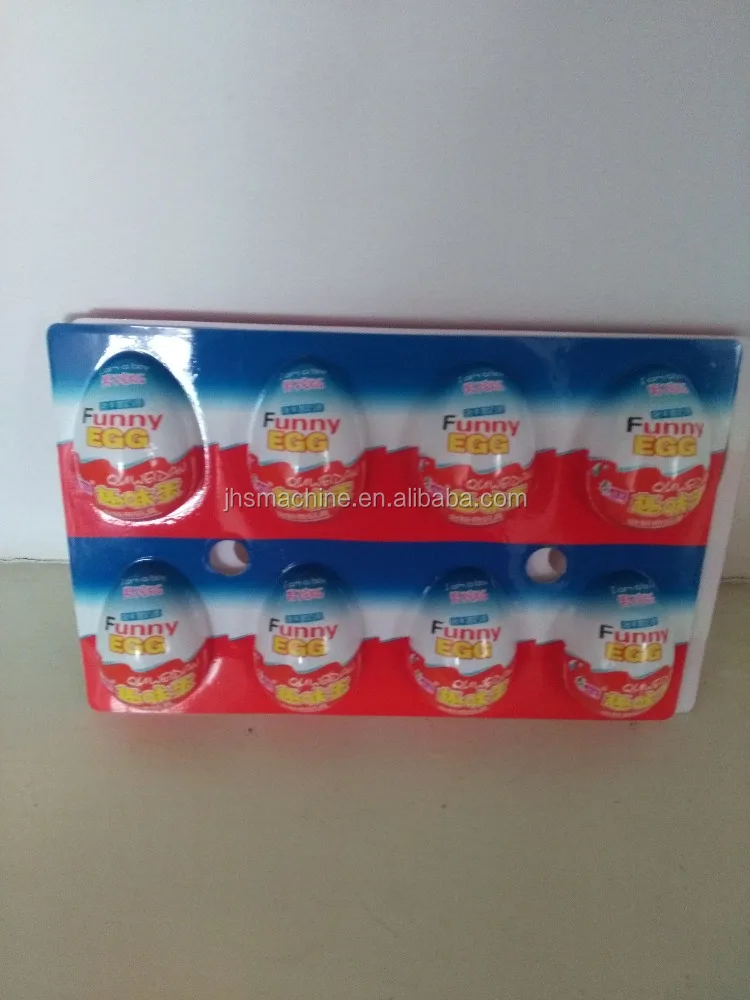

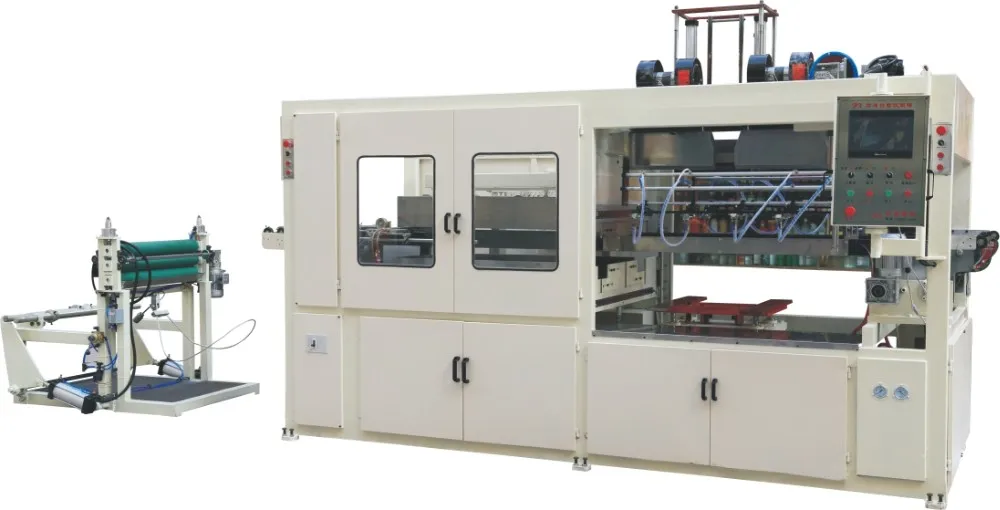

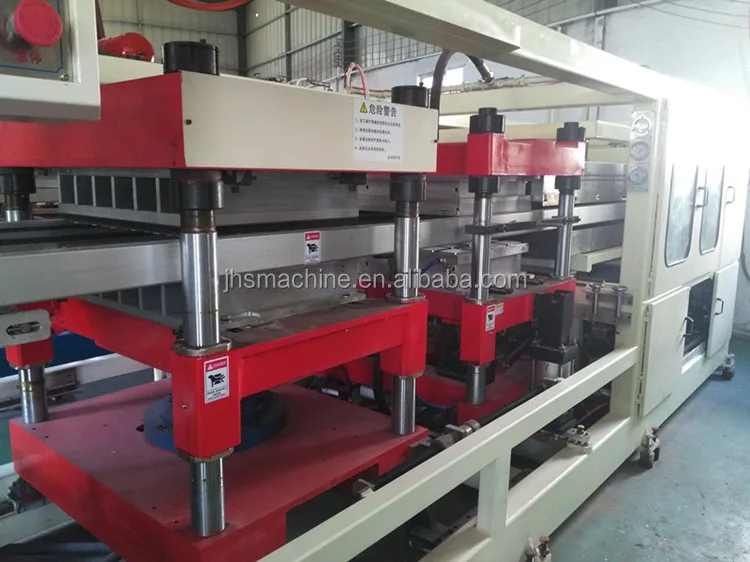

BOPS plastic sheet blister thermoforming machine for medicine container,Egg tray
Major Construction Features:

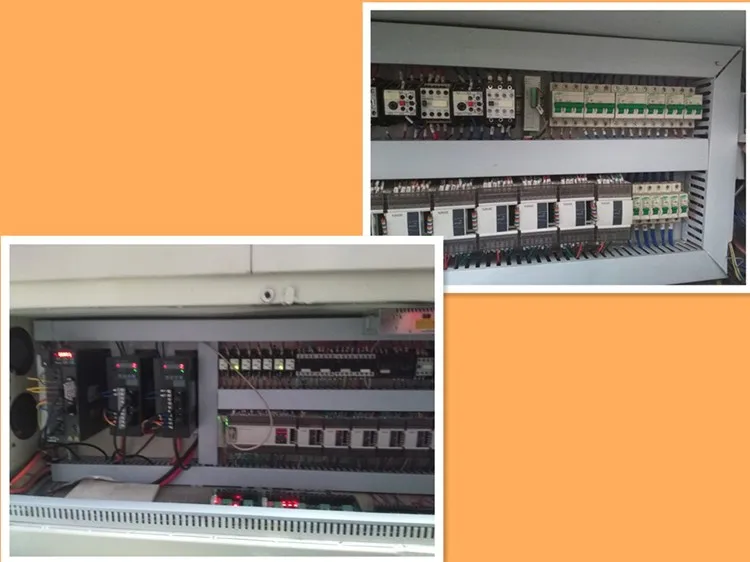

* It is an integration of mechanical,pneumatic and the electrical.Each station program is controlled by the PLC.Operation through touch screen,simple and convenient.

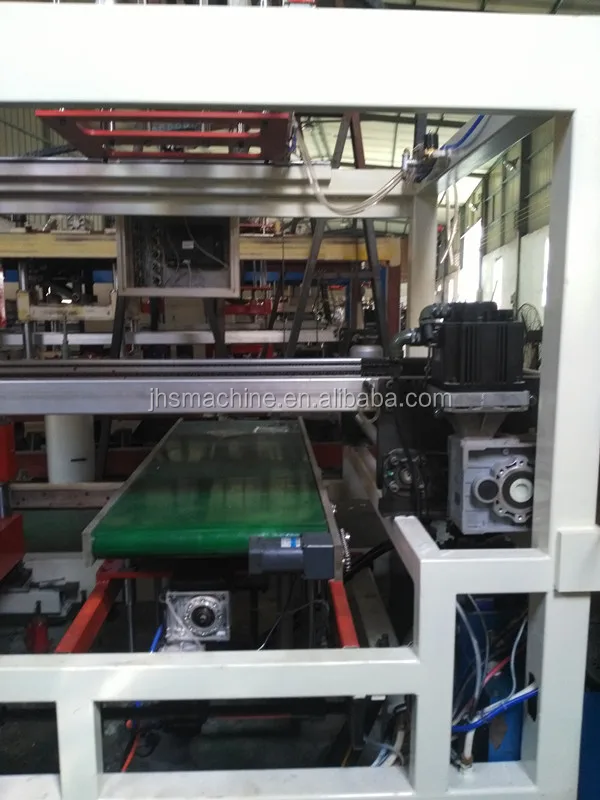

* Servo motor feeding,length can be stepless adjusted,featuring at high speed,accurate and stable in performance.(max speed 1000mm/s)
* Temperature control system adopts intelligent computer automatic compensation.The partition control adopts the human-machine interface for digital input,equipped with fine accuracy adjustment,uniform temperature,fast heating(from 0-400 to only 3 minutes),stable(not affected by the external voltage,the temperature fluctuation does not exceed 1 degrees),low energy consumption(15% energy-saving),long service life of furnace plate and etc.
* Electric heating furnace,The electric heating furnace is provided with a bias structure,when the sheet width is less than 580mm,one side of the electric heating furnace can be closed,and the whole row of heating bricks can be reduced,and the energy consumption is reduced by 16%.
* The preliminary sheet feeding has automatic memory function on heating time,capable to make the machine can enter the normal working condition from the first edition of sheet
*Two stage vacuum;two die assembly;vibration to ejection,vacuum delay
*Electric adjustment on rear gate position

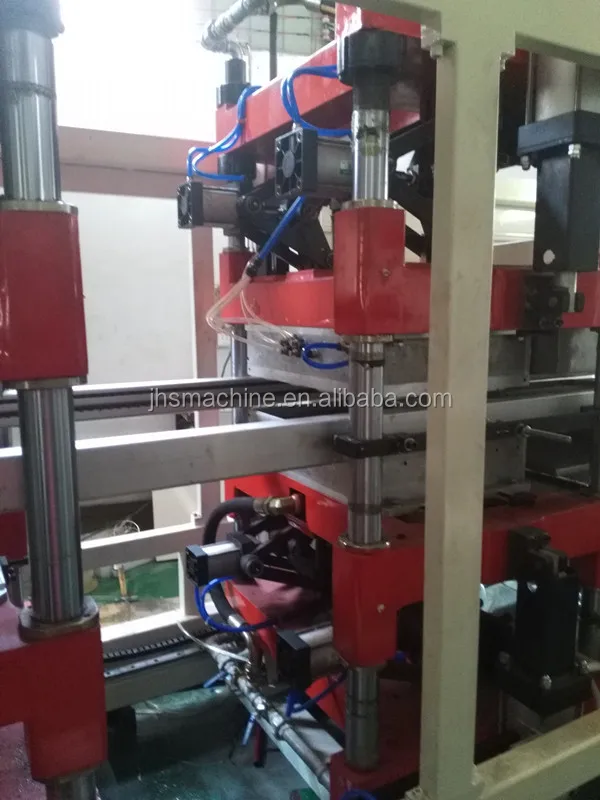

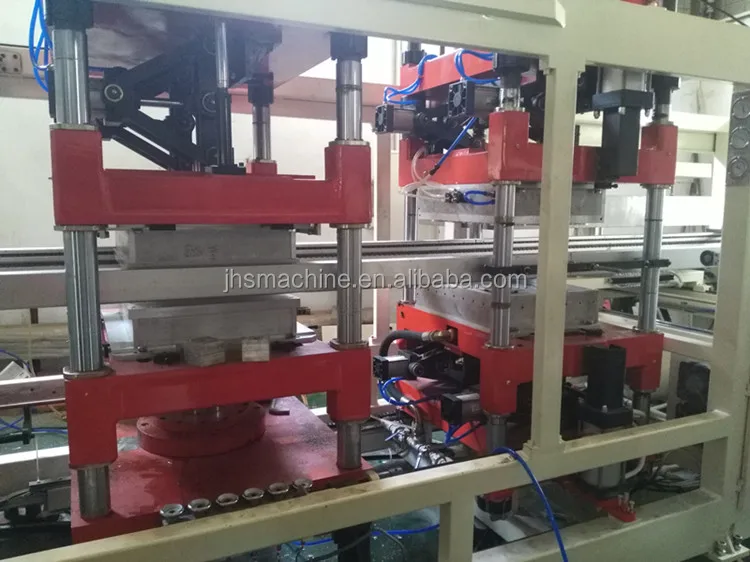

*The upper and lower die adopts servo control,two-direction adjustable at whenever,avoiding impact on upper and lower mold,vibration and reducing noise
Main technical parameter:
Sheet material
PP PS PE PET PVC
Adapt sheet width
750mm
Adapt Sheet thickness
0.1-1.2mm
Forming mould travel distance up and down depth
400mm
Cutting mould travel distance up and down depth
300mm
Max.Forming Area
700*1230
Max.Forming depth
200/150
Working efficency
4-13
Forming cooling fan door quantity
4pcs
Mist spray mouth quantity
8pcs
Voltage(mpa)
0.8
Water consumtion
4-5 Cube/Hour
Vacuum pump
Busch R5 0100
Heating power
36kw
Total power
50.5kw
Total Weight
3800KG
Machine dimension
6800*1600*2250
FAQ
1.How many years have your company established?
Our company have been established for 10 years more.
2.Who's your machine quality main controller?
Technical engineer is our boss,he control the important core technology.
3.Are you manufactue or trading company?
We are manufactue,we have over 50 staffs in our workshop.
4.Can we go to your factory for visiting?
Sure,welcome to come to our factory and give some good advice to us.
5.We don't have time to go to your factory,but how can we know if your are
trading company or manufacture ?
It is easy to know,if you are on internet,we could open cam to video chat with
you,we could take you to visit our factory on line.
6.How&When can I get the price?
Email us your inquiry or communicate online, state your specifications (product,
material, size, quantity etc).
We usually quote within 24 hours. Please call us orinform in your email when
it is urgent, we will regard your inquiry priority.
