MLV850 VMC Machine 5-Axis CNC Vertical Machining Center
Products Description
A: Product Introduction:
- Vertical Machining Center is composed of base, column, middle sliding saddle, table, headstock, operation panel, tool magazine, pneumatic system, lubricant system, cooling, lighting, protection system, CNC system, electrical system.
- International advanced linear rolling guide way pair are adopted on X, Y , Z, axis which is high rigidity, heavy-load, low friction; driving lead screw is heavy-load, low friction, high accuracy ball screw, spindle speed is 40~8000 rpm,rapid speed is 30m/min. Timing and fixed quantity lubricant system is equipped, which prolongs the working life of machine, totally enclosed protection device is adopted, which assures the safety of worker and lustration of environment.
B: Main Features:
- High-class quality;
- Competitive price;
- High machining precision;
- Short delivery time;
- High-class casting by resin sand and wood mould;
- Top class imported ball screws sets and bearing ;
- Imported spindle & tool clamping system ;
- Stainless steel telescopic protection on X/Y/Z axis ;
- X,Y,Z axis Linear slideways type;
- Japan NSK bearing
- Germany R+W coupling
C: Standard Configuration
- Siemens 808D controller
- BT40 Armless type ATC with 16 tools
- Taiwan spindle, screw and locking nut, linear, cylinder .
- X/Y/Z axis linear guideway
- Automatic lubrication system
- Tri-color alarm lamp
- Full splash guard
- Spindle taper hole cleaning system
- Cooling system
Separated electronic handwheel
External 232 interface
D: Optional Configuration:
- Controller : Siemens, Fanuc , GSK , KND , Syntec, etc
- ATC : Drum/Arm type 20/24 tools
- 4th axis , 5th axis
- Automatic chip conveyor
- Cool-heat exchanger
- BT30 , BT50 ,SK40 etc Spindle taper
- Central oil coolant for spindle
- Coolant through spinlde
- Boxway guide
E: Specifications of CNC Machining Center
| Specification | Unit | MLV850 | MLV850A | MLV850B |
| Table size | mm | 1000×500 | 1000×500 | 1000×500 |
| T-solt(NO.×width×pitch) | mm | 5×18×100 | 5×18×100 | 5×18×100 |
| Max. table load | kg | 580 | 520 | 520 |
| Guide rail type | -- | 3 axis boxway | XY axis linear Z axis boxway | 3 axis linear |
| X/Y/Z axis travel | mm | 800×500×510 | 800×500×510 | 800×500×510 |
| Distance from spindle nose to worktable | mm | 150-660 | 150-660 | 150-660 |
| Distance from spinde center to colum | mm | 610 | 610 | 610 |
| Spindel taper | -- | BT40 | BT40 | BT40 |
| Spindle speed | rpm | 100-8000 | 100-8000 | 100-8000 |
| Spindle motor | kw | 7.5 | 7.5 | 7.5 |
| X/Y/Z axis motor | NM | 18/18/22 | 18/18/22 | 18/18/22 |
| X/Y/Z Ballscrew (diameter×pitch) | mm | 4012/4012/4012 | 4012/4012/4012 | 4012/4012/4012 |
| X/Y/Z axis rapid feed speed | mm/min | 15/15/12 | 24/24/12 | 24/24/20 |
| X/Y/Z axis cutting feed rate | m/min | 1-8 | 1-8 | 1-8 |
| Magazine type | -- | Armless/Disc | Amless/Disc | Armless/Disc |
| Magazine capacity | -- | BT40-16/24 | BT40-16/24 | BT40-16/24 |
| Max. tool length | mm | 300 | 300 | 300 |
| Max. tool weight | kg | 7.5 | 7.5 | 7.5 |
| Electricity supply required | KVA | 25 | 25 | 25 |
| Air pressure required | kgf/cm² | 5-7 | 5-7 | 5-7 |
| Positioning accuracy | mm | ±0.008 | ±0.007(X,Y) ±0.008(Z) | ±0.007 |
| Repositioning accuracy | mm | ±0.008 | ±0.003(X,Y) ±0.005(Z) | ±0.003 |
| Overall size(L×W×H) | mm | 2800×2100×2560 | 2650×2100×2630 | 2650×2100×2630 |
| Machine weight | T | 6.4 | 6 | 6 |

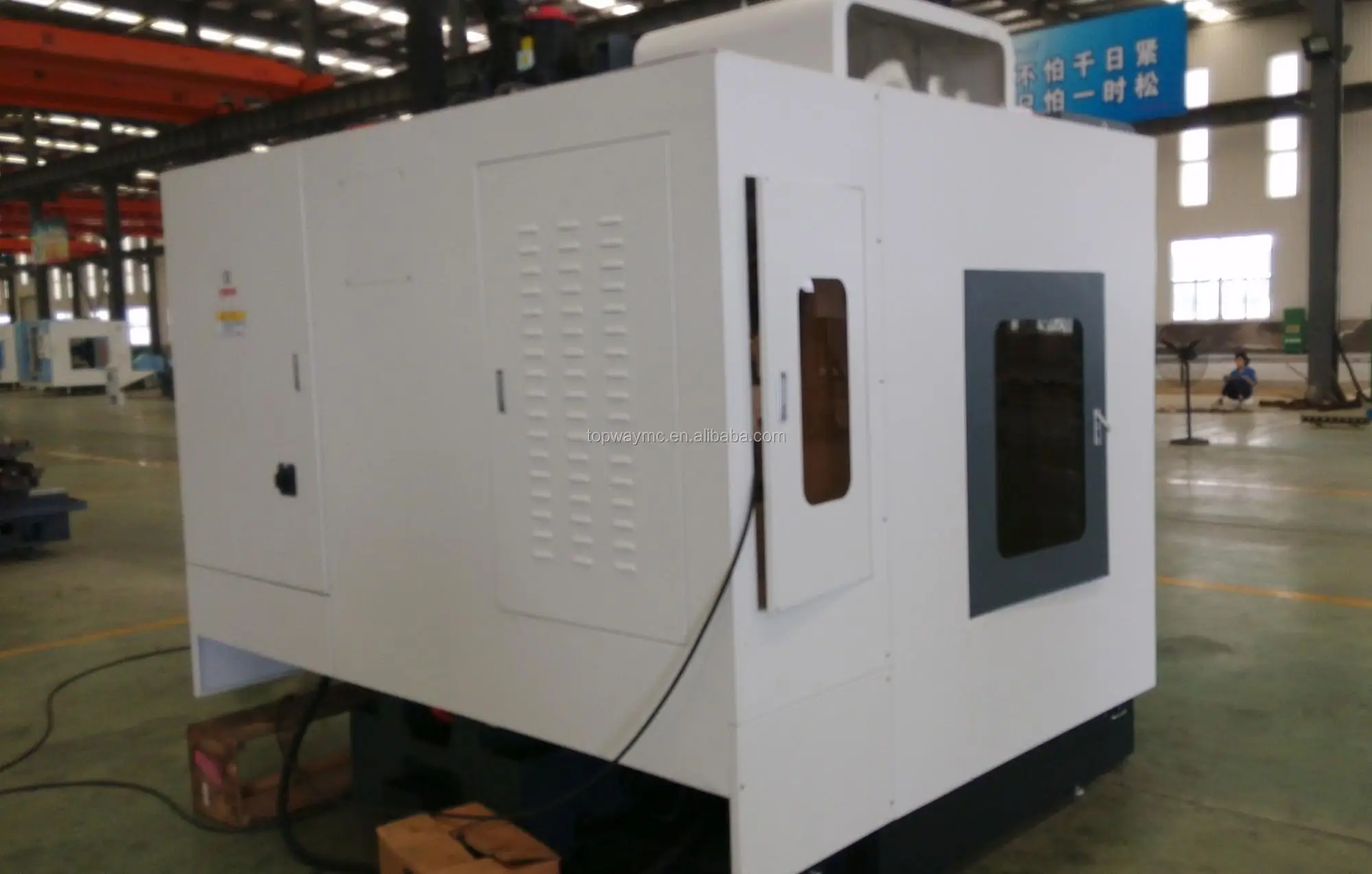

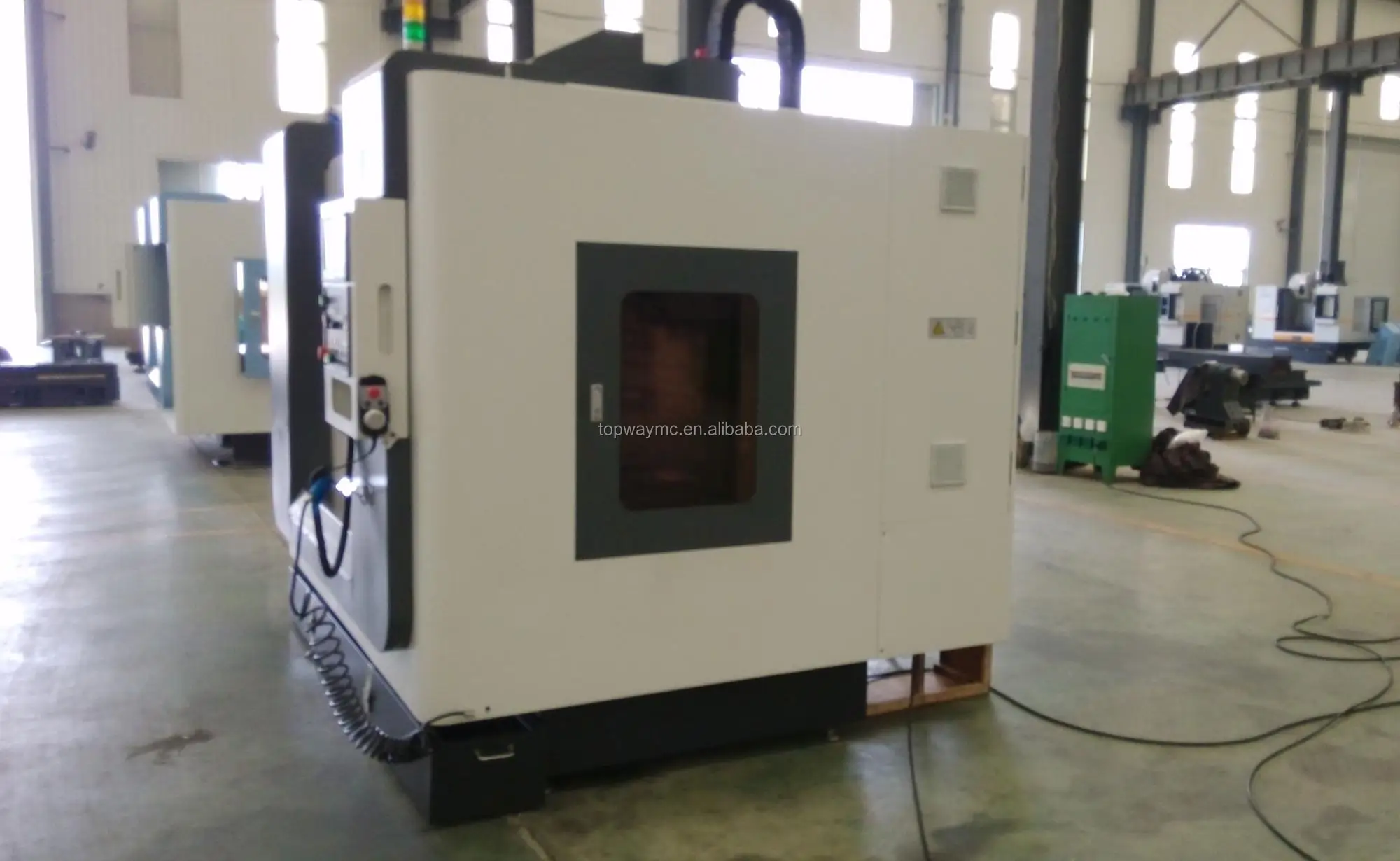

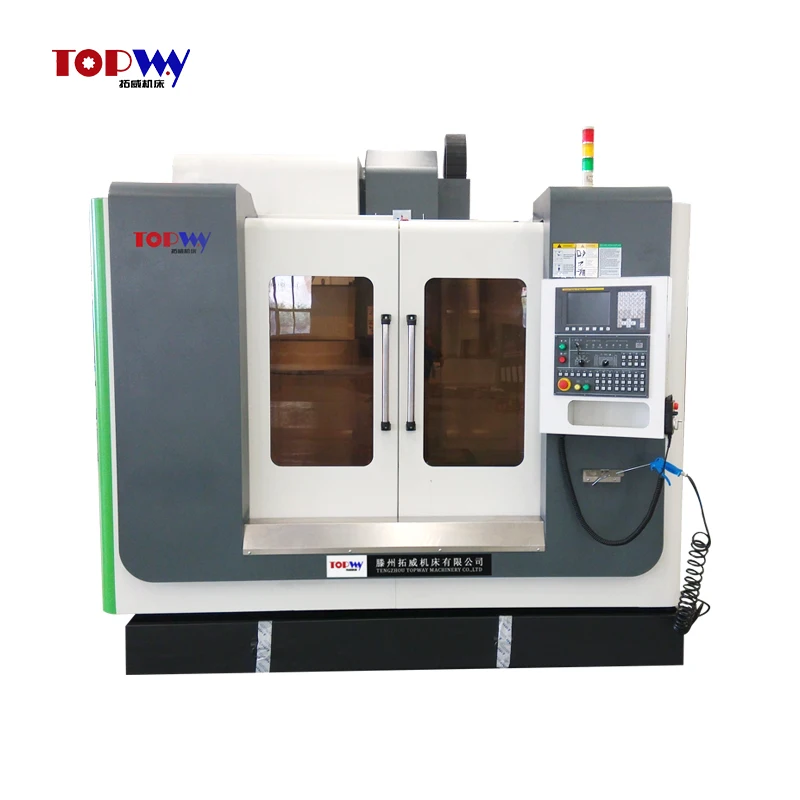

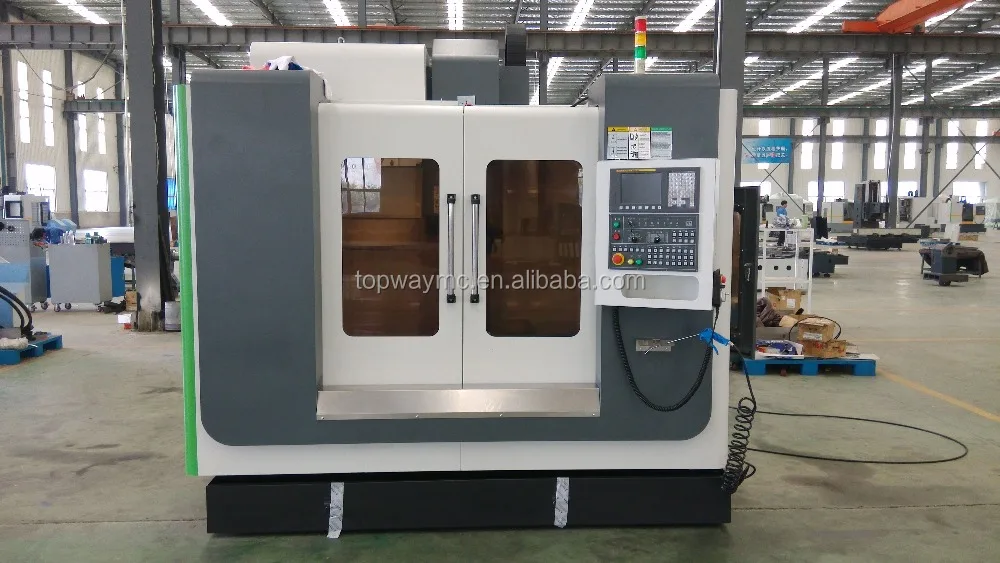

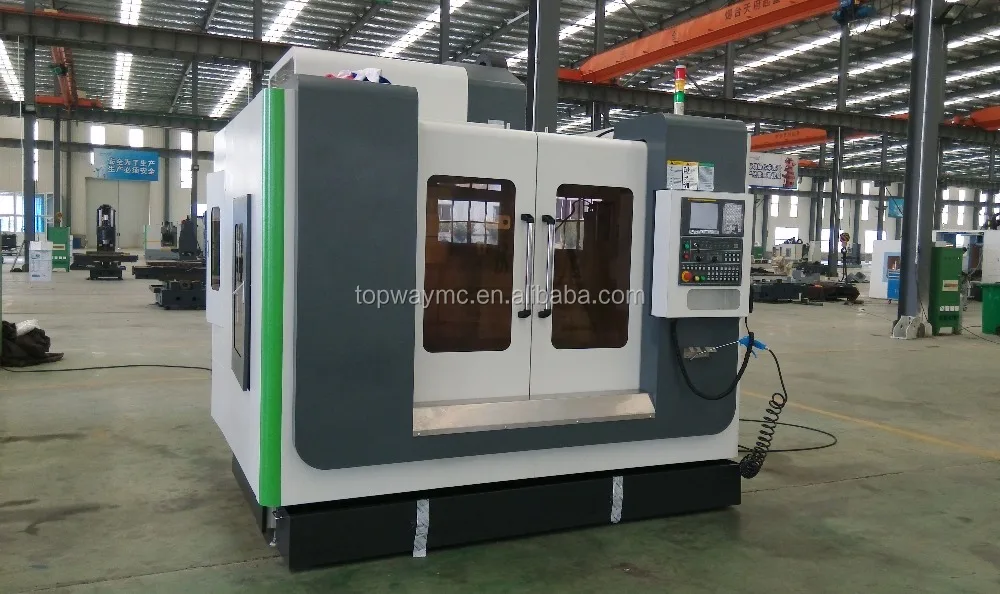

F: Pictures of CNC Machining Center
G: Technical service and after-sales service
- Operate manual, electrical schematic diagram, operational manual
- Provide extra accessories for machine
- Customized and special design is OK
- One year warranty for whole machine, Controller, Servo motor and Driver warranty is 3 years
- After the warranty time, lower price for the customers buying the breakdown parts.
- Equipment for life maintenance
