ZH 5W2L WIFI controller p10 outdoor led display screen controller card

Product Overview

Description

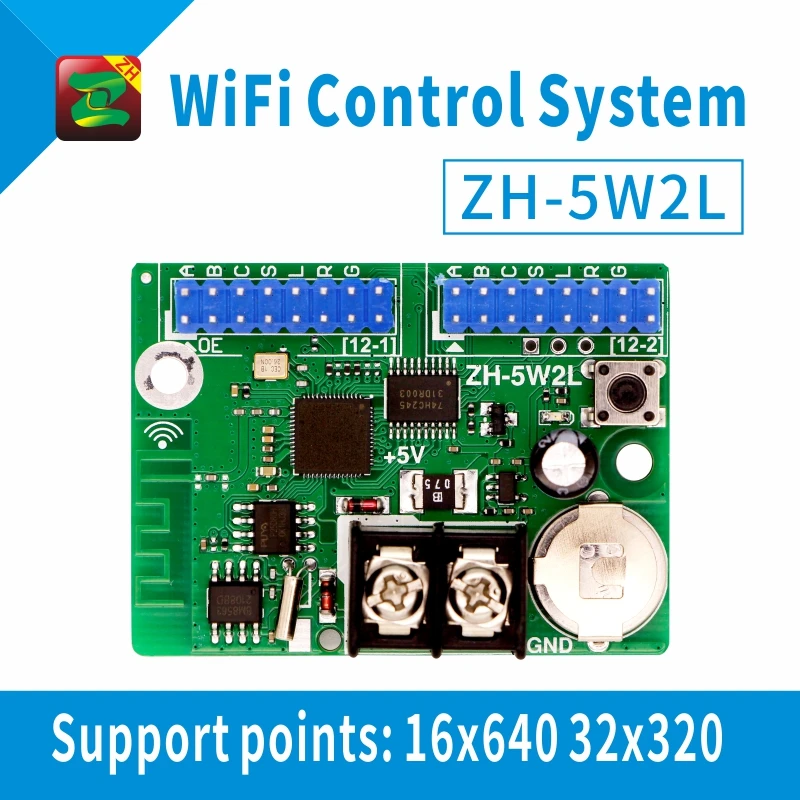

Model:  ZH-5W2L (WIFI Controller)

ZH LED Control System, Intelligence Everywhere !!!

App Software: ZH Mobile

Product features:

Maximum support Points:32*320,16*640
Truly free wiring, with wireless router inside
Support the smart phone, tablet, laptop
Computer software switches WIFI network
Replaces the U disk completely without complicated network setting

Function advantages:

truly free wiring; simple operation; without any subsequent cost; simple point to point communication; can automatically search Wifi network and establish reliable connection.



Data transmission is stable and reliable and application:

1, In general,  laptop can spread through the distance of 100 meters  directly; desktop computer can communicate with  wireless controller  through the wireless network card.

2, Laptop can connect directly, control card  owns router function; desktop can connect through the wireless card.

3, Available in the area with wifi coverage, such as airport, high-speed rail station, smart building, etc.



Technical parameters:

Main functions: data wireless transparent transmission; support 100M Ethernet network; support TCP/IP/UDP network protocol stack; support routing/bridge model network frame; support 802.11 b/g/n wireless standards;

Maximum power: ≤3W

Receive sensitivity: ≤ (802.11 b: - 89 DBM, 802.11 g: - 81 DBM, 802.11 n: - 71 DBM)

Maximum transmission distance: 200M (the actual application transmission distance suggestion: ≤100 meters)

Wireless standard: 802.11 b/g/n

Working frequency band: 2.412 GHz to 2.484 GHz

Configuration antenna: 2.4 GHz special inside antenna

Working voltage: +4.5V~6V

Working temperature: -30℃~70℃



Application note:

1. The latest research products; compact structure; fine craft; concise installation;

2. Please use waterproof protection when you use it outdoors;

3. Pay attention to the placement of the antenna, the controller chip antenna should be placed outside the
