Product Overview

Description



Product Description

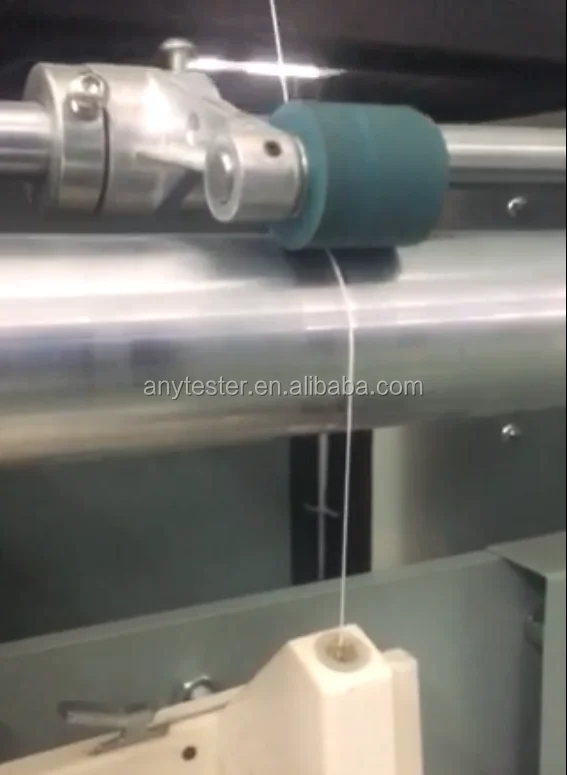

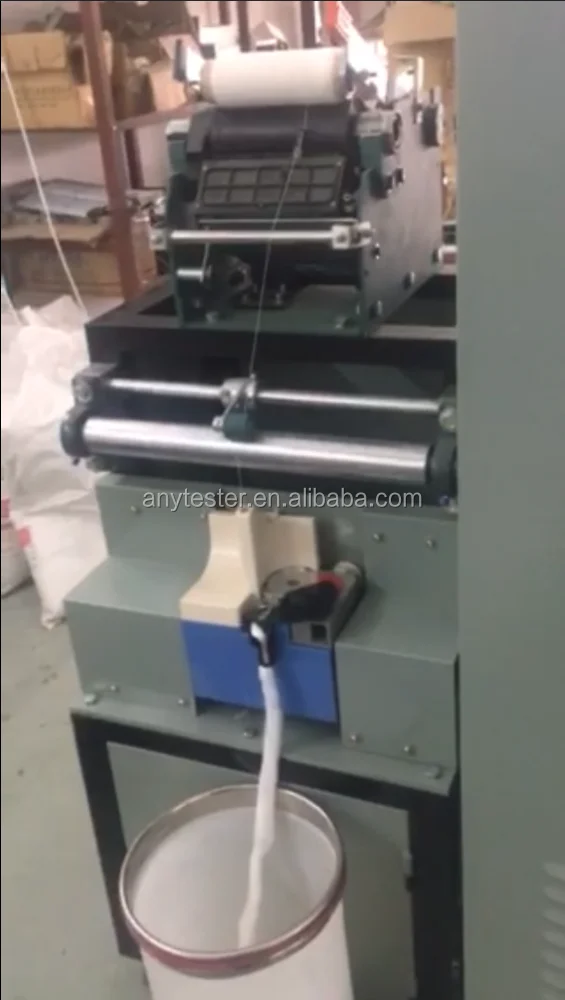

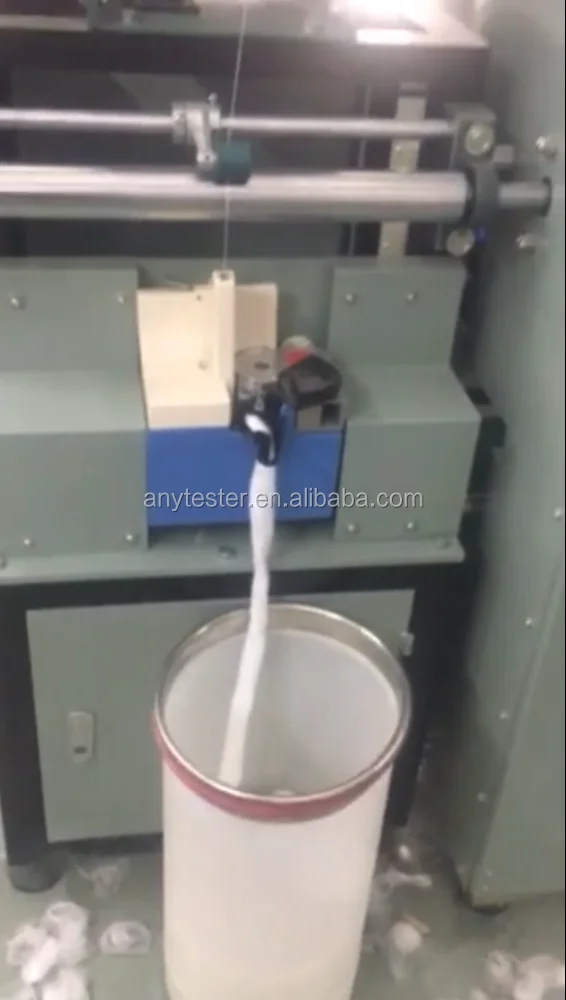

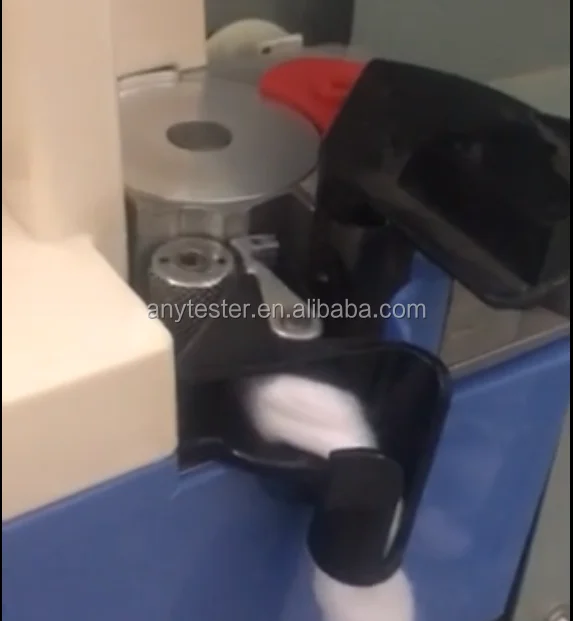

HY1010 Laboratory Open End Spinning Machine is part of the mini spinning system. It’s mainly used in university, researching center etc. and it is used to convert fiber into yarn.


HY1010 Laboratory Open End Spinning Machine.jpg





Features


1.  Imported frequency converter control, high efficiency.


2. Mini type machine, save researching cost and easy to operate and maintain


3. Can perform four functions in one machine, open cotton bale, remove impurities, blend cotton and lapping.


4. Can be used for cotton fiber or wool fiber (alternative)with different machine parts





Specification





















































Model



HY1010


Laboratory Open End Spinning Machine



Spindle number



1



Fiber type



Cotton



Revolving cup speed



30000rpm



Combing roller



6000rpm



Drafting range



30 ~ 250



Coiling speed



20 ~ 110m/min



Fiber length



22 ~ 42 mm



Output capacity



0.25 ~ 1 kg per hour or customized



Power



220V/380V, 50/60Hz, 640W



Dimension



800*600*1700mm
