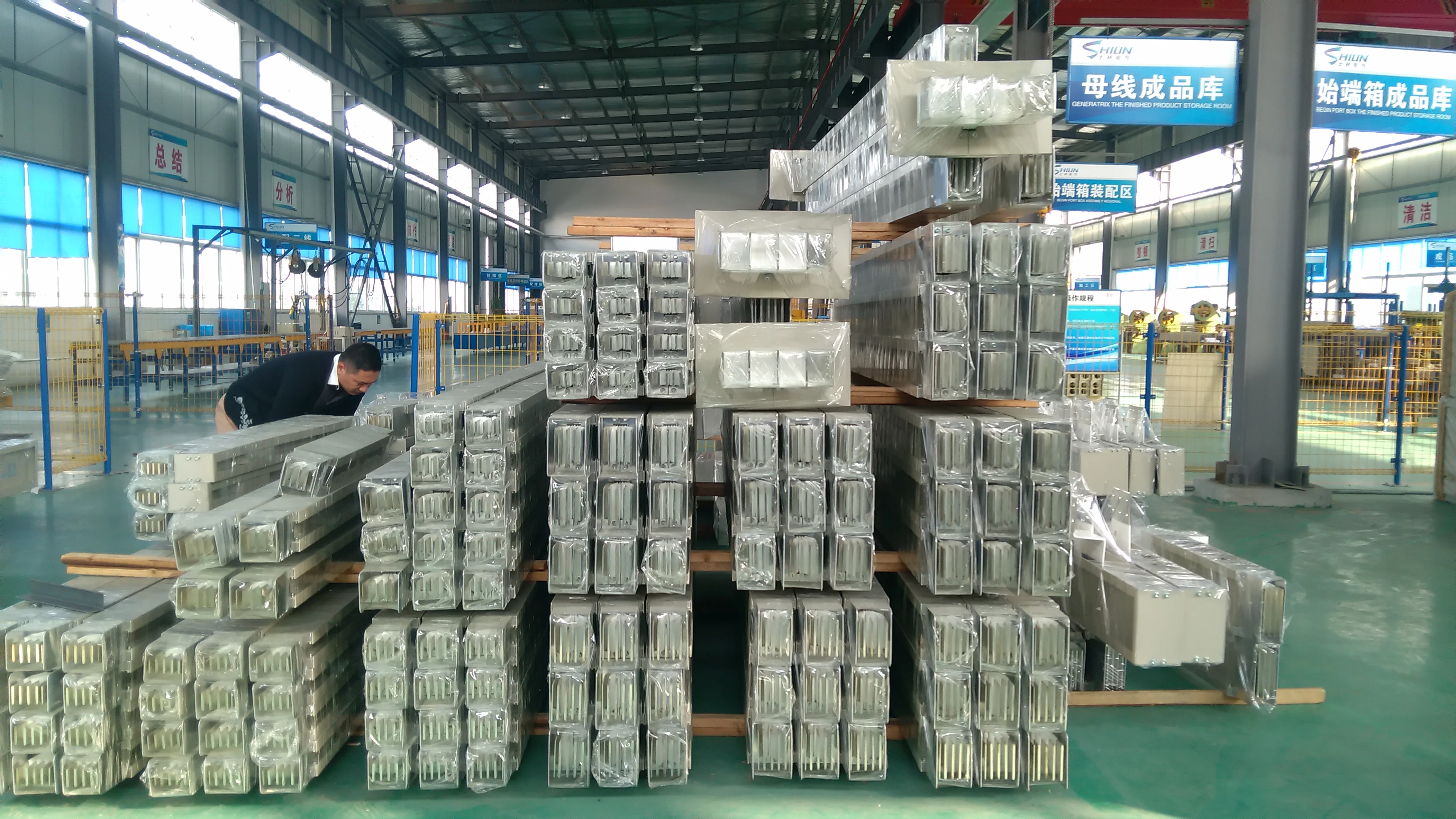

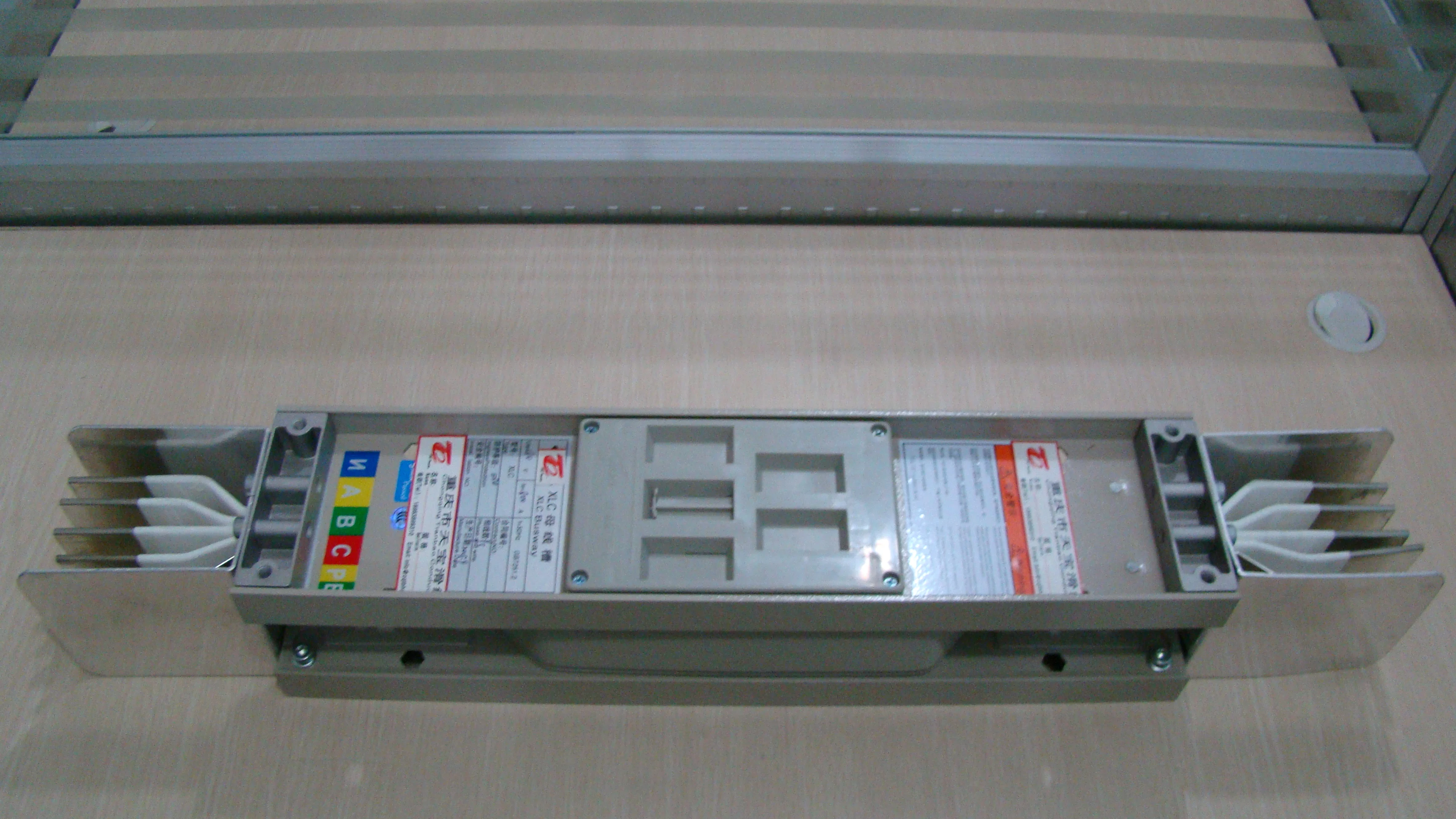

busduct system 380v 3 phase power distribution

Supply eletrical sandiwich type alumiunm busbar is used in the system of 3 phase 4wires ,3 phase 5wires ,50-60 HZ,with rated current 100-6300A power supply and distribution ,as a scheme of low cost an d high effciency for industrial factories ,hospitals ,tores ,highrises buildings and those environment with high-tech,to achieve good cost performance.

Structure feature
--Small size ,good flexibility
--Convenient and fast connection
--Good electric conduction and insulation
--Full AL shell (full Al shell feature dust-proof performance good ventilation ,and electric conduction )

Specifications

--Current Rating: 400 A to 6300 A(CU) or 100A to 4000A(AL)
--Ingress protection : IP54 or IP68
--Insulation curent rating: [upto 1000 A]

--Frequency：50-60Hz

--Conductor:AL or Copper
--Standard lengths : 4m/3m/2m/1m
--System Voltage: AC380 /690V
--Conductor material: High conductivity Cu or AL
--Halogen free, fire retardant Class-B-Epoxy insulation
--Tap - off units are suitable for MCCBs or SDFs or MCBs

We could provide all kinds of Bus Bar Trunking System,pls kindly free contact us

Packing: Wooden case or as per customers’ requirement.
Delivery Time: About 15 -20working days after received your payment.

Payment:

1. T/T 100% in advance before shipment (if total amount less than 10000 USD)
2. T/T 30% in advance and 70% before the shipment( if total amount more than 10000USD).

IF YOU WANT TO KNOW MORE ABOUT THE PRODUCTS,PLEASE KINDLY CONTACT US,CLICK SEND
