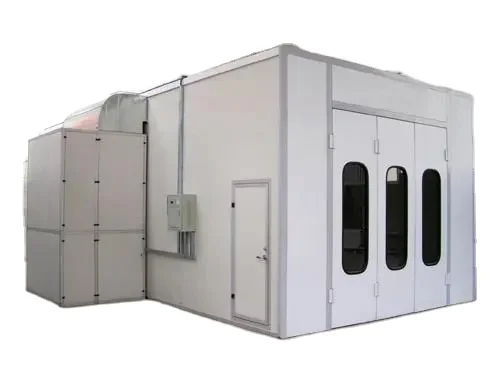

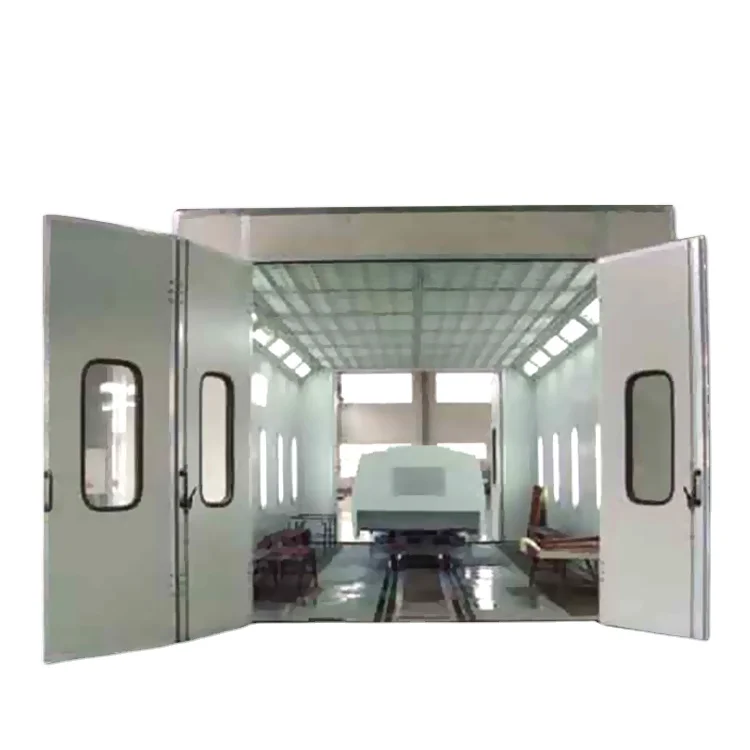

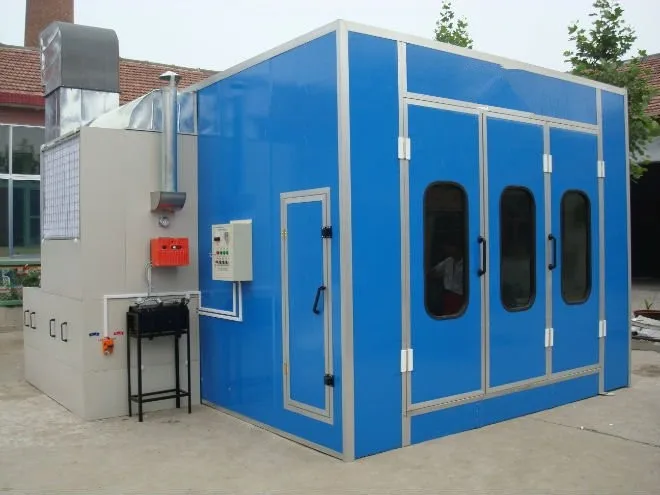

Model

JD-A6

Inside Dimension

6900*3900*2400mm (L×W×H)

Outside Dimension

7000*5300*3200mm  (L×W×H)

Personal Door

1fold ,800×2000mm(W×H). Equipped with Handle & Anti-Explosion Lock.

composite board

75mm rock wool board, density:120kg, Ironhide thickness:0.4mm

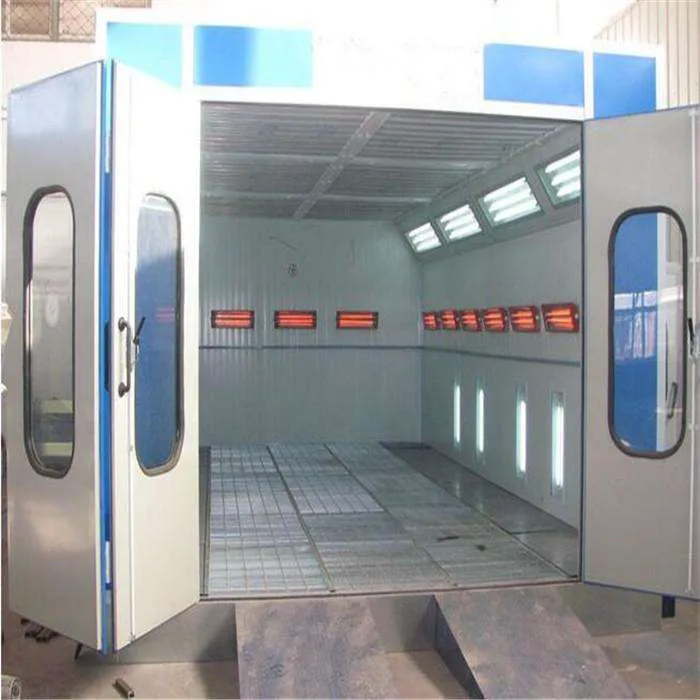

Basement and Floor

Galvanized steel assemble,Full metal foundation, height is 300mm.

Five rows flat steel Grilles (galvanized)

3 pieces of Ramps, each size 900×2000mm (W×L),diamond plate construction.

Climbing platform

Size:1.6*0.7m, Mechanism of bonding3*5 grille

Lighting System

LED lighting, 24 groups

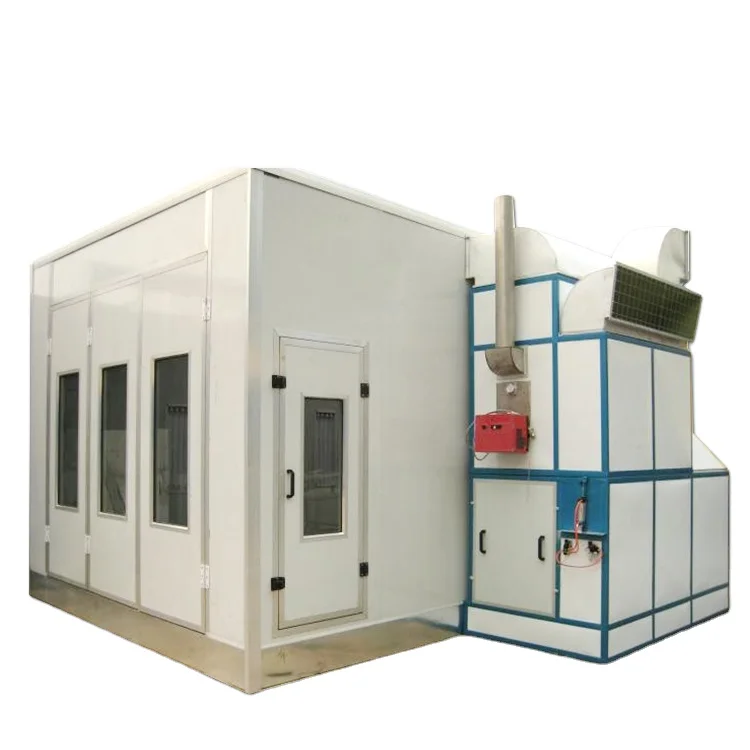

Generator

-Side upper intake air, quadrate steel frame, coated steel.

Setting Type

-Electric damper actuates from the spraying to baking cycle.

Inlet Fan

1*5.5KW intake centrifugal fan, 1*7.5KW induced draft fan

Heating Method

Fuel oil heating, using the G - 20 burner

Filter System

-The primary filter can capture granules larger than 10μm , filtering rate > 83%.

-Ceiling filter can capture granules bigger than 4μm, 1*5.5KW YDW filtering rate> 98%.

-Floor filter( fiberglass paint-stop filter ),filtering rate > 70%.

-Activated carbon filter or granules put in cabinet.

Control System

Lighting switch, spraying , heat spraying , baking , temperature controller,

time setting, emergency stop , failure indicator, hour meter, thermostat .

Total Power

15.5KW
