Product Overview
Description

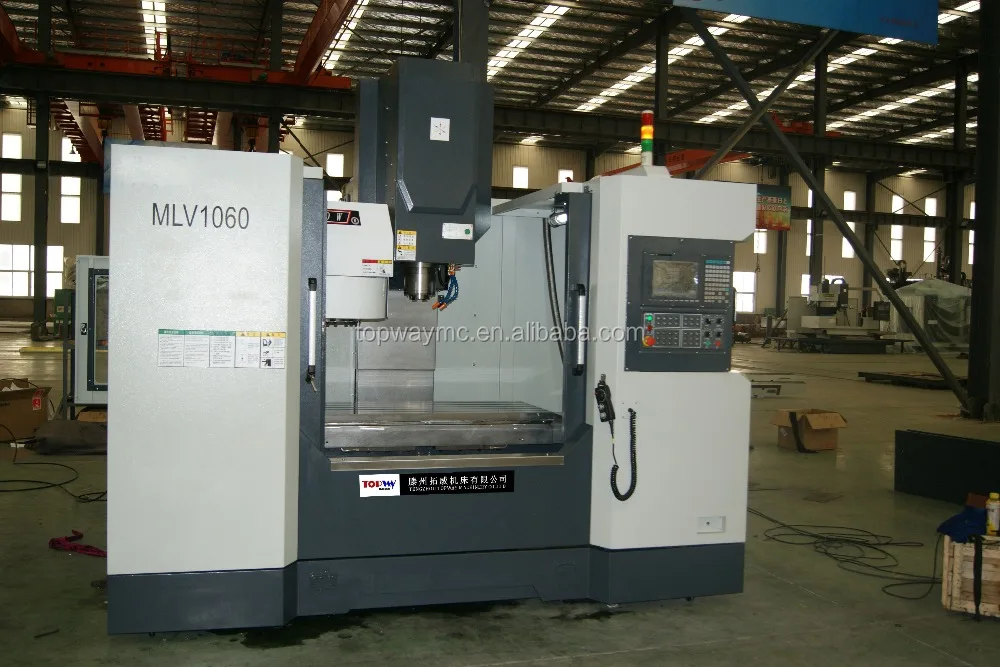

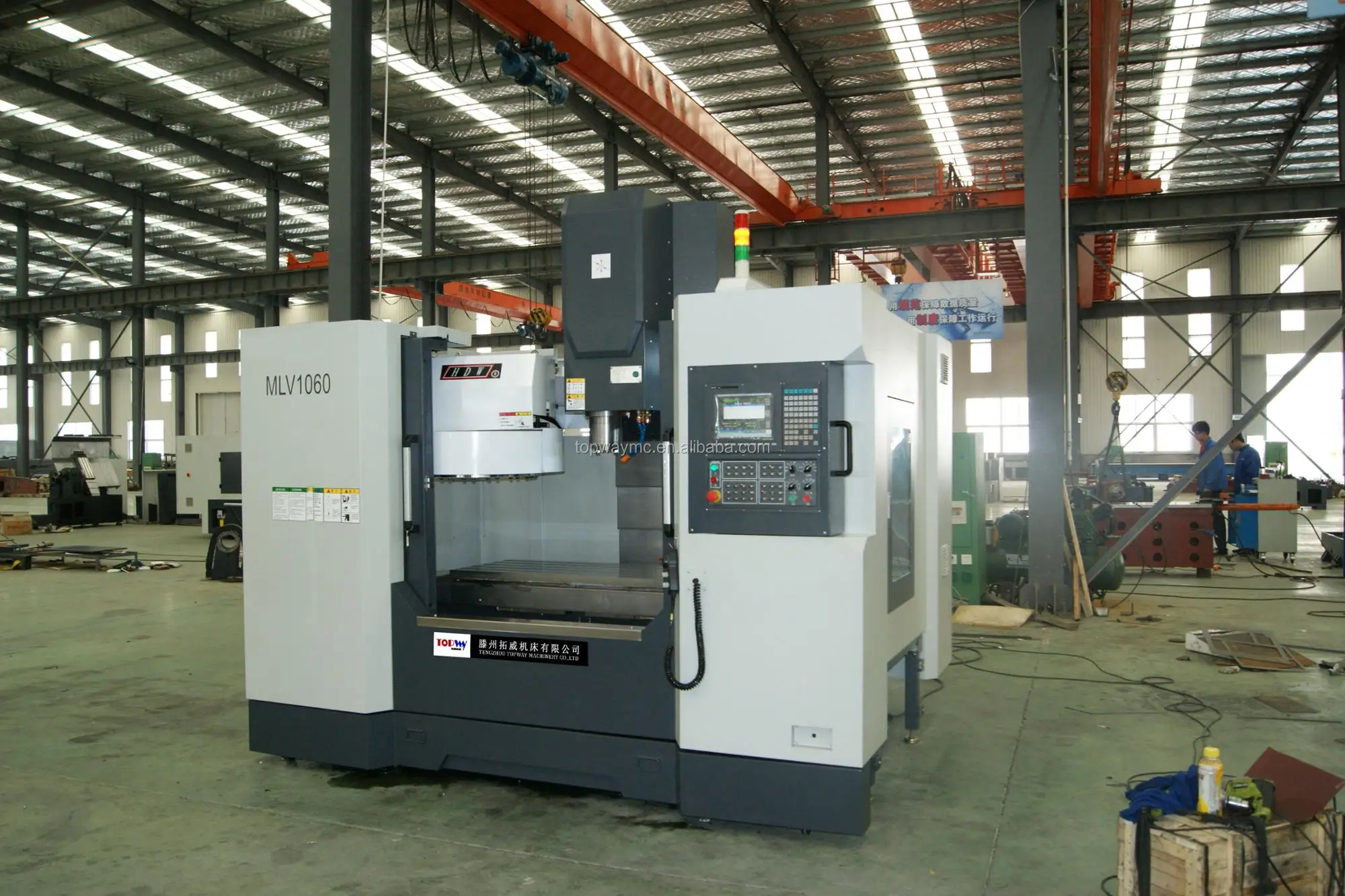

CNC Vertical Milling Machine VMC1060
CNC Machining Center Description:
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.
CNC Machining Center Feature:
* High quality resin sand , ensure machine driven stability
* Separated electronic handwheel
* External 232 interface
* Taiwan high precision and speed spindle
* Taiwan armless type ATC with 16 tools

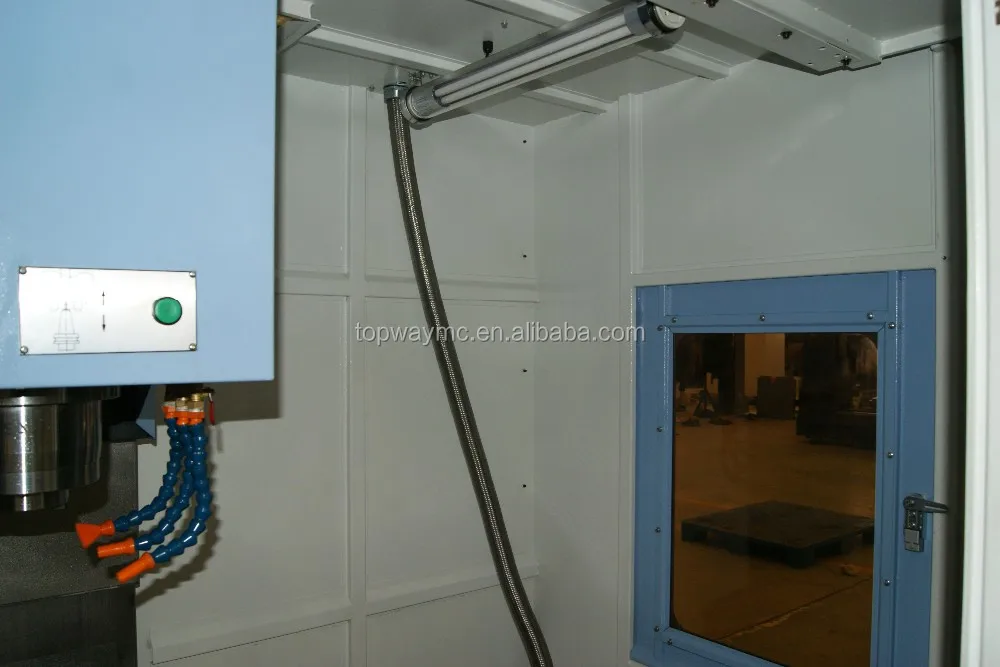

* Coolant system with high flow and high head pump, ensure sufficient cooling at high speed running.
* Totally enclosed, safety and beautiful
Standard : Optional :
* Siemens 808D controller * FANUC, SIEMENS828D, GSK , KND
* BT40 Armless type ATC with 16 tools * Arm type ATC

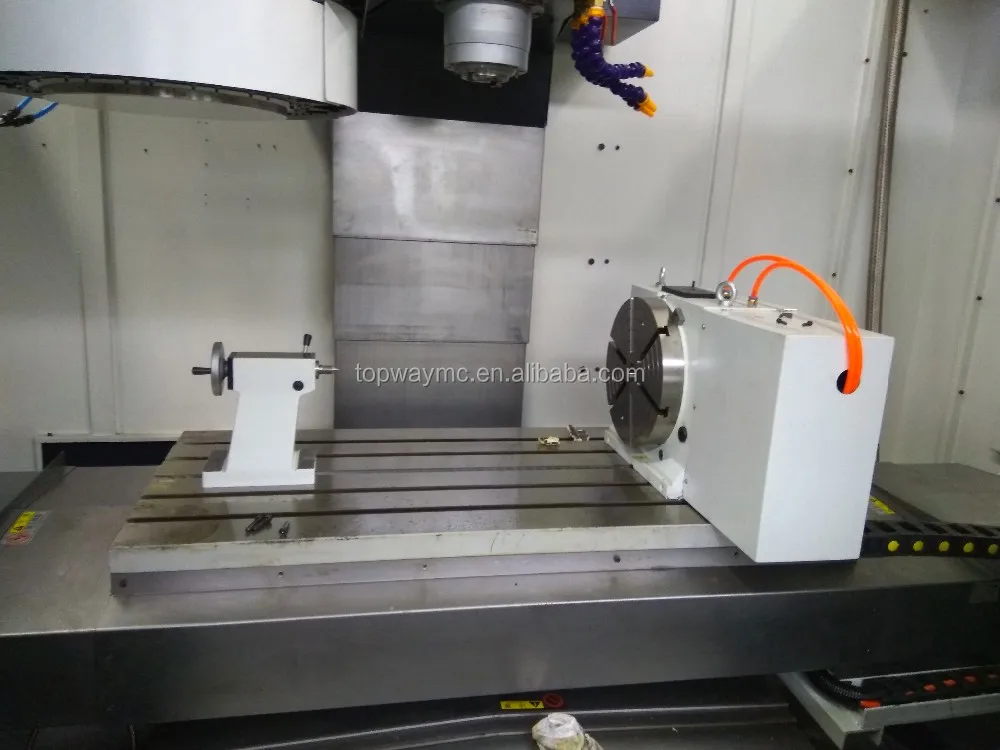

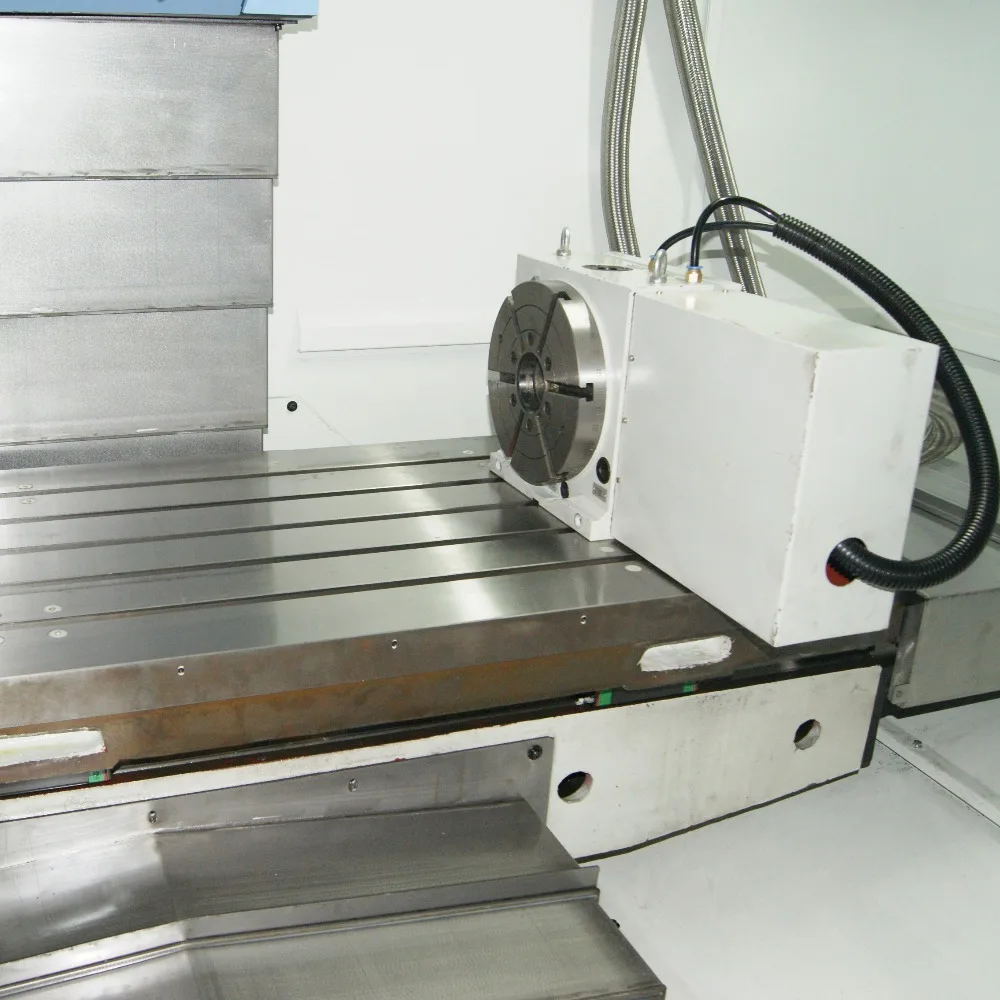

* Taiwan spindle, screw and locking nut, linear, cylinder . * 4th axis
* Japan NSK bearing * Automatic chip convey
* Germany R+W coupling
* Automatic lubrication system
* Cool-heat exchanger
* Tri-color alarm lamp
* Full splash guard
* spindle taper hole cleaning system
* cooling system
CNC Machining Center Specification :
| Specification | Unit | VMC1050 | VMC1060 |
| Table size | mm | 1000×500 | 1300×620 |
| T-solt(NO.×width×pitch) | mm | 5×18×100 | 5×18×100 |
| Max. table load | kg | 520 | 600 |
| X/Y/Z axis travel | mm | 1000×500×510 | 1000×600×600 |
| Distance from spindle nose to worktable | mm | 150-660 | 150-750 |
| Distance from spinde center to colum | mm | 610 | 660 |
| Spindel taper | -- | BT40 | BT40 |
| Spindle speed | rpm | 100-8000 | 100-8000 |
| Spindle motor | kw | 7.5 | 11 |
| X/Y/Z axis motor | NM | 18/18/22 | 18/18/22 |
| X/Y/Z Ballscrew (diameter×pitch) | mm | 4012/4012/4012 | 4012/4012/4012 |
| X/Y/Z axis rapid feed speed | mm/min | 24/24/12 | 24/24/12 |
| X/Y/Z axis cutting feed rate | m/min | 1-8 | 1-8 |
| Magazine type | -- | Armless/Disc | Armless/Disc |
| Magazine capacity | -- | BT40-16/24 | BT40-16/24 |
| Max. tool length | mm | 300 | 300 |
| Max. tool weight | kg | 7.5 | 7.5 |
| Electricity supply required | KVA | 25 | 25 |
| Air pressure required | kgf/cm² | 5-7 | 5-7 |
| Positioning accuracy | mm | ±0.007 | ±0.007 |
| Repositioning accuracy | mm | ±0.003 | ±0.003 |
| Overall size(L×W×H) | mm | 2650×2100×2630 | 2900×2850×2800 |
| Machine weight | T | 6.0 | 6.9 |

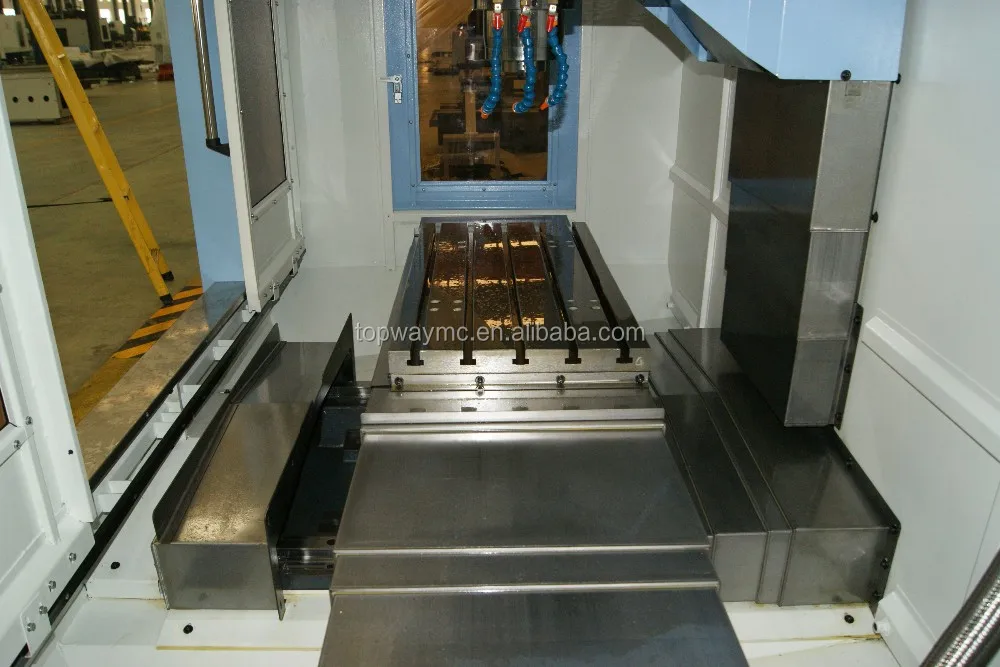

CNC Machining Center Details :
Company Information
Note:
- Specifications for your reference. Because of our continuous improvement of the machine, any change in the machine and parts can be carried out without a notification obligation. If there is a strict requirement for the parameters, please contact us before ordering.
