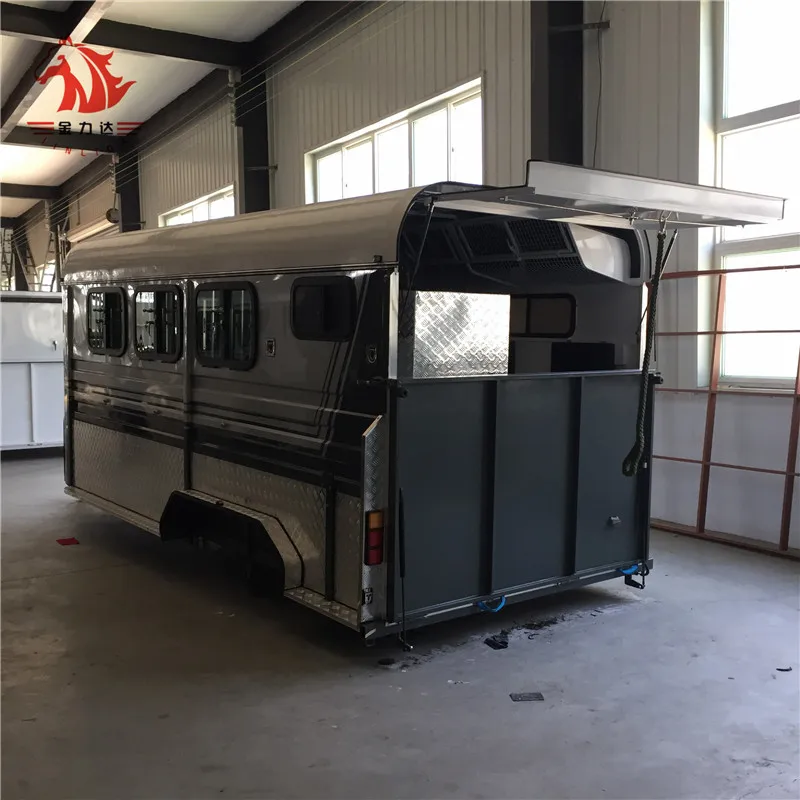

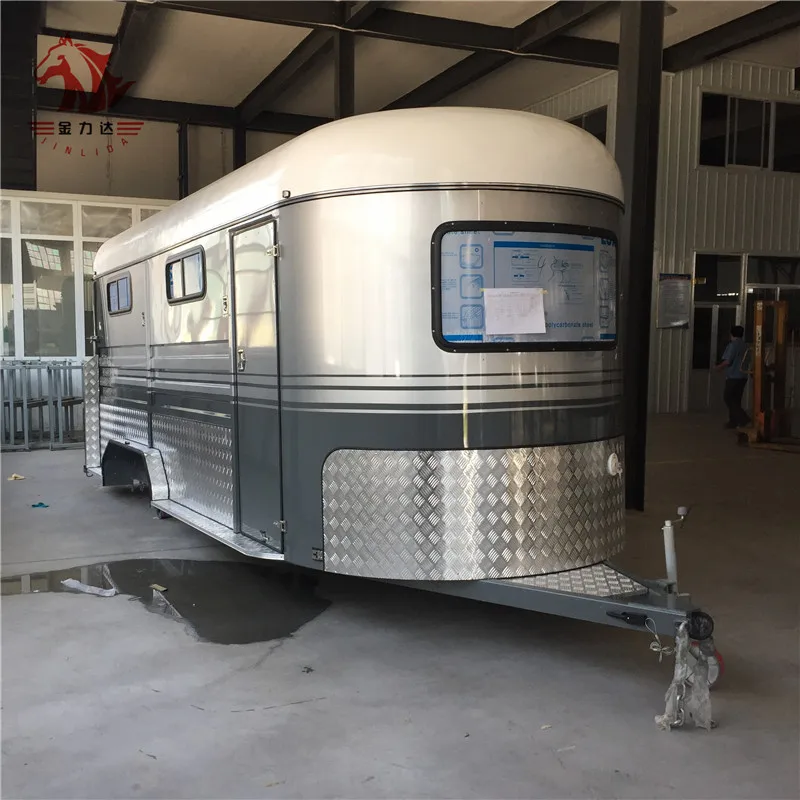

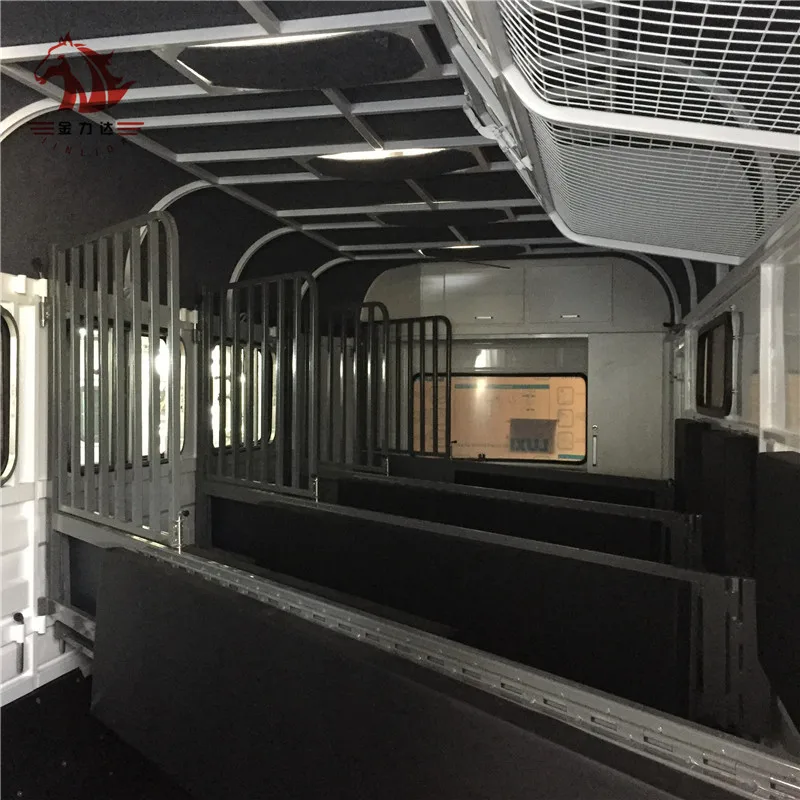

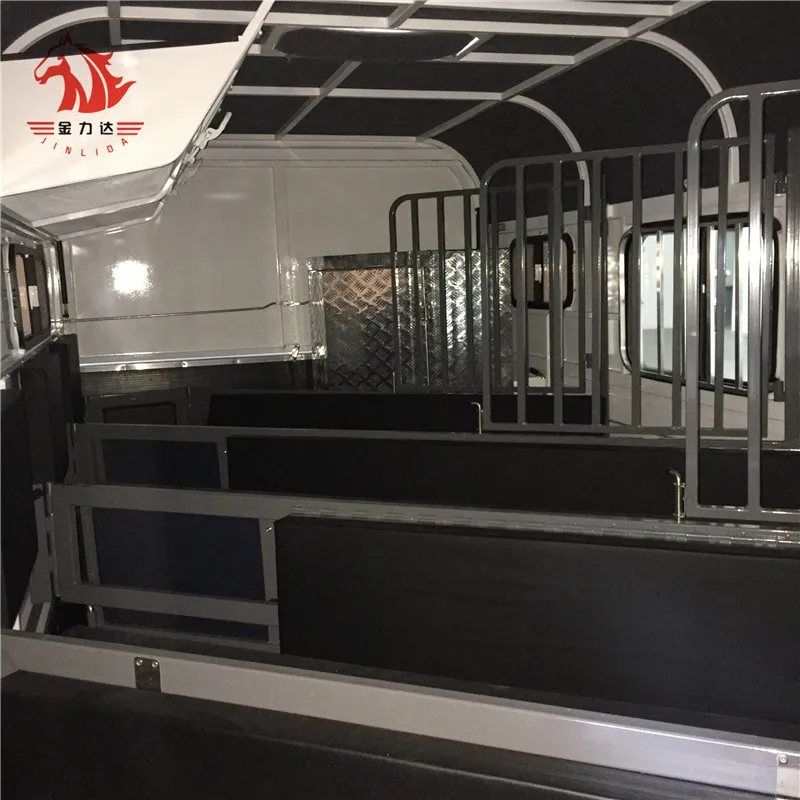

4 horse float deluxe with kitchen

MODEL:4HAL- D

1.TRAILER MATERIALS

1.1CHASSIS MATERIAL double hot dip galvanized RHS(3.5mm-4.0mm)

1.2 FRAME MATERIAL double hot dip galvanized RHS(2.5mm)

1.3 BODY PANEL galvanized (1.2mm

1.4 ROOF special molded FRP 5475*1890*450mm

1.5 NUTS & BOLTS stainless steel

2.WHEELS & TYRES   215R16C   16' iron rims

2.3 SPARE WHEEL one

3.AXLES & SUSPENSIONS

3.1 AXLES three special trailer axles

3.2 LEAF SPRINGS roll rocker tandem spring suspension 9 plates

3.3 BRAKE SYSTEM 6 wheel electric brakes with break-away systems

4.WINDOWS & DOORS

4.1 FRONT WINDOW 1220*610

4.2 SIDE WINDOWS 4 pop-up rectangle windows,4 sliding rectangular windows

4.3 VENTS four sash casement vent

4.4 SIZE OF SIDE DOOR 1755*615

4.5 REAR UPPER DOOR 2020*1065

4.6 RAMP DOOR 2020*1210

4.7 REAR UPPER & RAMP DOOR STRUT high-intensity anti-rust strut

4.8 HINGES FOR REAR UPPER DOOR special 6mm diameter copper hinges

5.DRAWBAR

5.1 DRAWBAR CHECKER PLATE 1.2mm aluminium

5.2 DRAWBAR SAFETY CHAIN two

5.3 BRACING WHEEL one

6.LIGHTS & RETRO REFLECTORS

6.1 TRAILER PLUGS square 7 wick plug

6.2 SIDE LAMPS 6

6.3 REAR LAMPS LED group

6.4 REAR LAMPS STAND aluminium

6.5 RETRO REFLECTORS 6

9.DIMENSIONS

9.1 OVERALL DIMENSIONS ( L x W x H: mm ) 6325*2280*2590

9.2 BODY DIMENSIONS ( L x W x H: mm ) 5475*1980 *2230

9.3 MAXIMUM INTERNAL DEMENSION:5450*1930*2155
