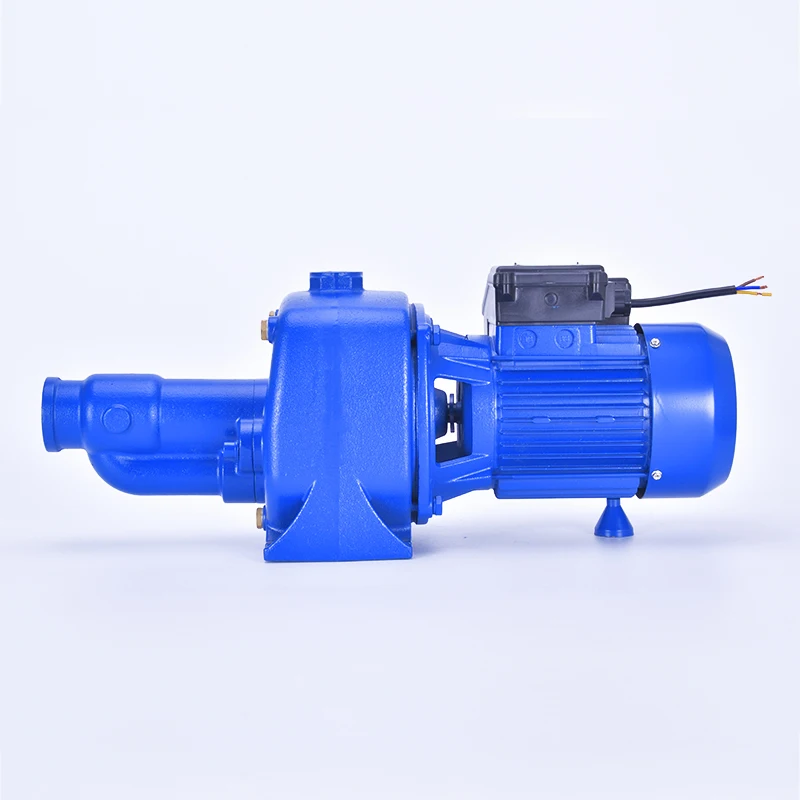

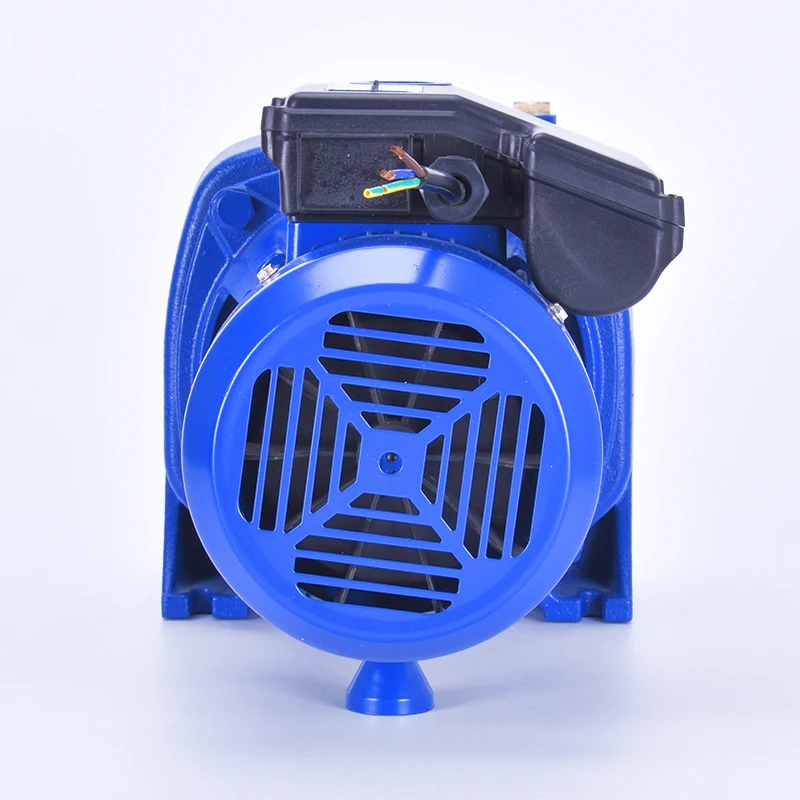

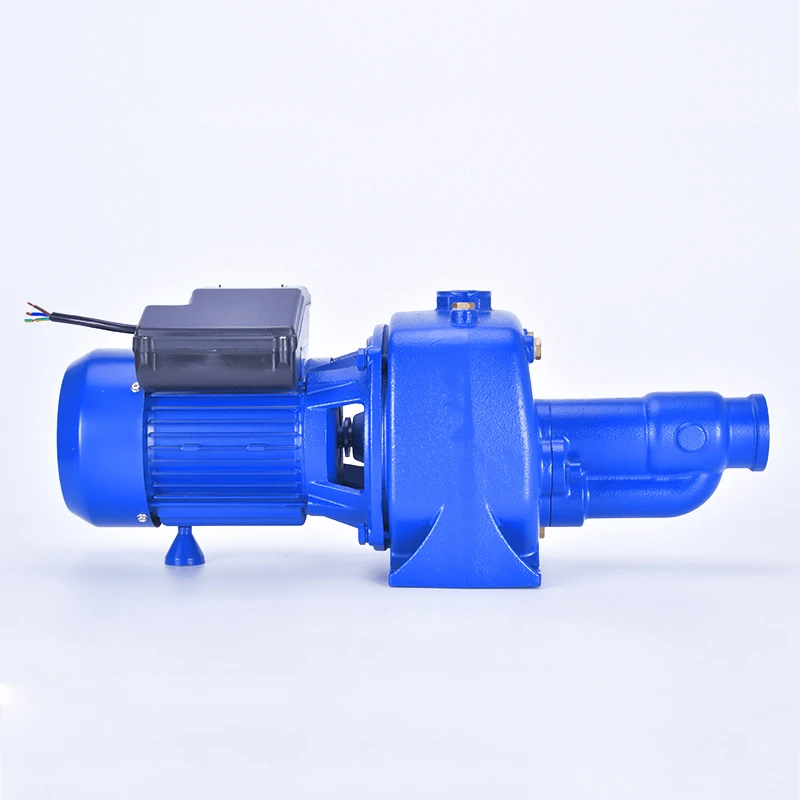

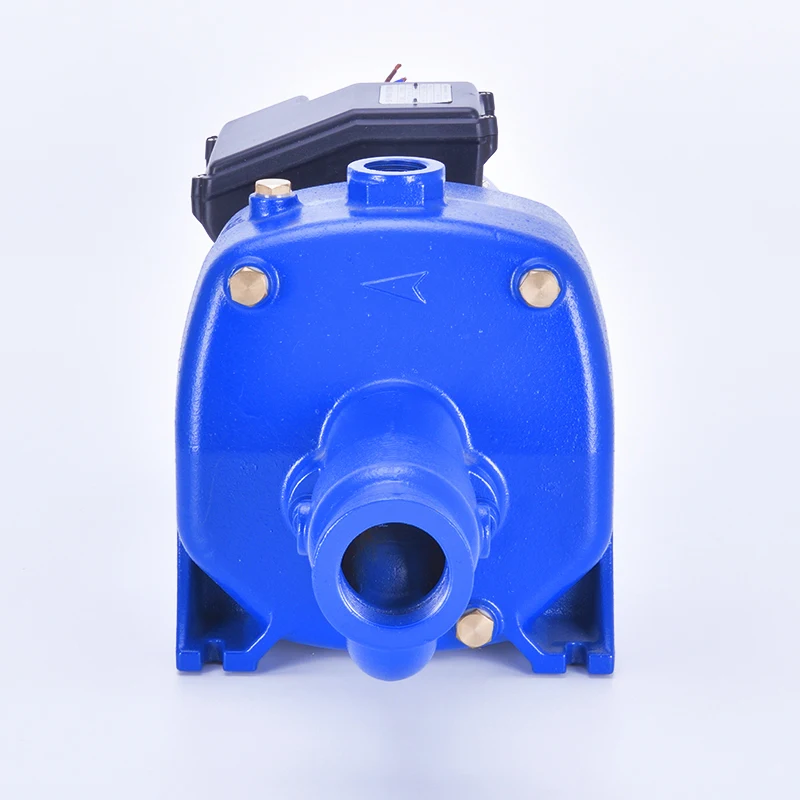

large flow high lift heavy duty twin brass impellers cast iron deep well self priming pump
- Category: >>>
- Supplier: Ningbo Chuheng Electric Co. Ltd.
Share on (60628798080):
Product Overview
Description
Exceptional Quality, Heavy Duty, High demand, Self-priming jet Twin Impeller Pump for water supplies in household, agricultural and civil systems.Suitable for pressure systems, ideal for drawing out of dams or rivers with suction lift up to 9 metres.
Applications
Water Transfer
Irrigation
Drawing from Dams, Creeks and Canals
Underground Storage Tanks
Features & Benefits
High demand Self Priming
Robust Flow Rates
Thermal Overload Protection
IP 44 protection level
Liquid temperature range 0-60°C max
Motor
2 pole electric induction motor for continuous operations
Stator made with low-loss laminated electric sheet steel
Insulation Class F, IP44
Thermal protection
Construction
Heavy Duty Cast iron pump casing with threaded
inlet and outlet
Cast Iron Jet & Venturi
Twin Noryl Impellers, Diffuser
Ceramic-graphite mechanical seal
Motor shaft in stainless steel
| Model | Power P2(kW) | Current(A) | Max.flow(l/min) | Max.head(m) | Max.suct(m) | G.W/N.W.(kg) | Size(cm) |
| JET-150TR | 1.1 | 7 | 97 | 52 | 9 | 28.5/27.5 | 63*25*30 |
| JET-220TR | 1.65 | 9.8 | 116 | 57 | 9 | 29.7/28.7 | 63*25*30 |
| JET-330TR | 2.2 | 13.9 | 120 | 66 | 9 | 31.2/30.2 | 63*25*30 |
