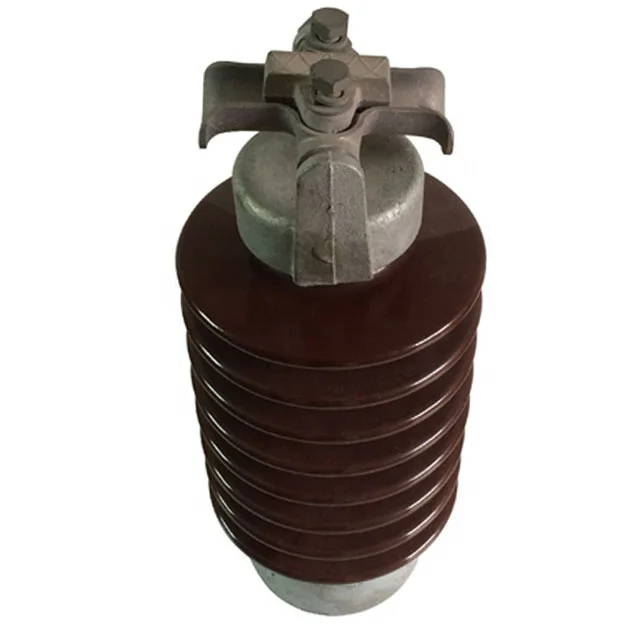

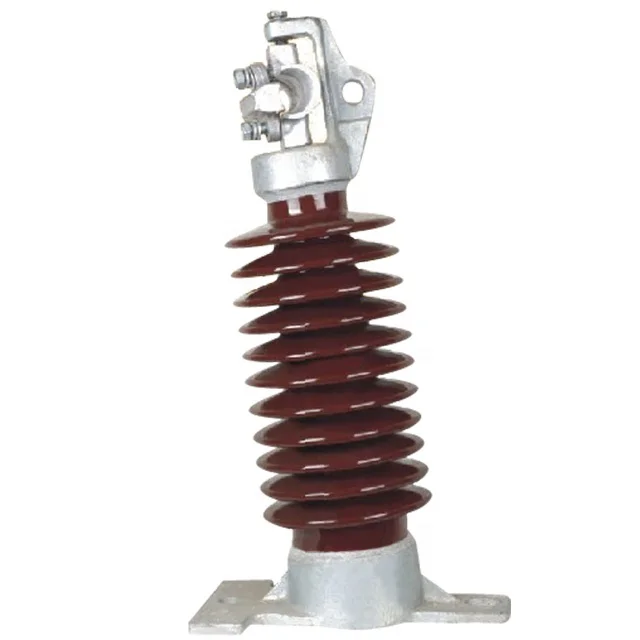

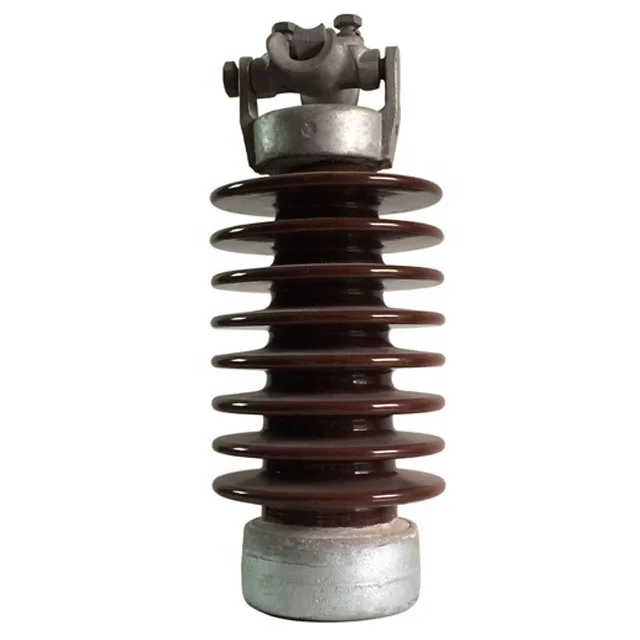

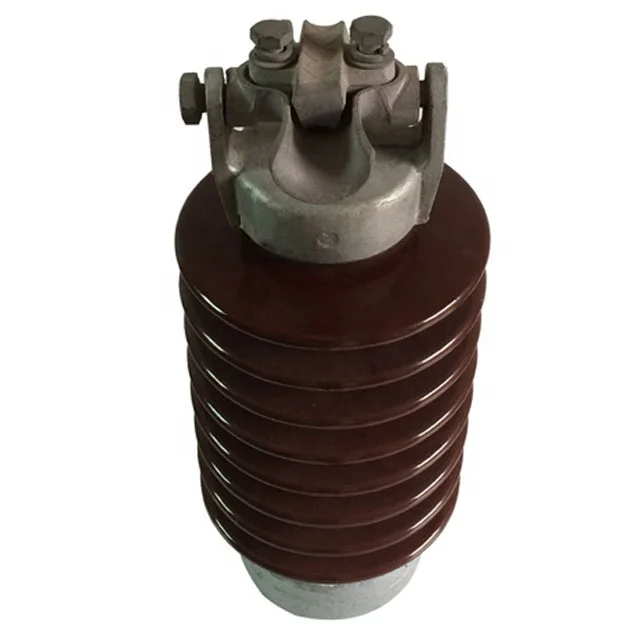

fittings for horizontal line post insulator

Price:

Quantity:

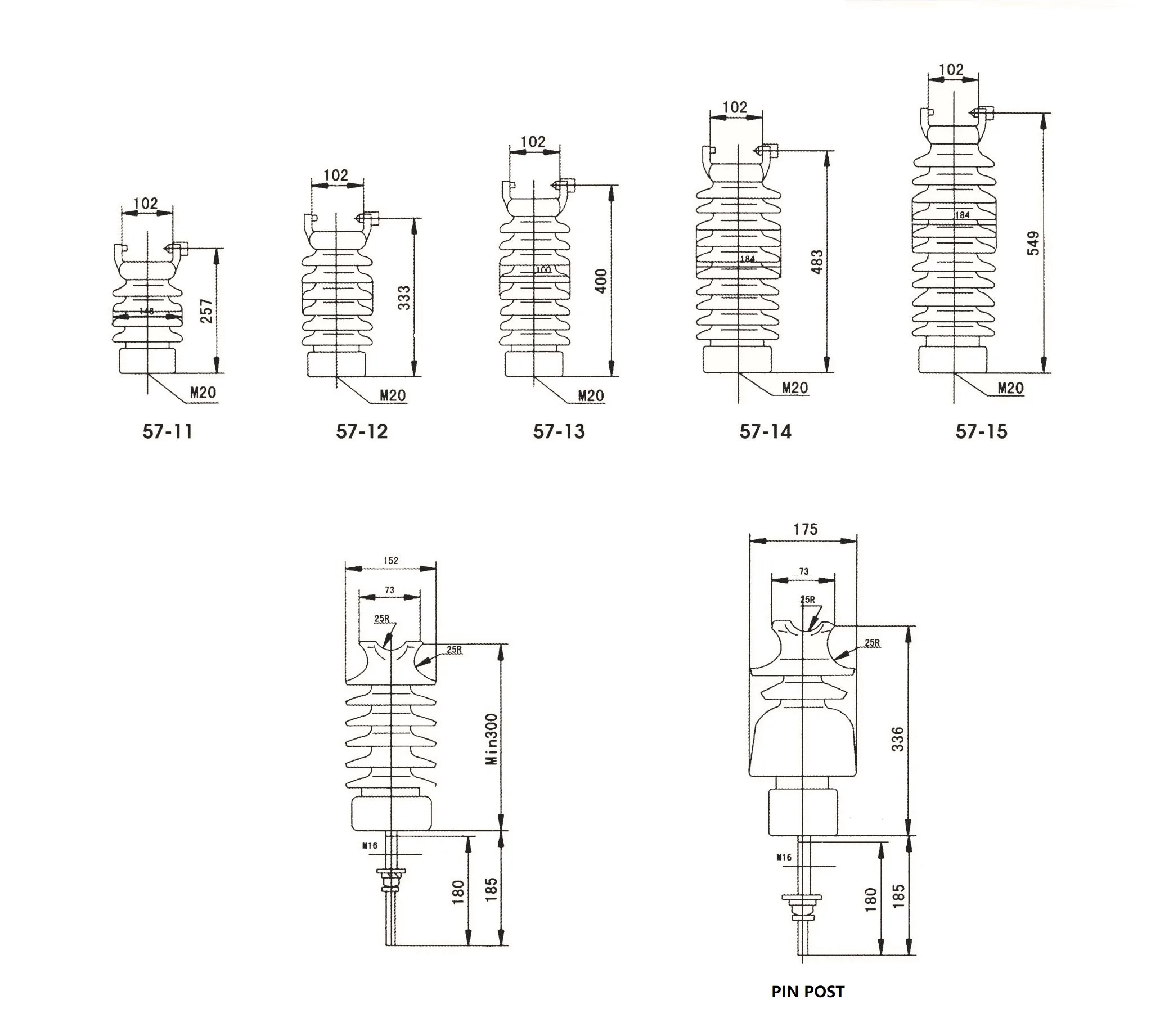

ANSI Class		57-11	57-12	57-13	57-14
Creepage distance,mm		356	559	737	1015
Dry arching distance		165	241	311	368
Cantilever Strength,Kn		12.5	12.5	12.5	12.5
Lower Frequency Flashover Voltage	Dry,kv	80	110	125	150
Lower Frequency Flashover Voltage	Wet,kv	60	85	100	125
Critical Impulse Flashover Voltage	Pos.,kv	130	180	210	255
Critical Impulse Flashover Voltage	Neg.,kv	155	205	260	340
RIV Data	Test volt. To ground,kv	15	22	30	44
RIV Data	Max RIV at 1000 KHz,Uv	100	100	200	200
