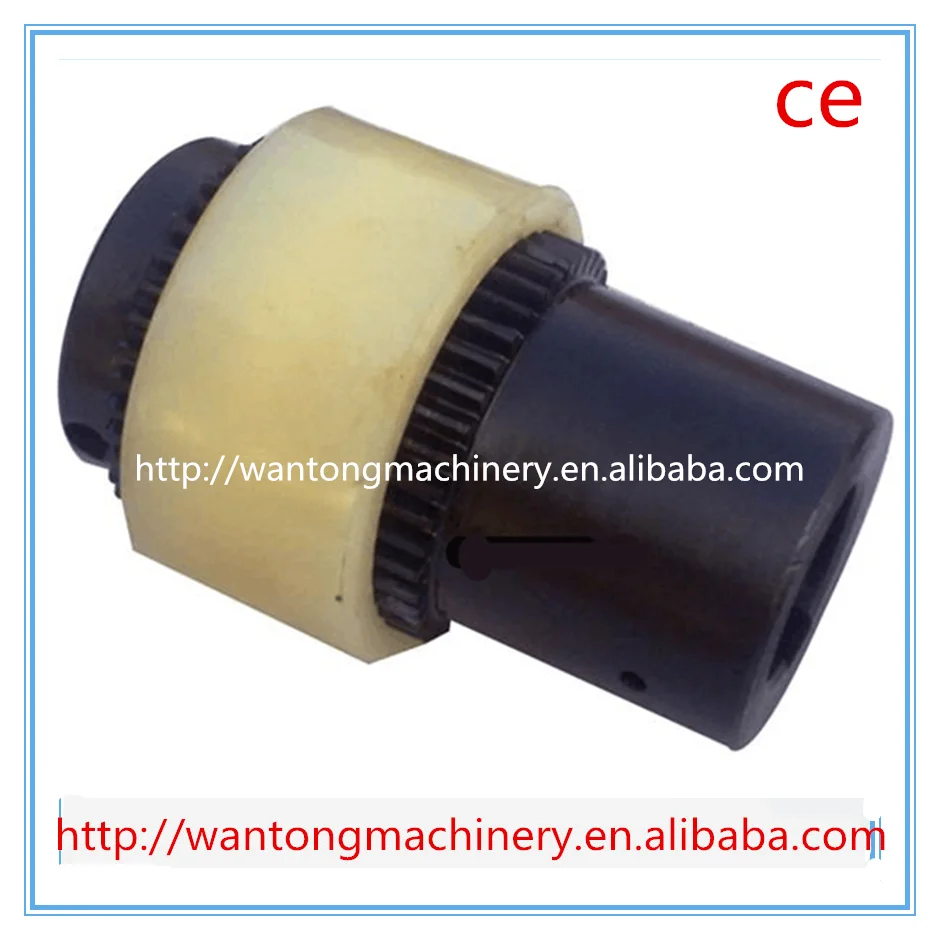

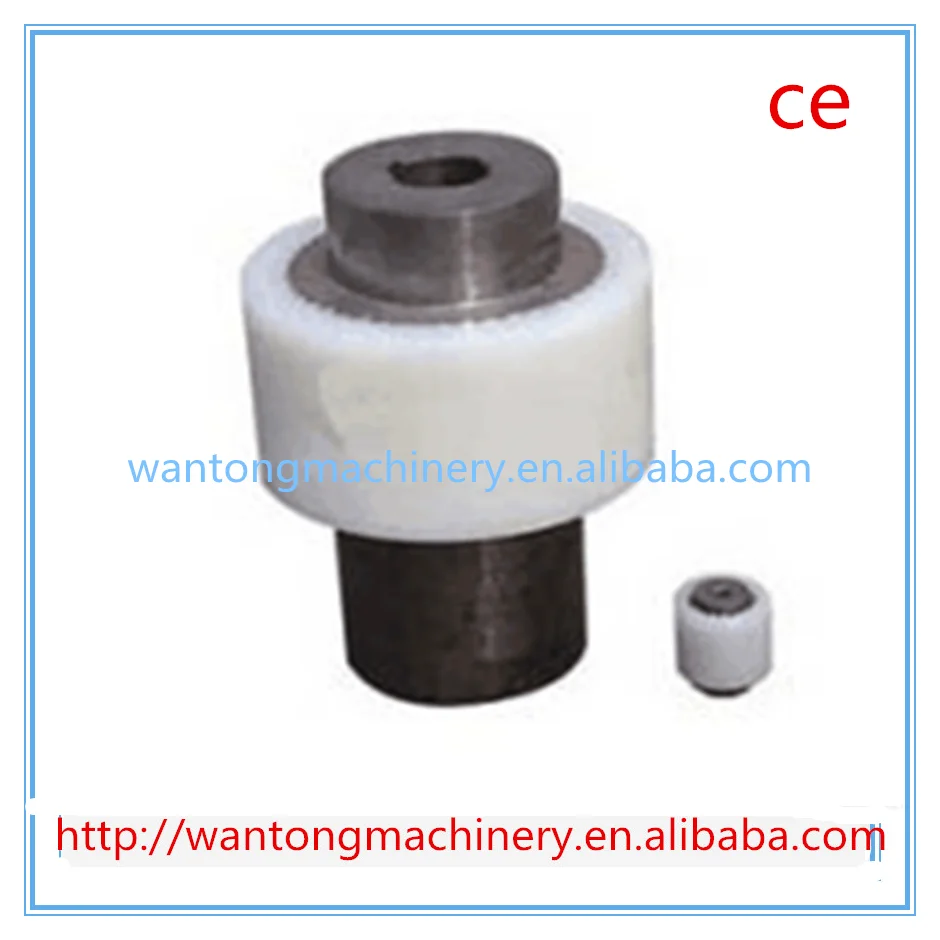

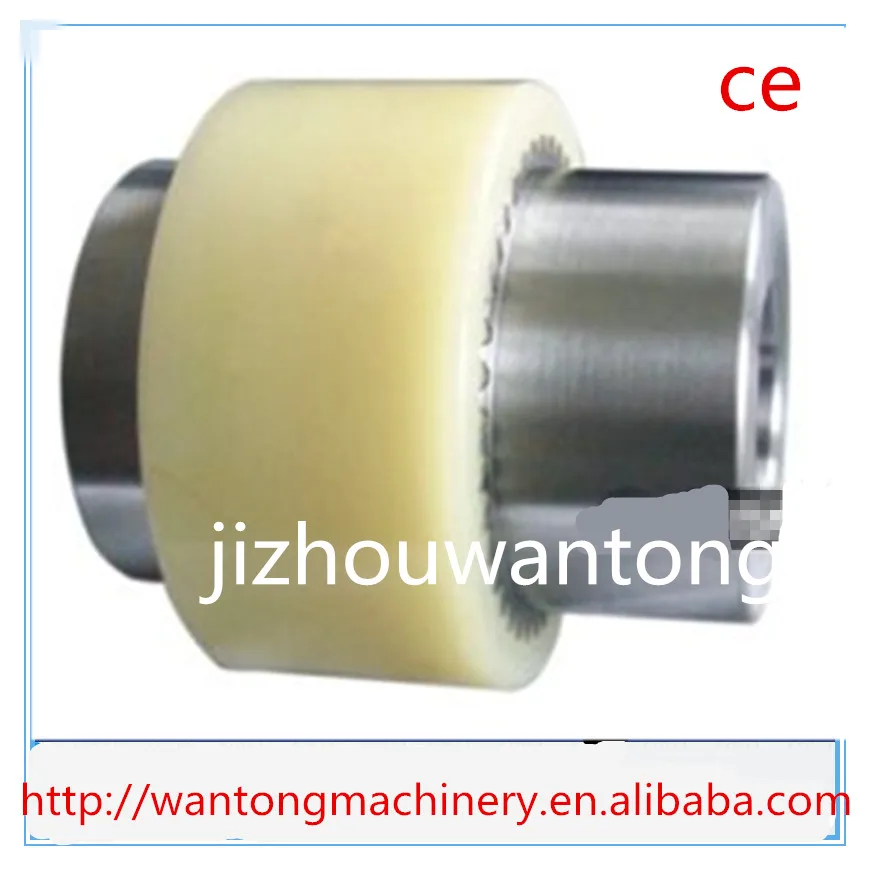

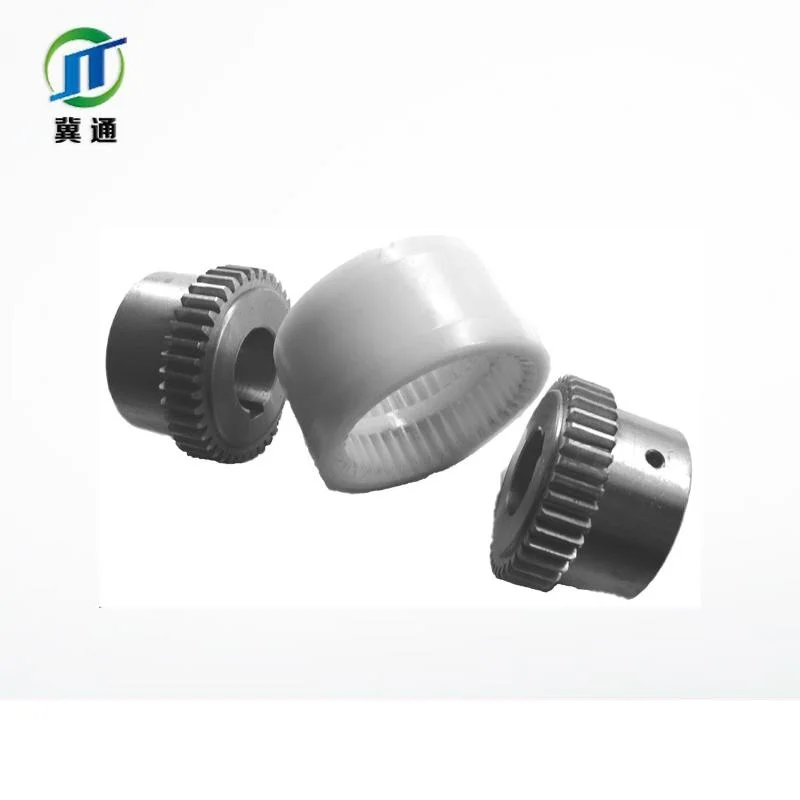

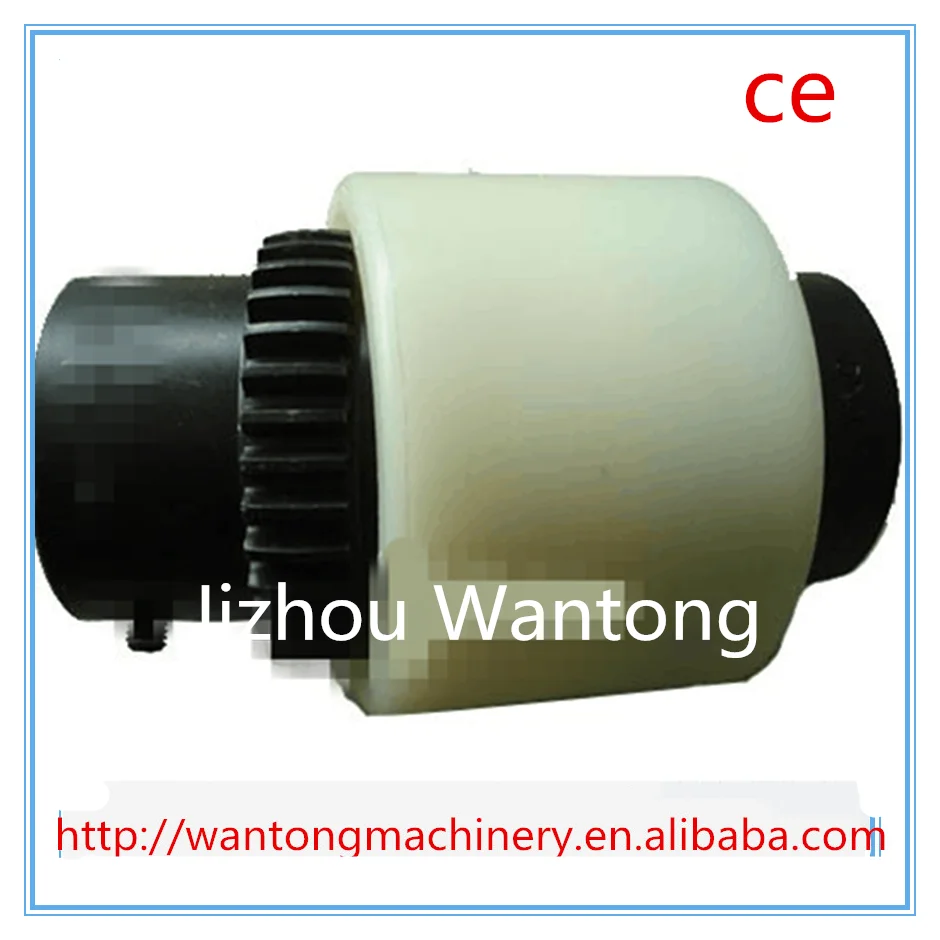

Drum Gear Coupling with Nylon Sleeve

Product Overview

Description

Nylon Sleeve Gear coupling also known as Curved tooth gear Coupling. They are suitable to compensate for axial, radial and angular shaft misalignment. There is no requirement for lubrication. They are adapted to many applications including vertical and blind installations. They operate over a wide range of temperature at speed up to 5,000 RPM. This type of coupling is widely used in application such as Motor, Generator and Pump etc.



Unik Nylon Sleeve Gear Coupling Features:

•     Nylon and steel combined, maintenance free

•     Compensation for axial, radial and angular misalignment

•     Convenient axial plugging assembly

•     Without bolts, pins, flanges to affect balance or safety

•     No requirement of lubrication

•     Excellent electrical insulation

•     Can be vertically or horizontally assembled

•     Tolerance of finished bore in appliance with ISOH7

•     Keyway width tolerance conforms to DIN6885 JS9.

•     Could be alternative for KTR Bowex coupling Type M



Material and surface treatment

•     C45E; S45C; 1045; Nylon;

•     Black oxidizing;

•     Phosphating



Application

•    Printing machinery

•    Packing machinery

•    Wood-working machinery
