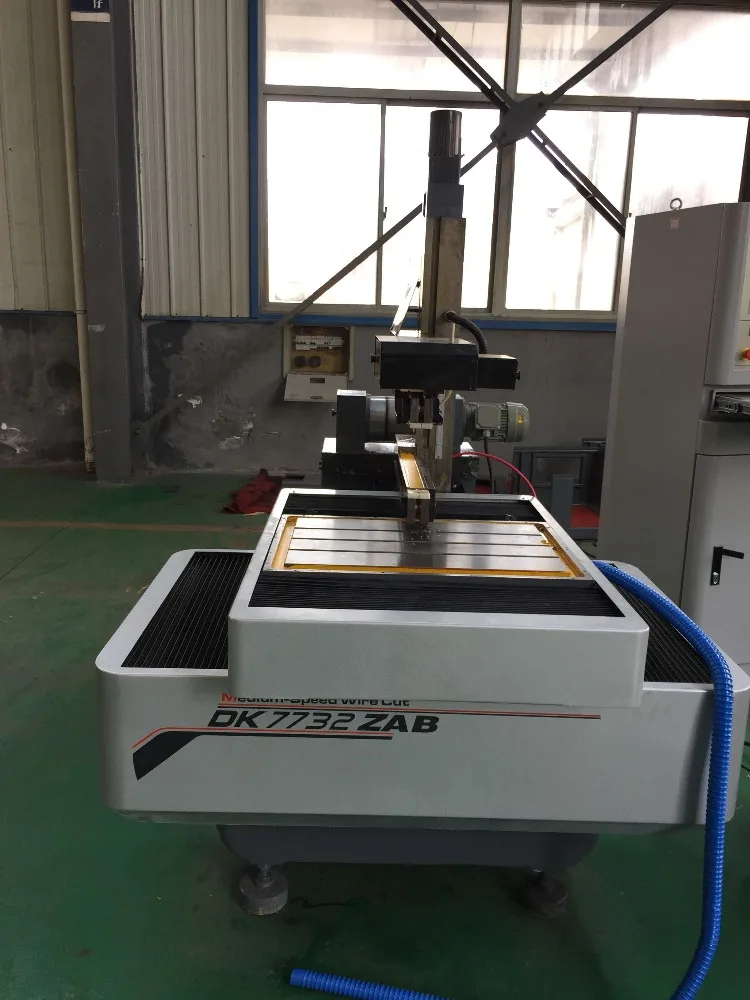

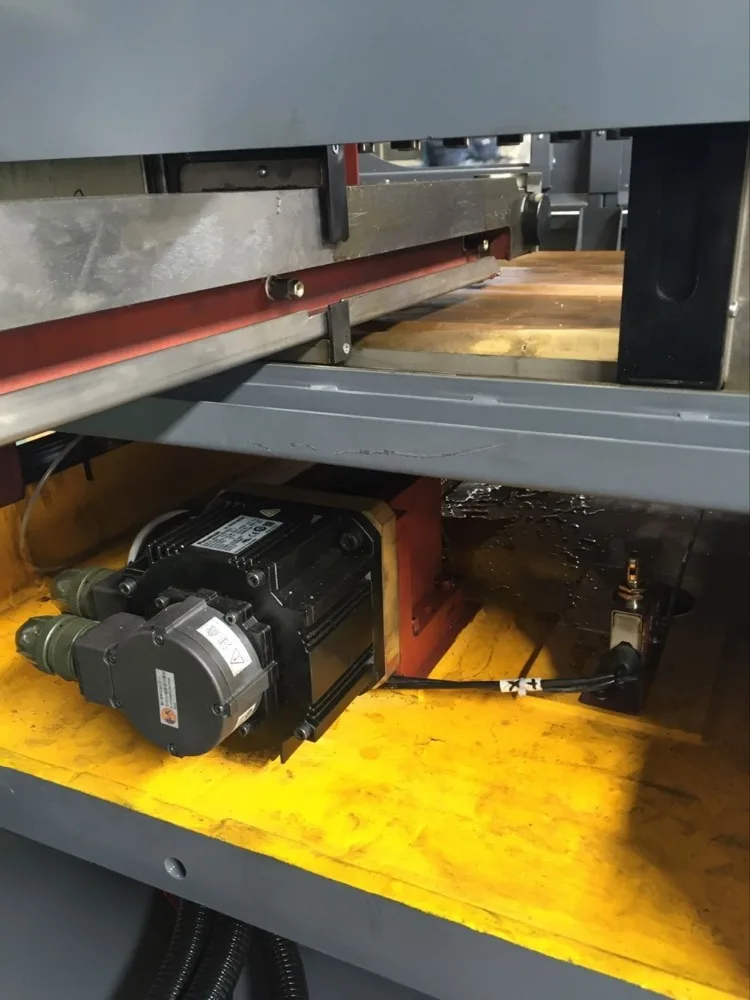

CNC stepper motor multiple edm spark erosion machine
- Category: >>>
- Supplier: Jiangsu Dongqing Cnc Machine Tool Co. Ltd.
Share on (60628853626):
Product Overview
Description
Product Description
Technical parameter | Unit | DK7732ZAB | DK7740ZAB | DK7750ZAB | DK7763ZAB | |||||
Table size (W*D) | mm | 440×680 | 540×760 | 640×1020 | 750×1140 | |||||
Table travel (X*Y) | mm | 320×400 | 400×500 | 500×630 | 630×800 | |||||
Table size(U*V) | mm | 140x140 | ||||||||
Max. workpiece weight | kg | 600 | 1000 | 1600 | 2000 | |||||
Max. thickness of workpiece | mm | 350 | 350 | |||||||
Max. taper angle/workpiece thickness | ±15°/80mm | |||||||||
Molybdenum Dia. | mm | φ0.15~φ0.2mm(recommend φ0.18mm) | ||||||||
Max. wire feed rate | m/sec | 1~11.4m/sec frequency adjustable | ||||||||
Machining precision | mm | ≤0.012 | ||||||||
Max. machining speed | mm2/min | ≥200 | ||||||||
Surface roughness | μm | one time Ra≤2.5，three times Ra≤1.2 five times Ra≤1.0 | ||||||||

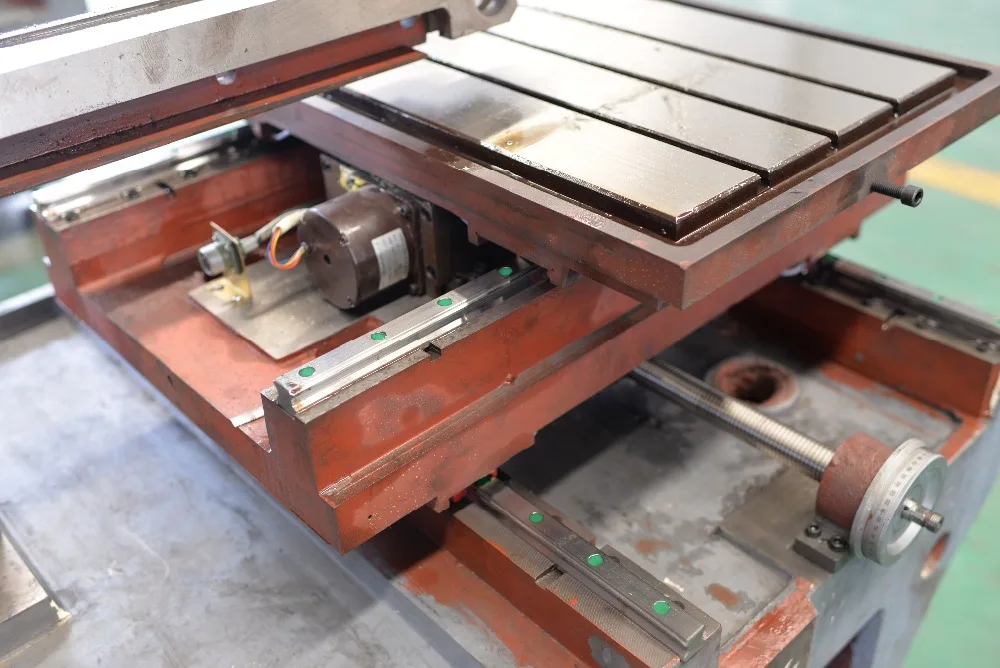

Motor type | X,Y,U,V stepper motor | |||||||||
axis controlled | 4 axis simultaneous | |||||||||
Min.control pace | mm | 0.001 | ||||||||
Power supply | 380V,3Ph,50Hz | |||||||||
Max. working current | A | 10 | ||||||||
P ower consumption | Kw | 1 | ||||||||
Work liquid | JR3A | |||||||||
Water tank | L | 90 | ||||||||

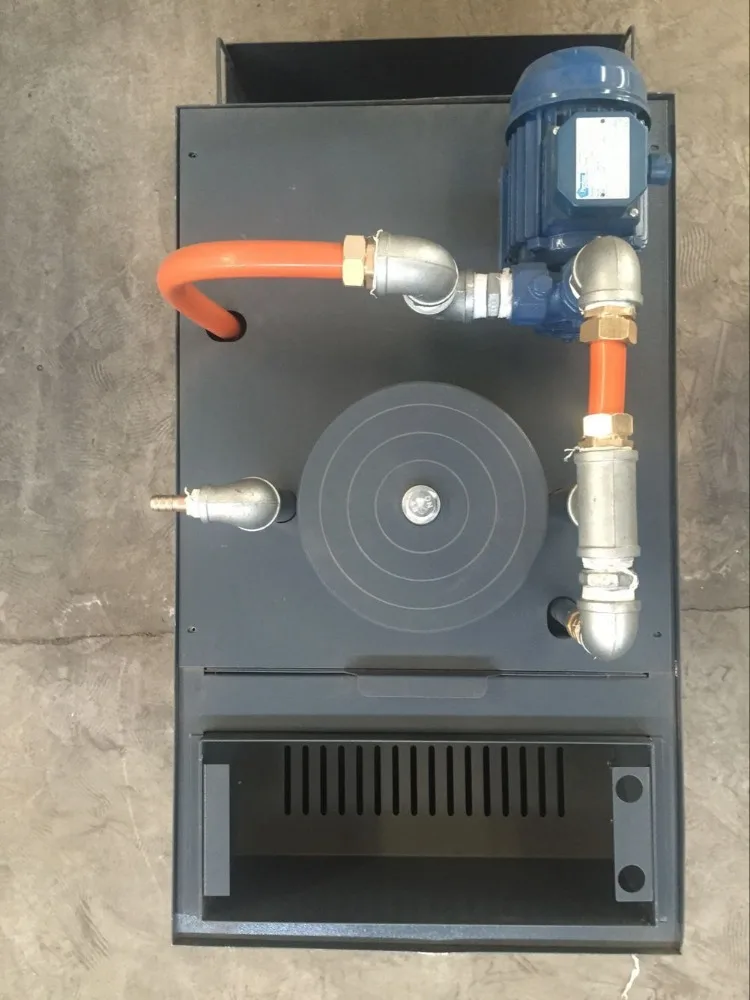

Filtering mode | Paper filter/Italy pump | |||||||||
Closed protective cover | standard | |||||||||
Machine weight | kg | 1800 | 2400 | 2800 | 3800 | |||||
Machine dimension | mm | 1700×1400×2150 | 2000×1750×2250 | 2300×2100×2300 | 2600×2250×2350 | |||||
Certifications
Company Profile
Jiangsu Dongqing CNC Machine Tool Co. Ltd is founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine.
The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut edm, Die sinking edm and Micro hole drilling edm.
The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. “Innovation, development and win-win situation” makes TOPSCNS enjoy high reputation in this line.
It always keep a great ideal in mind, aims to create century brand and strive for top grade. The confidence comes from advanced product, strict quality control system and sustained technical innovation, comes from after-sales service all over the country and global market.
TOPSCNC people wish to share success with you in the future!
Packing&Delivery
Packing Details : To be packed in wooden cases,suitable for export.
Delivery Details : 25~35 days after receipt of deposit
Customer Photo
Our Service
1) Brand:If you want to purchase wire cut machine in China,the best choice is TOPSCNC.We are confident in our products.If you choose us,we'll never let you down.
2)Service :You can leave message on aliwangwang.We'll reply you within 24 hours.
3) Price :Because we are factory,so you can get good products at the best price.
4 )Warranty: One year after shipment but consumables are not included.
Contact
Company:Jiangsu Dongqing CNC Machine Tool Co.Ltd
Address:East Suburb Development Zone,Taizhou city,Jiangsu Province,China
Tel:0086-523-86290115
Mobile:0086-15751152221
Website:www.topscnc.cn
