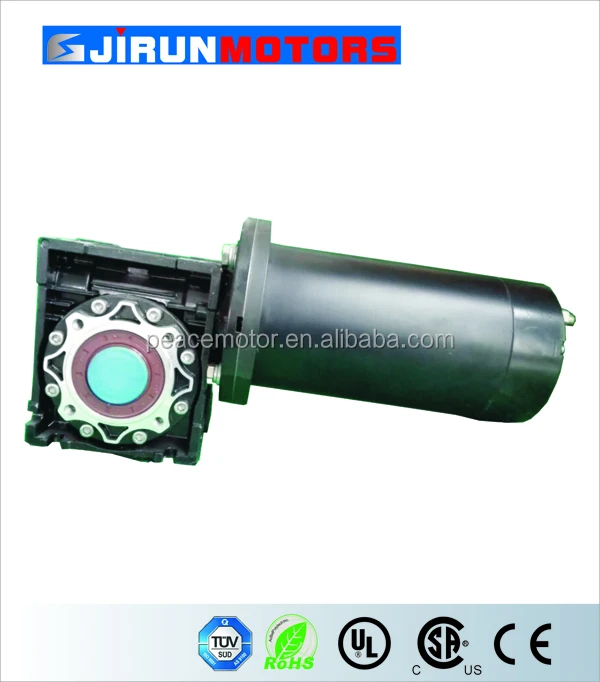

NMRV50,110ZYT series high torque 12V 24V dc worm gearmotor 500W
- Category: >>>
- Supplier: Ningbo Biote Mechanical Electrical Co. Ltd
Share on (60628925440):
Product Overview
Description
Product Name: NMRV50,110ZYT series high torque 12V 24V dc worm gearmotor 500W
NMRV50,110ZYT series high torque 12V 24V dc worm gearmotor 500W
Description:
NMRV50,110ZYT series high torque 12V 24V dc worm gearmotor 500W
1. Voltage: 6V 9V 12V 24V
2. Speed: 1-1600rpm
3. Torque: 1-80kg. Cm rated torque
4. Gearbox 36mm Dia X 26.4-52.4mm length Shaft: 8mm Dia X 22mm Length
5. Motor's voltage, speed, torque, shaft can accept customizied requirment after evaluation.
4. Packing Details: 280-350g/PCS(approx) 40PCS/CTN 16kg/carton
5 The datasheet and price range only typical data for reference, Gear motor's price are usually decide by Motor's reduction ratio and torque. Please fell free to contact with me if youwant this motor Specificaton or Drawing.& v id="StyleTableProd">
Parameter:
| Gearbox data: | |||||
| Number of stages | 1stages reduction | 2stages reduction | 3stages reduction | 4stages reduction | 5stages reduction |
| Reduction ratio | 3.7, 5.2 | 13.7, 19.2, 26.9 | 50.9, 71.2, 99.5, 139 | 188, 264, 369, 516, 721 | 699, 977, 1367, 1911, 2672, 3736 |
| Gearbox length" L" mm | 26.4 | 32.6 | 38.9 | 45.3 | 52.5 |
| Max. Running torque | 3.0Kgf· cm | 6.0Kgf· cm | 8.0Kgf· cm | 12Kgf· cm | 20Kgf· cm |
| Max. gear breaking torque | 9.0Kgf· cm | 18Kgf· cm | 24Kgf· cm | 36Kgf· cm | 60Kgf· cm |
| Gearing efficiency | 90% | 81% | 73% | 65% | 59% |
| Motor data: | |||||||||
| Motor name | Rated Volt. V | No load | Load torque | Stall torque | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| mA | r/min | mA | r/min | gf. cm | W | gf. cm | mA | ||
| RS-555123000 | 12 | ≤ 140 | 3000 | ≤ 800 | 2200 | 150 | 3.3 | 600 | 3000 |
| RS-555124500 | 12 | ≤ 220 | 4500 | ≤ 1200 | 3300 | 220 | 7.2 | 880 | 4800 |
| RS-555126000 | 12 | ≤ 350 | 6000 | ≤ 2000 | 4500 | 300 | 13.5 | 1200 | 6000 |
| RS-555243000 | 24 | ≤ 70 | 3000 | ≤ 400 | 2200 | 150 | 3.3 | 600 | 1600 |
| RS-555244500 | 24 | ≤ 110 | 4500 | ≤ 600 | 3300 | 220 | 7.2 | 880 | 3000 |
| RS-555246000 | 24 | ≤ 180 | 6000 | ≤ 1000 | 4500 | 300 | 13.5 | 1200 | 4000 |

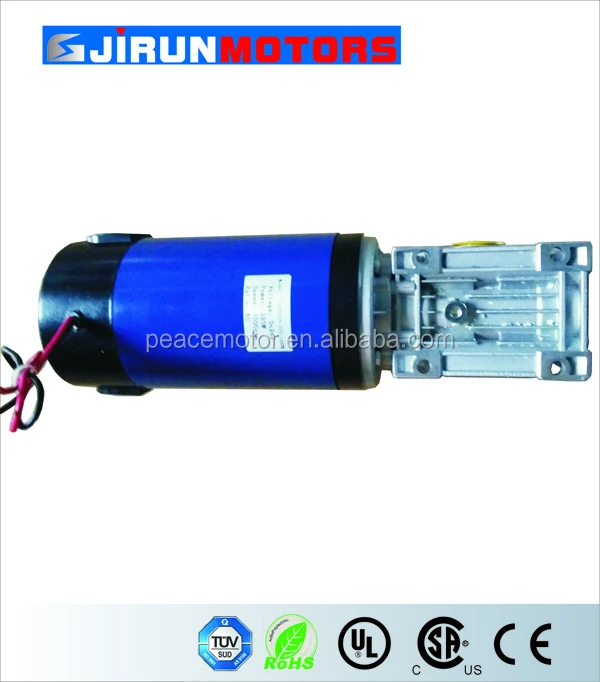

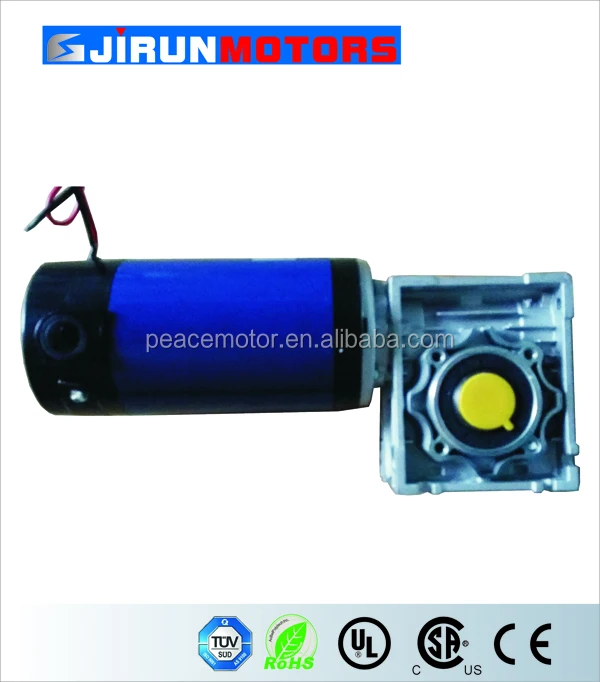

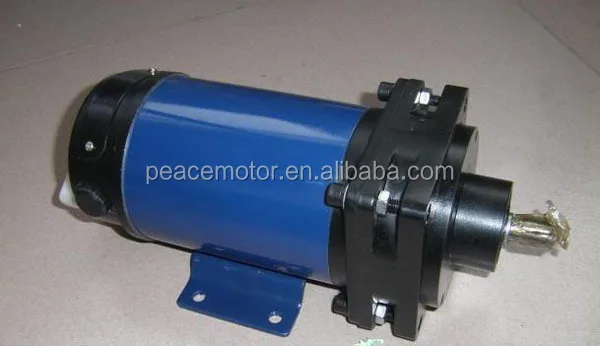

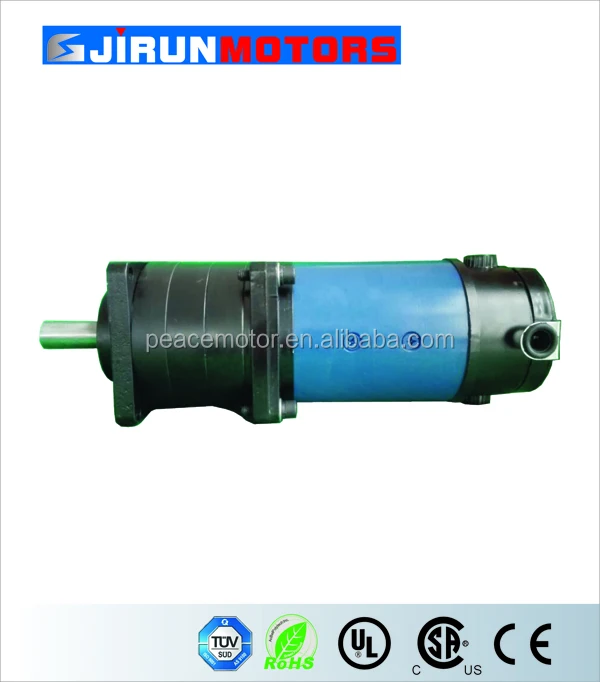

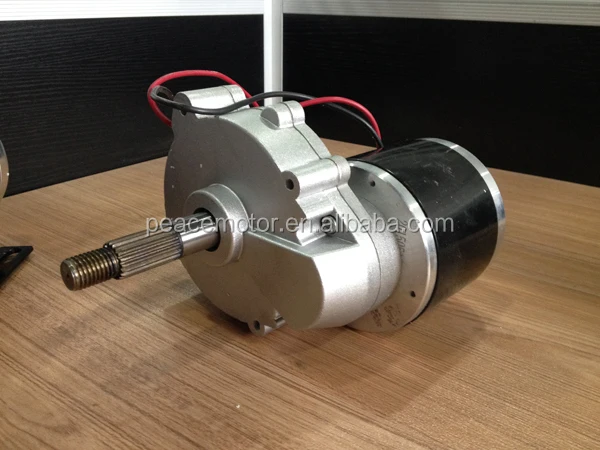

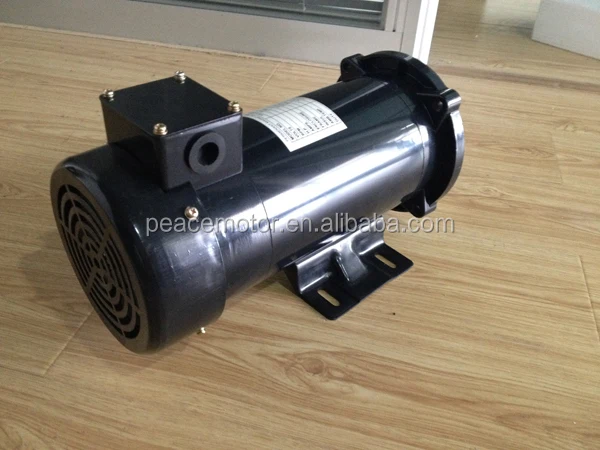

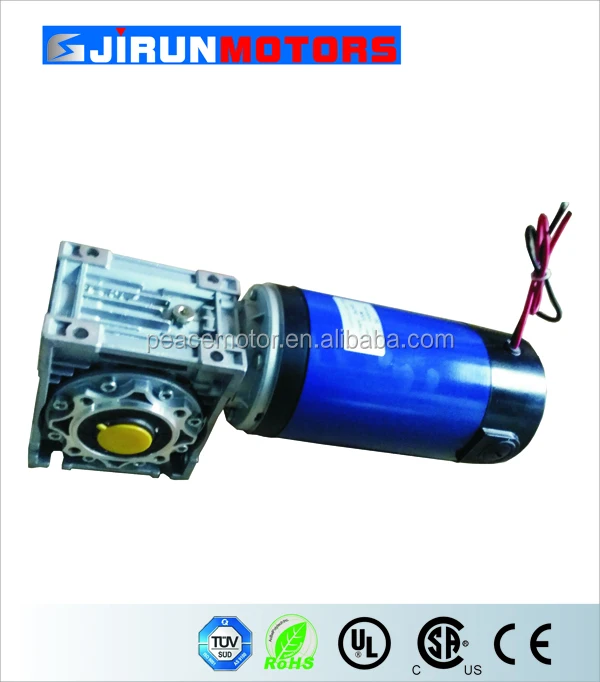

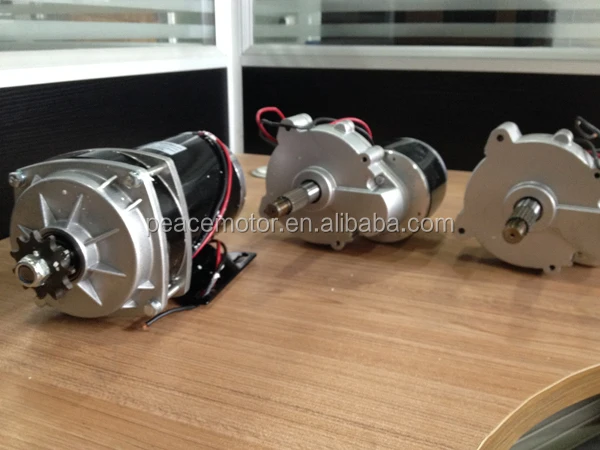

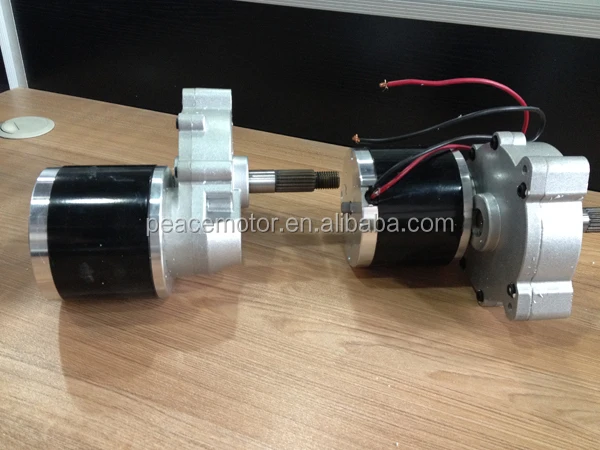

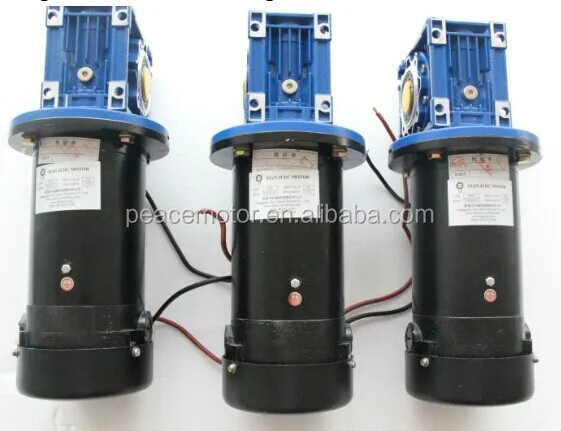

Picture:
Packing:
Export standard: Wooden case, Plywood case, Carton box for sea & air freight
Sample time:5-7 days
Delivery time:15-20days after received payment
Service:
1. Low MOQ: It can meet your promotional business very well.
2. OEM Accepted : We can produce any your design .
3. Good Service : We treat clients as friend.
4. Good Quality :We have strict quality control system .Good reputation in the market.
5. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Order Information:
1. Voltage 2. Speed 3. Frequency 4. Mount Type 5. Frame material 6. others
