Product Overview

Description

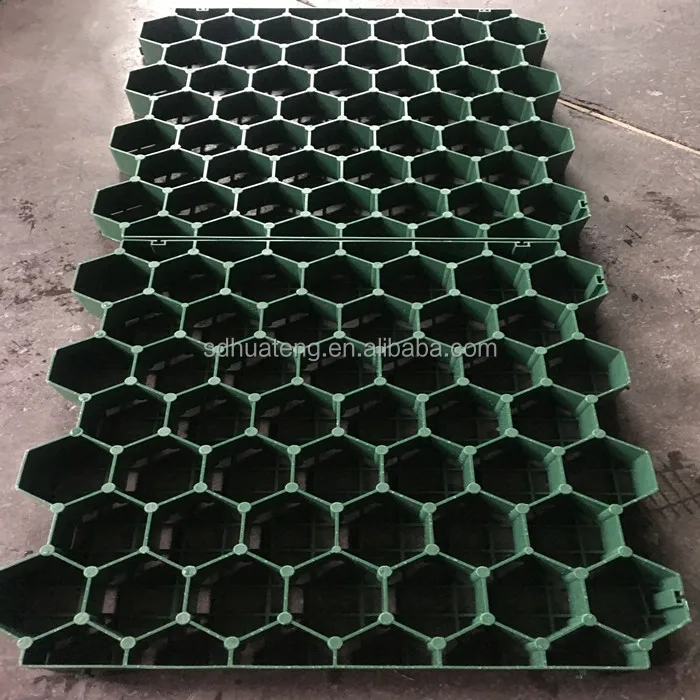

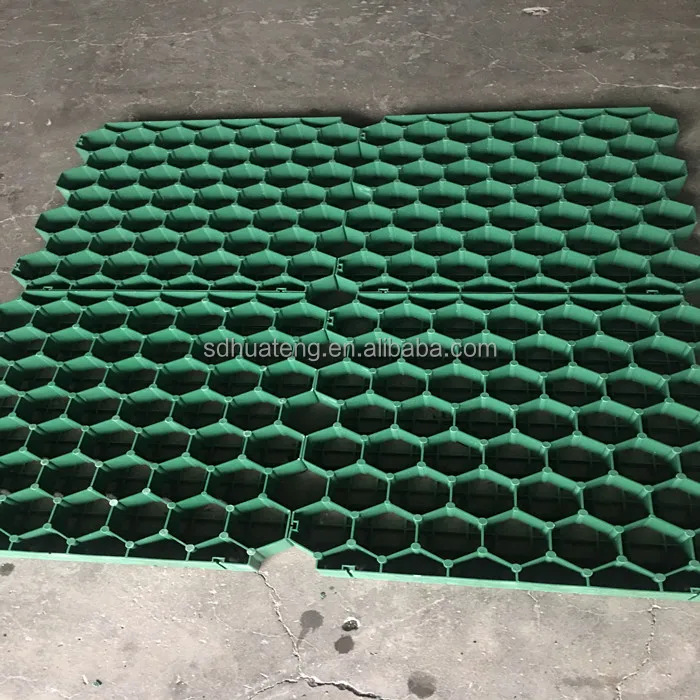

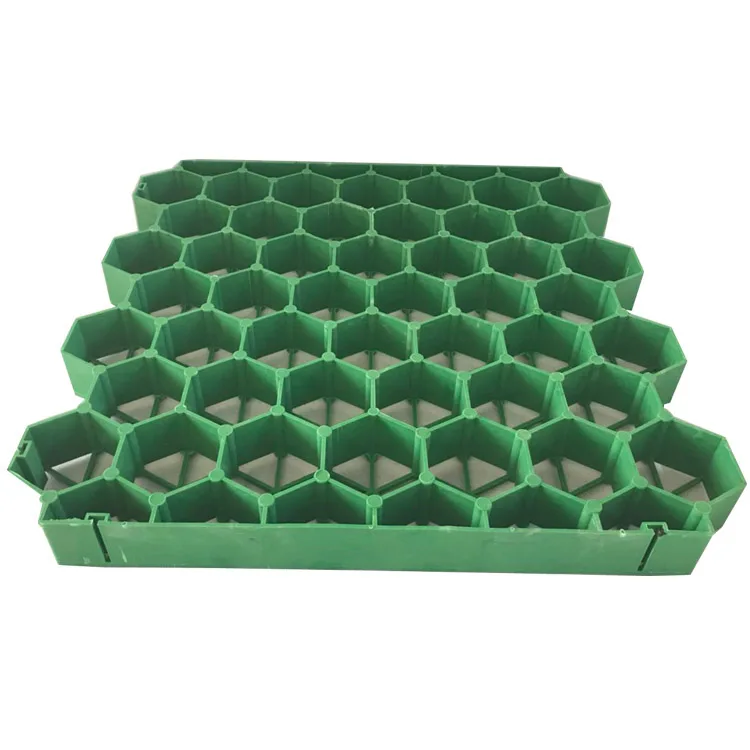

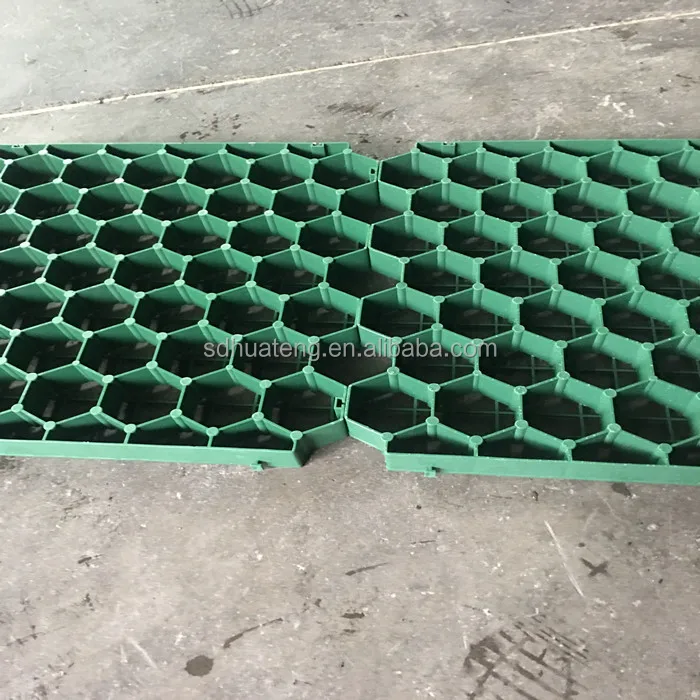

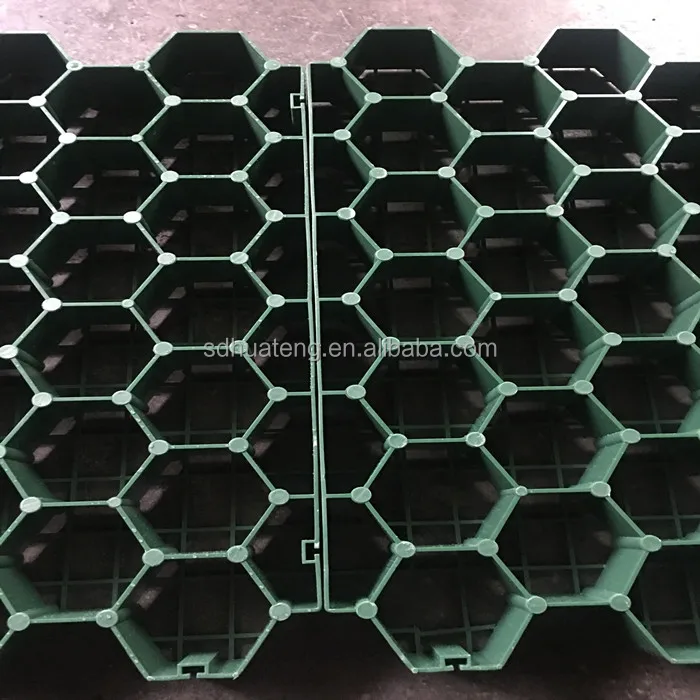

High quality plastic interlocking gravel grass paving grid plastic paving grid gravel driveway

Product Description

MaterialPP,HDPE
 Specification500mm(L)×250mm(W)×40mm(H)±5mm
Anti-pressuring cylinder 55mm(long)×55mm(width)×40mm(high)±5mm
Weight≥2.8Kg/m2
Anti-pressuring cylinder number≥120/m2
Anti-pressuring cylinder wall thickness≥2.0mm
 Anti-pressuring cylinder compressive strengthBlack Yellow White Green
Thickness≥65
Anti-pressuring cylinder pore number≥6
advantageplastic grass lawn grid uses the PP or HDPE material, produced after a special one-time procedure into a three-dimensional independent anti-pressuring cylinder structure, the anti-pressuring cylinders are connected with union lever. Adopts high technique and high quality material, resistible to pressure and friction, aging-resistant, and low down cauterization.
usefulnessUsed in virescence in parking lot and driveway, community virescence
Join and pave pieces of cushions in park, community and golf driveway, prow lawn above, good parking and virescence are available.
Building “roof garden”
Used in roof virescence and living environment beautification.







?

1.jpgThe cushion can be placed in the required position accordance with the requirements of the project for Reinforcement of roads, railways and soft soil foundation, slope protection, green structure, the construction of retaining walls and so on. 2.jpg

Exposed Aggregate or Engineered Infill

Fill BOLV GEOCELL with specified aggregate material progressively from front to back. Be sure to use an infill material with particle sizes appropriate for the specified depth of the BOLV GEOCELL.

For vegetative walls fill inner cells progressively with aggregate infill material. Limit the drop height of infill material to 1m to avoid displacement of the hdpe geocell wall. Fill outer cells with soil to allow vegetation to grow.

The production of the geocell sheet and the ultrasonic welding process are separated. After the sufficient geocell sheet is stored, the workers will prepare the geocell sheets and transport them close to the welding platform of the ultrasonic welding machine. The operation of the ultrasonic welding machine is Manual and the welding process is semi-automatic operation. The workers should put the geocell sheet into the specified welding position,then touch the welding switch, the ultrasonic welding start. The number of sheets to be welded is set in advance. After the ultrasonic welding completed, the workers pull out the welded geocell sheet and checks the geocell welding quality. Both ends are trimmed and cut.
