4110HZ Fiberfrax Board Lowes Fire Proof Ceramic Fiber Board

Product Overview

Description

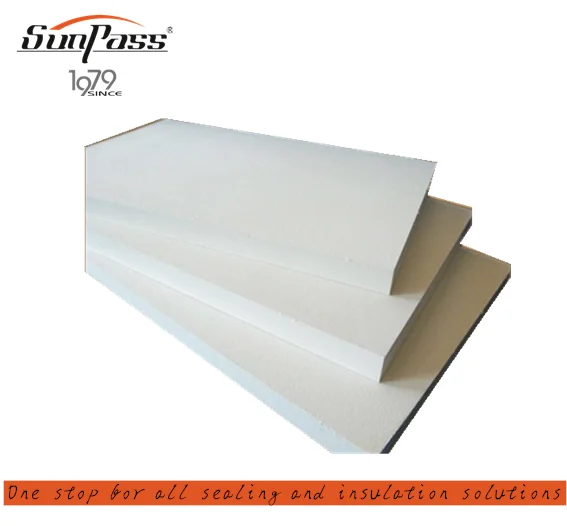

4110HZ Fiberfrax Board Lowes Fire Proof Ceramic Fiber Board





4110HZ Ceramic Fiber Board Description:
1.Ceramic fiber board is a lightweight refractory material processed with alumina-silica fibres for applications at temperatures up to 1600C.
2.Ceramic fiber board is a vacuum formed product that resists higher gas velocities than ceramic fiber blanket.

3.It is ideal for furnace,boiler duct and stacking lining dut to its low thermal conductivity and low heat storage allowing shorter cycle times and quicker access for maintenance.

4110HZ Ceramic Fiber Board Applications:

1.Refractory lining for industrial furnace.

2.Combustion chamber liner, boilers and heater.

3.Back-up insulation for monolithic refractories.

4.Transfer of non-ferrous metals .

5.Expansion joiot boards.

6.Barrier against flame.



4110HZ Ceramic Fiber Board Advantages:
1.Low heat storage.
2.Low thermal conductivity.

4110HZ Ceramic Fiber Board Specification(mm):

600*400*20-50;900*600*20-50,other made according to customers's requirement.

Grade		COM	STD	HP	HA	HZ
Specifieation temp(°C)		1260	1260	1260	1400	1400
TENGLONG STYLE		4220COM	4220STD	4220HP	4220HA	4220HZ
Working temp(°C)		<1000	1000	1100	1200	1350
Colour		White	White	White	White	White
Density (kg/m3)		260 320	260 320	260 320	260 320	260 320
Rate of liner(%)		-4 (1000°C)	-3 (1000°C)	-3 (1000°C)	-3 (1200°C)	-3 (1350°C)
Rate of thermal Conductivity(W/m.k) (128kg/m3)		0.085 (400°C) 0.132 (800) (1000°C)	0.085 (400°C) 0.132 (800) (1000°C)	0.085 (400°C) 0.132 (800) (1000°C)	0.085 (400°C) 0.132 (800) (1000°C)	0.085 (400°C) 0.132 (800) (1000°C)
Tensile Strength (MPa)(128kg/m3)		0.5	0.5	0.5	0.5	0.5
Chemical Composition(%)	A1203	44	46	47-49	52-55	39-40
	A1203+SiO2	96	97	99	99	-
	A1203+SiO2+Zr02	-	-	-	-	99
	Zr02	-	-	-	-	15-17
	Fe203	<1.2	<1.0	0.2	0.2	0.2
	Na20-K20	<=0.5	<=0.5	0.2	0.2	0.2





1. What is your MOQ?

MOQ may vary by customer's special requirement; we try our best to meet your business requirement.



2. What's your payment terms?

We normally do T/T, and we can also offer western union account for transfer money. And more flexible payment terms, welcome to have a discuss.



3. Can you provide samples?

Yes, we can offer samples, and some samples are free



4. Can you delivery by express?

Yes, we can delivery by any express.



5. When will the sample be ready?

Normally, the sample can be ready in 3 days.
