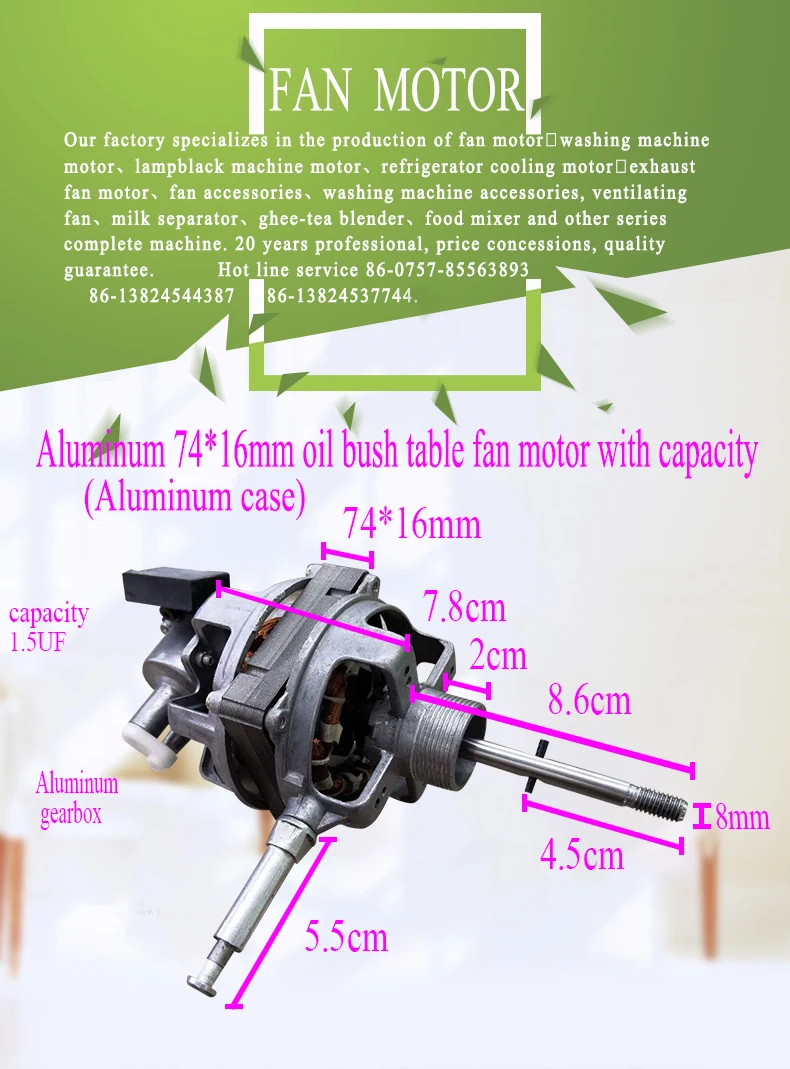

High quality Aluminum cover 74*16mm fan table motor wall motor fan motor
- Category: >>>
- Supplier: Foshan Nanhai Keduo Electrical Plants
Share on (60629173433):
Product Overview
Description
Payment terms
T/T 30% deposit, and balance 70% before shipment
Product Description
Technical Parameters of Table Fan | ||||||||||
Winding | Voltage (V) | Frequecy (Hz) | Stator Lamination (MM) | Input Power (W) | Case Height (CM) | Shaft Length (CM) | Pitch (CM) | Central Axis Length (CM) | Capacity µF/400V | RPM (r/min) |
Copper/ Aluminum | 220 | 50 | 74*16 | 60 | 7.8 | 8.6 | 4.5 | 5.5 | 1.5 | 1300 |
.
Remark: Fan motors need to be tested according to the blade, we support special-made.
Packaging details
Fit to exported standard, safe and strong, in cartons.
Qty:1*20
G.W.:17.5kg/18.5kg/19.6kg
Package size:Oil bush 54*25*18cm
ball bearing 54*26*18cm
Advantages: use the upper and lower layers to put 10 pcs, moderate quantity, thick cartons, adequate protection for motor.
